ADVANTAGE

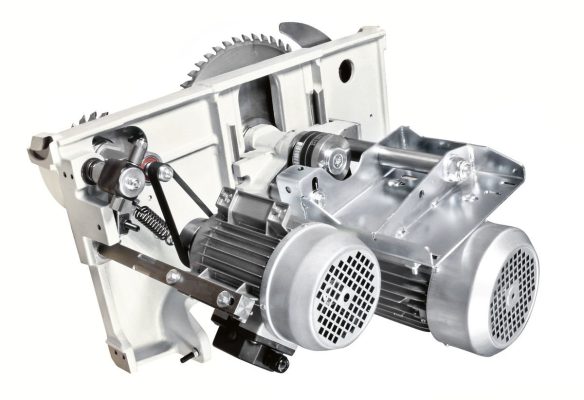

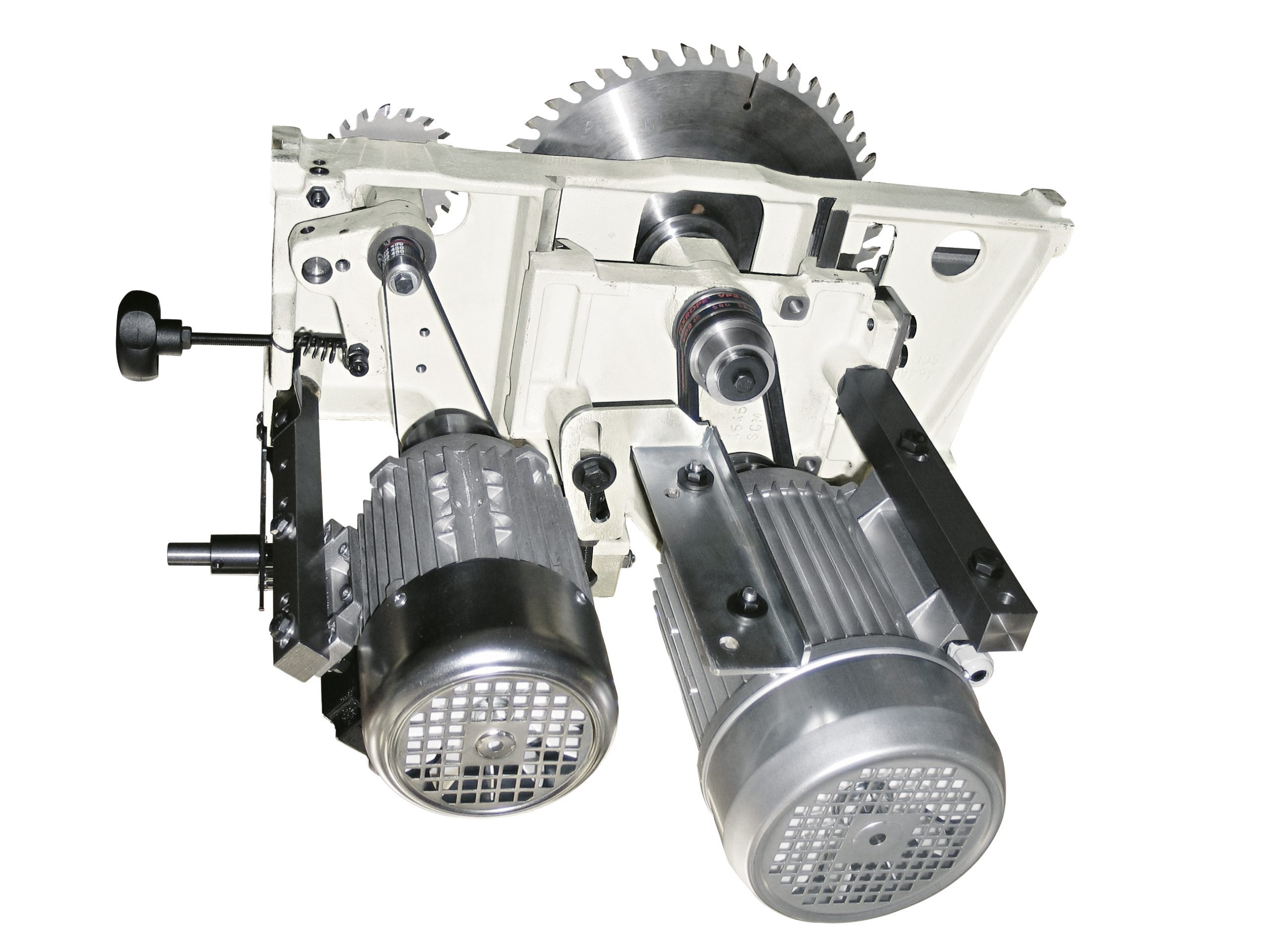

Unique in the world in its category! The cast iron saw unit with a rigid closed loop structure can accommodate a blade of max. 400 mm diameter (for si 400es and Nova si 40) with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.
Unsurpassed moulding

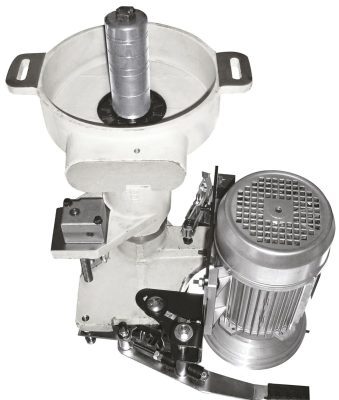

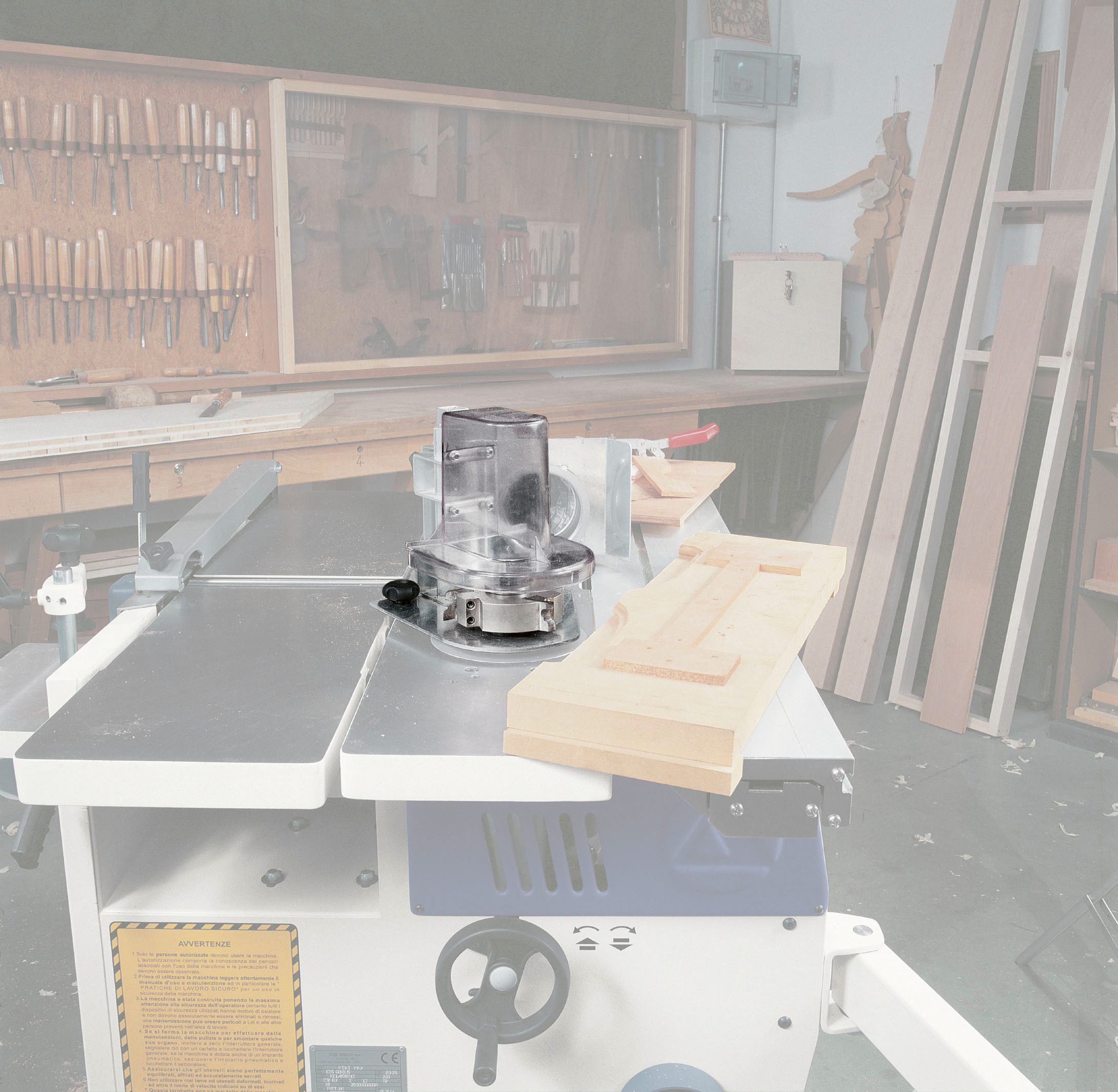

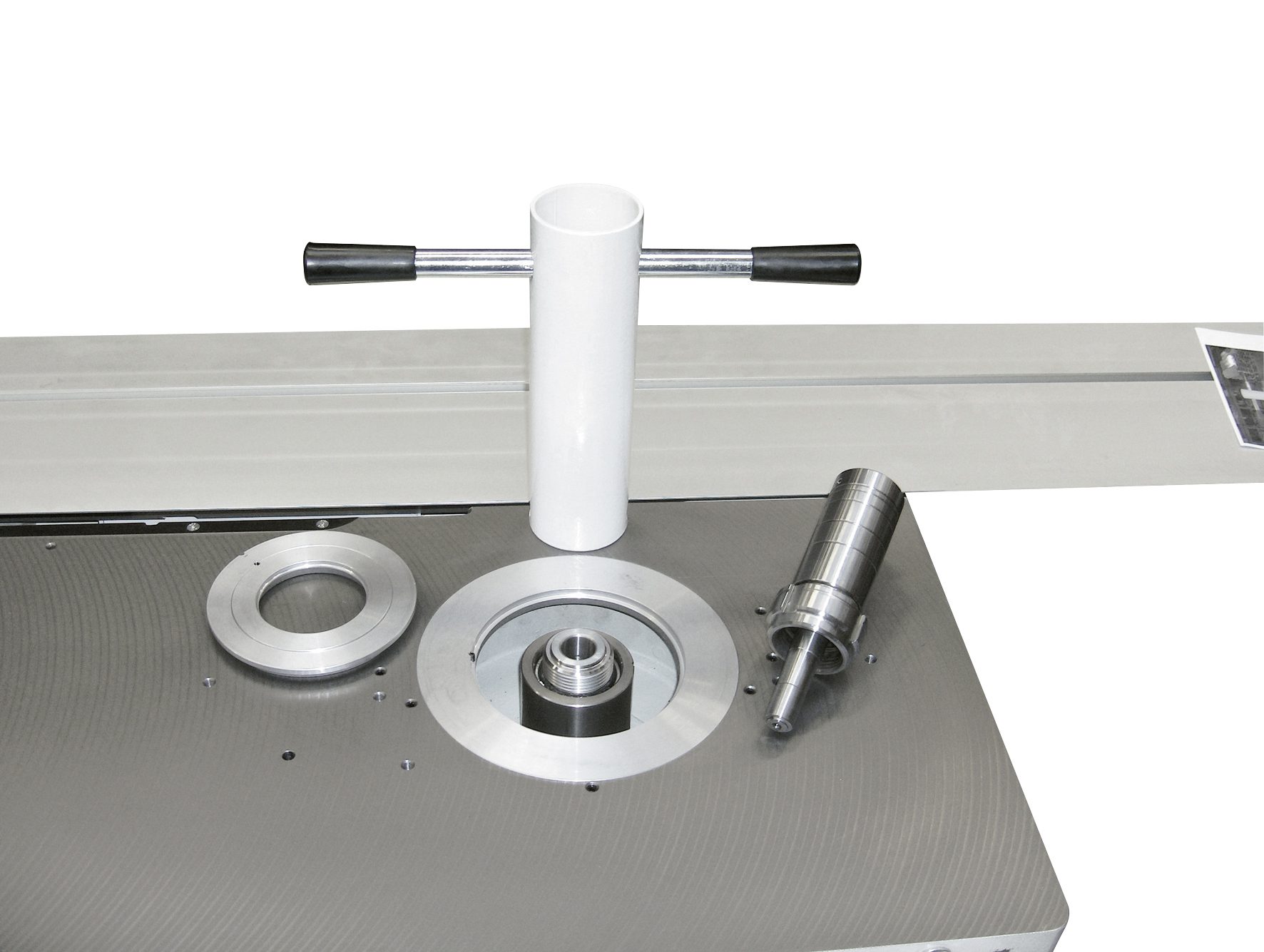

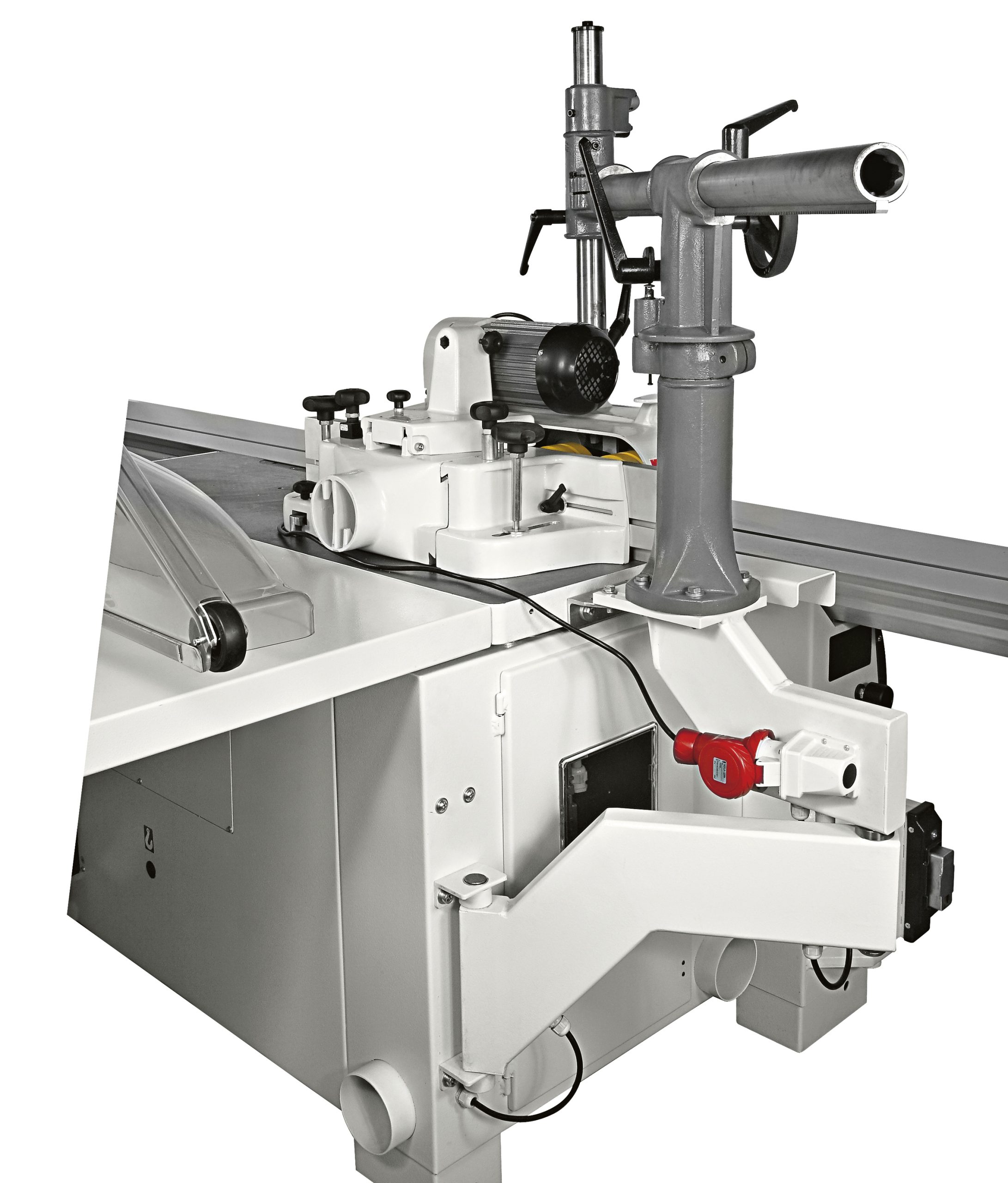

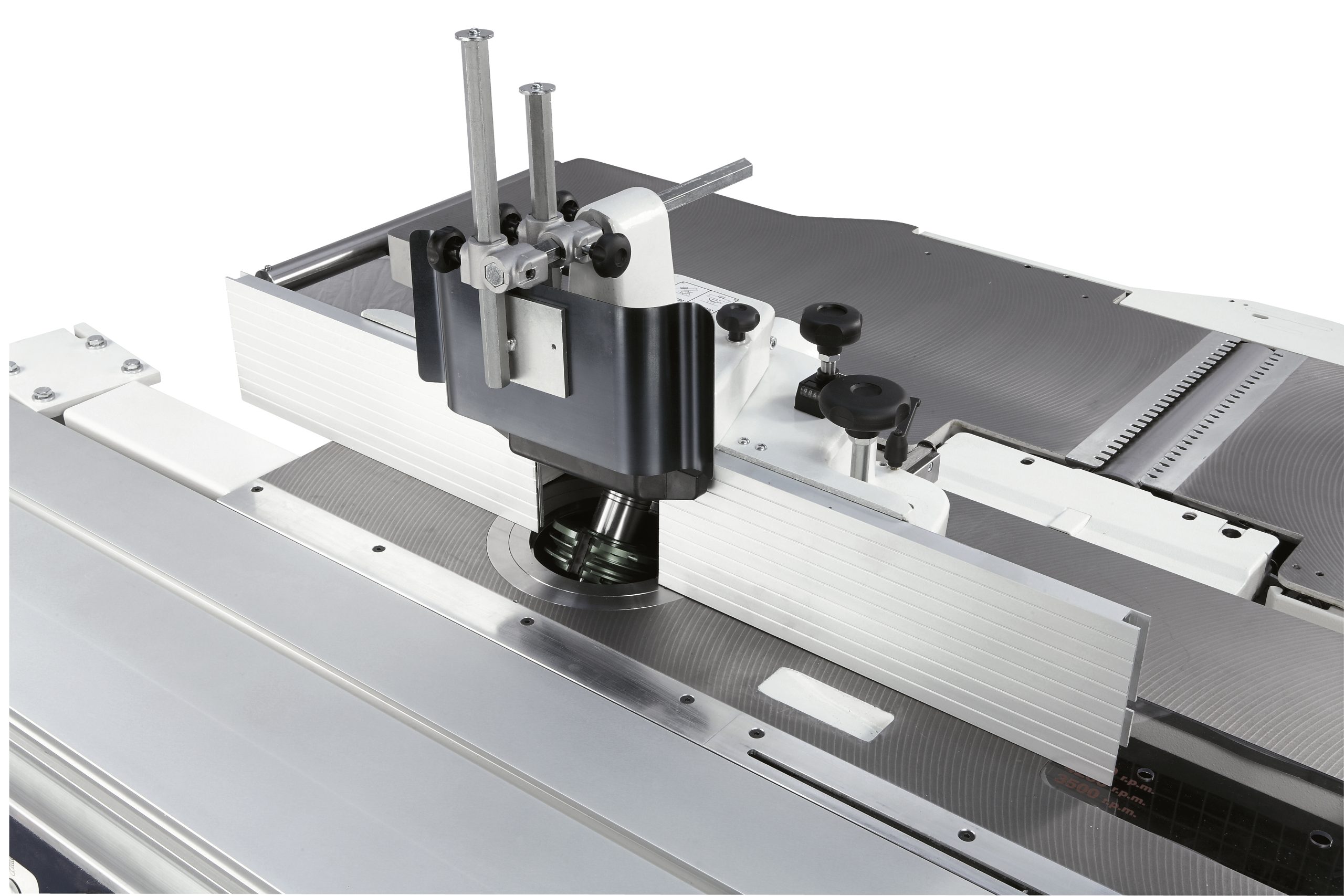

Maximum stability and rigidity in all working conditions, thanks to a large spindle shaper column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools up to 320 mm of diameter (300 mm no CE).
Perfect finish

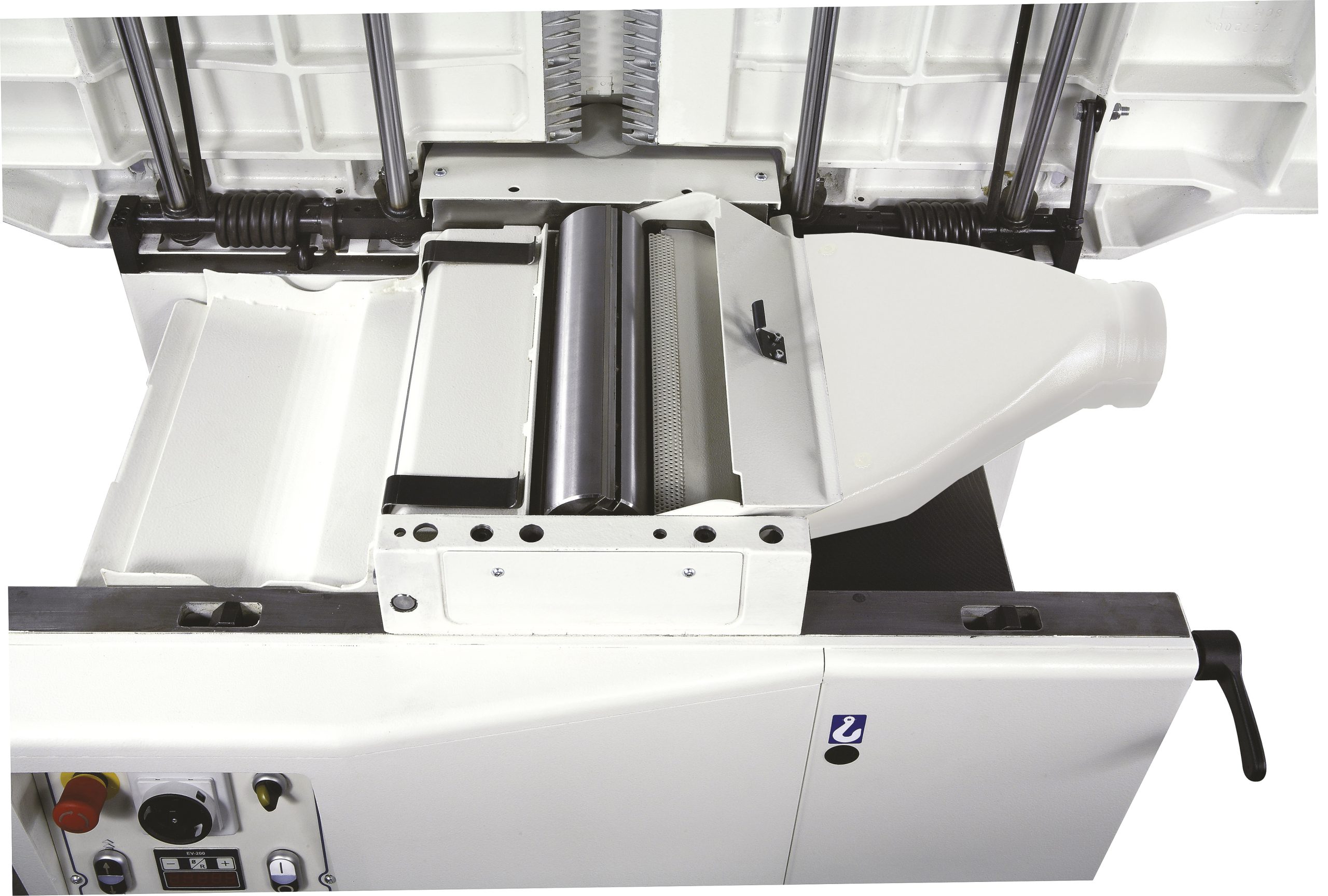

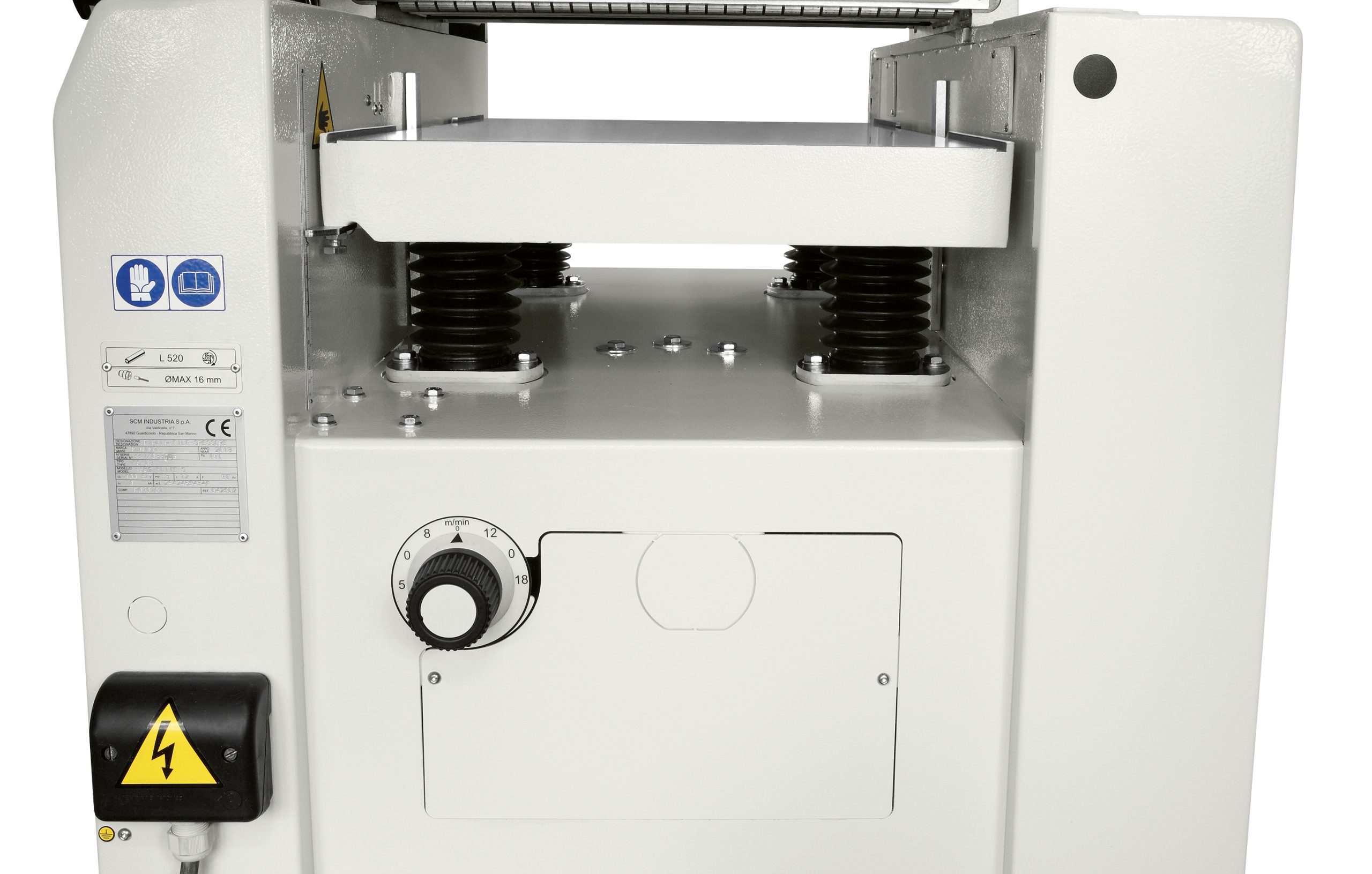

An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
Technical data
cu 410es | ||
Cutterhead working width | mm / inches | 410 / 16 |
Jointer bed length | mm / inches | 2200 / 86 |
Max. sawblade diameter with scoring blade installed | mm / inches | 350 / 14 |
Sawblade arbor size | mm / inches | 25 / 1 |
Max. sawblade projection from table at 90°/45° | mm / inches | 118/84 4.64/3.3 |
Cutting width on parallel fence (Rip capacity) | mm / inches | 1000 / 39 |
Max. useful spindle length | mm / inches | 125 / 5 |
Max. tool diameter when profiling | mm / inches | 240 / 9.44 |
Spindle moulder speed | rpm | 1700/4000/7000/9000 |
(3x) Three-phase motors | Hp | 8 |

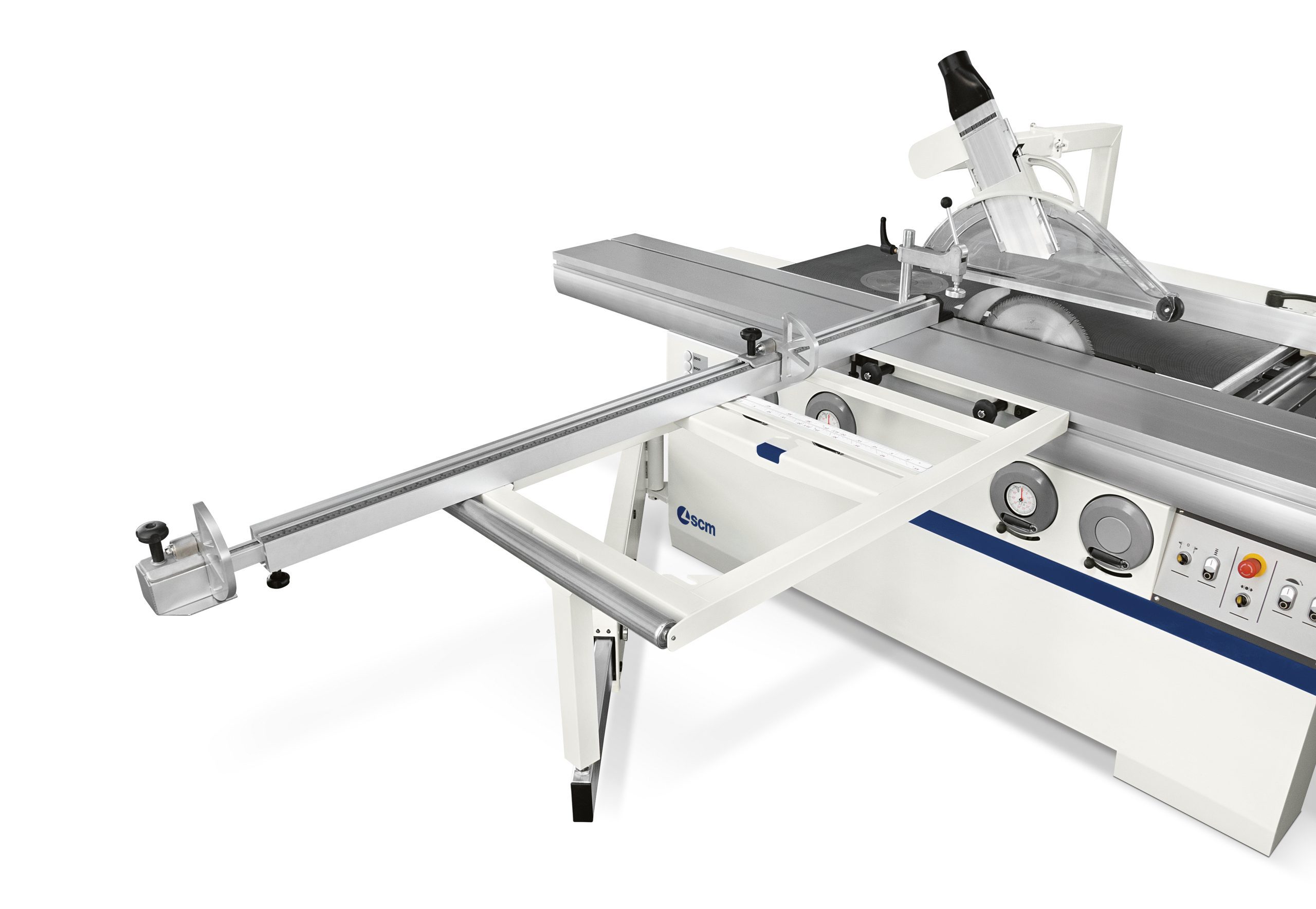

Max. squaring stroke of sliding table saw | mm / ft | 2600 / 8.5 |
With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimension of standard knives |
mm/n° mm |
95/4 410 x 30 x 3 |
