ADVANTAGE
Perfect finishing

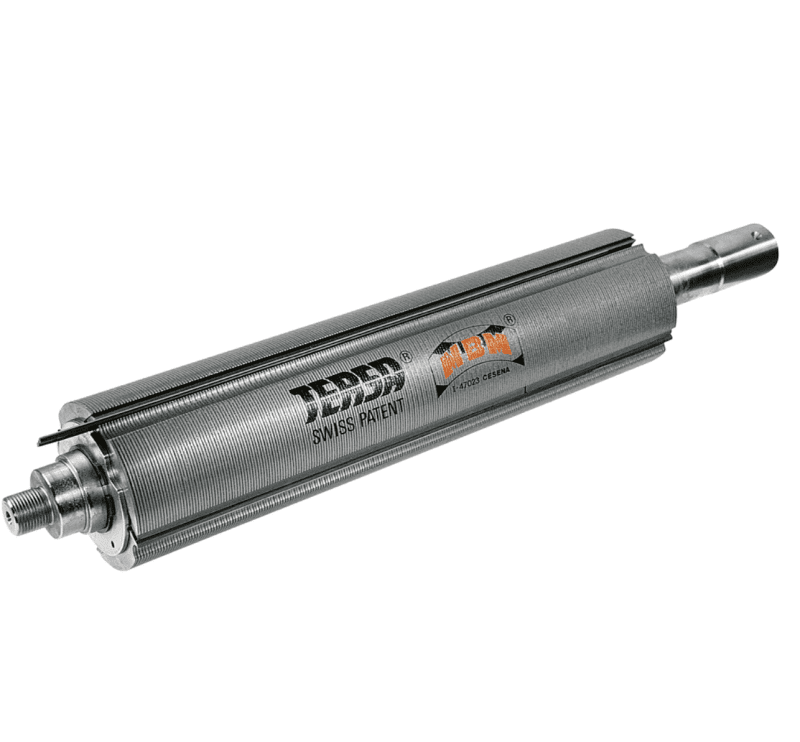

The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressureof the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

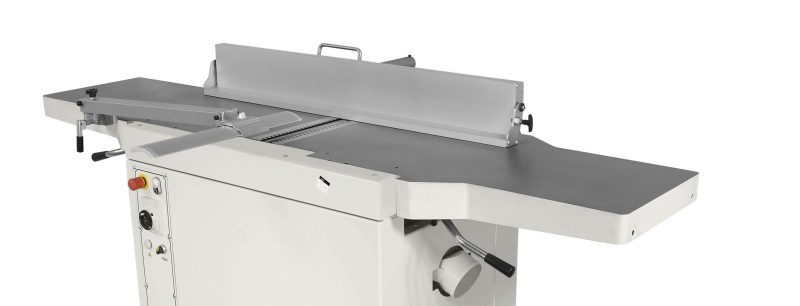

Planing fence
The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.
“Xylent” spiral knife cutter block with 3 series of knives
The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technical data
fs 41c | ||
Cutterhead working width | mm / inches | 410 / 16 |
With TERSA Straight-knife Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
87 / 3 410 x 30 x 3 |
With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
87 / 66 15 x 15 x 2.5 |
Max. stock removal | mm | 4 |
Jointer table length | mm / inches | 1800 / 71 |
Planer table dimensions | mm / inches | 410 x 605 / 16 x 24 |
Planer feed speed | m/min | 7 |
Min. – max. planer working height | mm / inches | 3 – 230 / 0.12 – 9 |
Single-phase motor | Hp | 4.8 |
Fence Tilt | degrees | 0 – 45 |
