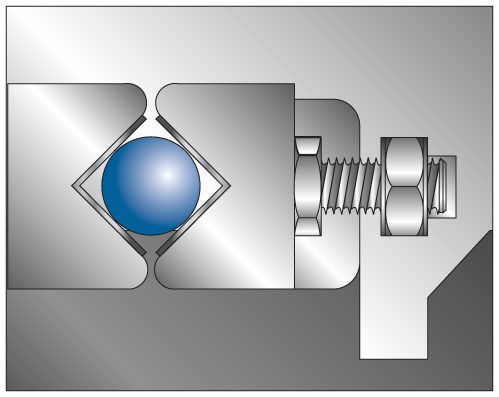

The table is made of extruded anodized aluminum with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides.

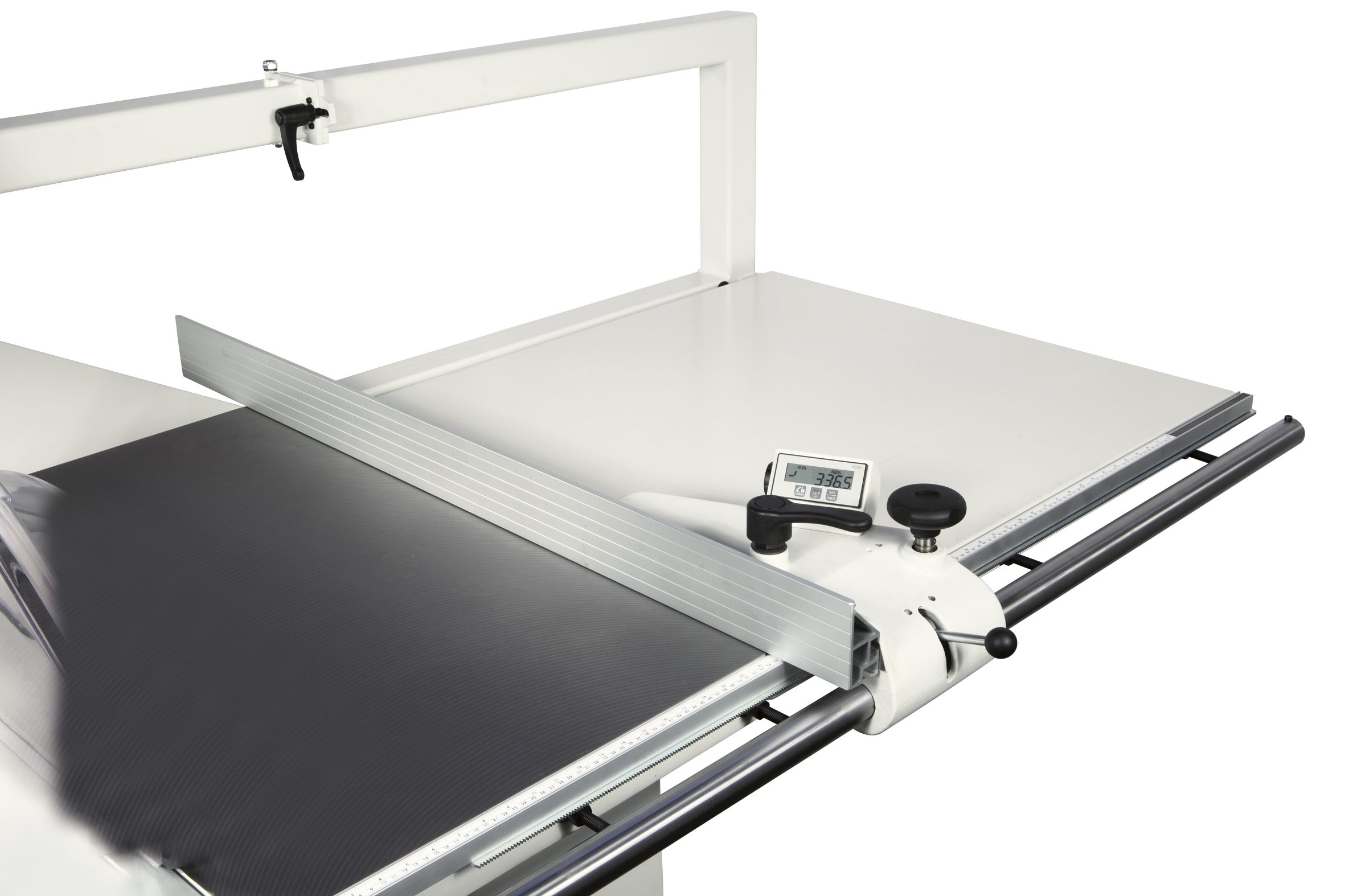

Easier and more precise cutting is possible due to a perfectly stabile support that is guaranteed, even for large work pieces, bu the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lsting accuracy, no adjustment required.
The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.
Performance without limits

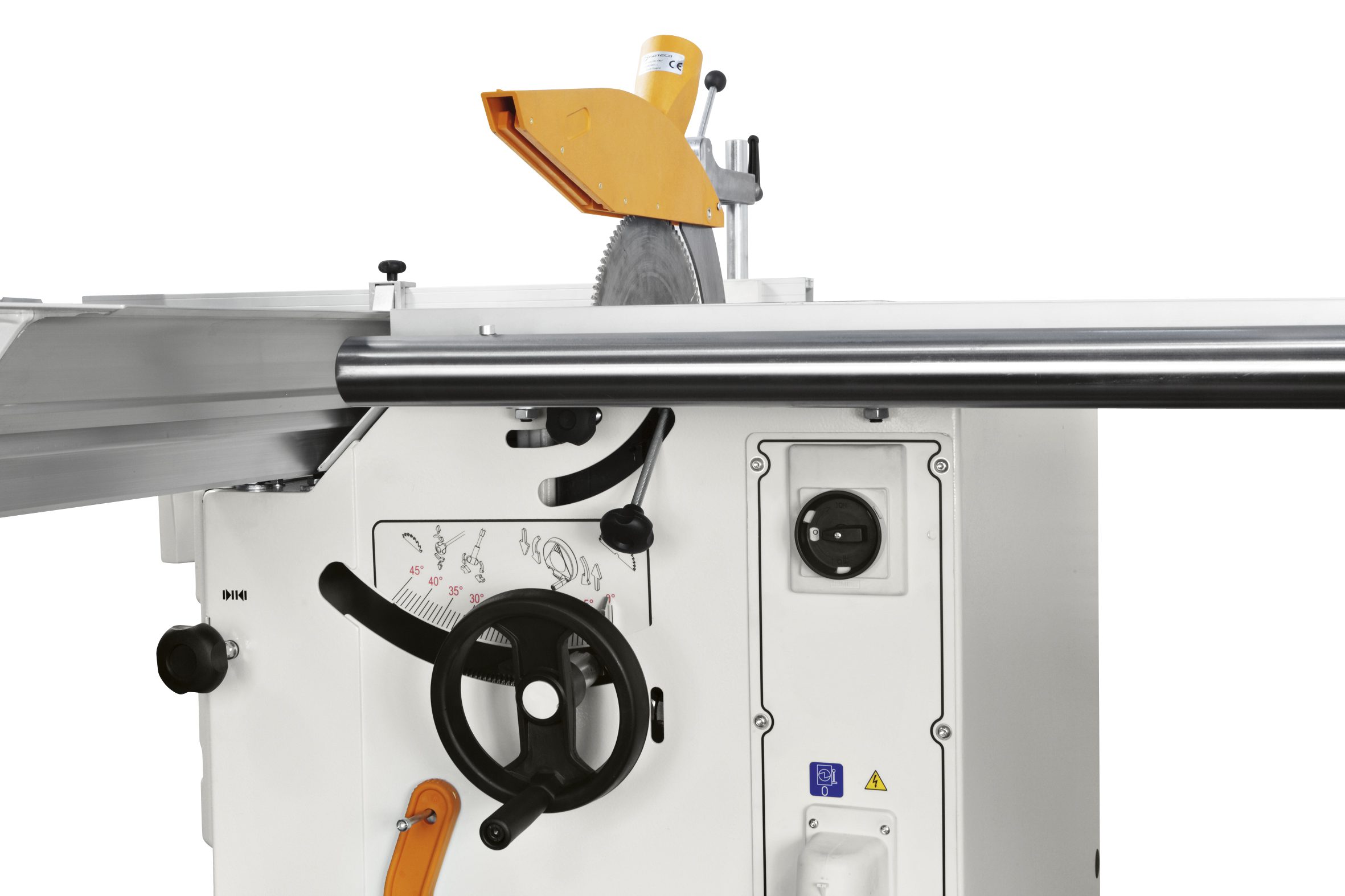

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.
|Max. sawblade diameter||mm / inches||315 / 12|
|Sawblade arbor size||mm / inches||30 / 1.18|
|Max. sawblade projection from table at 90°/45°||mm / inches||100/78 3.94/3.07|

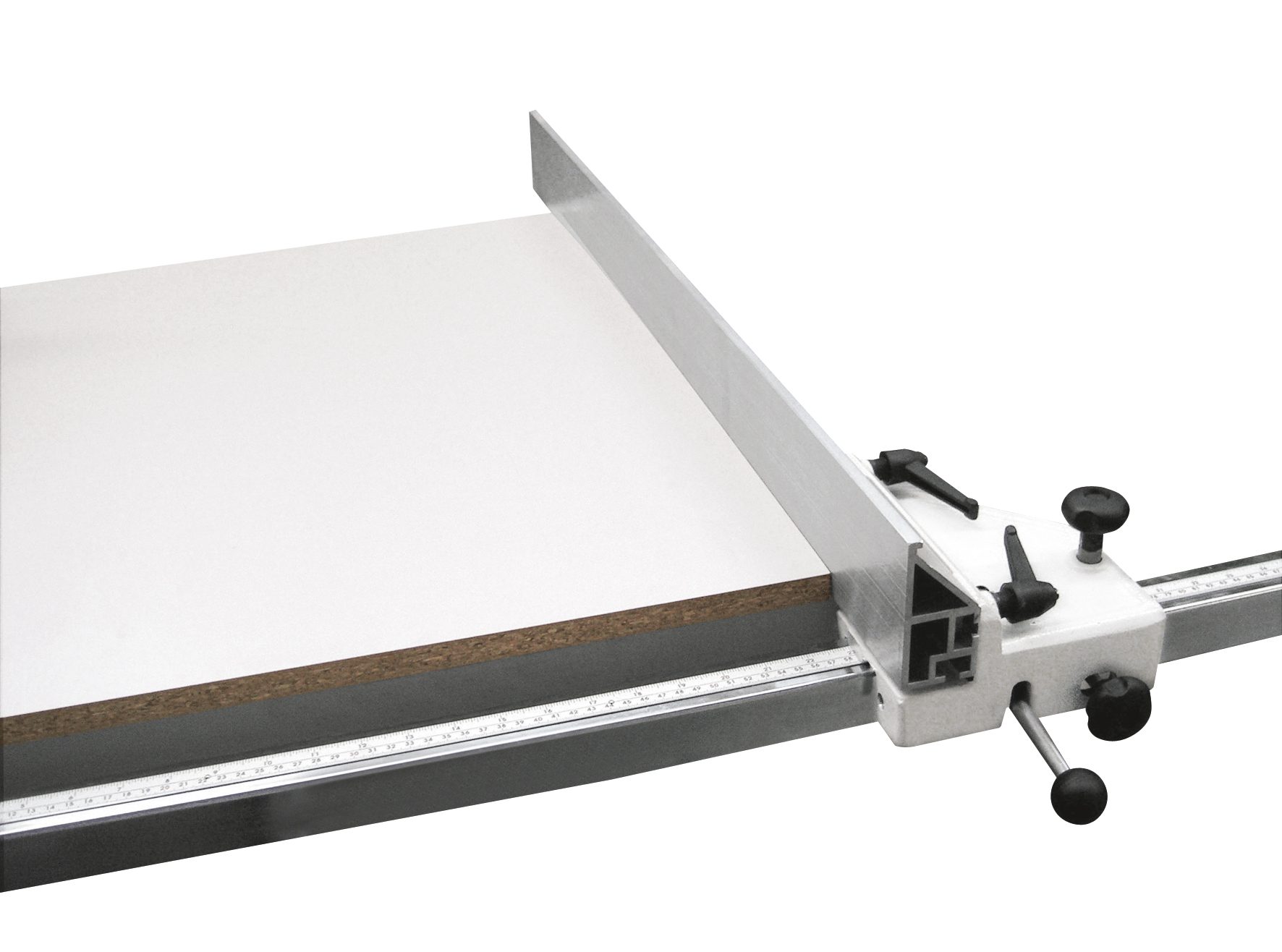

|Cutting width on parallel fence (Rip capacity)||mm / inches||1270 / 50|
|Max. squaring stroke of sliding table saw||mm / ft||1660 / 5.5|
