Features & Benefits:
- Enclosureless Design: Ideal for indoor use.
- Shaker Cleaning: Reduces maintenance time.
- Anti-static Filters: Ensures safe and efficient collection.
- Durable Frame: Made of 14 GA galvanized sheet steel.
- Efficient Motor: Premium-efficiency IP55 motor for continuous running.
Versatile and Efficient Design

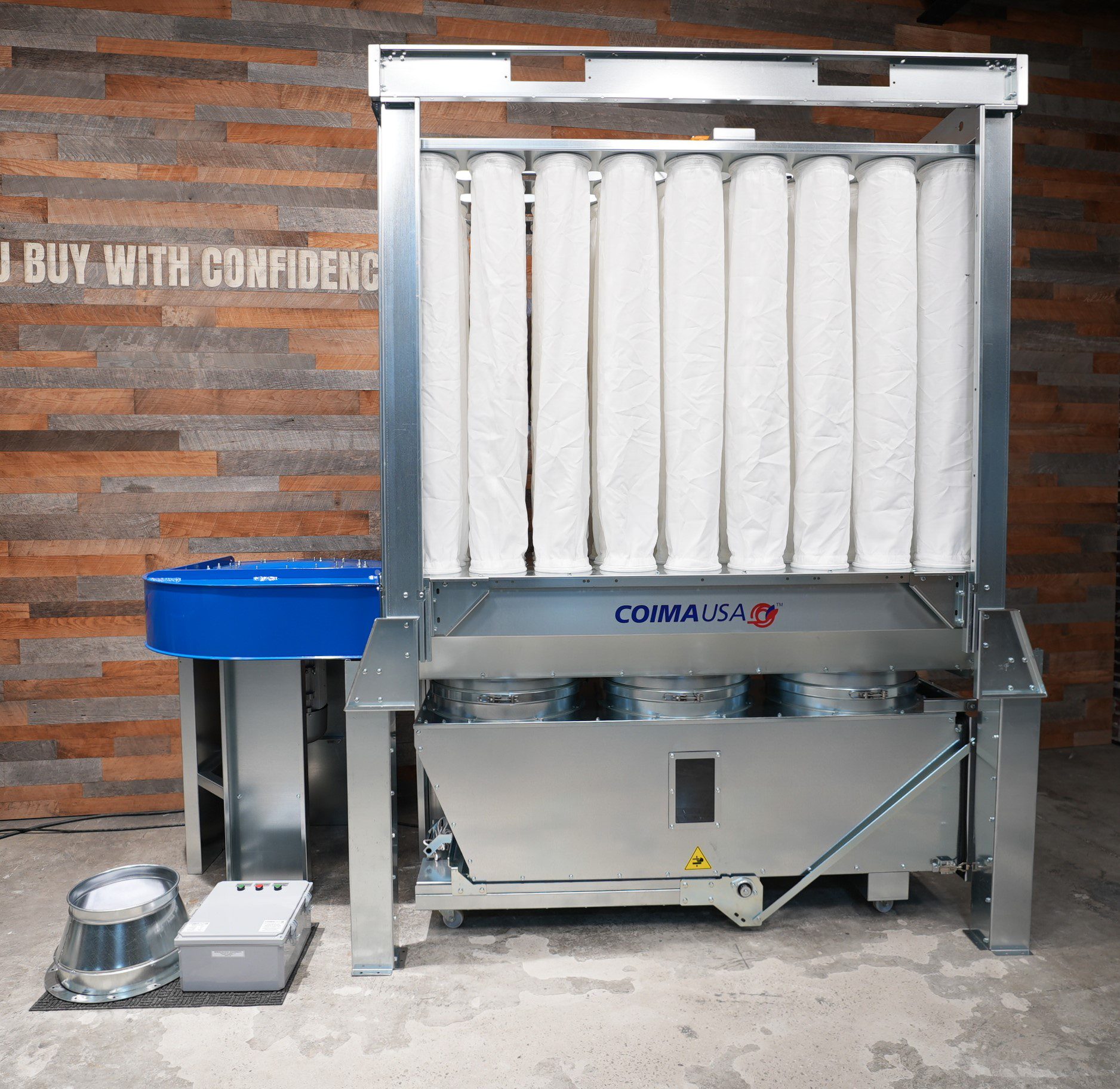

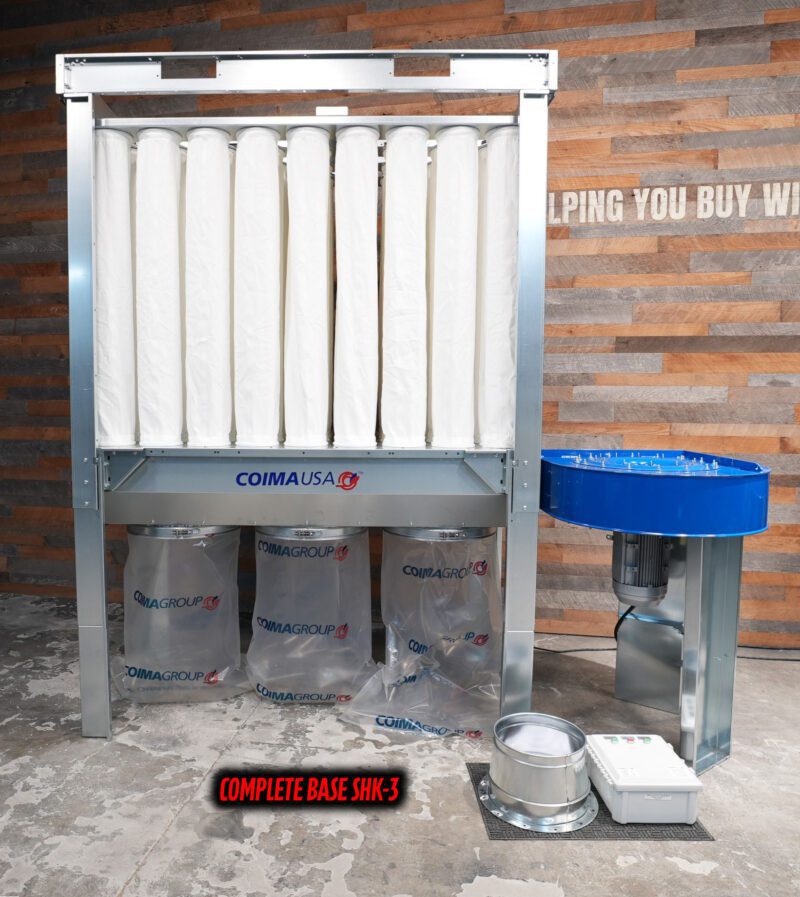

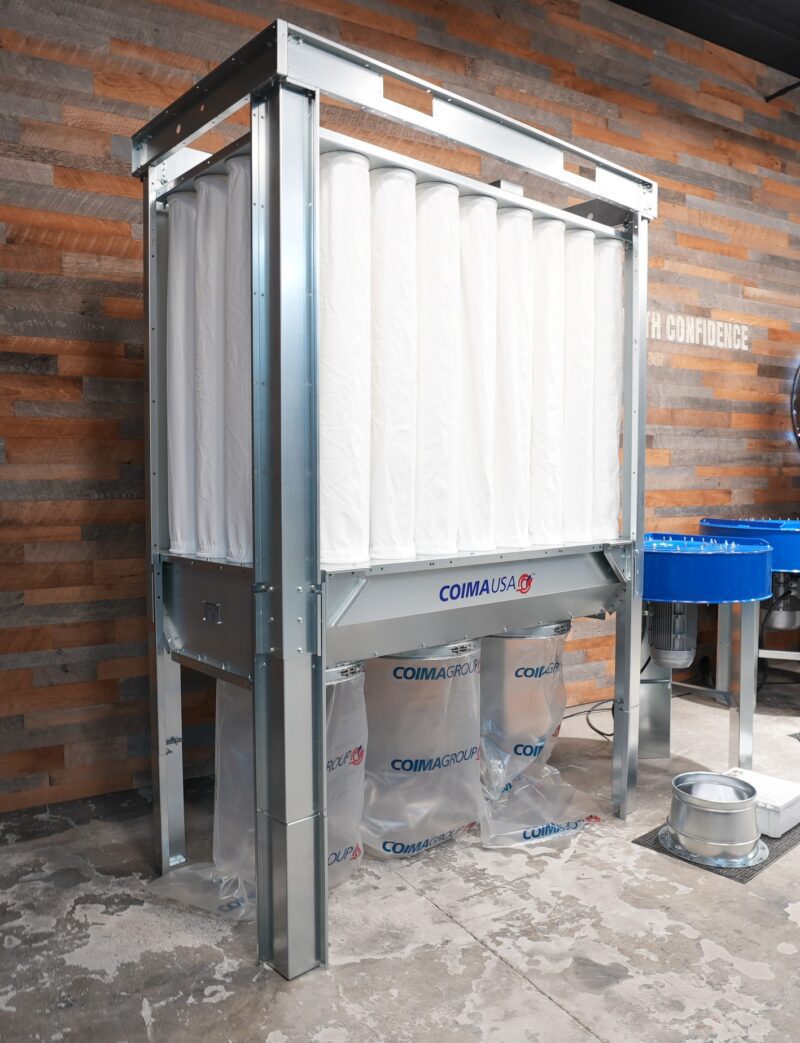

The Coima SHK Series stands out as an enclosureless dust collector meticulously designed for sawdust collection. The SHK is perfect for indoor environments, especially smaller wood shops, or for more localized extraction dedicated to specific woodworking machinery. But its versatility doesn’t end there. This collector is also suitable for materials like plastics, grains, flours, and stone dusts.
Advanced Cleaning System

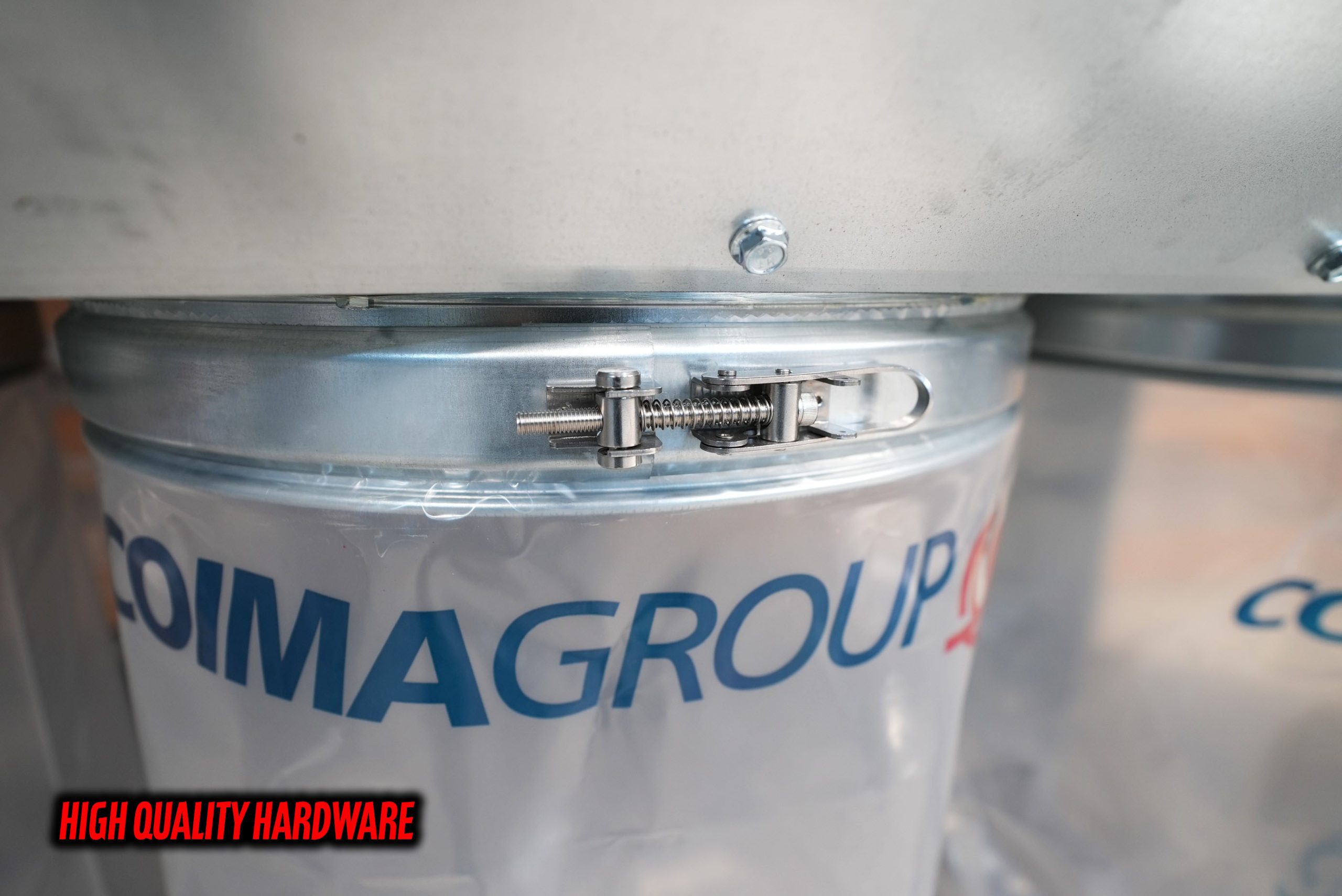

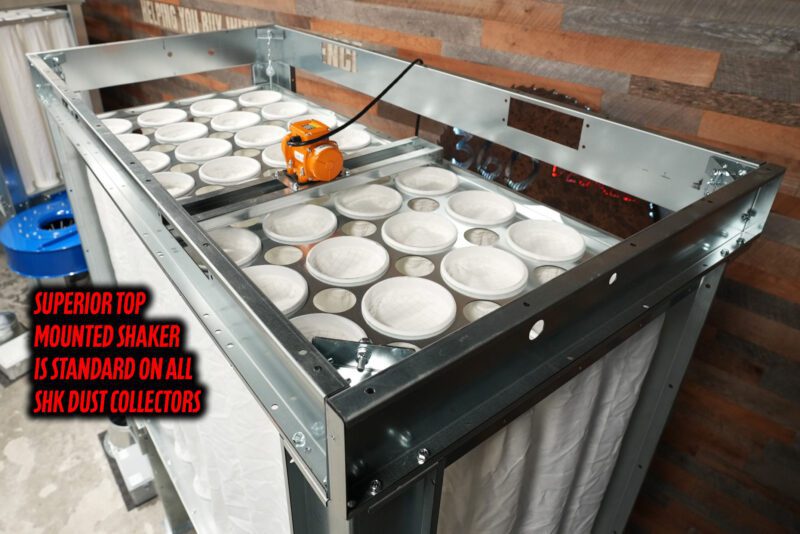

One of its standout features is the integral mechanical shaker cleaning system. This system enhances production time and significantly reduces the labor required to maintain filter efficiency. The anti-static polyester filters are securely fixed by double snap rings into a tube sheet. This design ensures that the collected material is efficiently emptied into plastic bags.
Durable Construction

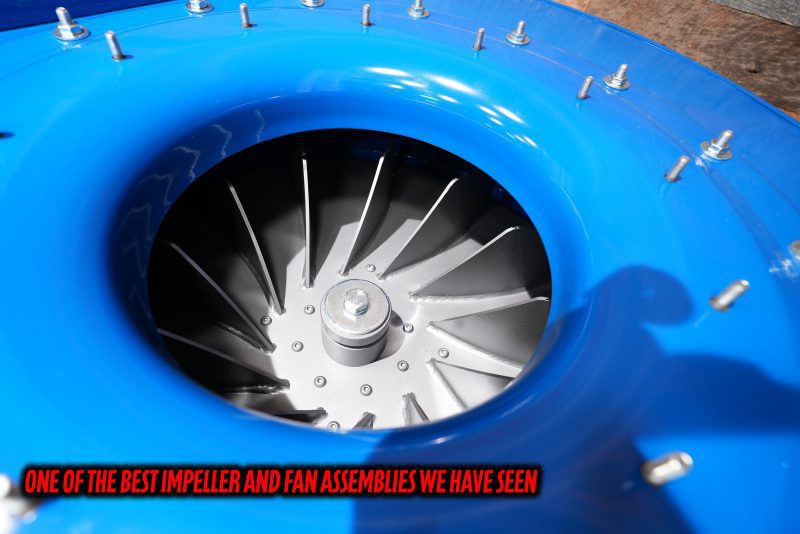

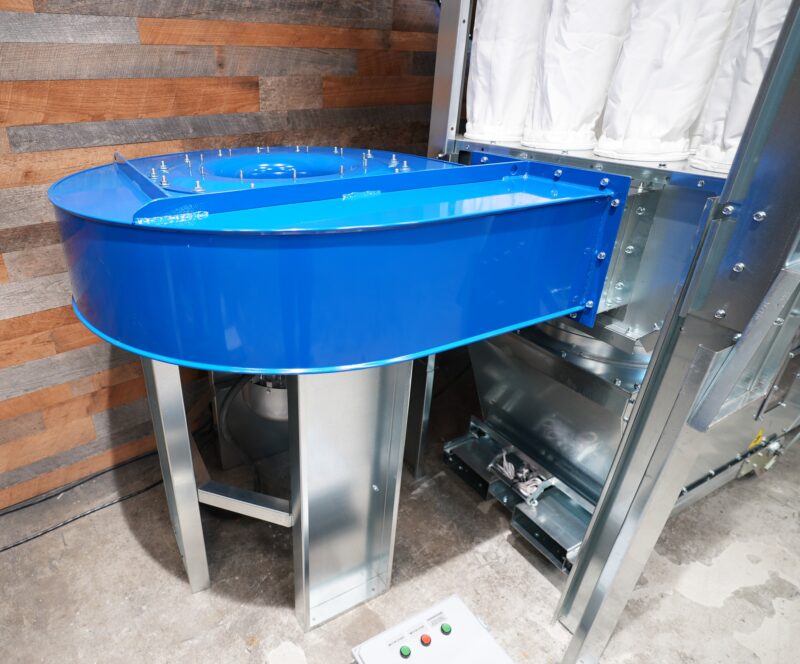

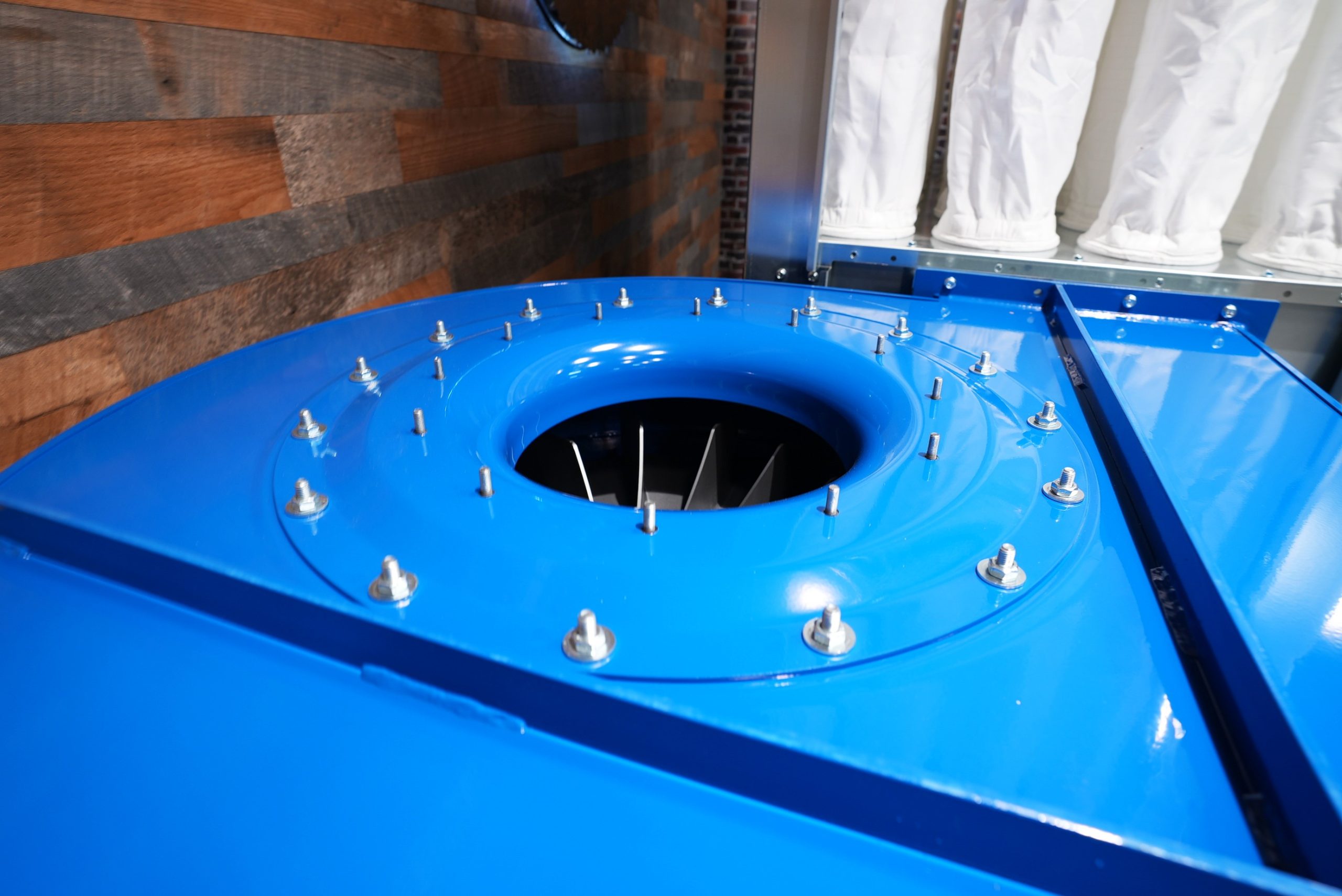

Constructed from durable 14 GA galvanized sheet steel, the SHK dust collector frame is built to last. The material handling fan, rated for continuous duty, boasts a premium-efficiency IP55 motor, ensuring constant and efficient operation.
Comprehensive Safety Features
With a range of waste discharge options and additional safety equipment available, the Coima SHK Series is a comprehensive solution for all your dust collection needs. Whether you’re looking to enhance safety with spark detection & extinguishing or require deflagration relief & containment, this series has got you covered.

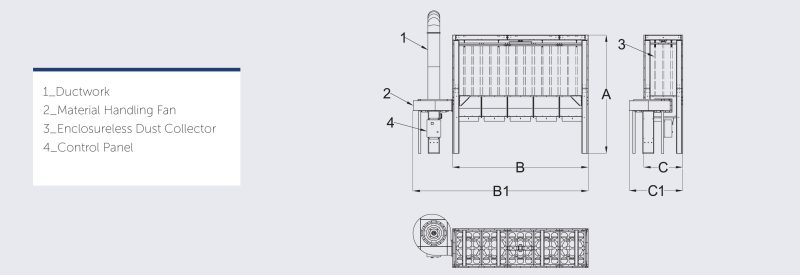

Models & Specifications:
| Model | Pressure | Max Air Flow [cfm] | Nr. Bags | Fan Power [HP] | Filtering Surface [ft^2] | Nr. Filtering sleeves | Filtering sleeves diameter | Filtering sleeves length | A | B | B1 | C | C1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHK 1 | 8” | 3200 | 1 | 5 | 119 | 12 | 8” | 59” | 126.75” | 36.25” | 73.5” | 44.75” | 53.25” |
| SHK 2 | 8” | 3600 | 2 | 7.5 | 238 | 24 | 8” | 59” | 126.75” | 60.5” | 102” | 44.75” | 57” |
| SHK 3 | 7” | 5000 | 3 | 10 | 357 | 36 | 7” | 59” | 126.75” | 88.5” | 130” | 44.75” | 57” |

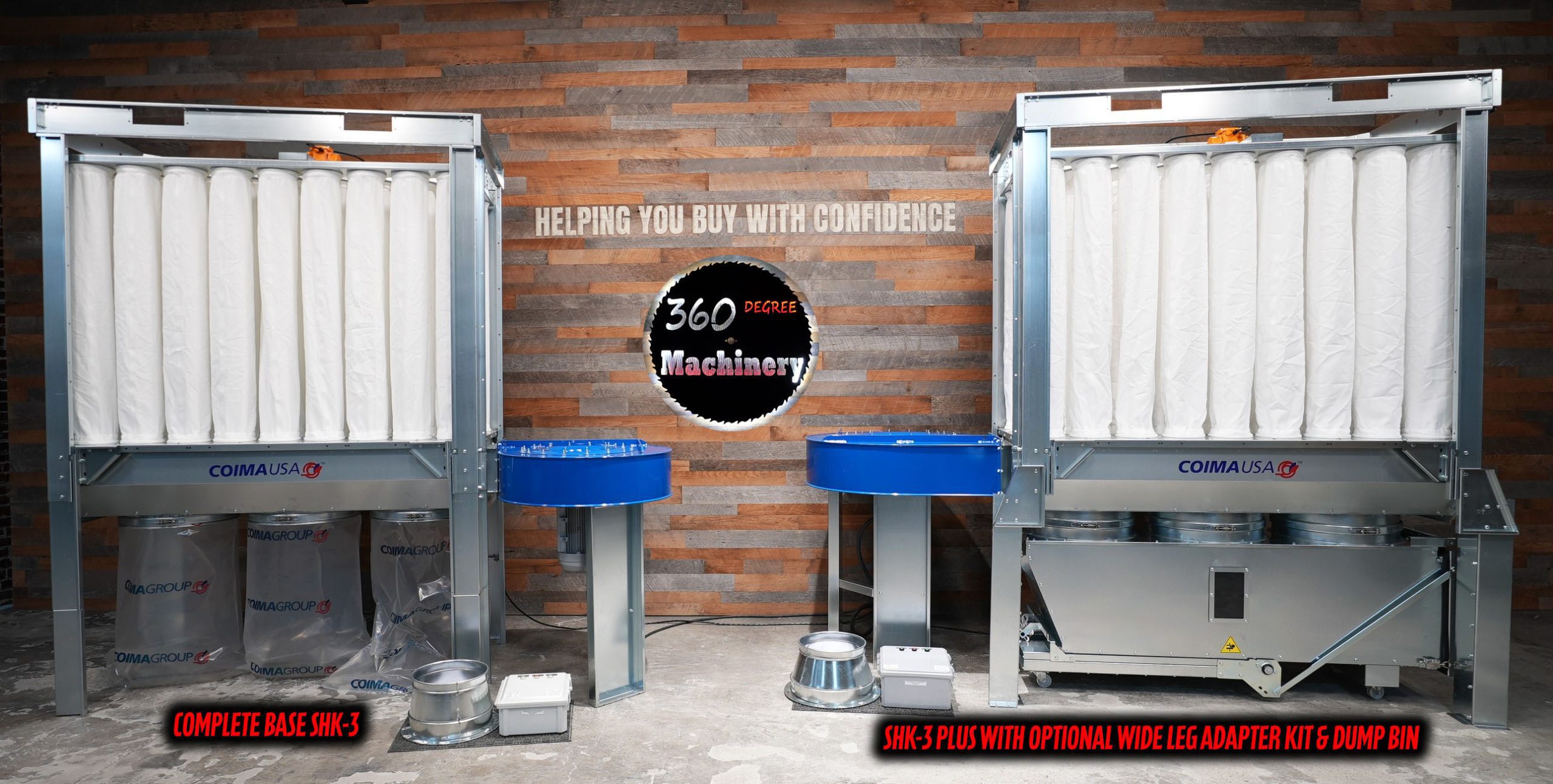

| SHK 3 PLUS | 13.5” | 5000 | 3 | 15 | 357 | 36 | 13.5” | 59” | 126.75” | 88.5” | 130” | 44.75” | 57” |
| SHK 4 HS | 13.5” | 5000 | 4 | 15 | 476 | 48 | 13.5” | 59” | 128.25” | 126.75” | 164.5” | 44.75” | 61.5” |
| SHK 4 | 11” | 6400 | 4 | 15 | 476 | 48 | 11” | 59” | 128.25” | 126.75” | 164.5” | 44.75” | 61.5” |
| SHK 5 | 11” | 7100 | 5 | 20 | 595 | 60 | 11” | 59” | 128.25” | 157.75” | 192.5” | 44.75” | 61.5” |
Optional Accessories:
- The SHK is available with an optional collection hopper with rotary screw extractor

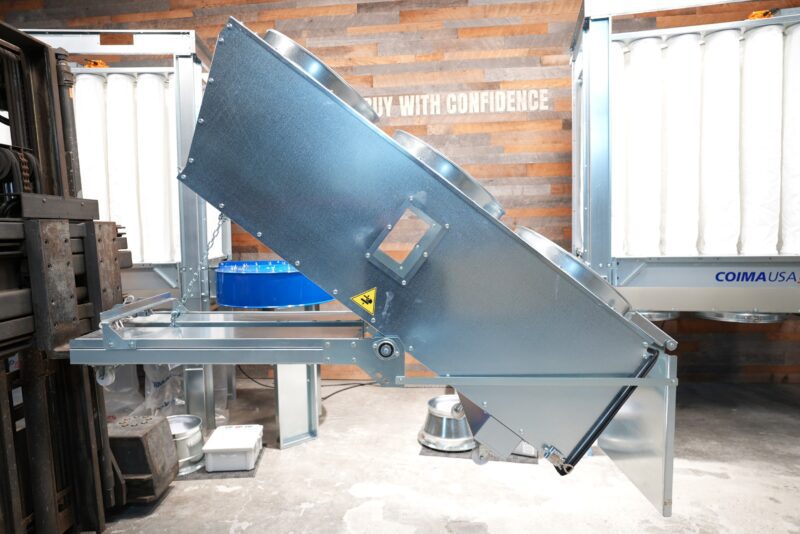

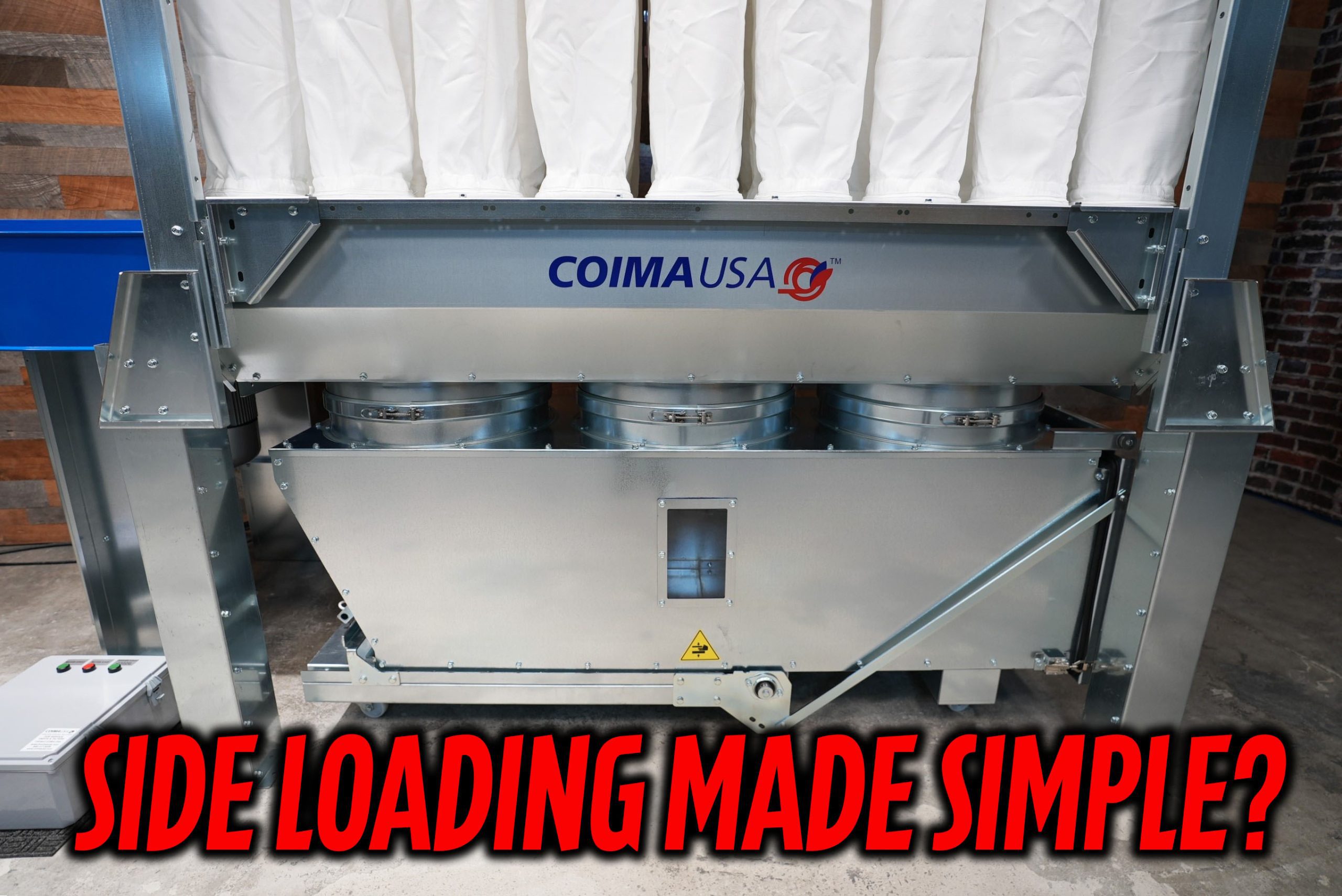

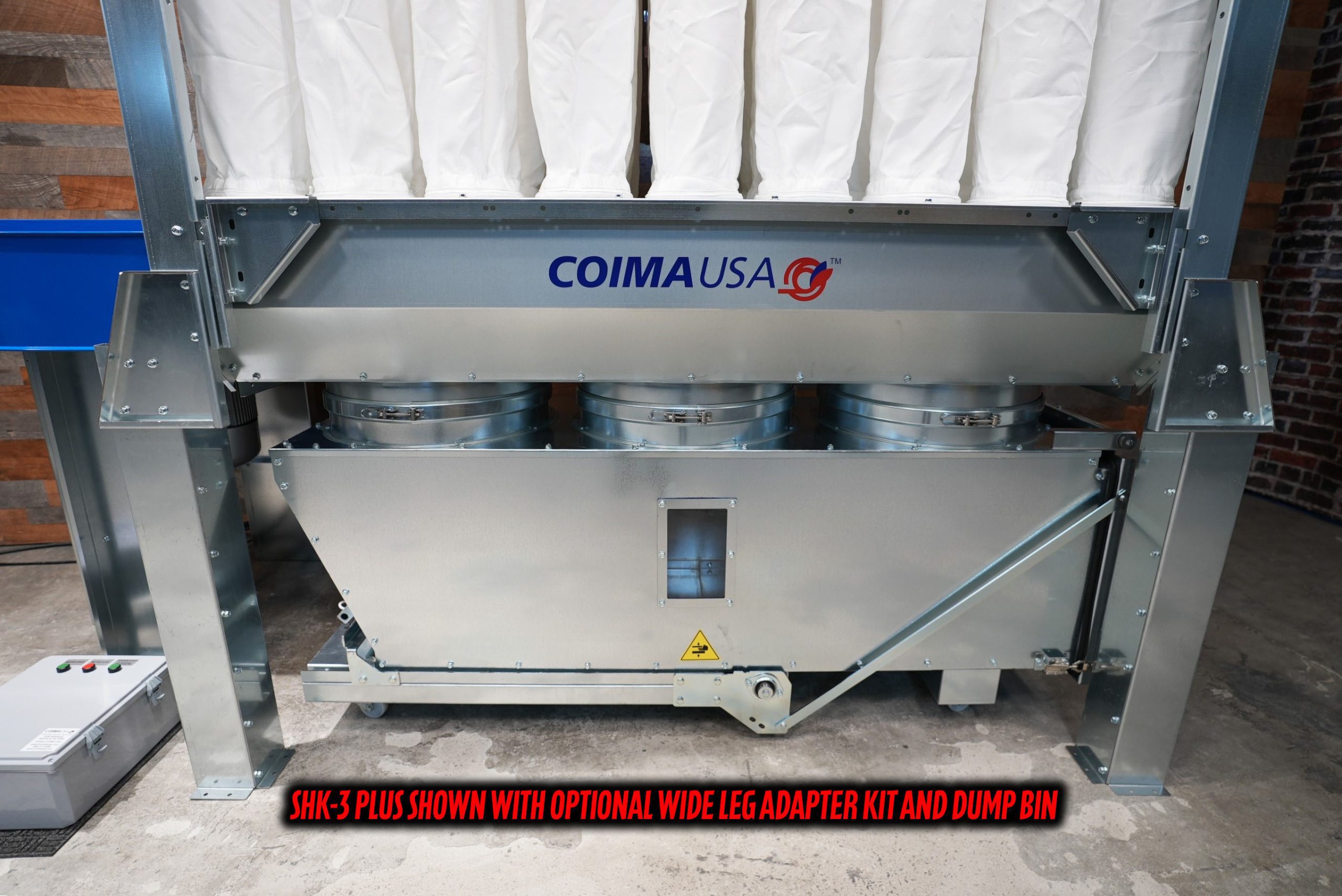

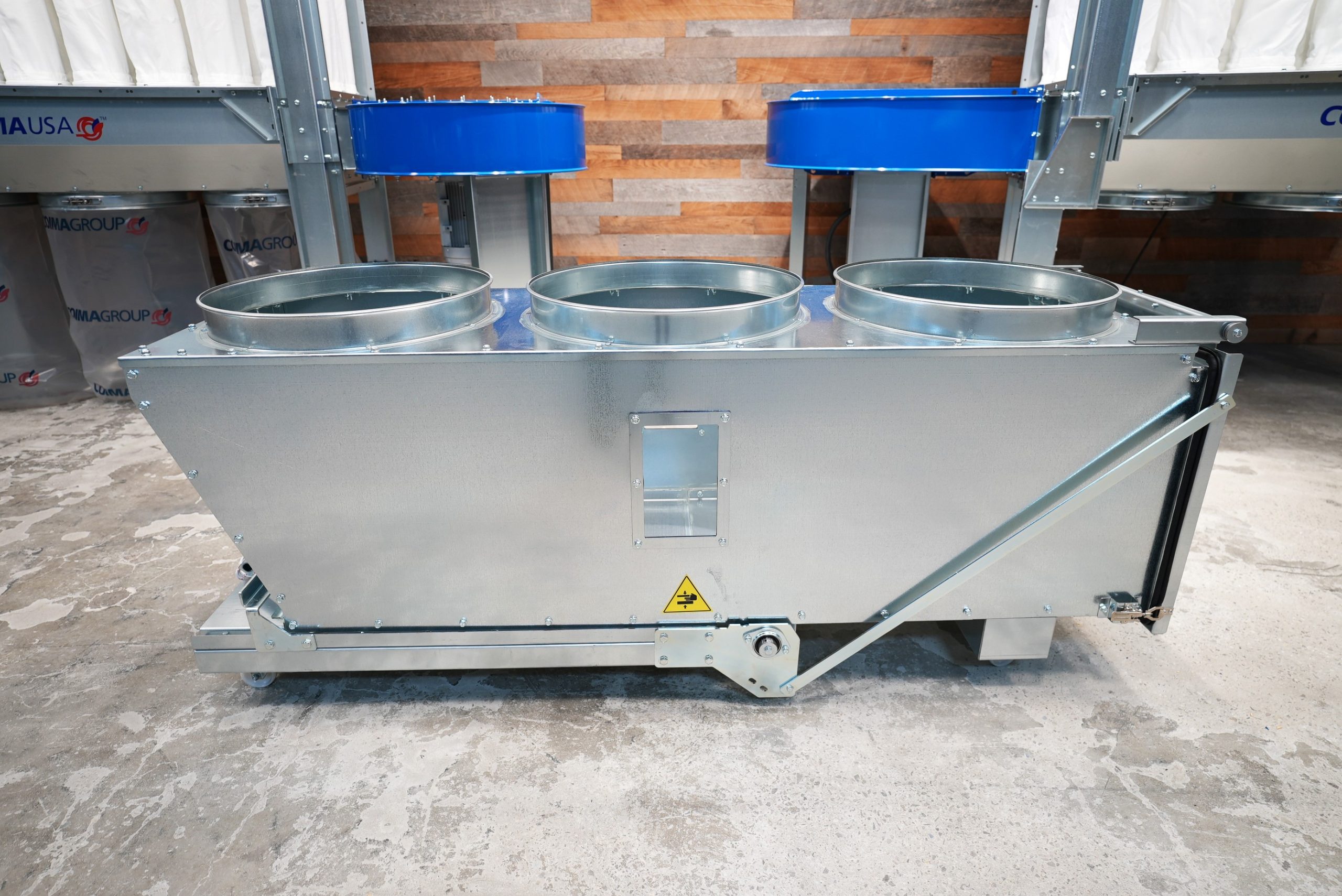

and rotary air lock instead of a hopper and bag configuration. - Forklift dump bins are available for select models.
- Barrels with sight glass are available for all models.
