JLT #78H – Mini Pod Press In 5 Different Sizes

$6,890.00 – $26,200.00

Features & Specs:

Material Capacities:
- 12″ Wide x 42″ Long (1 Section)
- 12″ Wide x 84″ Long (2 Section)
- 12″ Wide x 126″ Long (3 Section)
- 12″ Wide x 168″ Long (4 Section)
- 16″ Wide x 42″ Long (1 Section)
Adjustable Opening: 0″ – 40″ of Stackable Depth
Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
- Maximum Pressure: 10 Tons Per 3-1/2′ Section @ 110 psi
Versatile Easy to use Operation for a Variety of Material Sizes
- Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’

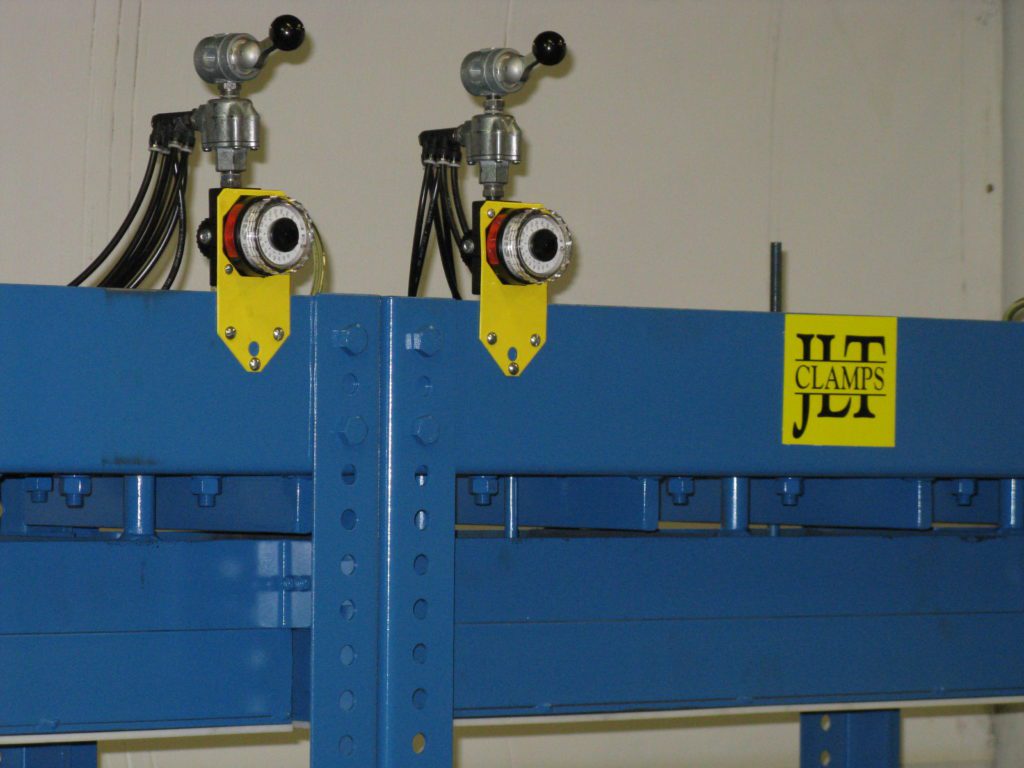

Dial Regulators for Fine and Consistent Control of Clamping Pressure
- Longer Machines have Multiple Dials for even more Control
Pyramid Different Size Glue Ups
Modular Design

For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.

Size/Capacity

JLT #78H – Mini Pod Press In 5 Different Sizes

SKU: N/A Categories: Cold Presses, JLT, New Machines, Presses (Cold, Hot, & Rotary) Tags: Cold Presses, JLT

Description
Additional information

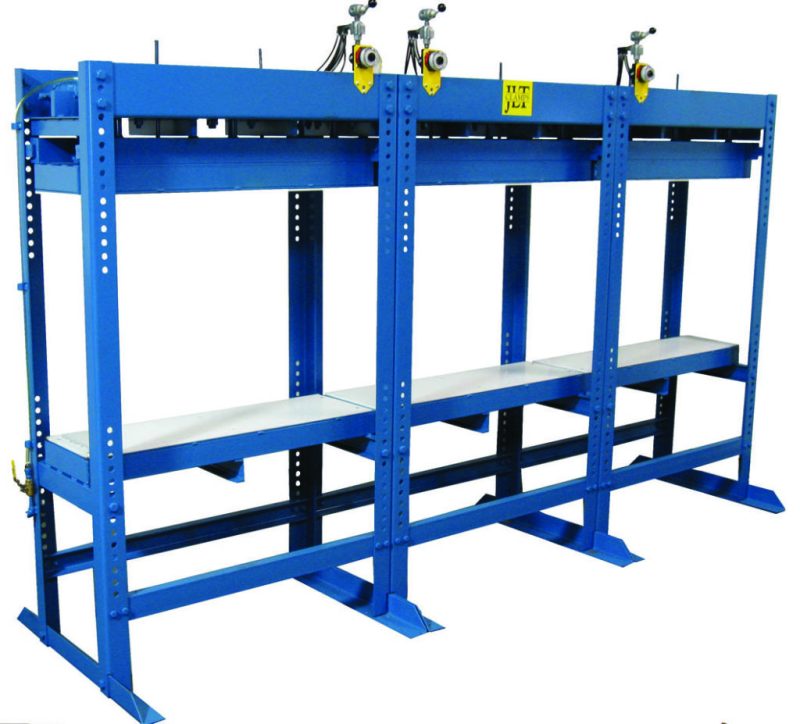

The Mini Pod Press is a low cost high pressure cold press laminating machine. It features individually controlled top platens and a bottom platen adjustable at 1 1/2″ increments to a maximum opening of 40″. The work area is 12″ wide and machines are currently offered in lengths of 3-1/2′, 7′ or 10-1/2′.Air pressure and alignment are carefully controlled via dial regulators on each individual platen and air can be locked in for any length of time through the use of a hand operated level valve
Versatile Easy to use Operation for a Variety of Material Sizes
Vertical Press Offers 40’’ Maximum Capacity

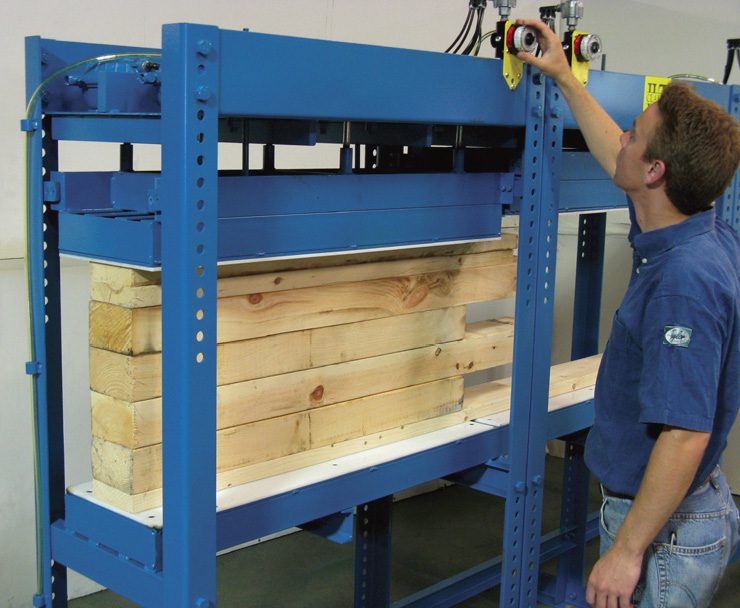

Stack Multiple Wood Components up to 12”Wide
Pyramid Different Size Glue Ups to Increase Production
Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’
Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
Diaphragm Cylinders Provide Pod Press with 30 Tons of Clamping Pressure @ 120 PSI
Upper Steel Platen has a 2” Stroke when Air is activated

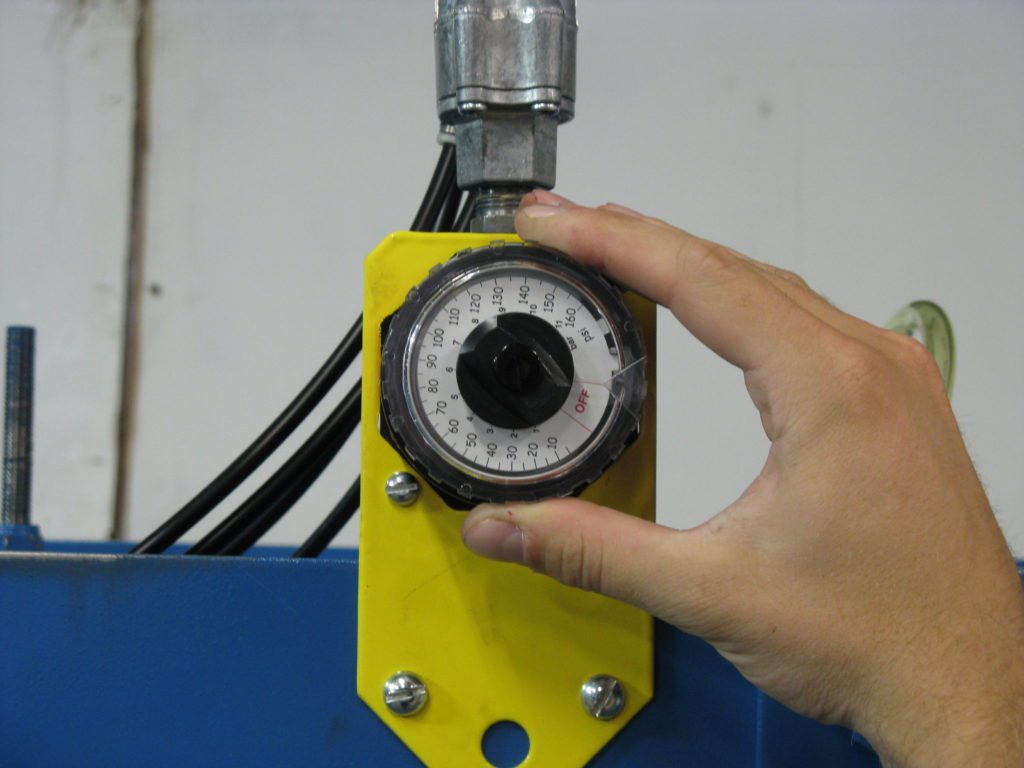

Air pressure and Alignment are Carefully Controlled by a Dial Regulator
Dial also Provides consistent clamping pressure at your desired setting
Each 42” Platen is Individually Operated
Upper and Lower Platens are made of 100% Steel Construction
Platens are Adjustable at 1 ” Increments up to a Maximum Opening of 40”
Both Platens Feature a Flat , Non Stick 1/2 “ Thick UHMW Base Plate

Size/Capacity	#78H-12W-42L-40H-M2 12″ Wide x 42″ Long (1 Section), #78H-12W-84L-40H-M2 12″ Wide x 84″ Long (2 Section), #78H-12W-126L-40H-M2 12″ Wide x 126″ Long (3 Section), #78H-12W-168L-40H-M2 12″ Wide x 168″ Long (4 Section), #78H-16W-42L-40H-M2 16″ Wide x 42″ Long (1 Section)
