Newman HP-688 Twin Bay Hydraulic Cold Press

$18,000.00

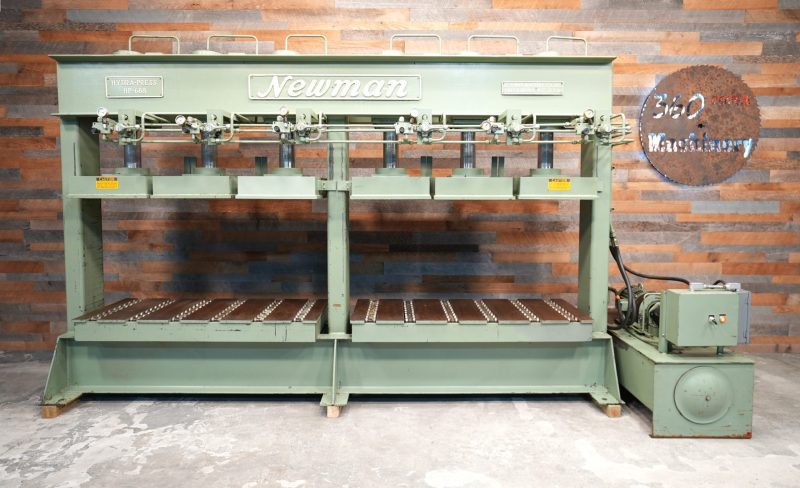

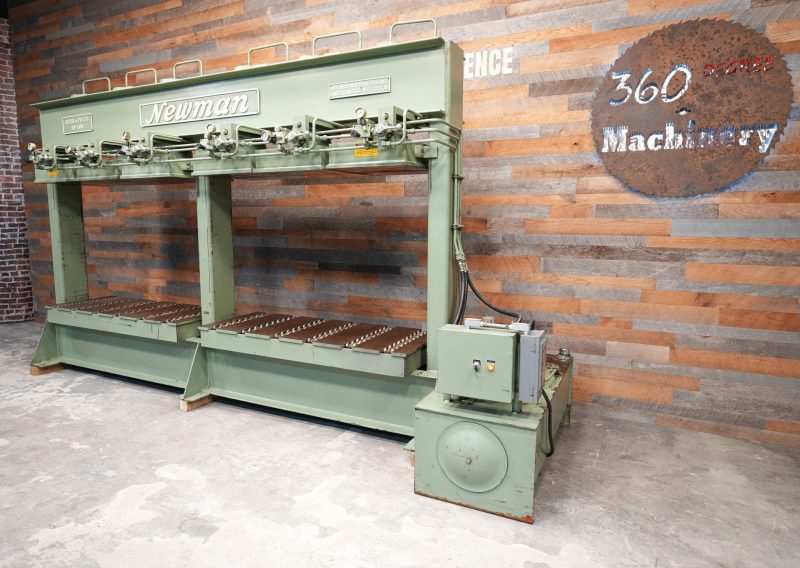

This Newman HP-688 press is powered by a 10 HP hydraulic pump. It consists of two 30″ X 74″ bays. Each bay has (3) individual 24″ X 30″ platens. Each platen is 15/16″ thick and it’s back structure is webbed every 5-1/2″ X 7-1/2″. Each platen is driven by a 5″ hydraulic cylinder with it’s own control. The max daylight opening is 48″ while the minimum is 37″. On the bottom you will find pop up bed rolls. Over all the press is in excellent condition, is extremely heavily built, and is also a beautiful impressive press in person.

This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.

Guaranteed Safe Checkout

Credit

Newman HP-688 Twin Bay Hydraulic Cold Press
$18,000.00
Request a call back
(*Optional)

(2) 30″ x 74″ Pressing Stations
(3) 24″ x 30″ Platens per station
Side-Loading
Max. Daylight 48″
Min. Daylight 37″

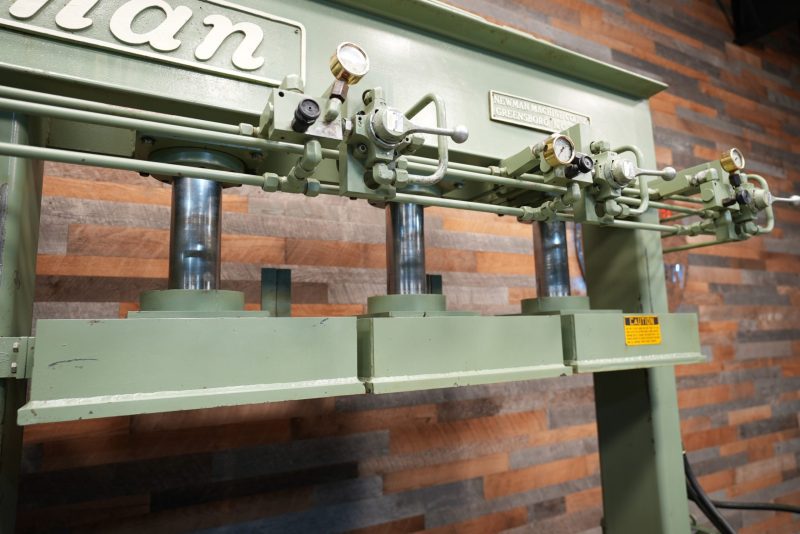

Six 5″ Hydraulic Cylinders

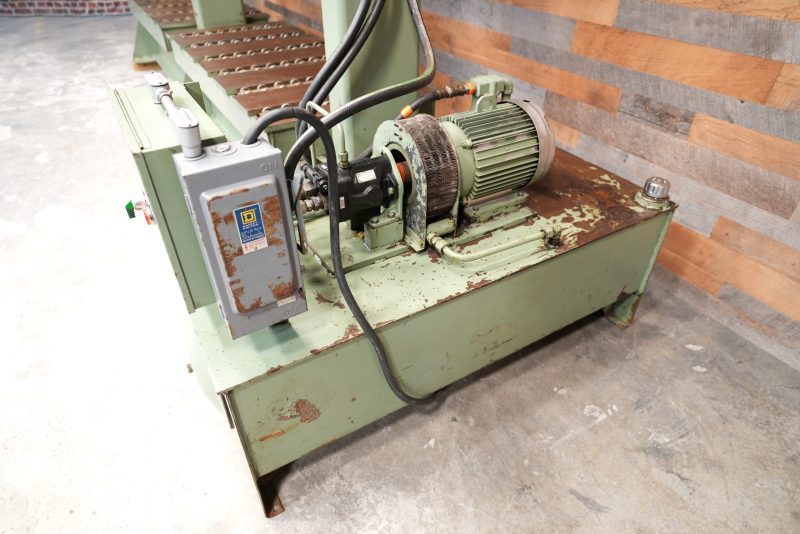

Hydraulic Unit: 10 HP, 230/460V/3-Phase

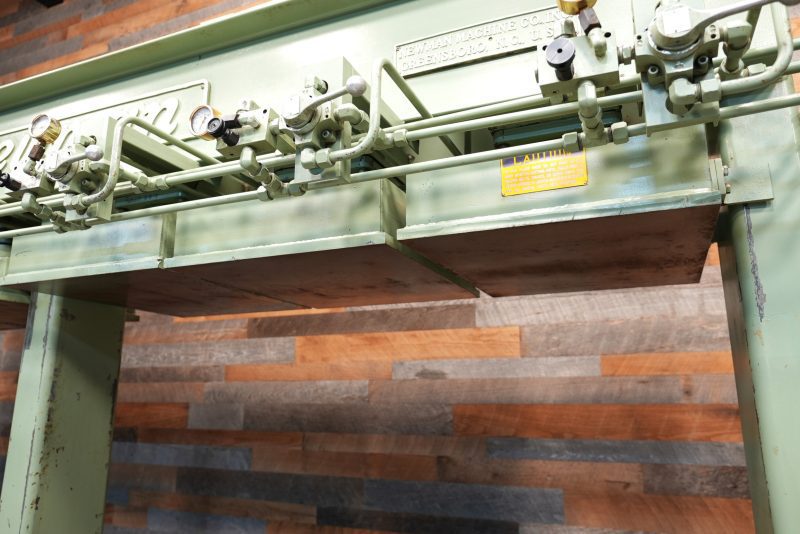

Hand-Valves to Cycle Individual Platens

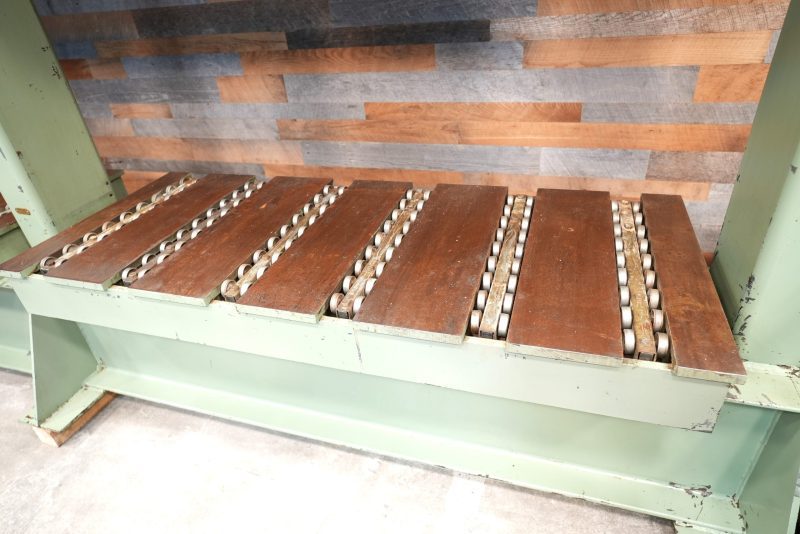

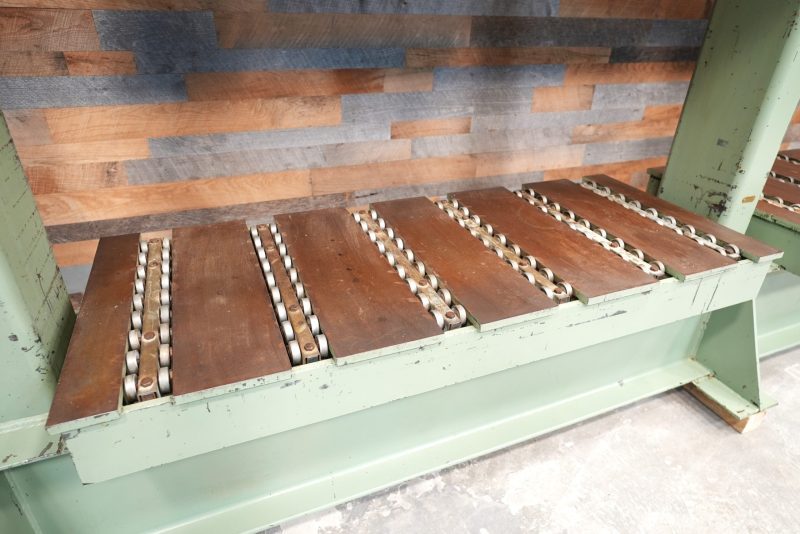

Idle Pop-Up Bed Rollers
