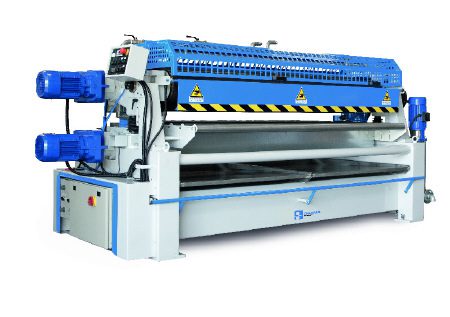

Osama SV4 250-350 Glue Spreader

This machine is available in versions 250 & 350 with either 10 inch diameter spreading rollers or massive 14 inch diameter rollers

AUTOMATIC GLUE SPREADER MACHINE SV4-350 4 ROLLERS 2 MOTORS OSAMA: this 4 roller gluer is mainly intended for the industrial production of large-size panels, plywood, multi-layer and strip panelsdoors, etc…

  • An easily-accessible sturdy structure in processed cast steel, together with adjustment systems to ensure absolute accuracy, plus the size of the application and dispensing rollers, diameter 350 mm and 242 mm respectively, key factors which have all contributed to the success of this extraordinary machine.
  • Supplied to firms processing products with veneer finish in decorative paper, polished laminates and other materials, all requiring perfectly uniform spreading, providing full satisfaction on all counts.
  • Maintenance is clearly much less frequent compared to gluers with smaller diameter rollers working at similar production rates. A greater diameter means an increase in the metal core structure, leading to more precise glue dispensing.
  • Split” supports divided in half so that the rollers are easier to dismantle for maintenance. All sliding and adjustable parts are protected by guards and externally lubricated.

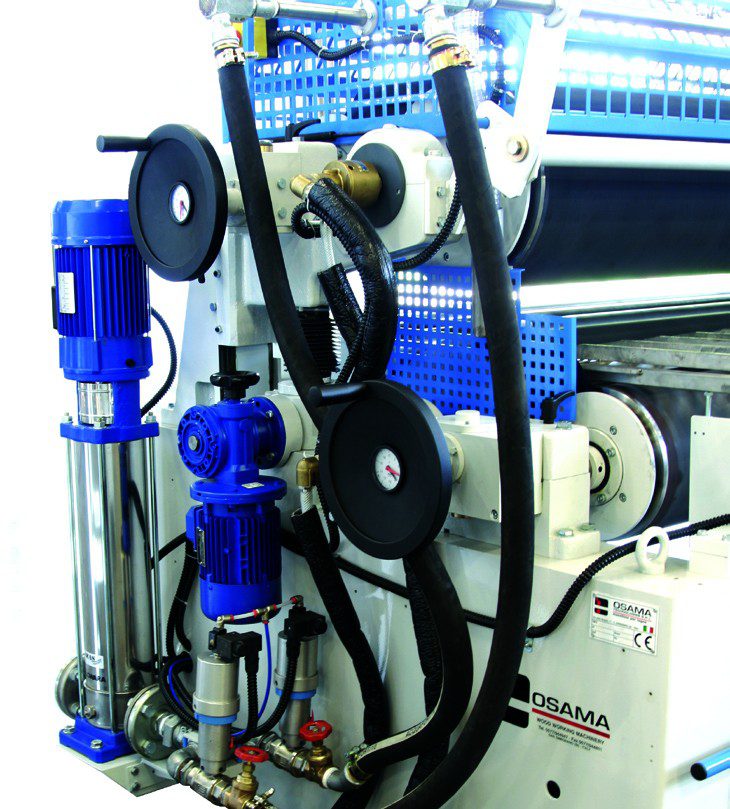

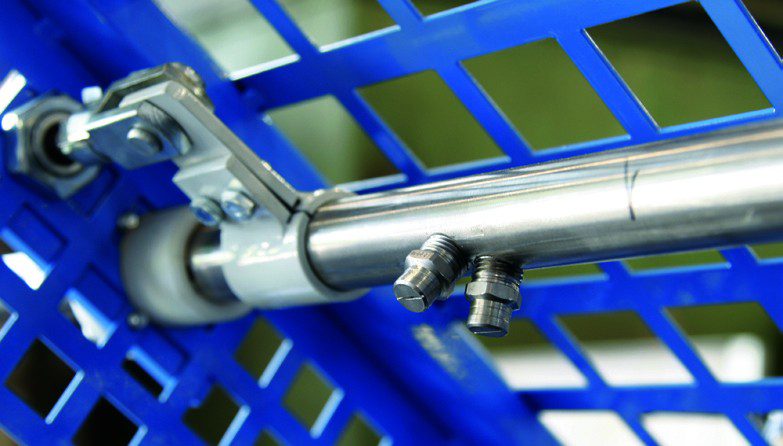

  • roller washing system has been specially devised for this machine using two stainless steel pipes each serving a pair of spreader dispenser rollers. This system consists of a pump mounted on the side of the structure and provides a pressure of approx. 6-7 bar through various nozzles, with a left-right pneumatic longitudinal stroke of approx. 150 mm. This device runs without the intervention of the operator.

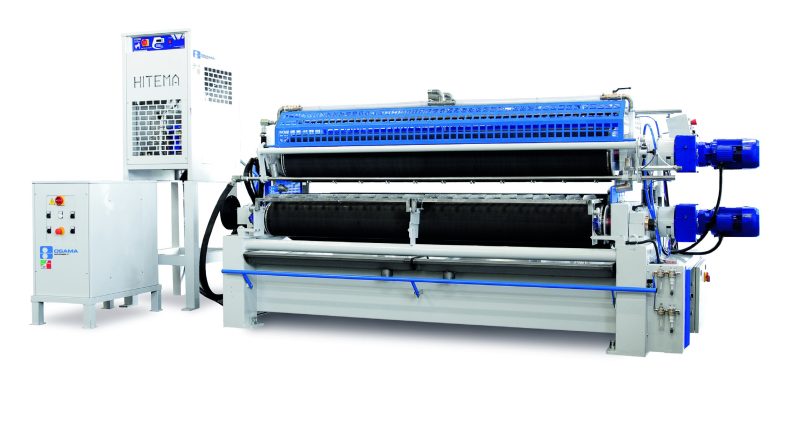

  • Suitable for working on an automatic pressing line in three shifts and preset to adapt to glue feeding systems and “chiller” refrigeration systems.

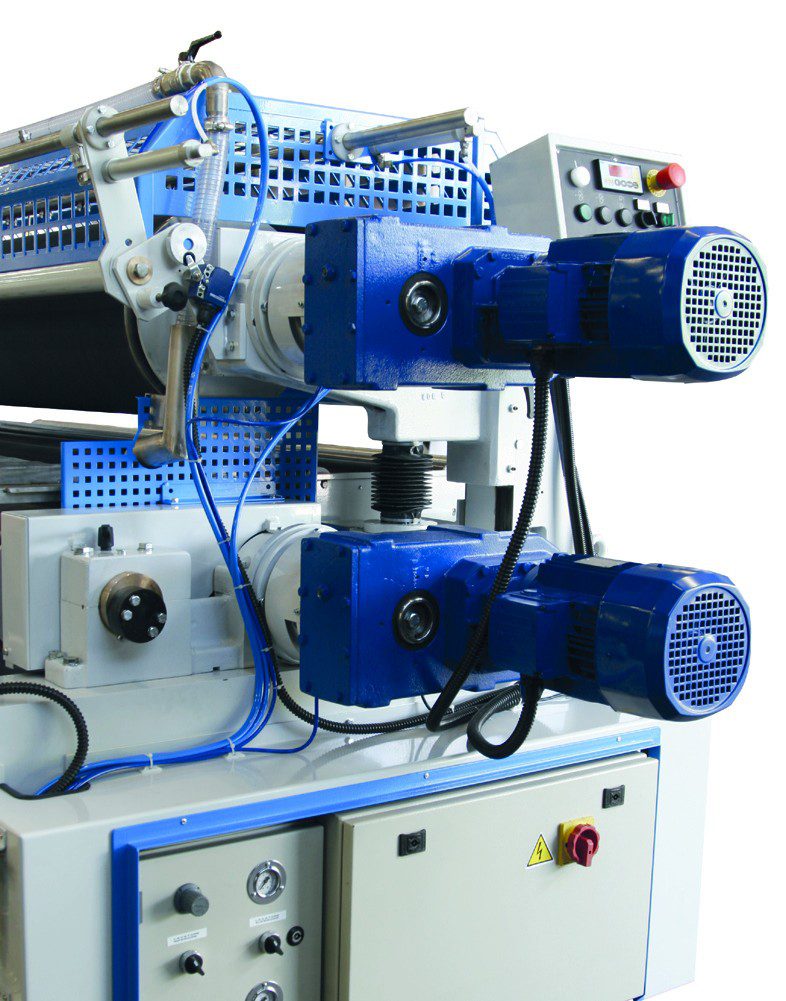

  • Side-mounted electric control panel, preset for stop-start-pause line consents.
Guaranteed Safe Checkout

Credit

Osama SV4 250-350 Glue Spreader
Request a call back
(*Optional)

CLICK HERE FOR SV4/ 250-350 LITERATURE IN PDF FORMAT



sv4/350



DATI TECnICI – SPECIFICATIOnS

DOnnèES TECHnIqUES – TECHnISCHE AnGABEn

DATOS TÉCnICOS

SV4/350

1300

SV4/350

1400

SV4/350

1600

SV4/350

1800

SV4/350

2000

SV4/350

2200

SV4/350

2500



LArGHEzzA UTILE LAVOrO

WOrkInG WIDTH                                        mm

LArGEUr UTILE DE TrAVAIL

BrAUCHBArE ArBEITSBrEITE AnCHO ÚTIL DE TrABAJO



ALTEzzA UTILE LAVOrO WOrkInG HEIGHT

HATEUr UTILE DE TrAVAIL                     mm

BrAUCHBArE ArBEITSHöHE

ALTUrA ÚTIL DE TrABAJO



ALTEzzA PIAnO DI LAVOrO WOrk SUrFACE HEIGHT

HAUTEUr UTILE DE TrAVAIL                   mm

ArBEITSFLÄCHEnHöHE ALTUrA PLAnO DE TrABAJO



DIAMETrO rULLI SPALMATOrI SPrEADInG rOLLErS

rOULEAUx ÉTALEUrS                           mm

AUFTrAGrOLLEn

rODILLOS ESPALMADOrES



DIAMETrO rULLI DOSATOrI DOSInG rOLLEr

rOULEAUx DOSEUrS                          mm

DOSIErrOLLEn

rODILLOS DOSIFICADOrES



VELOCITà AVAnzAMEnTO

FEED SPEED                                    MT.1’

VITESSE D’AVAnCE

UMDrEHUnGSGESCHWInDIGkEIT VELOCIDAD DE AVAnCE



POTEnzA MOTOrE MOTOr POWEr

PUISSAnCE MOTEUr                           kW

MOTOrLEISTUnG POTEnCIA DEL MOTOr





1300











0-100







910









348









242







22











1.5/

2.2/3





1400











0-100







910









348









242







22











1.5/

2.2/3





1600











0-100







910









348









242







22











1.5/

2.2/3





1800











0-100







910









348









242







22











1.5/

2.2/3





2000











0-100







910









348









242







22











1.5/

2.2/3





2200











0-100







910









348









242







22











1.5/

2.2/3





2500











0-100







910









348









242







22











1.5/

2.2/3



DIMEnSIOnI D’InGOMBrO – OVErALL DIMEnSIOnS DIMEnSIOnS D’EnCOMBrEMEnT – ABMESSUnGEn

SV4/350

1300

SV4/350

1400

SV4/350

1600

SV4/350

1800

SV4/350

2000

SV4/350

2200

SV4/350

2500

LUnGHEzzA LEnGTH

LOnGUEr                                         mm

LÄnGE

LOnGITUD





2300





2400





2600





2800





3000





3200





3500

LArGHEzzA WIDTH

LArGEUr                                         mm

BrEITE

AnCHO





1500





1500





1500





1500





1500





1500





1500

ALTEzzA HEIGHT

HAUTEUr                                          mm

HöHE ALTUrA





1450





1450





1450





1450





1450





1450





1450

PESO CIrCA WEIGHT

POIDS APPrOx                                   kG

nETTOGEWICHT PESO APrOxIMADO





1400





1450





1500





1600





1800





2000





2200
