Description
We have been manufacturing our line of hydraulic presses since the mid 1940’s. Offered in 50-ton capacities, these presses are built to last. Dake hydraulic presses are ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, forming, punching, and shearing. Every hydraulic press has a frame that is constructed of heavy-duty arc-welded steel and seamless steel cylinders to prevent leaks.

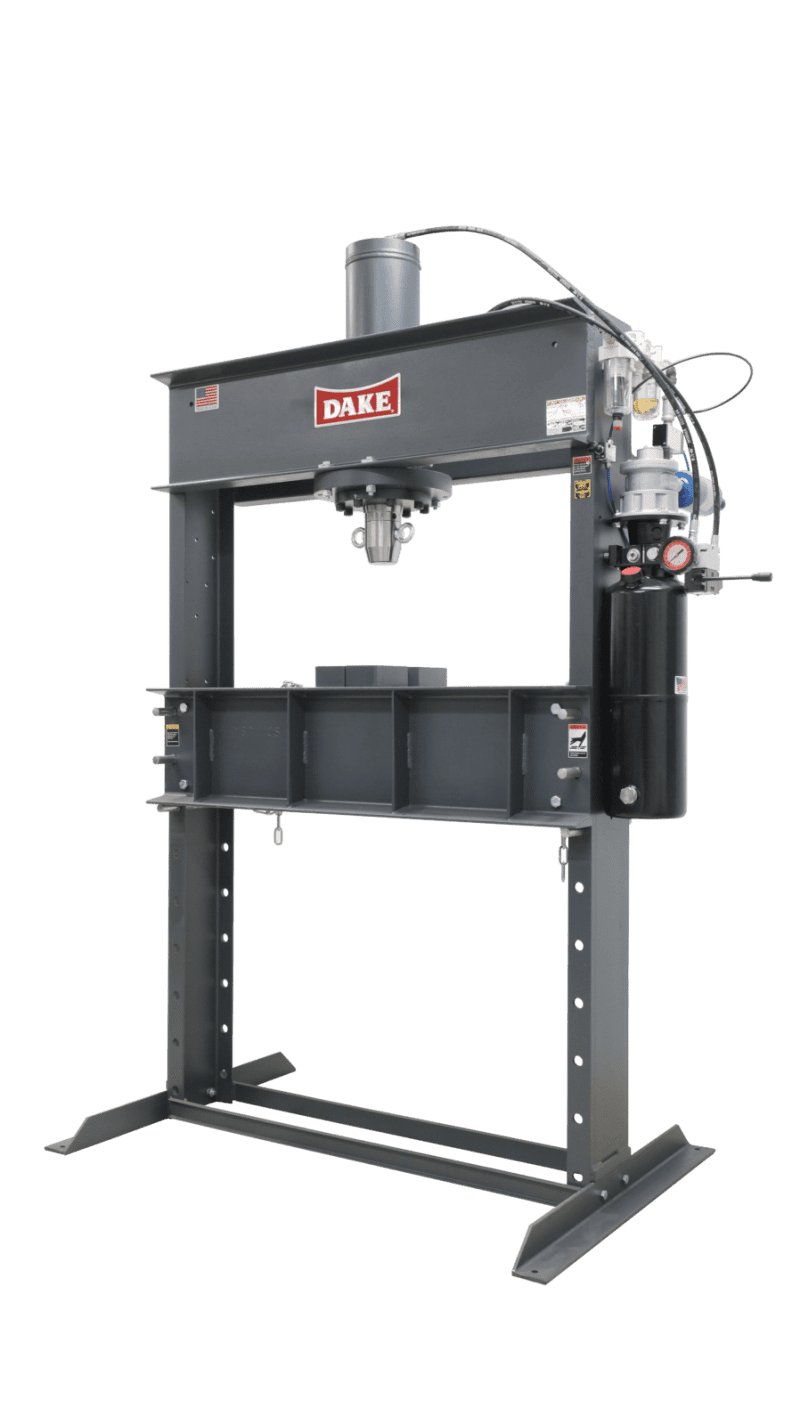

50 Ton New Dake Pneumatic Press Model Force 50DA-Air Specifications:
| Part Number | 909250-Air |
| Capacity | 50 tons |
| Operation | Pneumatic |
| Horsepower | n/a |
| Air Supply Pressure | 90-120 psi |
| Width Between Uprights | 44″ |
| Width Between Table Channels | 8-1/4″ |
| Minimum Ram to Table | 10″ |
| Maximum Ram to Table | 41-3/4″ |
| Ram Travel | 16″ |
| Controls | On/Off Switch w/joystick Hydraulic Control |
| Horizontal Work head Travel (Traversing head option only) | 30-1/2″ |
| Footprint | 55″ x 36″ |
| Height | 94″ |
| Weight | 1,550 lbs |
| Base | 55″ x 36″ |
| Ram Return Speed | 17 ipm |
| Pressing Speed | 7-9 ipm |
50 Ton New Dake Pneumatic Press Model Force 50DA-Air Features:

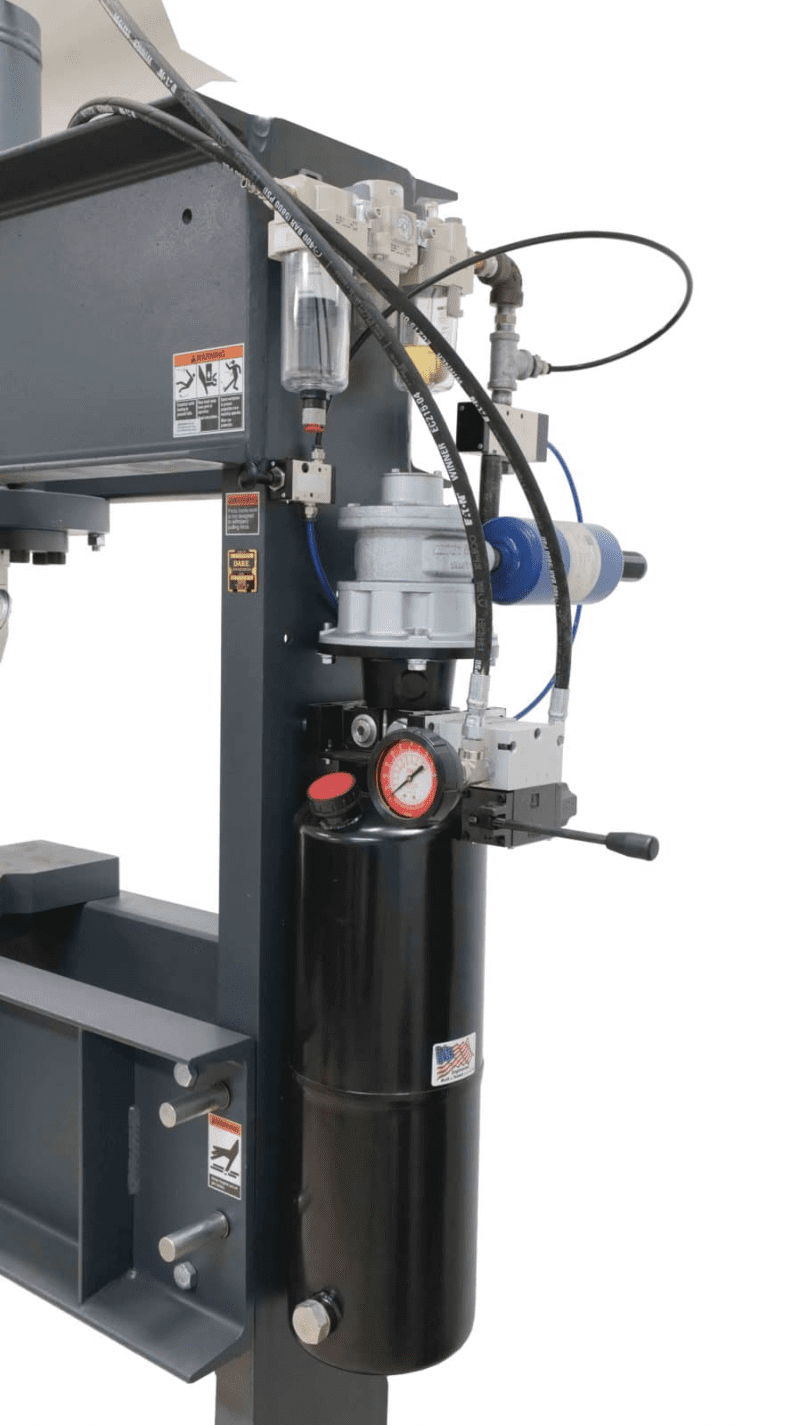

- Pneumatic power unit has convenient operation for greater portability
- Lever control ram advance for easy operation
- Double acting cylinder allows for convenient positioning of ram
- Sturdy welded channel iron frame for durability
- Low pressure hydraulic components for greater efficiency and smooth pressing
- One hand ram positioning with 4-way valve hydraulic control
50 Ton New Dake Pneumatic Press Model Force 50DA-Air Standard Equipment:
- Frame
- Safety Relief Valve
- 2 Combination Table Plate/V-Blocks
- Pressure Gauge
Optional Equipment:
- Remote Pressure Relief Valve
- Check Valve
- Traversing Head
- Certified Gauge
- Side Mounted Arbor Press
- Flow Control Valve
