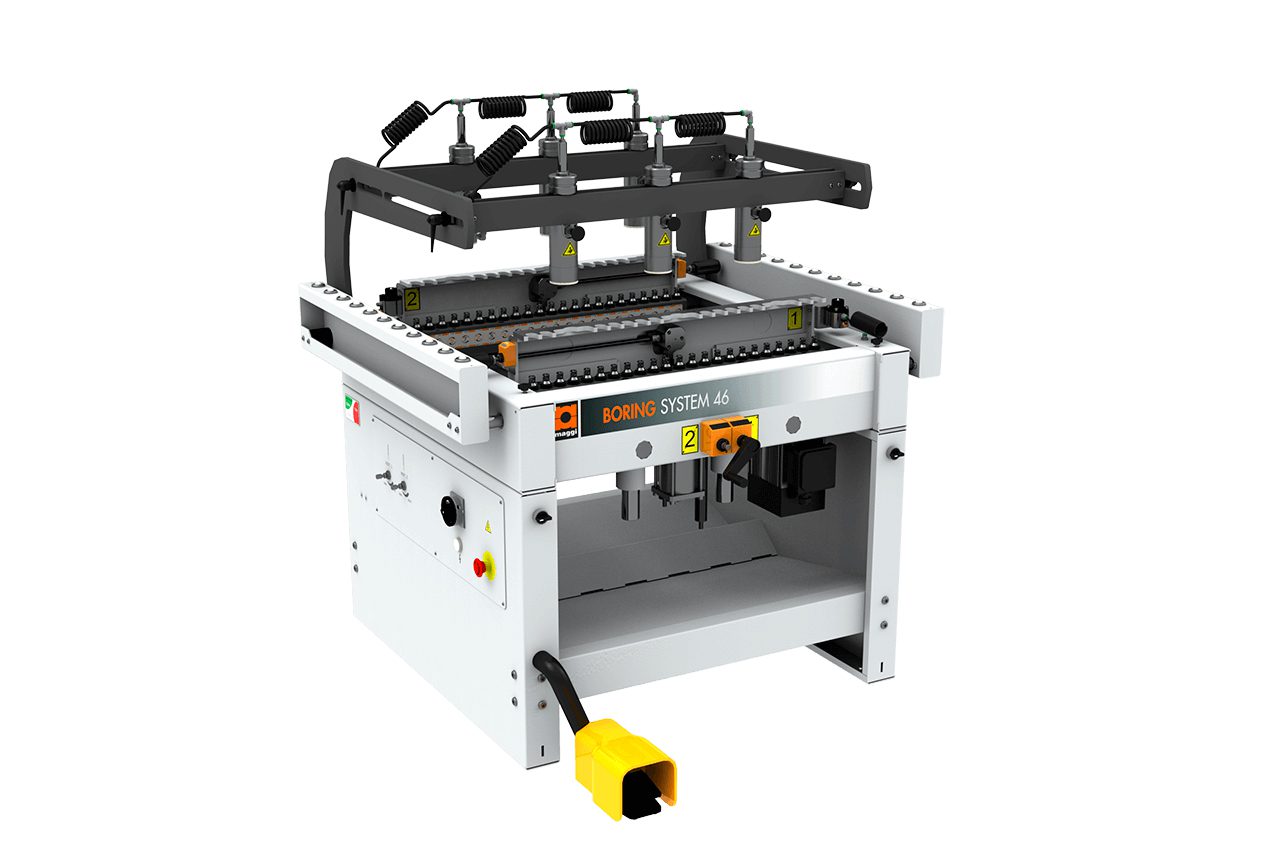

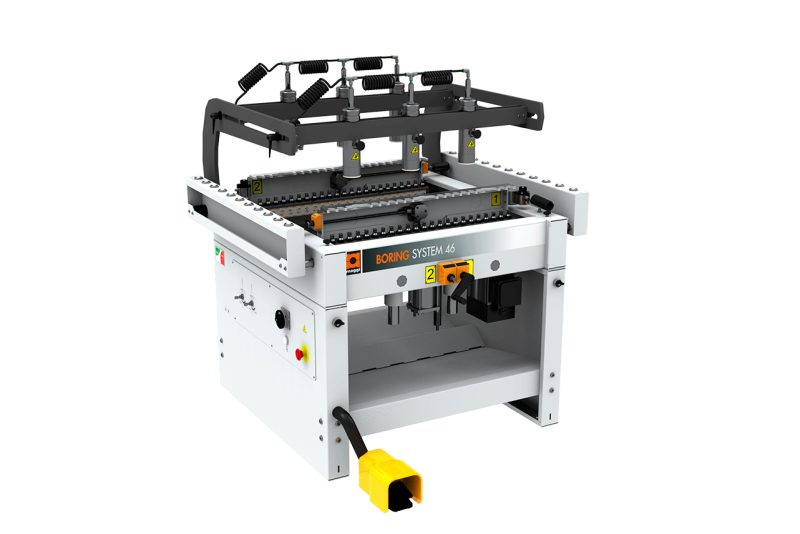

The Maggi System 46 Boring Machine provides (2) 23-spindle heads on 32 mm centers. The distance between the first and last spindle center of each head is 27-23/32″ (704 mm).
Features:

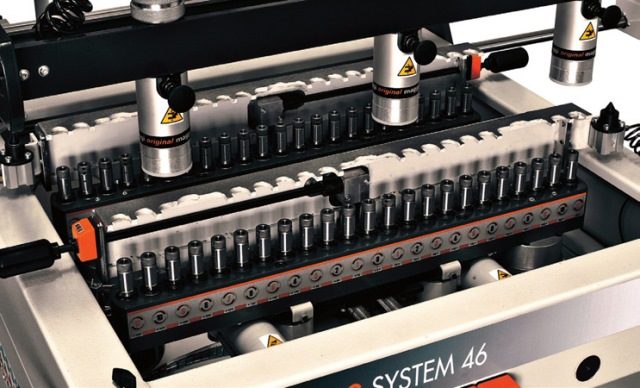

- (2) 23-Spindle Heads on 32 mm Centers
- Distance Between First And Last Spindle Center Of Each Head Is 27-23/32″ (704 Mm)
- Front End Adjustment For Quick And Easy Set-Up.
- (2) 1.5 HP 2,800 RPM Motors
- Max Boring Depth Is 2-1/16″ (55 mm).
- Side Depth Counter System; Extractable 400 mm Support Rollers For Long Panels.
- Maximum Distance Between Heads Is 25-19/32″ (650 mm) And Minimum Width Is 5-1/8″ (130 mm).
- Complete with: 46 quick-change chucks, 10′ extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps.
- This machine can be used for single or double-row line drilling.
- Uses 24 LH (Red) And 22 RH (Black) Boring Bits
Specifications:
Spindle Spacing: | 1-1/4″ (32mm) |
Dust Outlet: | 3″ |
Net Weight: | 820 Lbs |
Dimensions: | 45.6″ x 44.4″ x 50.4″ Tall |
Crated Dimensions: | 42.1″ x 48.0″ x 44.0″ Tall |
Crated Weight: | 940 Lbs |

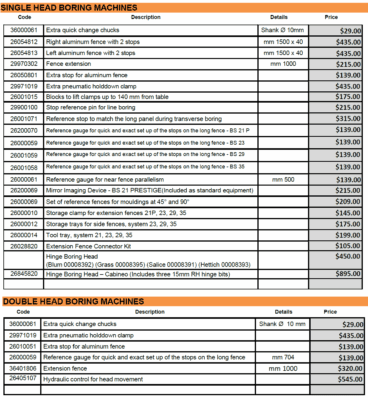

Options (double head boring machines):
