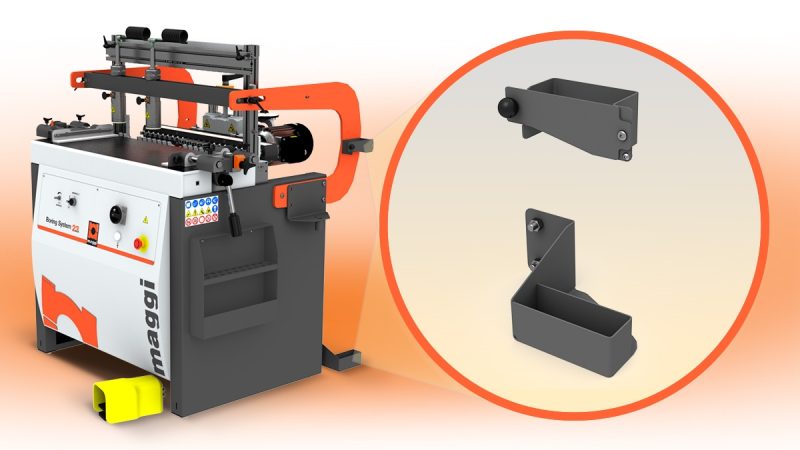

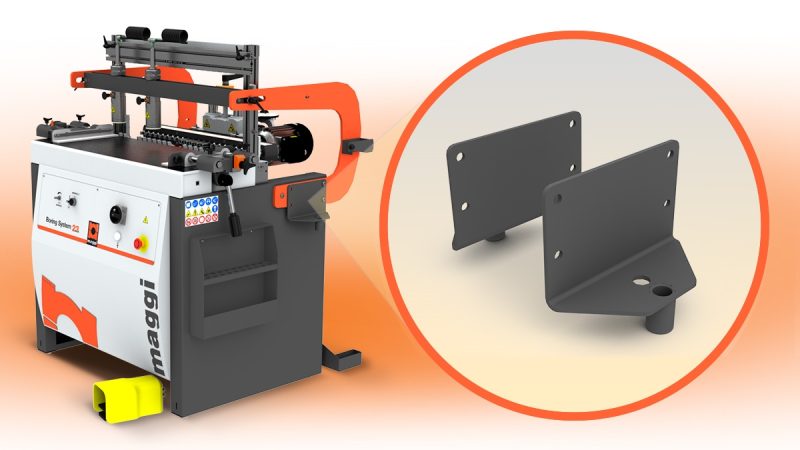

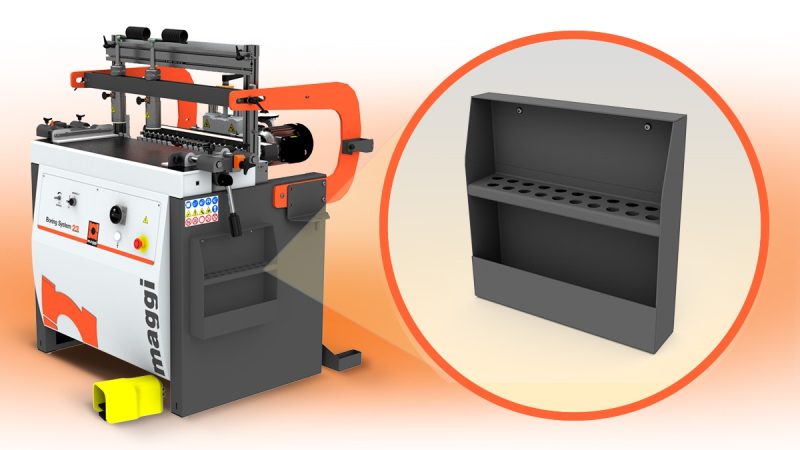

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.
Features:
- Accurate Positioning Of The Boring Unit To The Table With Digital Readout.
- 0 To 2.5″ Adjustable Drilling Depth With Patented Spiral Setting Device.
- (2) Patented Quick Release Material Clamps With Auto-Setting To Firmly Hold Material To Table.
- Powerful 2 HP Motor.
- 37″ X 13″ Cast Iron Table.
- Side Fences With Mechanical Digital Readout For Quick And Accurate Setting.
- 120″ Line Boring Fence With (4) Stops.
- Foot Actuated Pneumatic Clamps And Drill Cycle.
- Includes: Magnetic Starter With Overload Protection And (23) Quick Change Chucks.
Specifications:
Spindle Spacing: |
1-1/4″ (32mm) |
Dust Outlet: |
3″ |
Net Weight: |
630 Lbs |
Dimensions: |
51.7″ x 37.8″ x 50″ Tall |
Crated Dimensions: |
42.2″ x 37.4″ x 40.5″ Tall |
Crated Weight: |
705 Lbs |
Options (single head boring machines):
