Model: 3000 Series
Year: 2013
Electrical: 220v, 3ph, 62.5amps, 50/60hz.
Total table dimensions: 60” x 60”
The right head has a servo motor for the Y-Axis while the left head is slaved to the right head via an adjustable bar. The left head can be un-attached and moved to the left if needed.
5.5kW / 7.5hp Colombo Spindles (@ up to 24,000 RPM)
10-3/4” of Z-Axis Travel (w/no tooling BUT including spoil board)
Approximate max working area for each spindle: 30” X-Axis and 50” Y-Axis if using both spindles. 50” X-Axis and 50” if you change parameters and use one spindle
13-1/8″-25-1/8″ adjustability between head centers
Each spindle has independent Z-Axis controls
Equipped with a handheld KDM20G controller
Control panel is built-into rear of machine base
10 HP Multicam Vacuum Pump

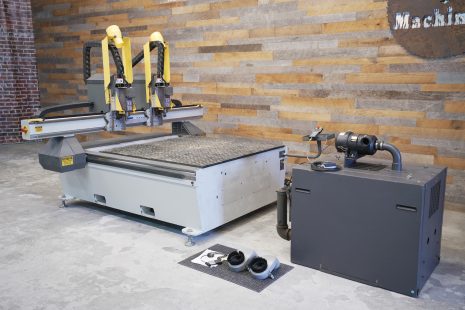

2013 Multicam 3000 Series Twin Head/Spindle 5’X5′ CNC Router
Original price was: $10,000.00.$8,000.00Current price is: $8,000.00.
This Multicam 3000 Series CNC router has twin 7.5 hp spindles. The right head has a servo motor for the Y-Axis while the left head is slaved to the right head via an adjustable bar (13-1/8″-25-1/8″ adjustability between head centers). The left head can be un-attached and moved to the left, out of the way if needed. Changing the “Y” axis offset in the programming will allow you to have a single head that can travel over the full 60″ X 60″ vacuum table. Likewise you can run the heads together and duplicate 2 pieces at once with a little less “Y” axis travel. 10-3/4” of Z-Axis Travel (w/no tooling BUT including spoil board). Includes 10 hp vacuum pump.
