The Tersa cutterblock with automatic knives clamping by means of the centrifugal force ensures safe and precise machining. The system, without fixing screws, makes knives substitution extremely fast.

For an impeccable finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined.

The very long surfacing fence is made of extruded aluminium and ensures an absolute rigidity.

The “Xylent” spiral knives cutter block gives an exceptional finish with reduced noise during machining thus to provide a more comfortable working environment.
- The “Xylent” cutter block also improves the dust extraction due to the production of very small chips
- Each cutter of the “Xylent” block has 4 tips which can be rotated into the cutting position when worn, therefore increasing the knives production life before they require replacement
- The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed

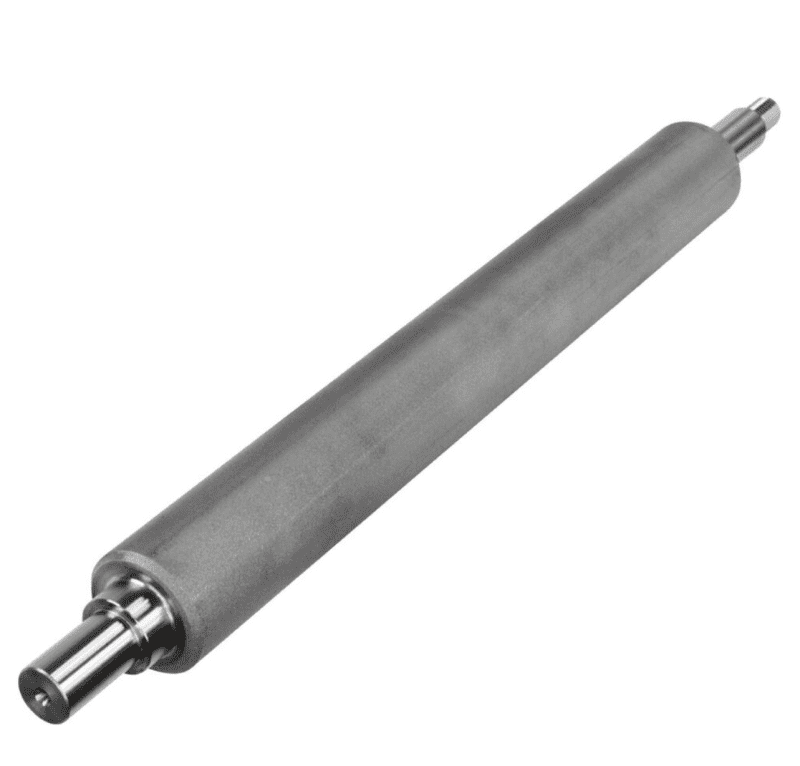

- The sandblasted steel thicknesser outfeed roller maintains the perfect post-machining finish.
- Handwheel with gravitational numerical readout for an easy and precise positioning of the thicknessing table

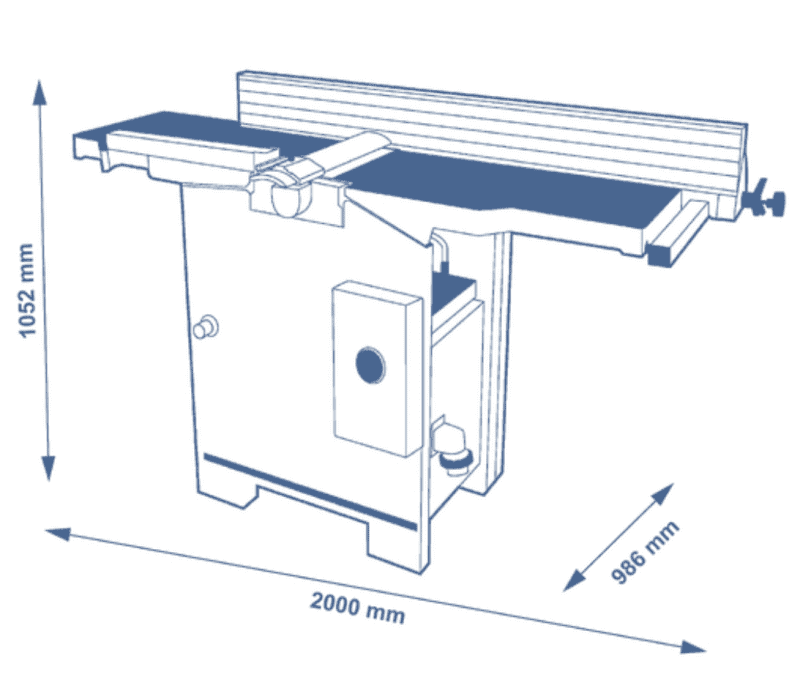

Technical data
fs 41c | ||
Cutterhead working width | mm / inches | 410 / 16 |
With TERSA Straight-knife Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
87 / 3 410 x 30 x 3 |
With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives |
mm / n° mm |
87 / 66 15 x 15 x 2.5 |
Max. stock removal | mm | 4 |
Jointer table length | mm / inches | 1800 / 71 |
Planer table dimensions | mm / inches | 410 x 605 / 16 x 24 |
Planer feed speed | m/min | 7 |
Min. – max. planer working height | mm / inches | 3 – 230 / 0.12 – 9 |
Single-phase motor | Hp | 4.8 |
Fence Tilt | degrees | 0 – 45 |
