Description

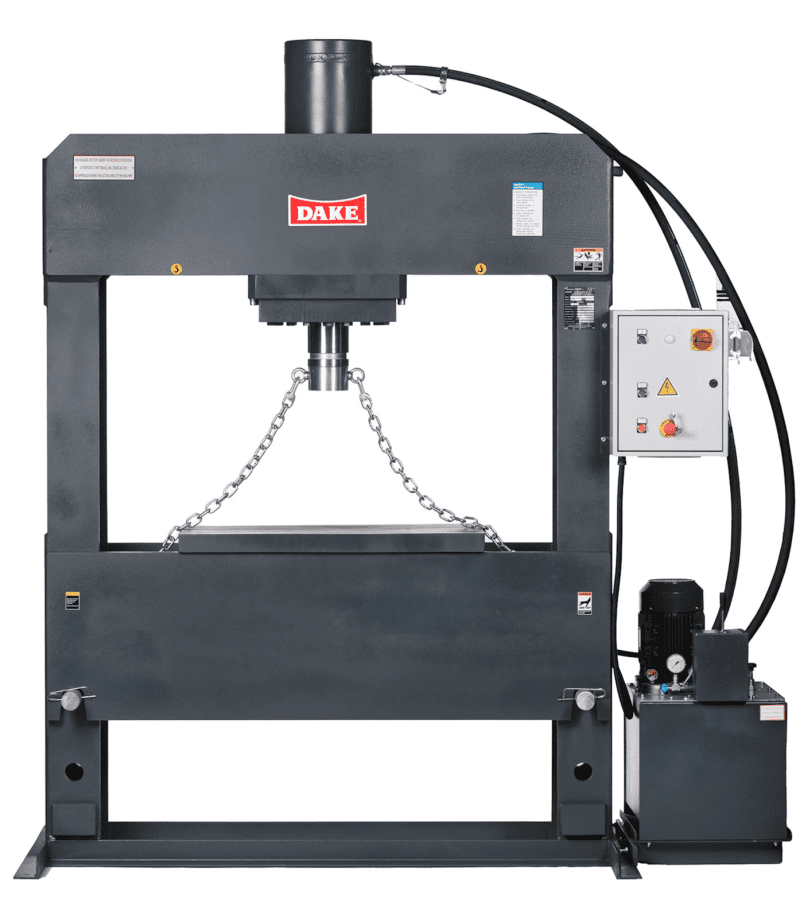

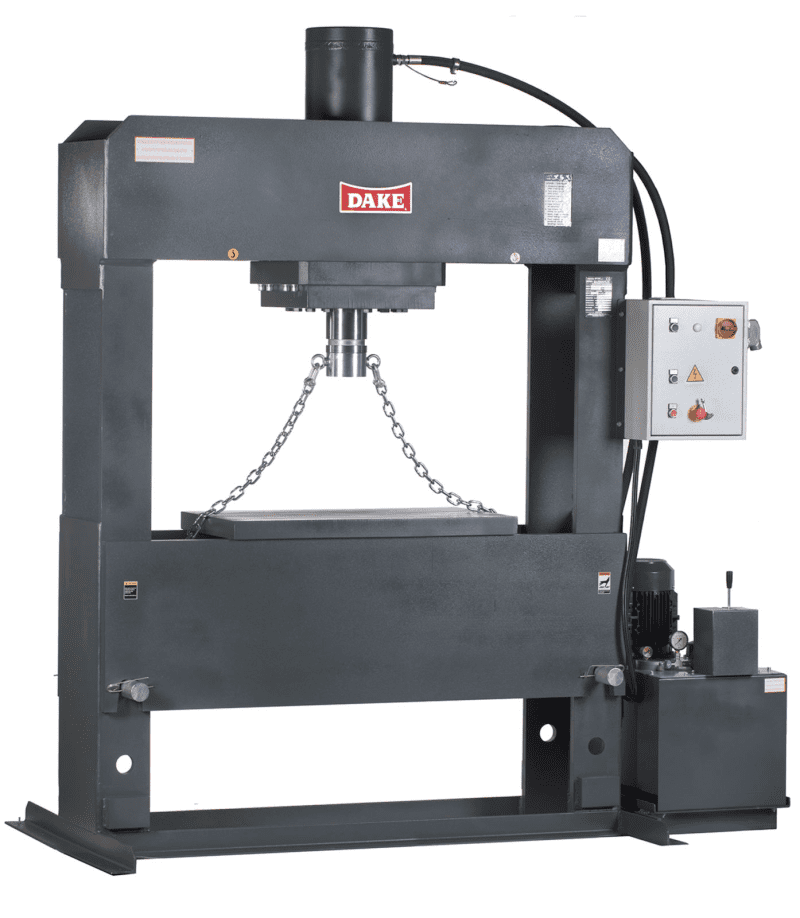

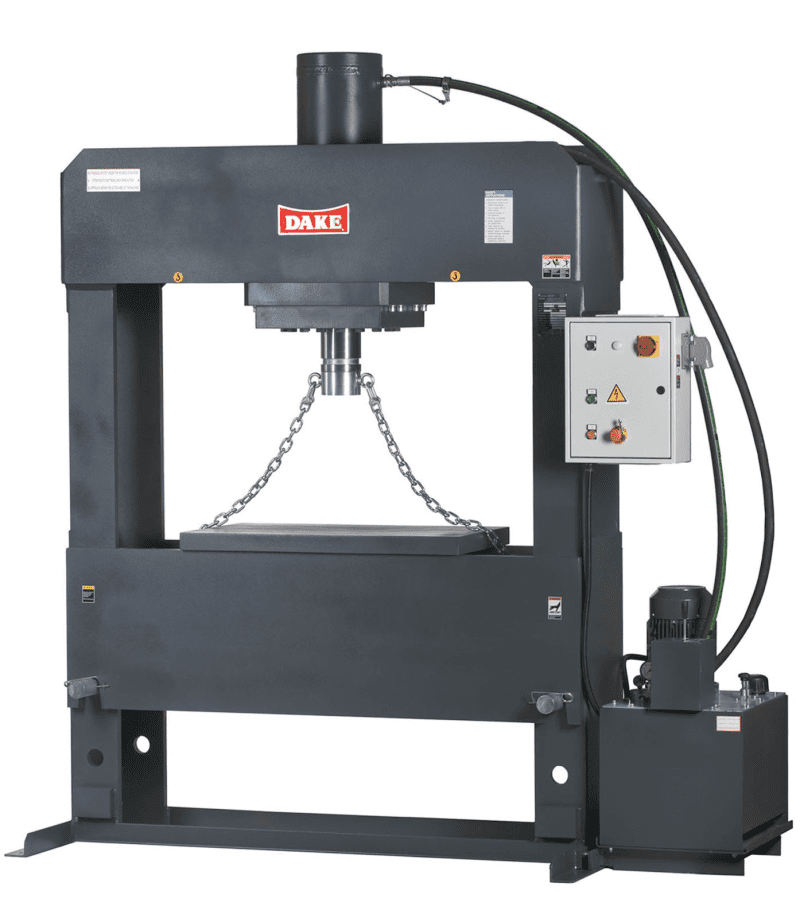

200 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.
Dake has been manufacturing their line of H-frame hydraulic presses since the mid-1940s. Their hydraulic presses are ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, forming, punching, and shearing. Every hydraulic press has a frame that is constructed of heavy-duty arc-welded steel and seamless steel cylinders to prevent leaks.
Features
- Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
- Welded heavy steel plate frame for greater rigidity
- 4HP submerged motor drives three centrifugal pumps for quiet, steady oil flow
- All electrical controls are low voltage (24V)
- Preset and factory-sealed relief valve to prevent exceeding pressure capacity
- Ram has lifting eyes that attach a chain to hydraulically move the table
- Smooth, responsive control valve
- Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made
Standard Equipment
- Frame
- 2 Steel Table Plates
- Lifting Chain
- Work-head
- Pressure Gauge
- Safety Relief Valve
Specifications
- Capacity: 200 Tons
- Operation: Electric
- Horsepower: 4HP
- Width Between Uprights: 59”
- Width Between Table Channels: 14”
- Min Ram to Table: 9”
- Max Ram to Table: 35”
- Ram Travel: 19”
- Ram Advance Speed: 47 in/min
- Pressing Speed: 7 in/min
- Electrical Requirements: 220V Three Phase
- Footprint: 103” x 48”
- Height: 114”
- Weight: 8,467 lbs
