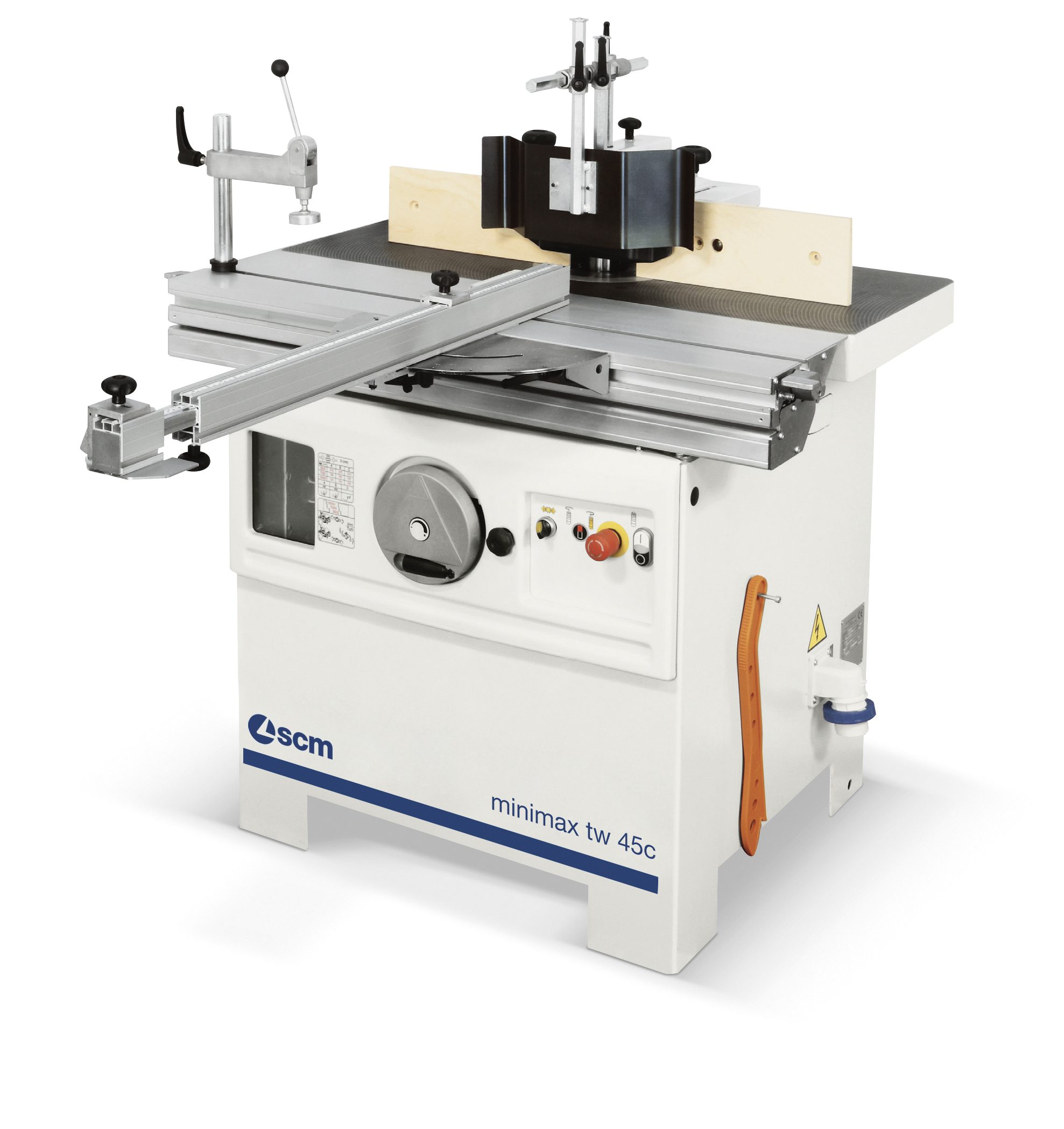

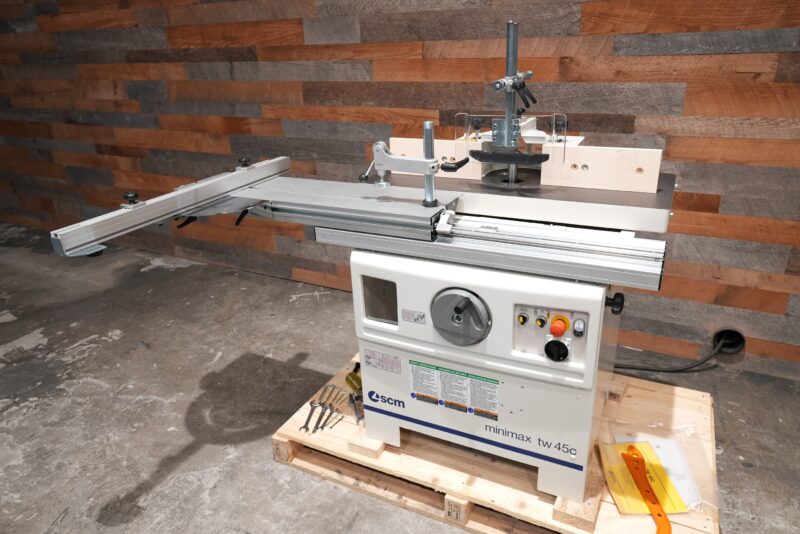

Professional and very sturdy

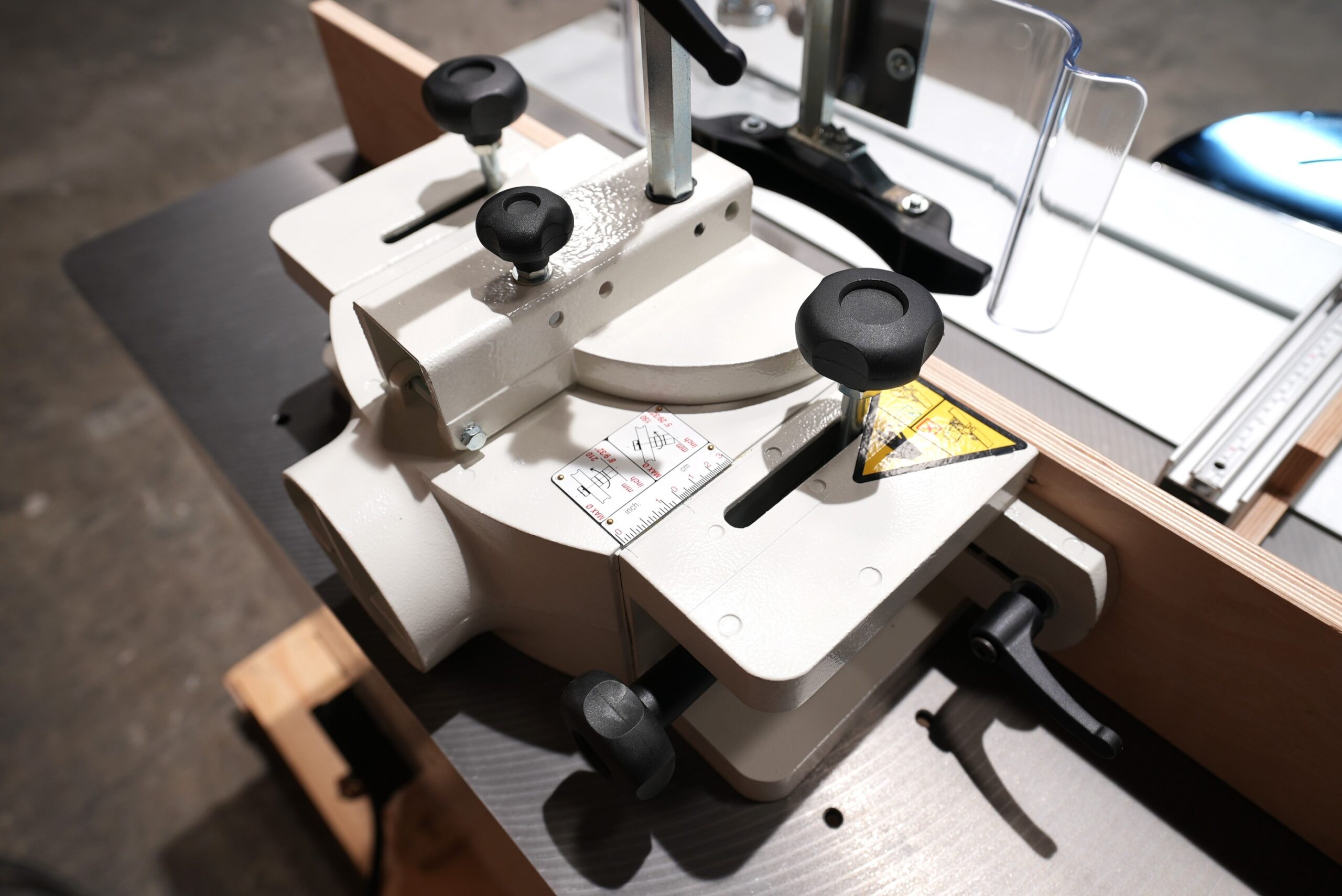

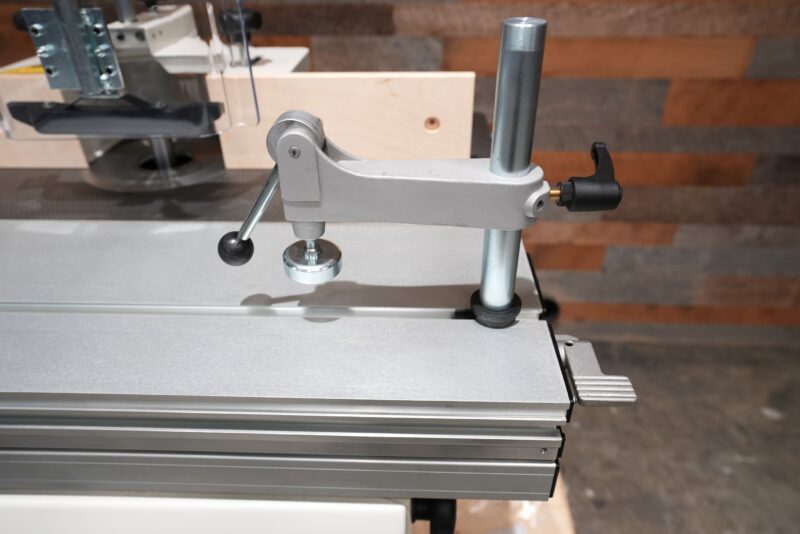

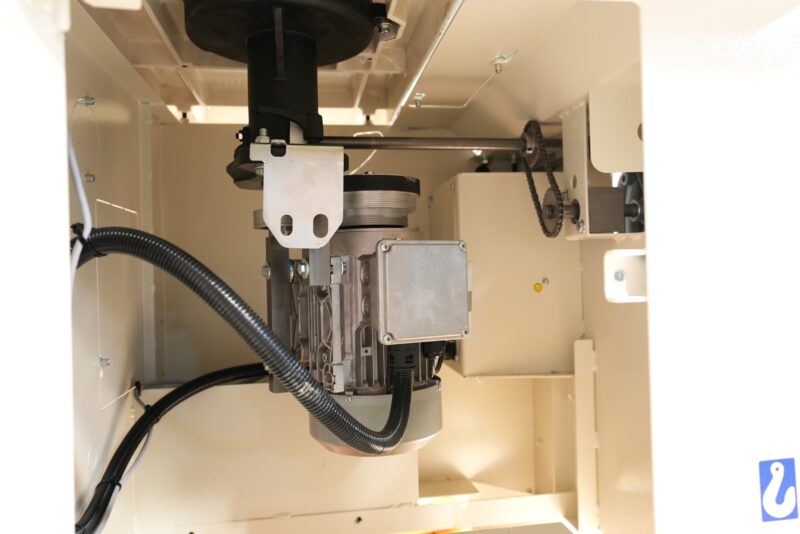

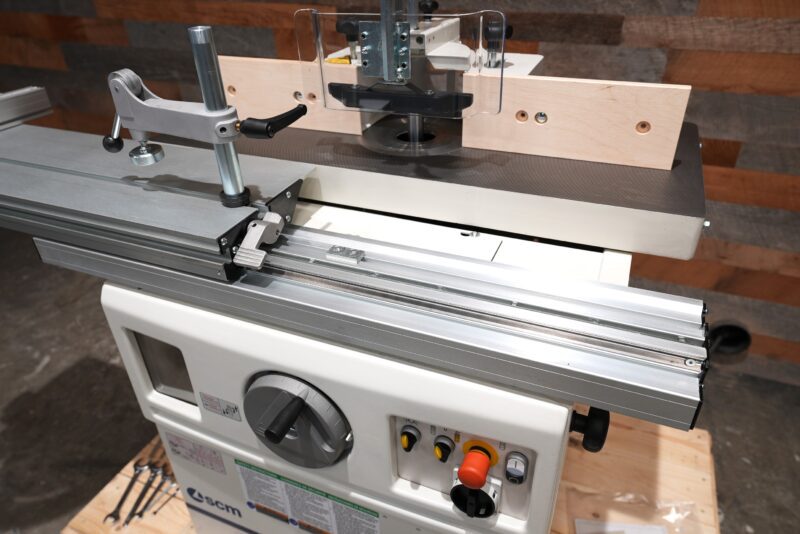

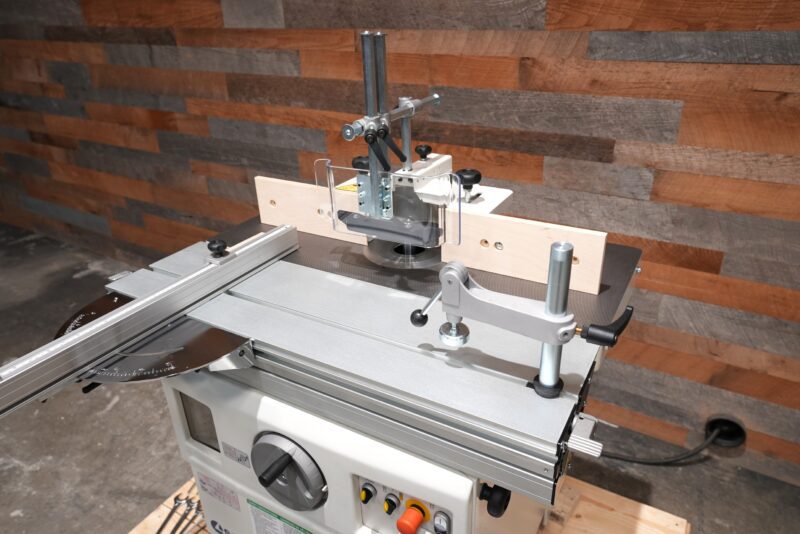

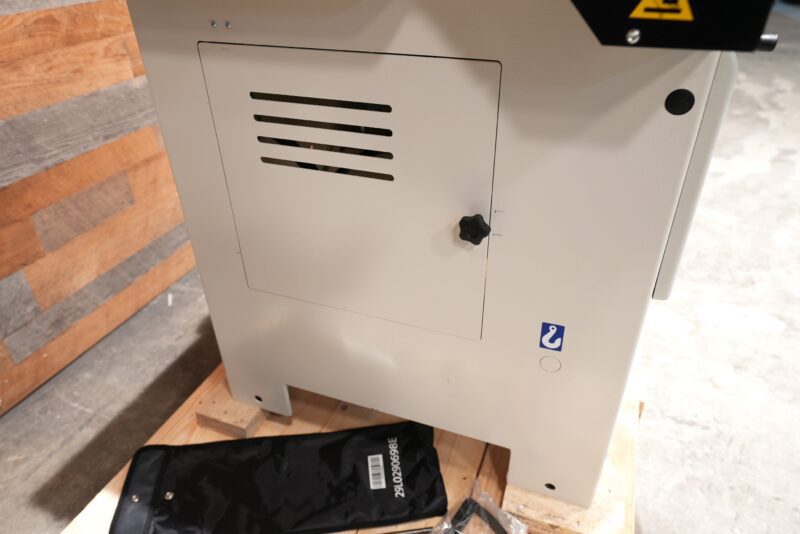

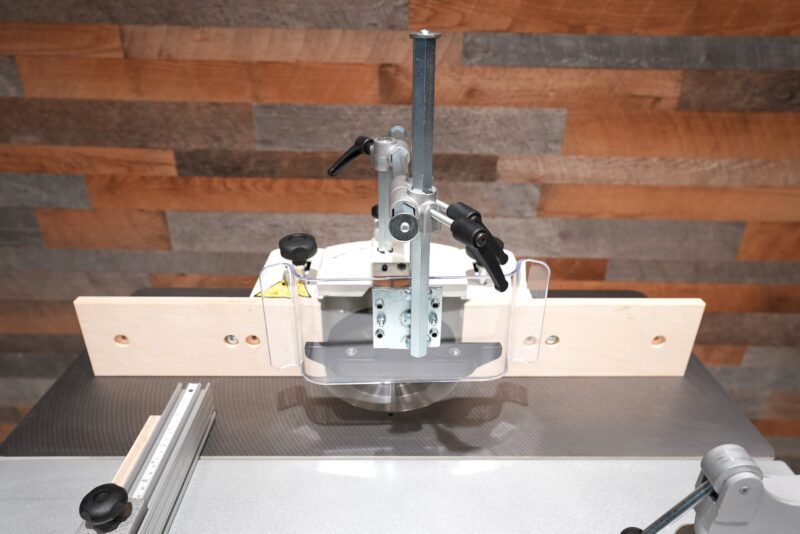

The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle shaper fence with micrometric adjustment complete with vertical and horizontal pressers.
On request, it is available the 45° tilting spindle, toward the inside of the machine.
Customizable for any requirement

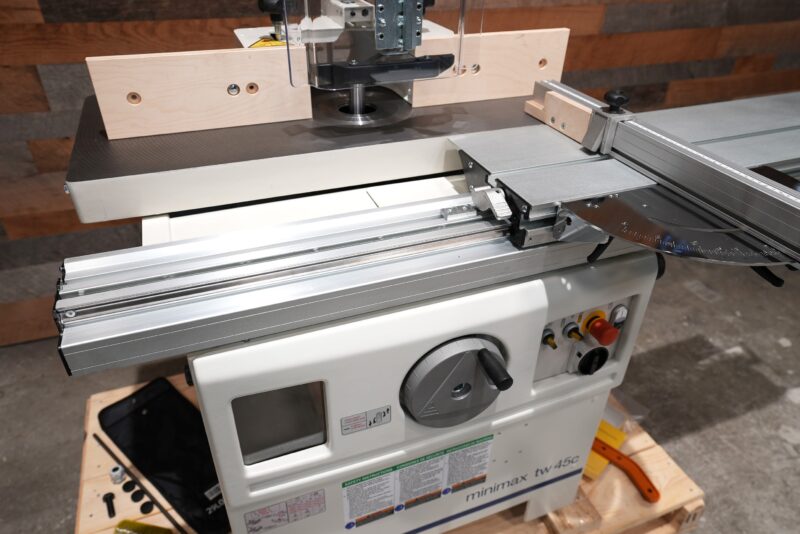

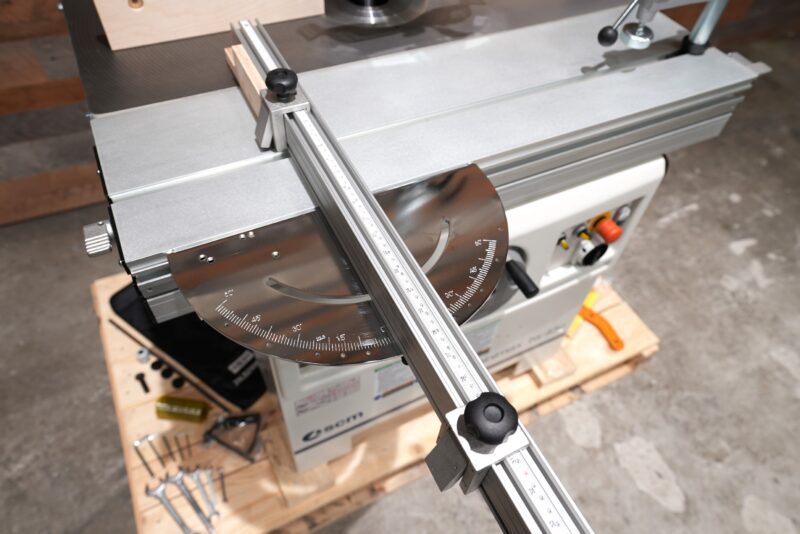

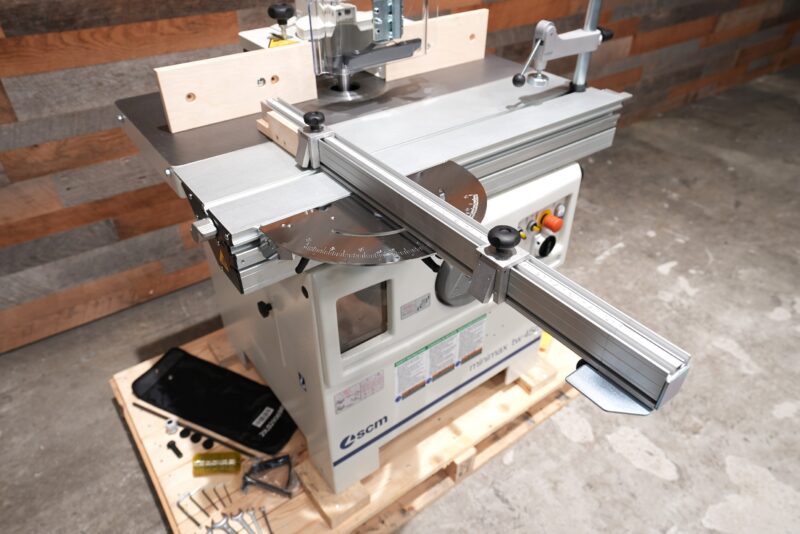

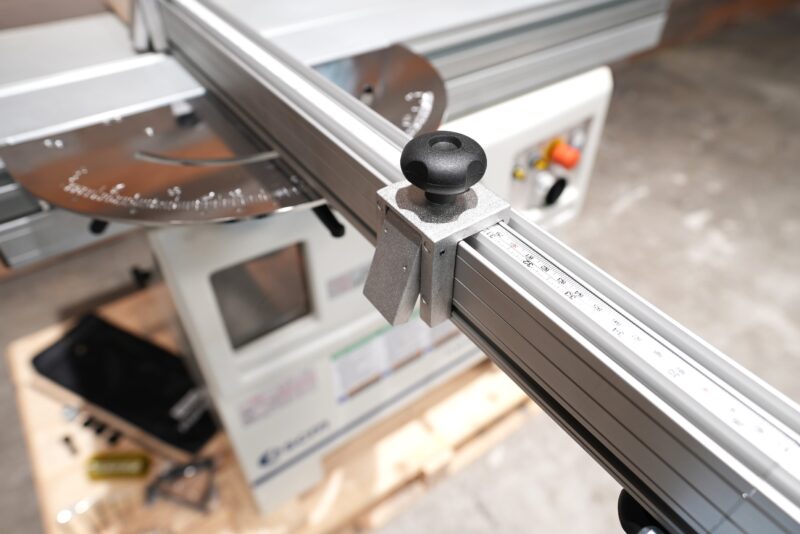

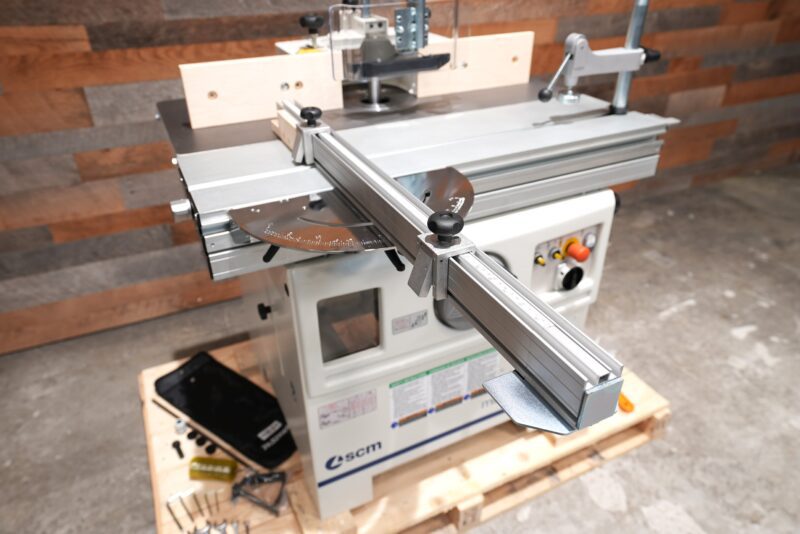

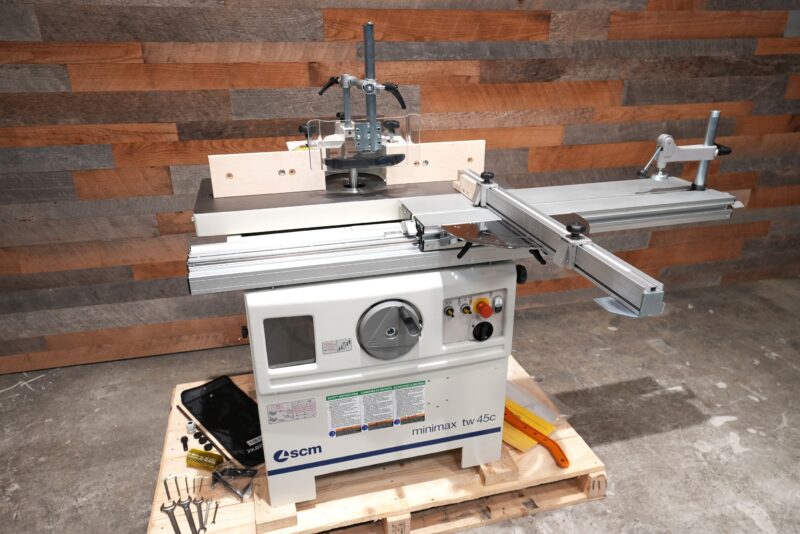

The 270 mm sliding table on tw 45c, provides a greater support, very useful also for tenoning. Precise cuttings, even for large work pieces, with the support frame (option) with telescopic fence.

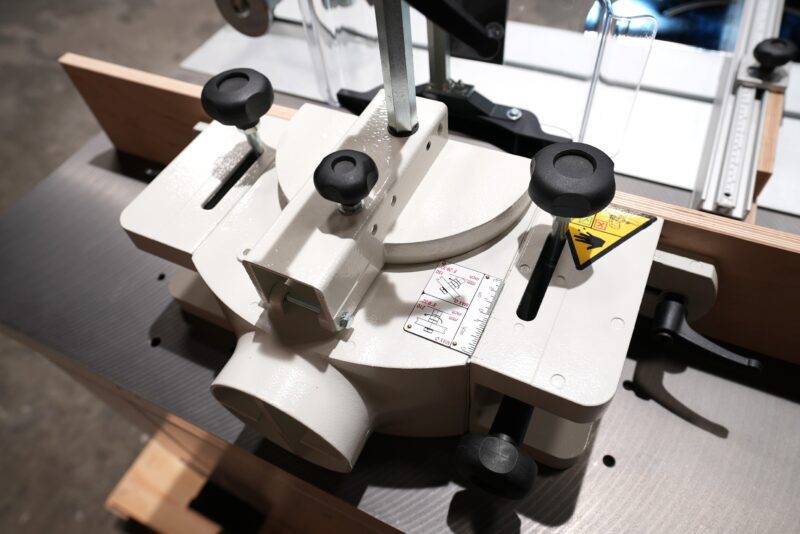

As option it is available the spindle shaper hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
|Max. useful spindle length||mm||100|

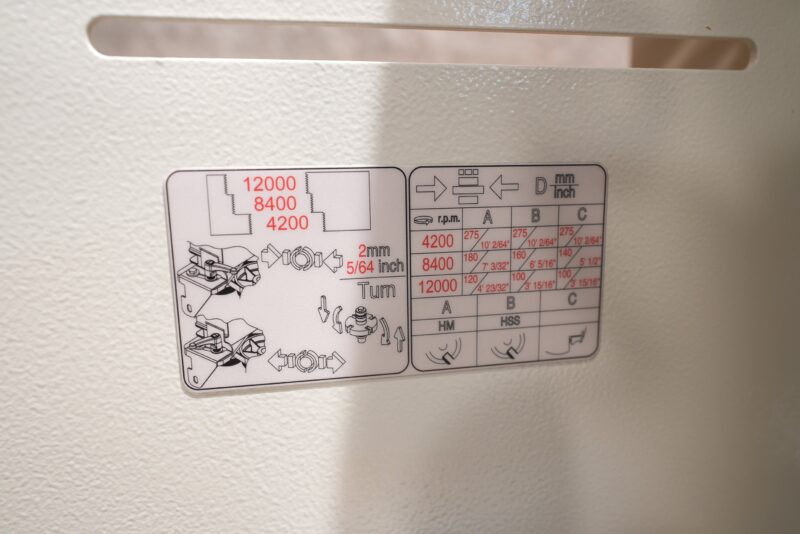

|Spindle moulder speed (a 50 Hz)||giri/min||3500/7000/10.000|
|Max. tool diameter when profiling||mm||210|
|Max. tool diameter lowered under the table at 90°||mm||180|
|Max. tool diameter when tenoning||mm||275|
|Three-phase motors starting from||kW/Hz||5 (6) / 50 (60)|
