SCM formula s 440p – s 540p – s 640p – s 940p Line of Bandsaws (17″-37″)

$5,385.00$15,185.00

We searched high and low trying to find the best bandsaws available at this price point and the “formula s” will not disappoint. These are simply the best bandsaws considering price, resaw height, power, and it’s beefy structure with more bracing than it’s competitors. PLUS it’s backed by SCM!

Massive, high-precision, professional band saws for the D.I.Y. woodworkers and the carpentries.

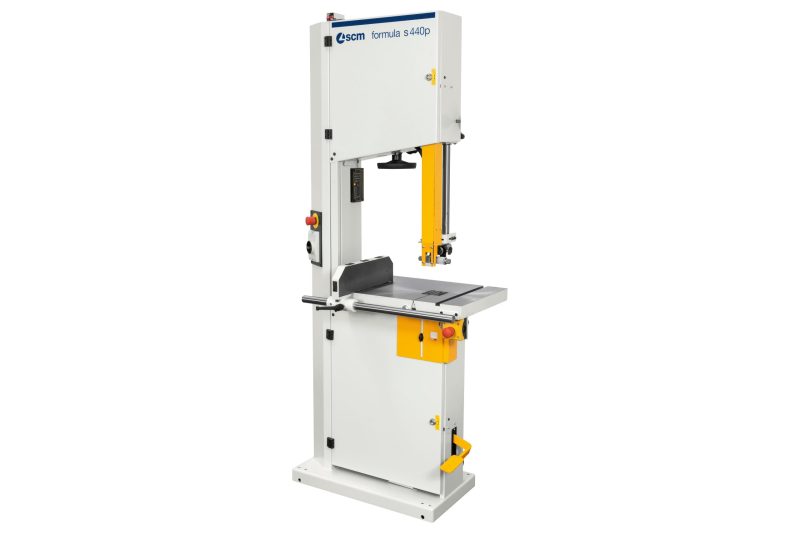

The S 440P is the number one selling formula bandsaw in North America. This Italian designed and manufactured machine is considered THE bandsaw to use for the most discriminating professionals and hobbyists alike. With engineering and design features found nowhere else, it is easy to see why this is the top selling machine in our formula lineup. Powerful single-phase motors (4.8hp), heavy-duty large cast-iron balanced wheels with a tongue and groove system for easy replacement of rubber tires, and robust cast iron and steel components with easy to use controls and unparalleled safety features make this the bandsaw of choice for thousands!

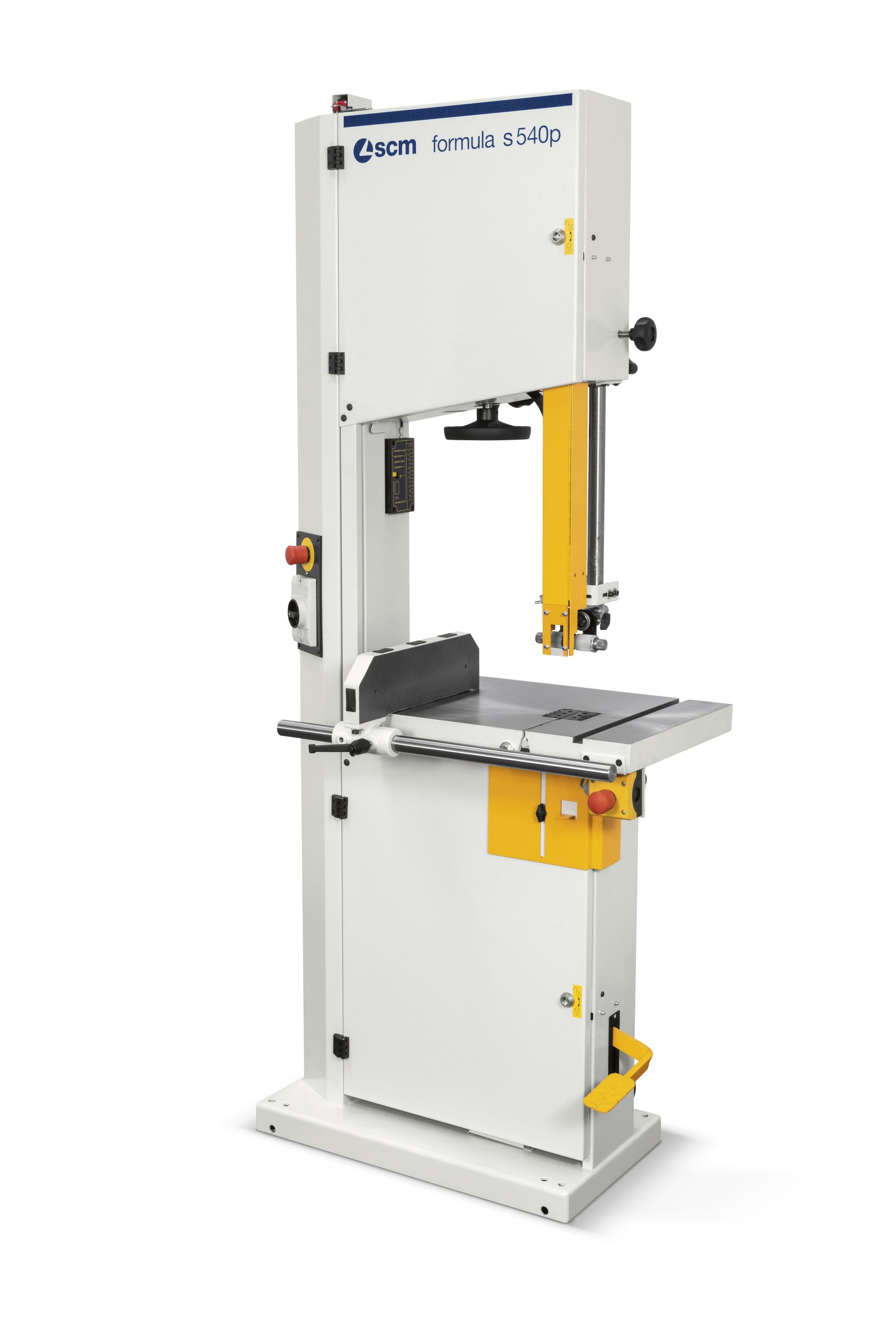

The S 540P is the big brother of the S 440p. For those looking for single-phase power, but with a larger throat for increased resaw capacity, this is the machine for you. With all of the features of its smaller brother, this bandsaw is for when you need to resaw up to 20” of material. With the right blade, you can easily make your veneers from those big resaw project pieces!

The S 640P is the beast of the Professional Series Bandsaws. This bandsaw comes in either single-phase or 3-phase depending on your electrical specs and production needs. With single-phase power, you get a hardy 4.8hp bandsaw. If you are higher production or do primarily resaw, you can get yourself the 3-phase version with a whopping 9hp! With such robust power you can easily resaw 24” logs while still having the ability to do fine intricate scrollwork. Whatever your project needs are, the S 640p delivers!

S 740P, S 840P, and S 940P Industrial Series Bandsaws

The Industrial Series of Bandsaws by formula come with even heavier features and larger motors. These machines are all 3-phase and are meant for heavy duty resaw and are even used in non-wood applications in the advanced materials industries.

Advertised Price Configurations:

S 440P  1ph, 4.8HP, 17.3″ flywheels Ø, 17.3″ resaw height, 16.7″ cutting width, 154″ recommended blade length, 0.25″ – 1″ blade width, mobility kit

S 540P 1ph, 4.8HP, 21.25″ flywheels Ø, 19.7″ resaw height, 20.5″ cutting width, 178″ recommended blade length, 0.25″ – 1 1/4″ blade width, mobility kit

S 640P – 1ph  1ph, 4.8HP, 25.2″ flywheels Ø, 23.6″ resaw height, 24.4″ cutting width, 204″ recommended blade length, 0.25″ – 1.5″ blade width, mobility kit

S 640P – 3ph  3ph, 9HP, 25.2″ flywheels Ø, 23.6″ resaw height, 24.4″ cutting width, 204″ recommended blade length, 0.25″ – 1.5″ blade width, mobility kit

S 940P – 3ph, 9HP, 37″ flywheel Ø, 22″ resaw height, 35.8″ cutting width, 262″ recommended blade length, 0.5″ – 2″ blade width, mobility kit

Guaranteed Safe Checkout

Credit

SCM formula s 440p – s 540p – s 640p – s 940p Line of Bandsaws (17″-37″)
$5,385.00$15,185.00
Request a call back
(*Optional)




Click Here to Download Formula_Product Brochure PDF

ADVANTAGES

Solidity and sturdiness

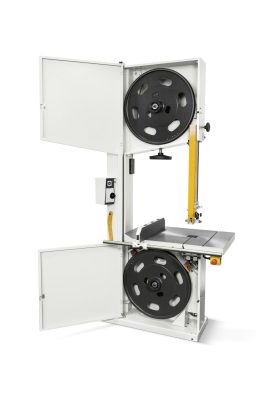

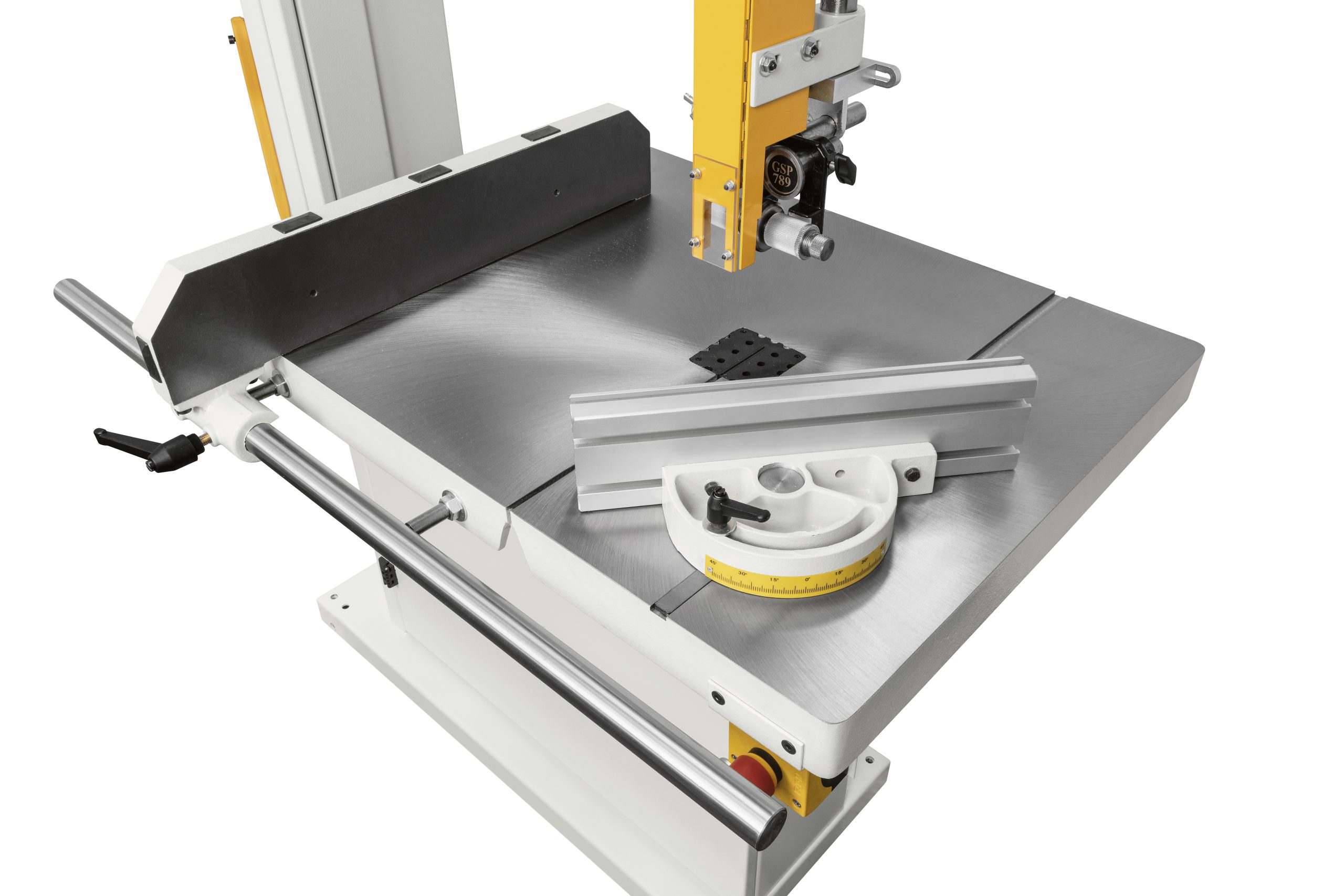

Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.

Safety first
Safe machining with telescopic blade protections with rack and pinion blade cover.

Perfect results

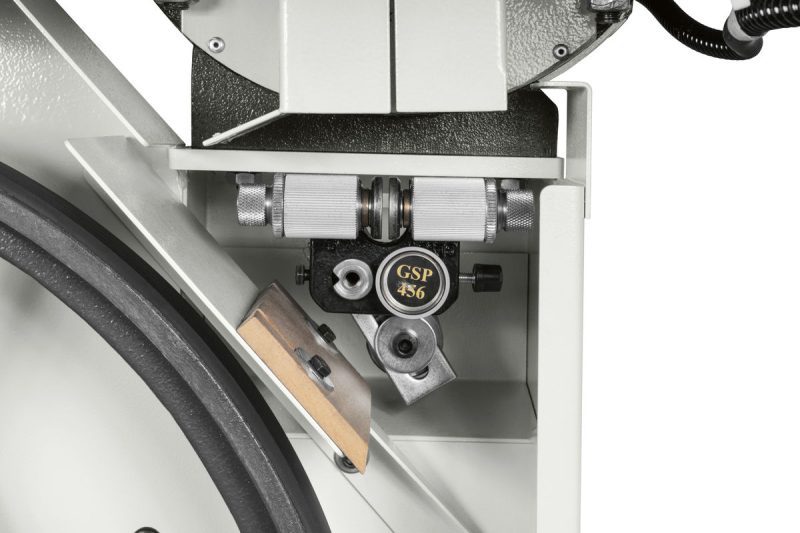

A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.

Technical data

Technical features S 440P S 540P S 640P (1PH) S 640P (3PH) S 840P S 940P
Worktable dimensions mm 420 x 578 520 x 720 600 x 885 600 x 885 800 x 1160 800 x 1250
Cast iron saw wheels diam. mm 440 540 640 640 840 940
Saw wheels width mm 33 38 38 38 45 54
Max. cutting height (inches) mm 440 (18″) 500 (20″) 600 (24”) 600 (24”) 540 (21”) 560 (22”)
Max. cutting width mm 425 520 620 620 820 910
Worktable tilting (CE) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°) 0° ÷ 45° (20°)
Min./max. blade dimensions mm 6/30 6/35 8/35 8/35 10/45 12/50
Standard three-phase motor
S1 400V 50Hz
2,2kW 3hp 2,2kW 3hp 3kW 4hp 9hp 5,5kW 7,5hp 7,5kW 10hp
Standard three-phase motor
S1 220V 60Hz
3,6kW 4,8hp 3,6kW 4,8hp 3,6kW 4,8hp 9hp 6,7kW 9hp 6,7kW 9hp
Standard single-phase motor
S1 220V 60Hz
3,6kW 4,8hp 3,6kW 4,8hp 3,6kW 4,8hp
Exhaust outlet diameter mm N° 2 x 120 N° 2 x 120 N. 2 x 120 N. 2 x 120 N. 2 x 140 N. 2 x 140

Additional information

Model: No selection

s 440p (1-Phase), s 540p (1-Phase), s 640p (1-Phase), s 640p (3-Phase), s 740p (3-Phase), s 940p (3-Phase)
