Features:
- Gravity down feed for hands free cutting
- Electronic speed regulator with “Constant Speed” feature prevents “bog” downs
- End of cut shut off switch with trigger control, e-stop and blade cover interlock
- Hefty 2.5 HP motor with direct drive
- RCT “reverse cutting technology”. Blade runs in reverse direction for cooler cutting, faster and cleaner cuts
- Bi-Metal Blade
- Blade tension indicator with clutch for proper blade tensioning every time
- Push and click hands free cutting pressure setting
- Variable Speeds with 114 – 262 feet per minute
- Cast bed and cutting bow and outboard stop
- Miter capabilities 0°- 45°
- Quick release vise for fast set up and change over
- 2 cutting modes. Manual and gravity down feed
- Cutting speeds and feed guide
Options:
| Blade reverse welded – 6 TPI | 303293 |
| Blade reverse welded – 14 TPI | 303295 |
| Blade reverse welded – 10-14 vari tooth | 303297 |
| Blade reverse welded – 6-10 vari tooth | 303299 |
| FST work table for the SE-5X6 RCT | 303301 |
Specifications:
| Model | SE 5X6 RCT |
| Item Number | 983107-1 |

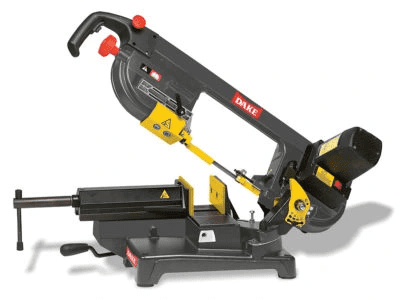

| Machine Type | Portable mitering gravity fed horizontal Bandsaw |
| Blade Size | 68-1/4 x 1/2″ x .025 (Reverse welded) |
| Blade Speed | 114 – 262 FPM |
| Horsepower | 2.5 H.P. maximum |
| Weight | 120 pounds |
| Overall Height | 20 inches |
| Base Width | 18 inches |
| Depth | 39 inches |
| Round Capacity @ 0° | 6 inches |
| Round Capacity @ 45° | 4 inches |
| Square Capacity @ 0° | 6 inches |
| Square Capacity @ 45° | 4 inches |
| Rect. Capacity @ 0° | 6 X 5 inches |
| Rect. Capacity @ 45 | 4-3/4 X 4 inches |
