Features & Benefits
- Automatic Feed System: Automatically adjusts the feed pressure to ensure consistent, accurate cuts with minimal effort.
- Heavy-Duty Construction: Built to handle the demands of industrial metalworking environments.
- Precision Cutting: Delivers smooth, accurate cuts, even on intricate and detailed projects.
- Adjustable Blade Speed: Offers flexibility for cutting different materials and thicknesses.
- Versatile Design: Ideal for high-volume tasks as well as detailed cutting projects.
Effortless Precision with Automatic Feed

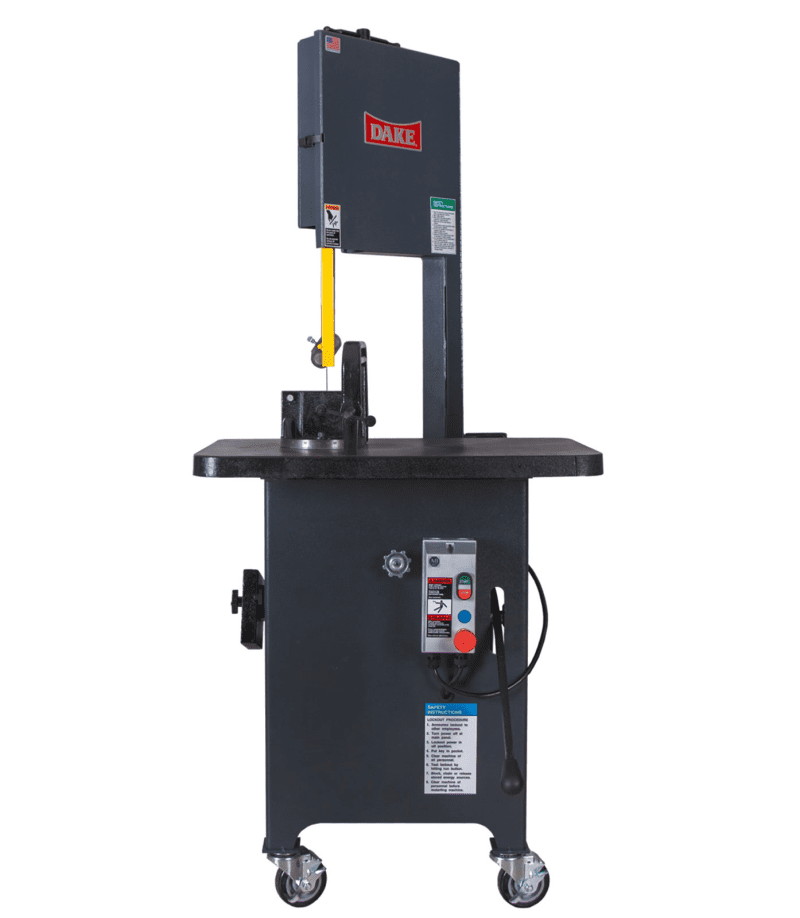

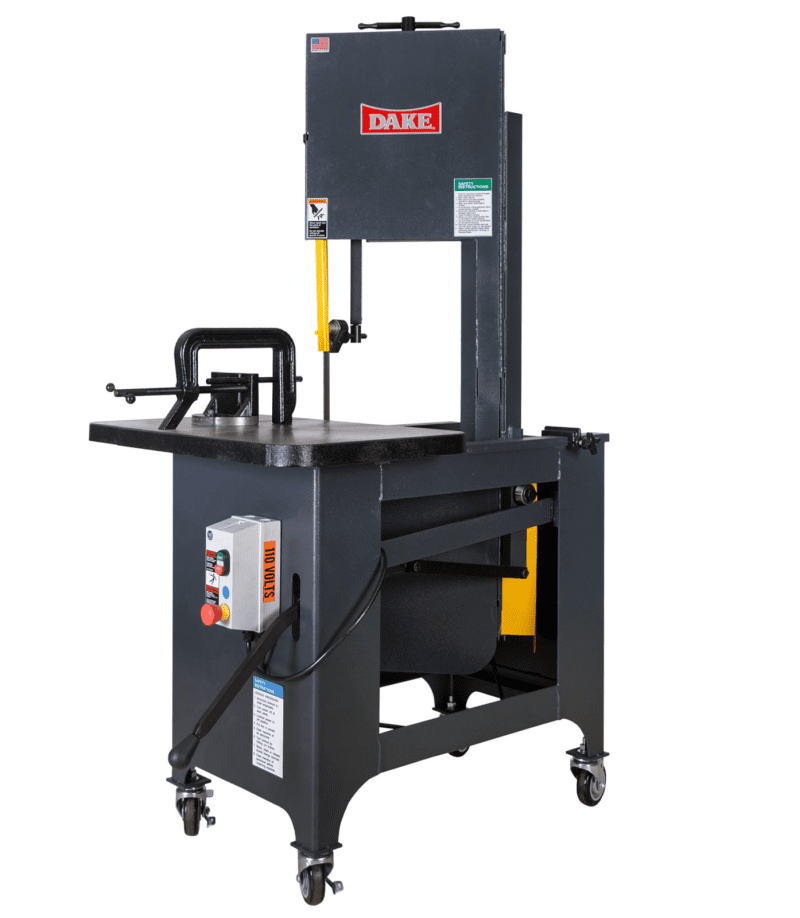

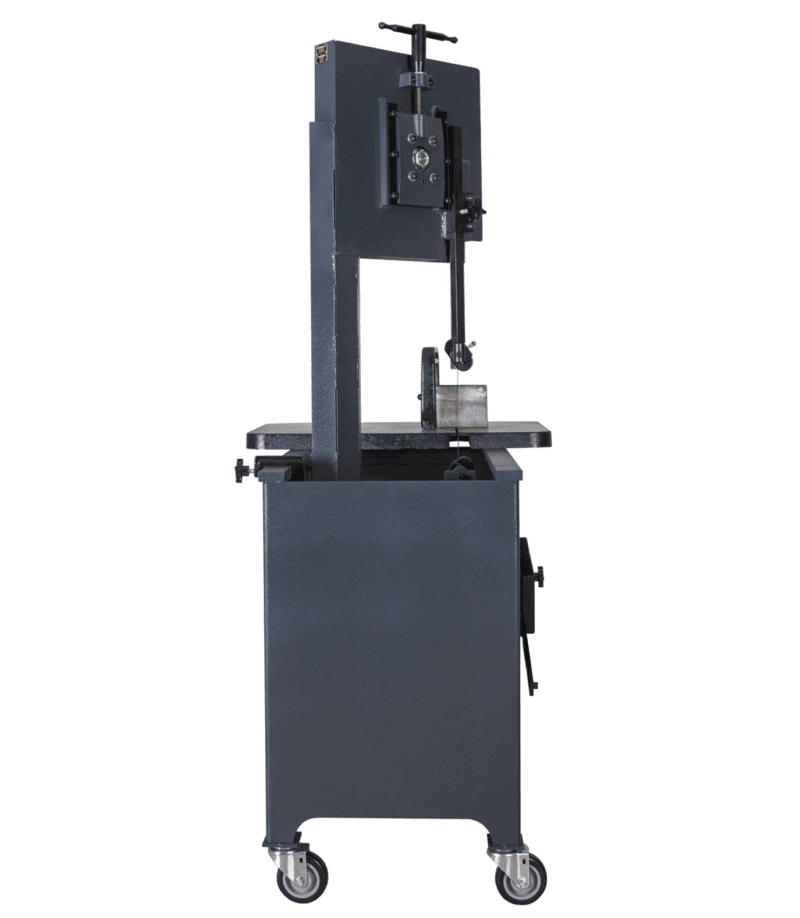

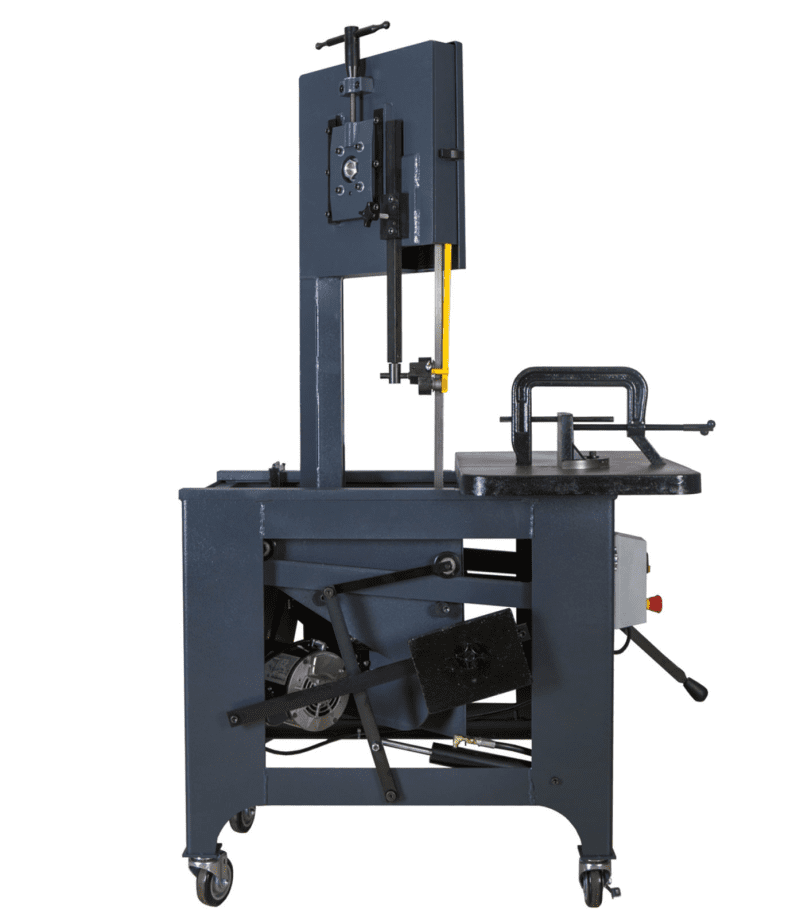

The Dake Work-A-Matic Vertical Bandsaw SXC simplifies metal cutting with its innovative automatic feed system. This feature adjusts the feed pressure to provide consistent, accurate cuts without the need for constant manual adjustments, making it an excellent choice for high-volume tasks and detailed projects alike.
Built for Industrial Durability
Designed to withstand the demands of industrial environments, the Work-A-Matic SXC is constructed from high-quality, heavy-duty materials. Its robust frame and reliable components ensure long-term performance, even under rigorous use.
Versatile Cutting Capabilities
This vertical bandsaw is equipped with adjustable blade speeds, giving you the flexibility to cut a wide range of materials and thicknesses. Whether you’re working with intricate designs or handling heavy-duty cuts, the Work-A-Matic SXC adapts to meet your needs.
Upgrade Your Workshop
The Dake Work-A-Matic Vertical Bandsaw SXC is an essential tool for any professional workshop or industrial facility. Its combination of precision, durability, and efficiency ensures that your metalworking projects are completed with speed and accuracy.
Specifications:
| Feature/Specification | Imperial | Metric |
| Model Number | SXC | SXC |
| Part Number | 988040 | 988040 |
| Horsepower | 1 | 1 |
| Voltage | 110V, Single Phase | 110V, Single Phase |
| Blade Width | 1/4 – 3/4 in | 6.35 – 19.05 mm |
| Blade Length | 120 in | 3048 mm |
| Blade Speed | 70/140/270/540 fpm | 21/43/82/165 mpm |
| Blade Travel | 9 in | 228.6 mm |
| Band Wheels Number | 2 | 2 |
| Band Wheels Size | 14 in Diameter | 355.6 mm Diameter |
| Mitering | 45° | 45° |
| Maximum Work Height | 14-1/2 in | 368.3 mm |
| Work Table Dimensions | 29 x 18 in | 736.6 x 457.2 mm |
| Worktable Tilt | Fixed | Fixed |
| Worktable Height | 36-1/2 in | 927.1 mm |
| Machine Height | 66 in | 1676.40 mm |
| Machine Floor Space | 29 x 40 in | 736.6 x 1016 mm |
| Weight | 810 lbs | 367.41 kgs |
Optional Accessories:
- 716725 – Heavy Duty Locking Caster Set
- 716905 – Work Lamp (installed)
- 303815 – Work Lamp (not installed)
- 301750 – 3 TPI Bi-metal Blade
- 300548 – 6-8 TPI Bi-metal Blade
