Description

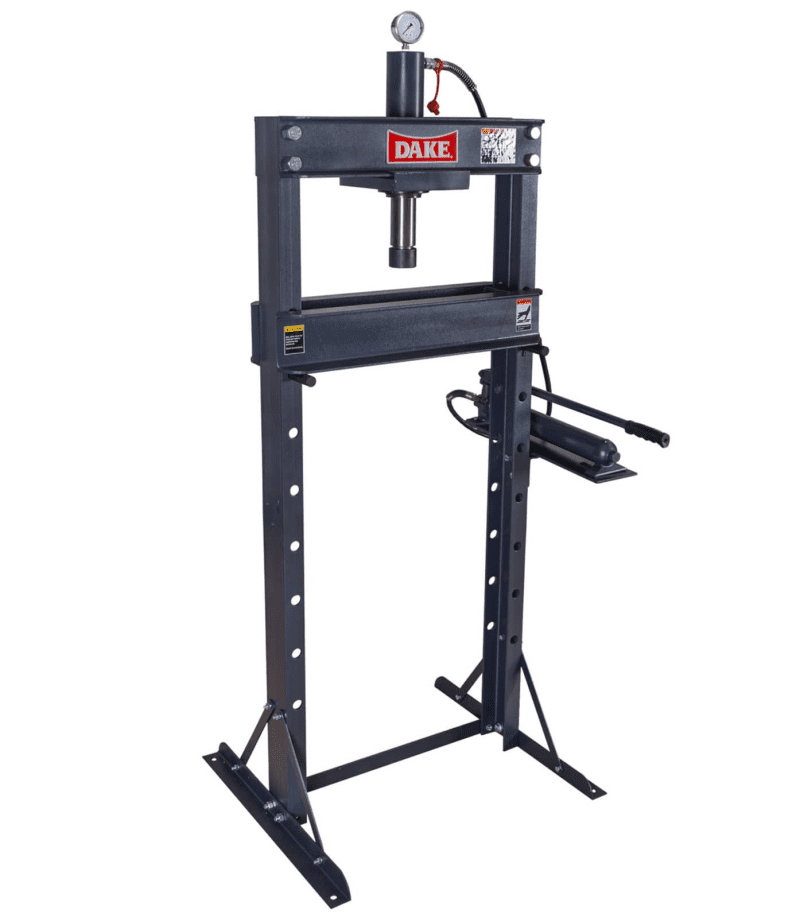

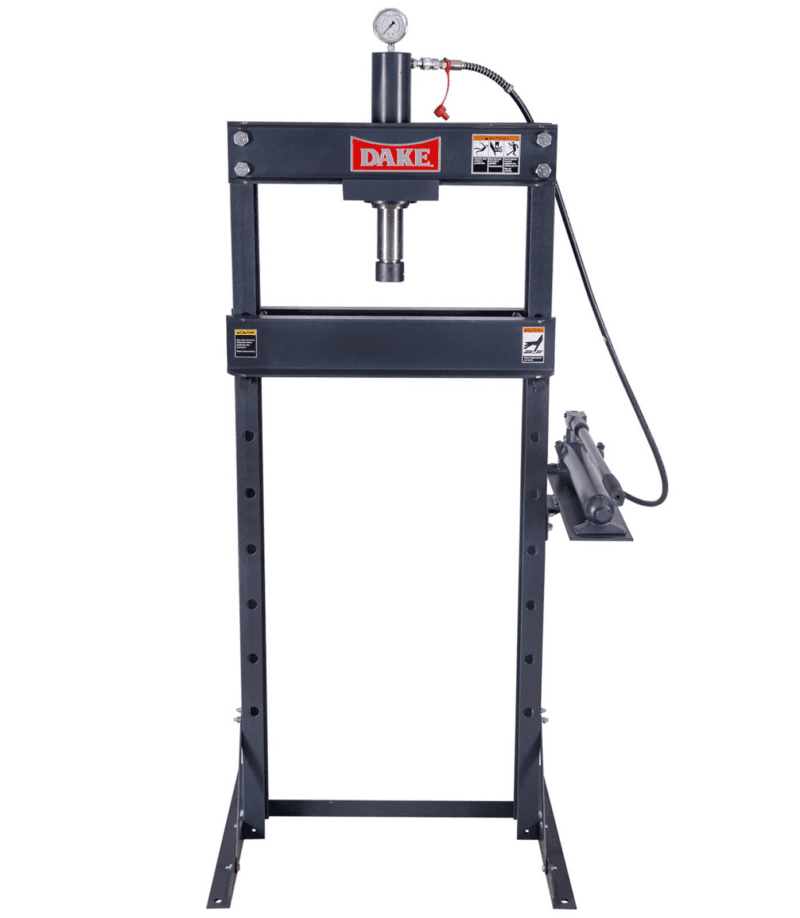

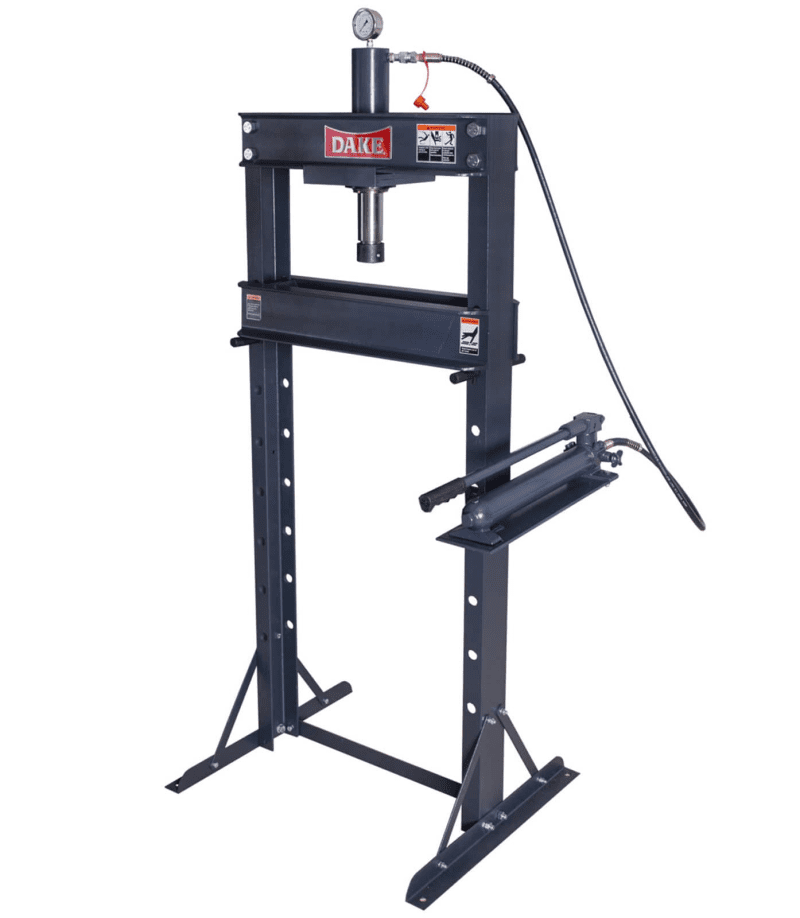

Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-20 model is a 20 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.
Dake has been manufacturing their line of H-frame hydraulic presses since the mid-1940s. Their hydraulic presses are ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, forming, punching, and shearing. Every hydraulic press has a frame that is constructed of heavy-duty arc-welded steel and seamless steel cylinders to prevent leaks.
Features
- Heavy steel channel frame and table
- Long 8” stroke
- Self-contained fast, efficient two speed hand operated pump conveniently located
- Traversing head L/R for off center pressing applications
- Removable nose piece to allow for custom nose piece installation
- Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
- Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
- Comes complete with table plates, gauge, and owner’s manual
Standard Equipment
- Steel Channel and Frame
- Traversing Head
- Removable Nose Piece
- Table Plates
- Gauge
- Step Nose Piece
Specifications
- Capacity: 20 Tons
- Operation: Manual
- Width Between Uprights: 22”
- Width Between Table Channels: 4”
- Min Ram to Table: 4”
- Max Ram to Table: 39”
- Ram Travel: 8”
- Horizontal Workhead Travel: Left/Right of Center
- Ram Advance Speed: 3/16” per stroke
- Footprint: 34” x 26”
- Height: 70”
- Weight: 283 lbs
