Description

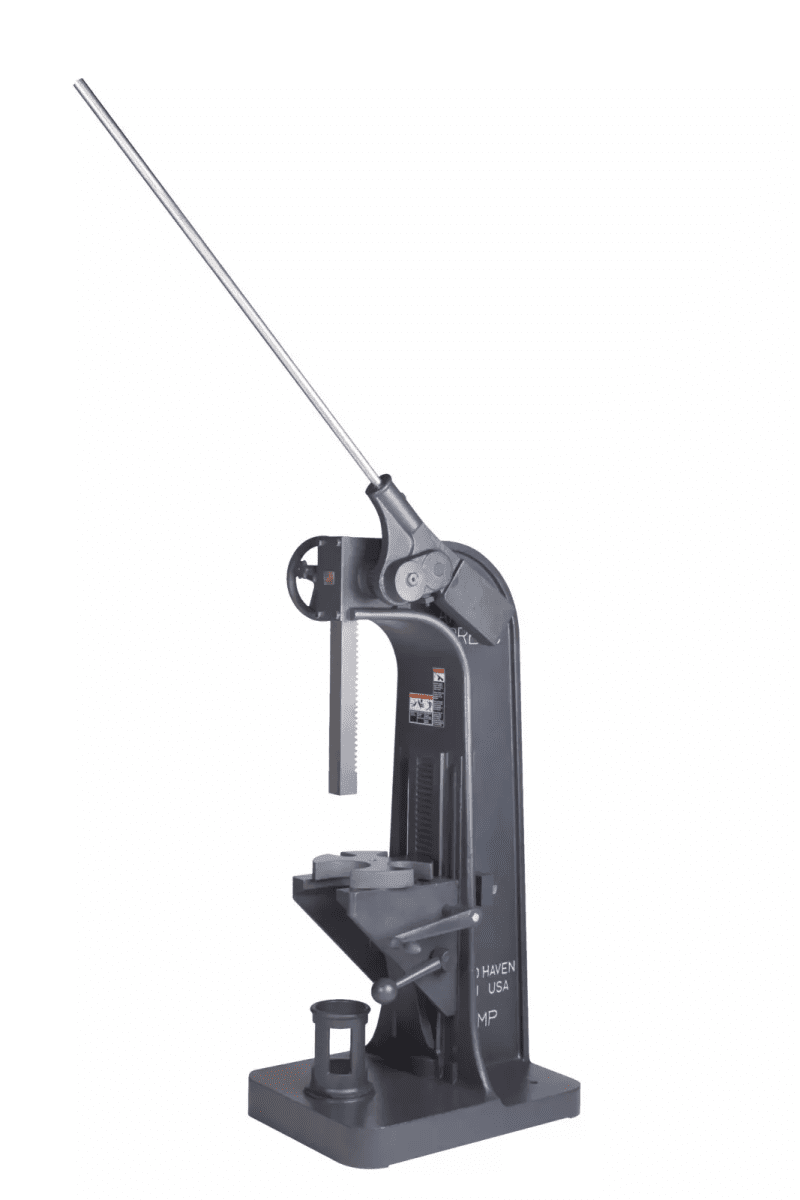

Floor model 5 ton arbor press with hand-operated brake.
Nobody in the industry offers a wider range of tonnage and sizes in arbor presses than Dake. They manufacture 17 different standard single leverage, ratchet leverage, and compound leverage arbor presses. For strength and durability, all frames are cast iron and incorporate a flanged spine design which adds rigidity to the press body. Arbor press bases are machined for maximum stability and drilled to permit side mount, bench, or pedestal mounting. Dake has been manufacturing their line of arbor presses since the 1940’s and are proud to say that you will find one of these machines in just about every job shop in the USA.
Features
- Ratchet device permits lever to be used in most convenient position
- Counterweight returns lever quickly after downstroke
- Handwheel advanced ram to work quickly
- Floor Model
Standard Equipment
- Cast Iron Base
- Handwheel
- Ram
- Notched Table Plate
- Counter Weight
Specifications
- Capacity: 5 Tons
- Leverage: 55:1
- Ram Size: 2” x 2” x 23”
- Max Diameter Work: 20”
- Throat: 10”
- Largest Arbor: 5¼”
- Capacity Over Table: 26”
- Capacity Over Table Plate: 24½”
- Base Length: 21½”
- Base Width: 29”
- Height: 58”
- Weight: 1,045 lbs
