Description

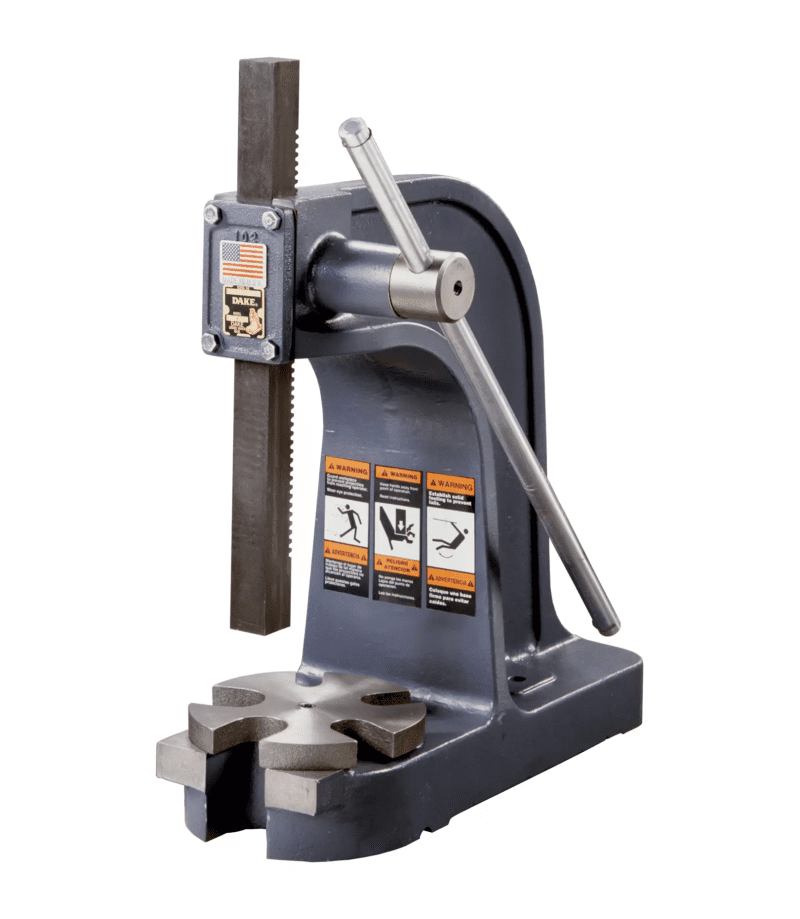

The most heavy duty arbor press in Dake’s single leverage line, this 3 ton press features a slotted table plate and base opening. Add an optional pedestal to make this machine a favorite in your shop.
Nobody in the industry offers a wider range of tonnage and sizes in arbor presses than Dake. They manufacture 17 different standard single leverage, ratchet leverage, and compound leverage arbor presses. For strength and durability, all frames are cast iron and incorporate a flanged spine design which adds rigidity to the press body. Arbor press bases are machined for maximum stability and drilled to permit side mount, bench, or pedestal mounting. Dake has been manufacturing their line of arbor presses since the 1940’s and are proud to say that you will find one of these machines in just about every job shop in the USA.
Features
- Shimmed ram cap permits take-up for potential wear
- Smooth action gears permit finite ram control
- Friction brake
- Adjustable handle allows convenient handle positioning
- Base opening and slotted table plate for arbor work
Standard Equipment
- Cast Iron Base
- Ram
- Slotted Table Plate
- Adjustable Handle
Specifications
- Capacity: 3 Tons
- Leverage Ratio: 36:1
- Ram Size: 1¼” x 1¼” x 16½”
- Max Diameter Work: 14”
- Throat: 7”
- Largest Arbor: 2”
- Max Ram to Table: 11½”
- Min Ram to Table: 10¾”
- Capacity Over Table: 11½”
- Capacity Over Table Plate: 10¾”
- Base Length: 18”
- Base Width: 7¼”
- Height: 19”
- Weight: 130 lbs
Optional Add-Ons
- Pedestal (901007)
