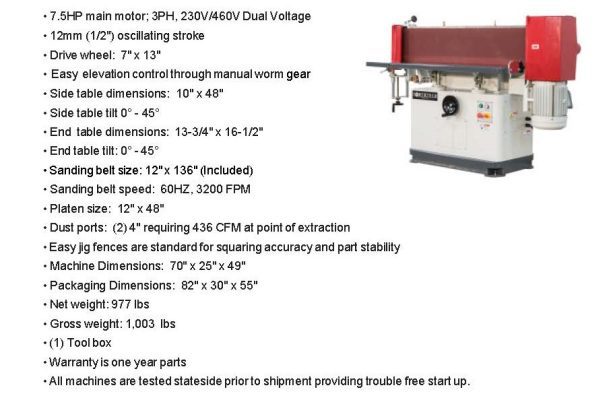

Northtech NT ES1248SE 12″ X 48″ Capacity Single Sided or Dual Sided Oscillating Edge Sander

$9,995.00$12,995.00

This machine features 12″ X 48″ platens and is powered by a 7.5 hp main motor. The oscillating stroke is 1/2″. Available in either single sided or dual sided versions. (single sided pictured)

Guaranteed Safe Checkout

Credit

Northtech NT ES1248SE 12″ X 48″ Capacity Single Sided or Dual Sided Oscillating Edge Sander
$9,995.00$12,995.00
Request a call back
(*Optional)
NT ES1248SE Edge Sander (single sided)
or
NT ES1248DE Edge Sander (dual sided)

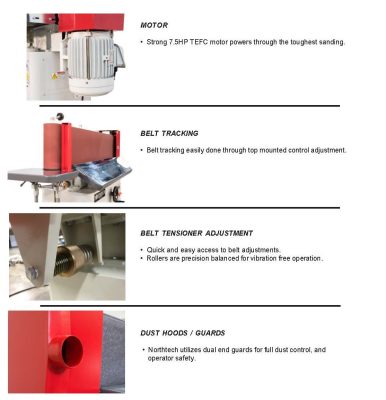

  • Direct Drive = Motor to 7” x 12” Pulley
  • Machine Hp. = 7.5 hp.
  • Voltage/ Freq. = 230 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 22 Amps
  • Elevation Style = Manual Wheel Adjustment
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 24 Volt Control Voltage
  • Pass-Line = 32”
  • Sandpaper Size = 12” x 136”
  • Platen Specs. = 12” x 48”
  • Drum Specs. = 7”x 12” Steel 4-3/4”x 12.5′
  • Roller Type = Steel / Rubber

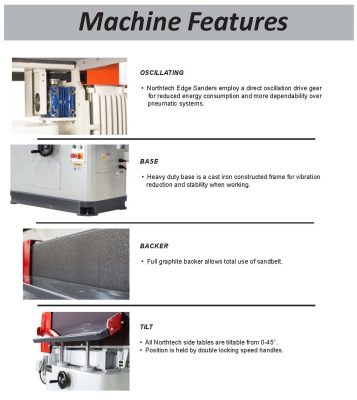

  • Oscillation Sty = Gear Box Driven
  • Oscillation Trv = 1/2”
  • Tracking Style = Manual Adjustment
  • Tension Style = Manual Adjustment
  • Dust Collection = (2) 4” @ 900 CFM
  • Dust Port Out = 2 4” Top
  • Emergency Stop = Push Button
  • Guarding = High Visibility Guarding
  • Tiltable = 45 Degrees
  • Frame Const. = 3/16” Steel Construction
  • End Table Dims. = 13-3/4” x 16-1/2”
  • Side Table Dim. = 10” x 48”
  • Table Const. = Steel
  • Decible Rating = 77 dB
  • Net Weight = 977 Lbs.
  • Gross Weight = 1003 Lbs.
  • Machine Dims. = 69” x 25” x 49”
  • Packaging Dims = 82” x 30” x 55”

Additional information

Number of Sides: No selection

Single Sided, Dual Sided
