Northtech NT ES948SE‑532 9″ X 48″ Capacity Single Sided Oscillating Edge Sander

This machine features 9″ X 48″ platens and is powered by a 5 hp main motor. The oscillating stroke is 3/8″.

ⓘ Unlock Your Best Price!

By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.
Don't miss out – request your quote now!

Categories: NORTHTECH MACHINE, Sanders, Sanders (Edge, Misc, & Profile), SANDING MACHINERY Tags: Misc, Profile, Sanders (Edge)

Description

NT ES948SE-532 Edge Sander

5HP main motor; 3PH, 230V/460V Dual Voltage
(3/8″) oscillating stroke
Drive wheel: 7″ x 9-5/8″
Easy elevation control through manual worm gear
Side table dimensions: (1) 10-1/2″ x 48″
Side table tilt: 0Â° – 45Â°
End table dimensions: (1) 13-3/4″ x 16-1/2″
End table tilt: 0Â° – 45Â°
Sanding belt size: 9″ x 134″ (Included)
Sanding belt speed: 3,300 FPM
Platen size: 9.5″ x 48″
Dust ports: ( 2) 4″ requiring 500 CFM @ point of extraction
Easy jig fences are standard for squaring accuracy and part stability
Part thickness: 9″
Machine Dimensions: 76″ x 25-1/2″ x 45-1/2″
Packaging Dimensions: 81″ x 31″ x 52″
Net weight: 696 lbs
Gross weight: 870 lbs
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.

Direct Drive = Motor to 7” x 9-5/8” Pulley
Machine Hp. = 5 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 15 Amps
Elevation Sys. = (2) Post Jack Screw
Elevation Style = Manual Wheel Adjustment
Total Hp. = 5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 32”
Max. Length = 48”
Max. Thickness = 9”
Sandpaper Size = 9” x 134”
Platen Specs. = 9” x 48”
1st Belt Speed = 3300 FPM
Oscillation Sty = Gear Box with Cam
Oscillation Rte = 30 Cycles/Minute
Oscillation Trv = 3/8”
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Vertical Travel = 5-3/4” Table Adjustment
Dust Collection = (2) 4” @ 900 CFM

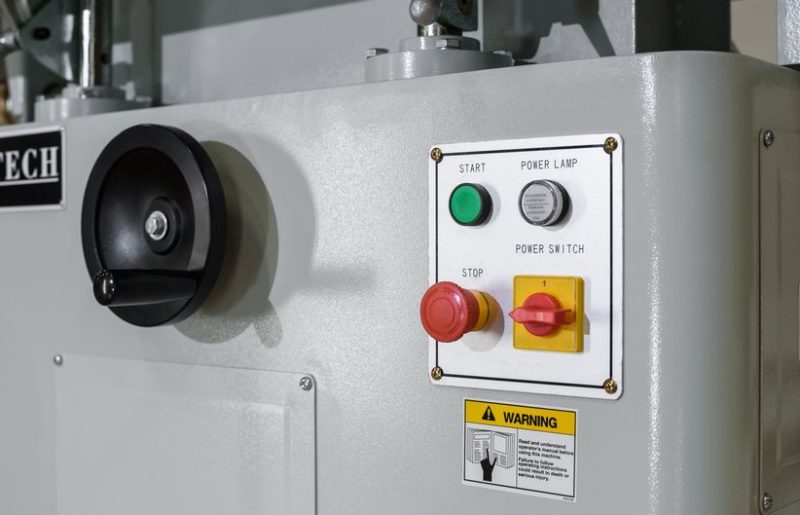

Emergency Stop = Push Button
Guarding = High Visibility Guarding
Fence Type = Jig Fence
Frame Const. = 1/4” Steel Construction
End Table Dims. = 13-3/4” x 16-1/2”
Worktable Dims. = 10-1/2” x 48”
Table Const. = Steel
Decible Rating = 72 dB
Net Weight = 696 Lbs.
Gross Weight = 870 Lbs.
Machine Dims. = 76” x 25-1/2” x 45-1/2”
Packaging Dims = 81” x 58” x 74”
