Technical data
Power Supply 120 volts – 8.3 Amps
Air Supply 90 psi – approx. 0.1 cubic foot/cycle
Motor 750 Watt motor with double front bearing
Motor speed 35,000 rpm at idle
Collet size 1/4”
Motor carriage guides 16mm diameter guide rods, precision ground
Operation pneumatic – dual cylinder design
Max. routing height 4” – 101mm
Max. material height 5 3/4” – 146mm
Installed router bit W-2, solid carbide
Available router bits W-0, W-1, W-2, W-3 and W-4
Dimensions W/D/H 31 1/2” x 29 1/2” x 59”
Weight 262lbs.
New Arrival!
Hoffmann PU2 Dovetail Routing Machine (1) 1,000 Watt Motor $3,000.00
L&L Machinery GA-43 Radio Frequency Gluer (Single Phase) $4,999.00Hoffmann PU2 Dovetail Routing Machine (1) 750 Watt Motor
$2,800.00

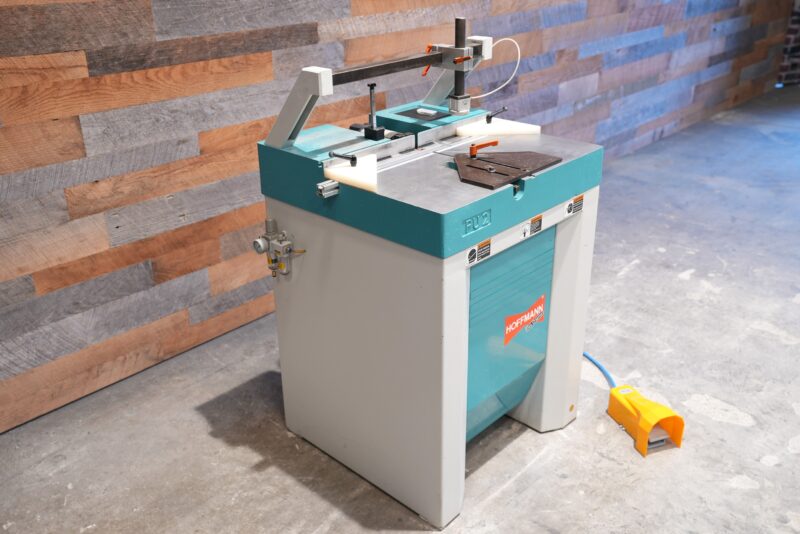

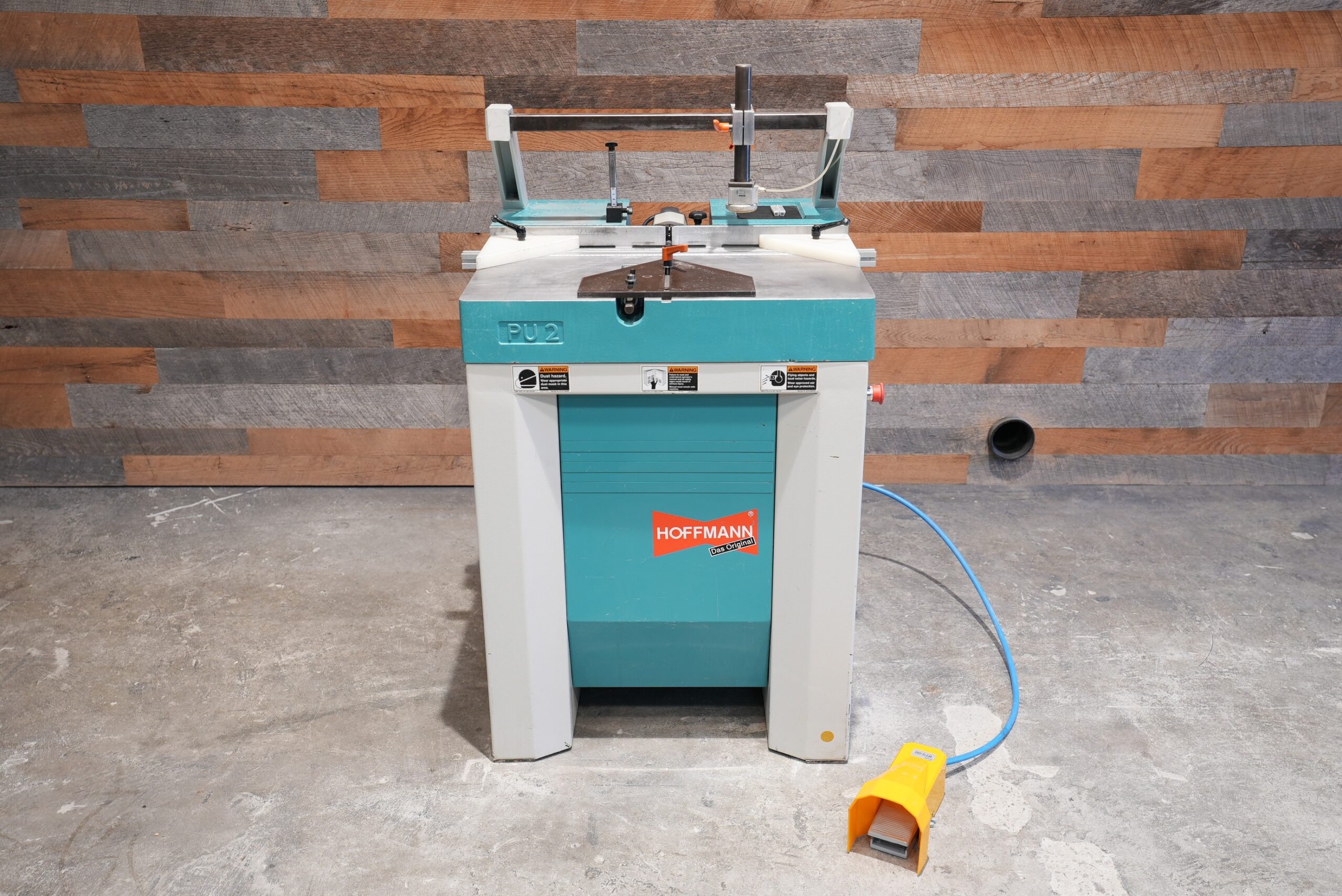

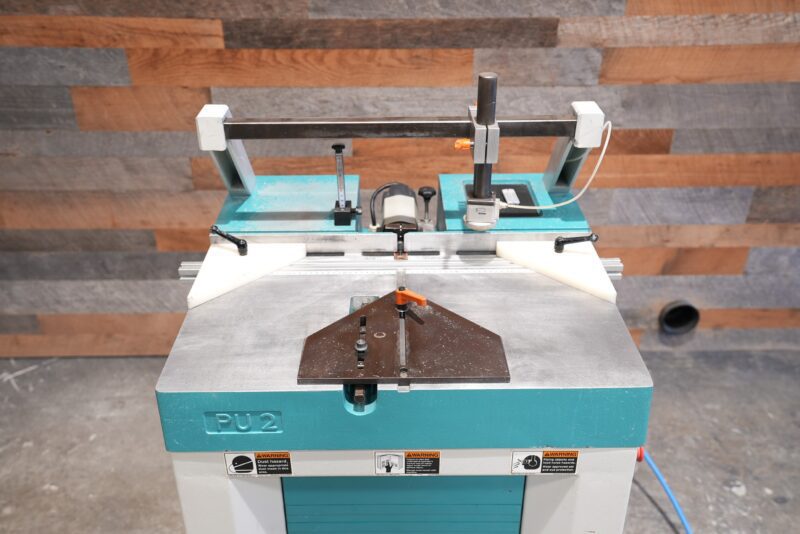

Fully operational Hoffmann PU2 Dovetail Routing Machine. No air leaks and a smooth running 750 watt motor.
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it. This is our guarantee to both you and your company. It is owned by 360 Degree Machinery and located in our inventory in Kingston, TN.
