Northtech NT ES1260D 12″ X 60″ Capacity Single Sided or Dual Sided Oscillating Edge Sander

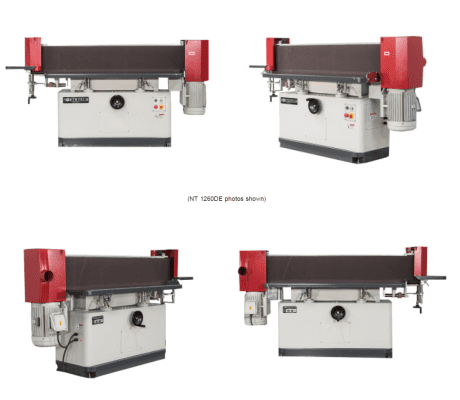

This machine features 12″ X 60″ platens and is powered by a 10 hp main motor. The oscillating stroke is 1/2″. Available in either single sided or dual sided versions. (dual sided pictured)

For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.

Number of Sided

Northtech NT ES1260D 12″ X 60″ Capacity Single Sided or Dual Sided Oscillating Edge Sander

SKU: N/A Categories: NORTHTECH MACHINE, Sanders, Sanders (Edge, Misc, & Profile), SANDING MACHINERY Tags: Misc, Profile, Sanders (Edge)

Description
Additional information

NT ES1260SE Edge Sander (single sided)

or

NT ES1260DE Edge Sander (dual sided)

Direct Drive = Motor to 7” x 13” Pulley
Machine Hp. = 10 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 30 Amps
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Sandpaper Size = 12” x 165”
Platen Specs. = 13” x 60”
Drum Specs. = 7”x 13” Steel 7”x 12.5” Ru
Roller Type = Steel / Rubber
Oscillation Sty = Gear Box Driven
Oscillation Trv = 1/2”
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Dust Collection = 872 CFM @ Extraction Point
Dust Port Out = 2 4” Top
Recommended CFM = 480 nl/min
Emergency Stop = Push Button
Guarding = High Visibility Guarding
Tiltable = 45 Degrees
Worktable Dims. = 10-1/2” x 59-1/2”
Side Table Dim. = 10-3/8” x 60-11/16”
Table Const. = Steel
Decible Rating = 79 dB
Net Weight = 1100 Lbs.
Gross Weight = 1340 Lbs.
Machine Dims. = 83” x 29” x 49”
Packaging Dims = 87” x 34” x 56”

Number of Sided	Single Sided, Dual Sided
