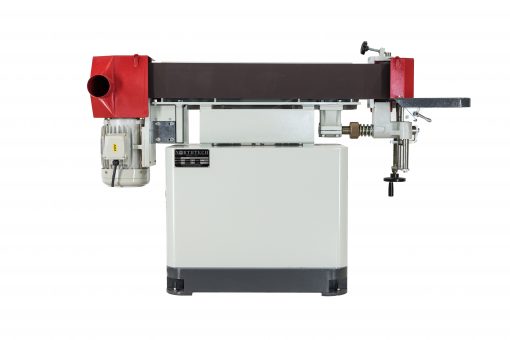

Northtech NT ES636SE 6″ X 36″ Capacity Single Sided Oscillating Edge Sander

NT ES636SE Edge Sander

• 3HP main motor; 3PH, 230V/460V Dual Voltage
•  (3/8″) oscillating stroke
• Drive wheel: 7″ x 6-5/8″
• Easy elevation control through the manual worm gear
• Side table dimensions: (1) 10-1/2″ x 35-3/4″
• Side table tilt: 0° – 45°
• End table dimensions: (1) 13-3/4″ x 16-1/2″
• End table tilt: 0° – 45°
• Sanding belt size: 6″ x 109″ (Included)
• Sanding belt speed: 3,300 FPM
• Platen size: 6.5″ x 36″
• Dust ports: ( 2) 4″ requiring 500 CFM @ point of extraction
• Easy jig fences are standard for squaring accuracy and part stability
• Machine Dimensions: 64″ x 25″ x 39-1/2″
• Packaging Dimensions: 69″ x 31″ x 49″
• Net weight: 572 lbs
• Gross weight: 725 lbs
• (1) Toolbox
• Warranty is one-year parts
• All machines are tested stateside before shipment providing trouble-free start-up.

• Direct Drive = Motor to 7” x 6-5/8” Pulley
• Machine Hp. = 3 hp.
• Voltage/ Freq. = 230/460Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 9/4.5 Amps
• Elevation Sys. = (2) Post Jack Screw
• Elevation Style = Manual Wheel Adjustment
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Pass-Line = 32”
• Max. Length = 36”
• Max. Thickness = 6”
• Sandpaper Size = 6” x 109”
• Platen Specs. = 6” x 36”
• 1st Belt Speed = 3300 FPM
• Oscillation Sty = Gear Box with Cam
• Oscillation Rte = 30 Cycles/Minute
• Oscillation Trv = 3/8”
• Tracking Style = Manual Adjustment
• Tension Style = Manual Adjustment
• Vertical Travel = 4” Table Travel
• Dust Collection = (2) 4” @ 900 CFM
• Emergency Stop = Push Button
• Guarding = High Visibility Guarding
• Fence Type = Jig Fence
• Tiltable = 45 Degrees
• Frame Const. = 1/4” Steel Construction
• End Table Dims. = 13-3/4” x 16-1/2”
• Worktable Dims. = 10-1/2” x 35-3/4”
• Table Const. = Steel
• Decible Rating = 72 dB
• Net Weight = 570 Lbs.
• Gross Weight = 722 Lbs.
• Machine Dims. = 64” x 25” x 39-1/2”
• Packaging Dims = 68” x 30” x 49-1/2”
