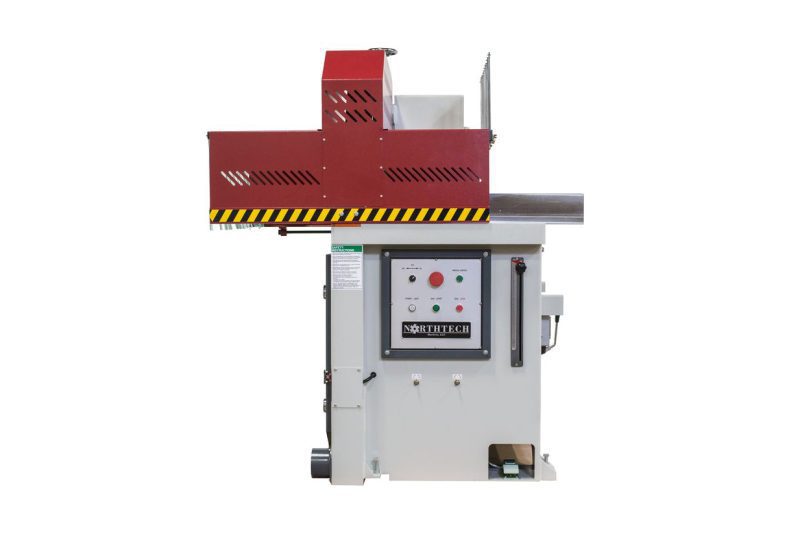

Northtech NT CS36L‑2532 36″ 25 HP Timber Upcut Saw (Left‑Hand Cut) 230V
Quickly and safely cut boards and timbers up to 33 inches wide or 12 inches high with this up-cut saw from Northtech. The powerful 25 HP motor and 36″ diameter blade make for fast work with consistent results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator speed and accuracy.
*Be sure to ask us about the newly-available “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!
ⓘ Unlock Your Best Price!
By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.Don't miss out – request your quote now!
PRODUCT DIMENSIONS:
• Max cutting capacity: 2” x 33” 4” x 31” 6” x 29” 8” x 25” 10” x 20” 12” x 12”
FEATURES:
• Motor: 25HP 3PH 460V; (1500 RPM).
• 36” Carbide tipped blade with 120T included
• 2” Saw arbor diameter
• Cycle operation: Pneumatic
• Table size: 57-3/4” x 34-3/4”
• Safety interlock on blade door.
• Quick access in front of the machine to adjust the stroke.
• Net weight: 2,605 lbs. • Gross weight: 2,900 lbs.
• Packing dimensions: (L) 63″ x (W) 45″ x (H) 79″
• (1) Toolbox and manual
• Warranty is one-year parts
• All machines are tested at the factory prior to shipment providing trouble-free start-up.
Options:
• 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops . . .
• 16′ infeed / 16′ outfeed roller system with (2) gravity flip stops . . .
• 36” x 120T carbide tipped blade (standard with saw) . . .
• 36” x 160T carbide tipped blade . . .
• (1) Gravity flip stop . . .
• 460V electrics . . .
• Double palm button actuation in lieu of foot pedal . . .
Specifications:
- Main Motor Hp. = 25 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 60.2 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Control Voltage
- Assisted Start = Wye-Delta
- Cut Envelope = 2” x 33” 12” x 12”
- Min. Length = 23” from Blade to Gaurd Edge
- Max. Width = 2” x 33”
- Max. Thickness = 12”
- Arbor Rpm = 1500 Rpm
- Blade Size = 36” Tungsten Carbide Tipped
- No. of Teeth = 120 Tooth
- Tooth Spacing = 1”
- Blade Kerf = .305 In.
- Dust Collection = 681 CFM @ Extraction Point
- Dust Port Out = 2- 5” Top 2- 5” Bottom
- Arbor Diameter = 2″ Arbor
- Cycles/Minute = 14 Cuts Per Minute
- Hold Down Style = T Clamp
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 3/8” Supply Line @ 90 Psi
- Emergency Stop = Push Button
- Safety Feature = Safety Interlock Switch
- Guarding = High Visibility Guarding
- Operation Style = Pneumatic Foot Pedal
- Fence Type = Adjustable Fence
- Fence Dims. = 3” x 39-3/4”
- Frame Const. = 1/4” Steel Construction
- Worktable Dims. = 57-3/4” x 34-3/4”
- Table Const. = Cast Iron
- Decible Rating = 79 dB
- Net Weight = 2605 Lbs.
- Gross Weight = 2900 Lbs.
- Machine Dims. = 58” x 66” x 78”
- Packaging Dims = 62” x 45” x 79”
