Northtech NT-UCS24 (24″) 15HP Upcut Saw (Right or Left) 230/460V

This innovative up-cut saw from Northtech quickly and safely cut boards up to 21 inches wide or 8 inches high. The powerful 15 HP motor and 24″ diameter blade reliably produce clean and consistent results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator speed and accuracy.

* “UCS” up-cut saw models, offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!

Guaranteed Safe Checkout

Credit

Northtech NT-UCS24 (24″) 15HP Upcut Saw (Right or Left) 230/460V
Request a call back
(*Optional)

PRODUCT DIMENSIONS

  • Max cutting capacity: 2″ x 21″, 4″ x 19″, 6″ x 15″, 8″ x 8″



FEATURES

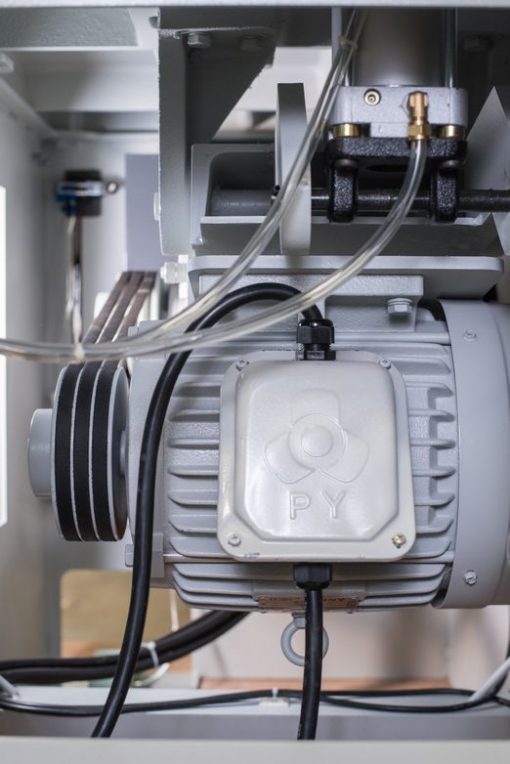

  • 15HP motor, 3PH 230V with 24V magnetic controls
  • 24” Carbide tipped blade included
  • 1” Saw arbor diameter
  • Cycle operation: Pneumatic
  • Quick access on the front of the machine to adjust blade stroke.
  • Safety interlock on the blade access door
  • Table size: 28-3/4” x 45”
  • 2100 RPM
  • Net / Gross weight: 1,285 lbs. / 1,458 lbs.
  • Machine dimensions: (L) 32″ x (W) 45″ x (H) 56″
  • Packing dimensions: (L) 36″ x (W) 51″ x (H) 61″
  • (1) Toolbox and manual
  • Warranty is one-year parts
  • All machines are tested stateside prior to shipment providing trouble-free startup.



  • Main Motor Hp. = 15 hp.
  • Voltage/ Freq. = 460 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 16 Amps
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 24 Volt Control Voltage
  • Assisted Start = Wye-Delta
  • Pass-Line = 34”
  • Cut Envelope = 2” x 21” 8” x 8”
  • Max. Width = 2” x 21”
  • Max. Thickness = 8”
  • Arbor Rpm = 2100
  • Blade Size = 24” Tungsten Carbide Tipped
  • No. of Teeth = 120 Tooth
  • Tooth Spacing = 5/8 In.
  • Blade Kerf = 4 mm
  • Dust Collection = (2) 4” @ 900 CFM
  • Dust Port Out = 4” Top 4” Bottom
  • Arbor Diameter = 1” Arbor
  • Cycles/Minute = 40 Cuts Per Minute
  • Hold Down Style = T Clamp
  • FLR Included = Filter, Lubricator, Regulator
  • Emergency Stop = Push Button
  • Safety Feature = Safety Interlock Switch
  • Guarding = Full Guard with Clear View
  • Operation Style = Pneumatic Foot Pedal
  • Fence Type = Adjustable Fence
  • Fence Dims. = 2″ x 25”
  • Adjust. Stroke = 7-3/4” Adj. on Arbor Stroke
  • Frame Const. = 1/4” Steel Construction
  • Worktable Dims. = 28-3/4” x 45”
  • Table Const. = Cast Iron
  • Decible Rating = 68 dB
  • Net Weight = 1285 Lbs.
  • Gross Weight = 1458 Lbs.
  • Machine Dims. = 31-3/4” x 45” x 56”
  • Packaging Dims = 36” x 51” x 61”

OPTIONS:

• 8’ infeed without fence and 8’ outfeed with fence, (2) legs, (1) gravity flip stop (UCS24-9-21A)
• 16’ infeed and 16’ outfeed with fence, (4) legs, (1) gravity flip stop (UCS24-9-21B)
• 8’ Special multiple stop outfeed fence (required for use of more than (1) flip stop (UCS24-9-22)
• Infeed horizontal clamp (UCS24-9-1)
• 24” x 120T carbide tipped blade (standard with saw) (UCS24-7-4A)
• 24” x 160T carbide tipped blade (UCS24-7-4B)
• (1) Gravity flip stop (UCS24-9-16A)
• (1) Rigid stop (UCS24-9-17)
• Two handed push button operation in place of foot pedal (UCS24-9-3)
• Illuminated safety guard for clear visibility of cut zone (UCS24-9-2)
• Voltage change
• LMC (Less Motor & Controls)



Additional information

Maximum Blade Diameter

24"

Horsepower

15

Voltage

460V

Power Phase

Three Phase
