Northtech NT CS14L 14″ 7.5HP Upcut Saw (Left-Hand Cut)
This innovative up-cut saw from Northtech quickly and safely cuts boards up to 11 inches wide or 3 inches high. The 3-phase 7.5 HP soft-start motor and 14″ diameter blade consistently produce clean and accurate results. Up to 16′ infeed/outfeed tables with flip-stops are optionally available to further improve operator precision and productivity.
*Be sure to ask us about Northtech’s new “UCS” up-cut saw models, which offer advanced features such as extra dust collection and a full zero-clearance fence to help eliminate tear-out!
ⓘ Unlock Your Best Price!
By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.Don't miss out – request your quote now!
Features
- 7.5 HP motor, 3PH 230/460V with 24V magnetic controls
- 14” 100T Carbide tipped blade included
- 1” Saw arbor diameter

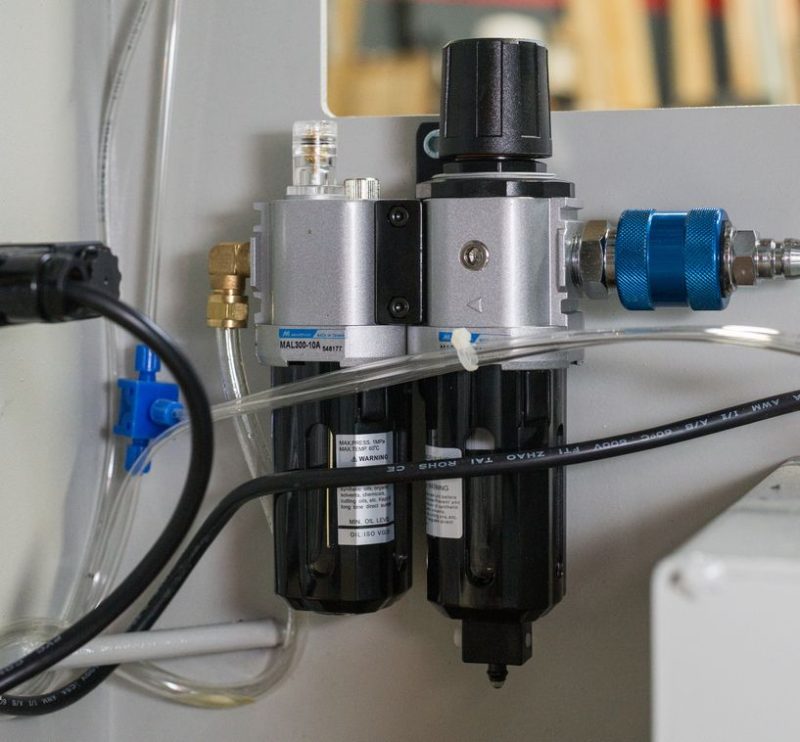

- Cycle operation: Pneumatic
- Table size: 25” x 23-1/4”
- Quick access in front of the machine to adjust blade stroke.
- Dust requirements: (1) 4″ dust port requiring 450 CFM at the point of extraction
- Net weight: 548 lbs.
- Gross weight: 685 lbs.
- Packing dimensions: (L) 30″ x (W) 30″ x (H) 51″
- (1) Toolbox and manual
- Warranty is one-year parts
- All machines are tested stateside before shipment providing trouble-free start-up.
Cut Capacities
- Max cutting capacity: 1″ x 11″, 2″ x 10″, 3″ x 7-1/2″
Options

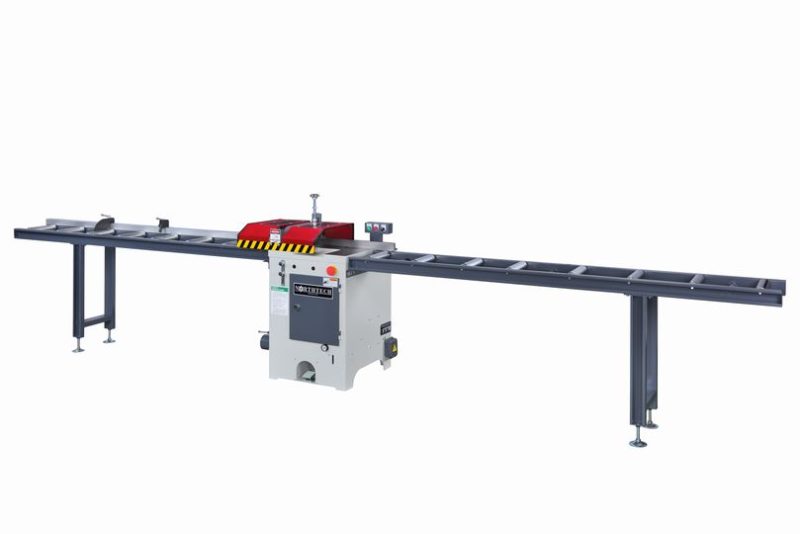

- 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
- 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
- Custom infeed/outfeed up to 20’ long
- 14″ x 72T carbide-tipped blade (standard with saw)
- 14” x 80T carbide-tipped blade
- 14″ x 100T carbide-tipped blade
- Gravity flip stops
- 230V 3-phase power
- Double palm button actuation in place of foot pedal
- Safety interlock for blade access
Specifications
- Main Motor Hp. = 7.5 hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 18.4/9.2 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Control Voltage
- Pass-Line = 33-3/4”
- Cut Envelope = 1” x 11” 2” x 10” 3” x
- Min. Length = 12” from Blade to Gaurd Edge
- Max. Width = 1” x 11”
- Max. Thickness = 3-3/8″
- Arbor Rpm = 4260 Rpm
- Blade Size = 14” Tungsten Carbide-Tipped
- No. of Teeth = 100 Tooth
- Tooth Spacing = 15/32 In.
- Blade Kerf = .125 In.
- Dust Collection = 4” 450 CFM
- Dust Port Out = 4” Bottom
- Arbor Diameter = 1” Arbor
- Cycles/Minute = 78 Cuts Per Minute
- Hold Down Style = T Clamp
- Recommended CFM = 480 nl/min

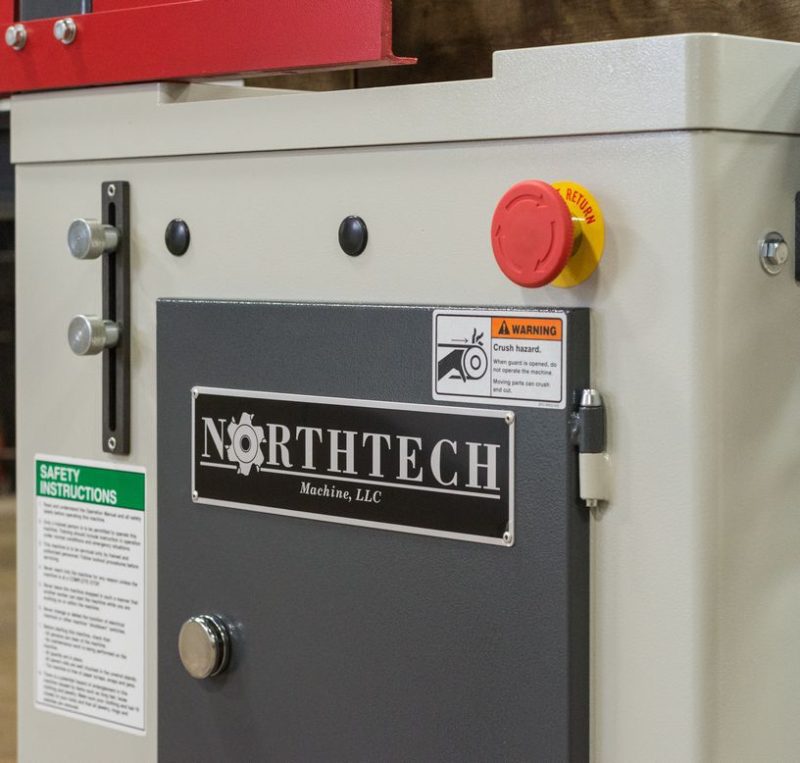

- Emergency Stop = Push Button
- Safety Feature = Safety Interlock Switch

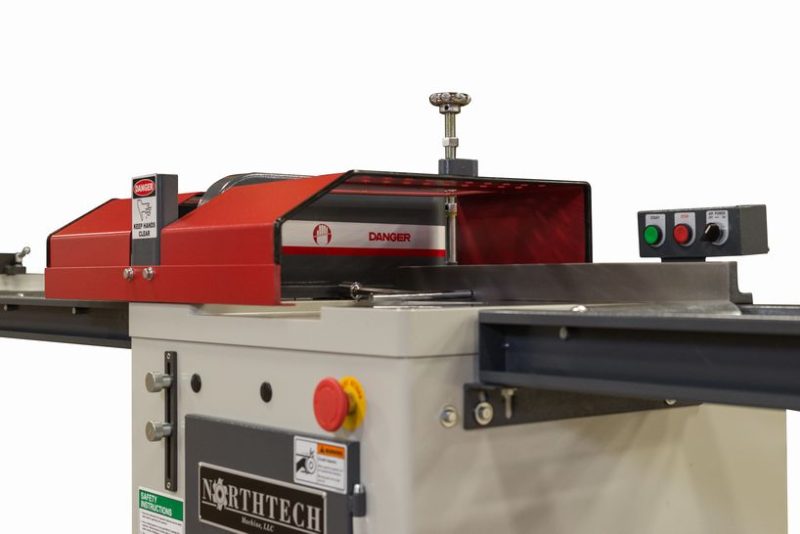

- Guarding = Full Guard with Clear View
- Operation Style = Pneumatic Foot Pedal
- Fence Type = Adjustable Fence
- Fence Dims. = 2″ x 25”
- Adjust. Stroke = 2-1/16” Adj. on Arbor Stroke
- Frame Const. = 3/16” Steel Construction
- Worktable Dims. = 23-1/4” x 24-7/8”
- Table Const. = Machined Steel
- Decible Rating = 75 dB
- Net Weight = 548 Lbs.
- Gross Weight = 685 Lbs.
- Machine Dims. = 23-1/4” x 24-7/8” x 47”
- Packaging Dims = 40” x 48” x 50”
