FEATURES
- 10HP motor, 3PH 230V with 24V magnetic controls
- 20” Tungsten Carbide tipped blade included
- 1” Saw arbor diameter
- Cycle operation: Pneumatic
- Quick access on the front of the machine to adjust blade stroke.
- Safety interlock for blade access
- Table size: 20” x 26”
- 2700 RPM
- Net / Gross weight: 788 lbs. / 874 lbs.
- Packing dimensions: (L) 30″ x (W) 35″ x (H) 51″
- (1) Toolbox and manual
- Warranty is one-year parts
- All machines are tested stateside prior to shipment providing trouble-free startup.
Cut Capacities
- Cut capacity with Factory Fence: 1’’ x 14.5’’, 2’’ x 14’’, 3’’ x 13’’, 4’’ x 12’’, 5’’ x 11’’
- Cut capacity without Factory Fence: 1’’ x 15.5’’, 2’’ x 15-1/8’’, 3’’ x 14-3/8’’, 4’’ x 13.5’’, 5-3/4’’ x 9-1/2’’
Specifications
- Main Motor Hp. = 10 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 24.6 Amps
- Electronics = UL Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Control Voltage
- Pass-Line = 36”
- Cut Envelope = 1” x 15-1/2”, 5-3/4” x 9-1/
- Max. Width = 17-1/4”
- Max. Thickness = 5-7/8”
- Arbor Rpm = 2700 Rpm
- Blade Size = 20” Tungsten Carbide Tipped
- No. of Teeth = 120 Tooth
- Tooth Spacing = 1/2”
- Blade Kerf = .141”
- Dust Collection = (1) 4” @ 450 CFM
- Arbor Diameter = 1” Arbor
- Cycles/Minute = 40 Cuts Per Minute
- Hold Down Style = T Clamp
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 3/8” Supply Line @ 90 Psi
- Emergency Stop = Push Button

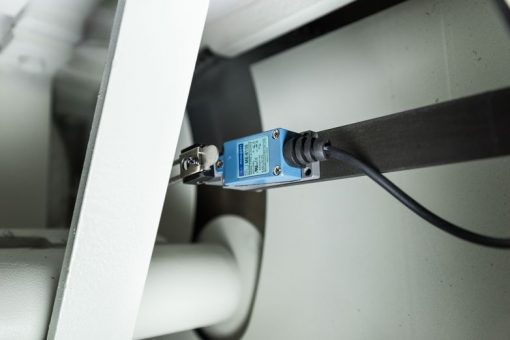

- Safety Feature = Safety Interlock Switch
- Guarding = High Visibility Guarding
- Operation Style = Pneumatic Foot Pedal
- Fence Type = Adjustable Fence
- Fence Dims. = 2″ x 25”
- Worktable Dims. = 21-1/2” x 67”
- Table Const. = Cast Iron
- Decible Rating = 75 dB
- Net Weight = 788 Lbs.
- Gross Weight = 874 Lbs.
- Machine Dims. = 42” x 34” x 54-1/2”
- Packaging Dims = 35” x 30” x 51”
