Taylor #713A- Stile & Rail Door Pros

(5) Section Machine: 250+ Stile & Rail Cabinet Doors per day

(8) Section Machine: 400+ Stile & Rail Cabinet Doors per day

Features:

  • (2) Standard Machine Models
    • (5) Rotating Sections (Small to Medium Shops)
    • (8) Rotating Sections (Medium to Large Shops)
  • 26″ x 62″ Maximum Clamping Capacity
  • Guaranteed Precise and Accurate Squaring
  • All Pneumatic Clamps are Designed for Quick and Easy Changeovers, Increasing your Productivity
  • Clamp Doors Face Up to Increase Quality
  • Eliminate the pinning process with multiple sections on the Machine
  • Door Pro Frame is made of 100% Steel Construction

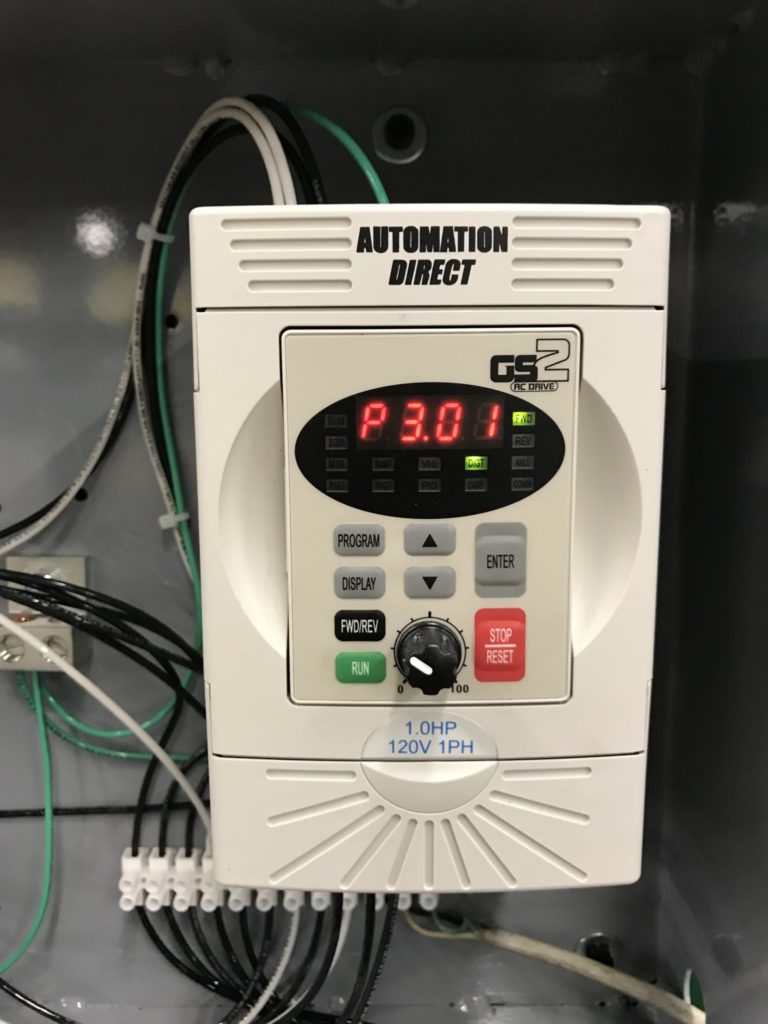

  • Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety

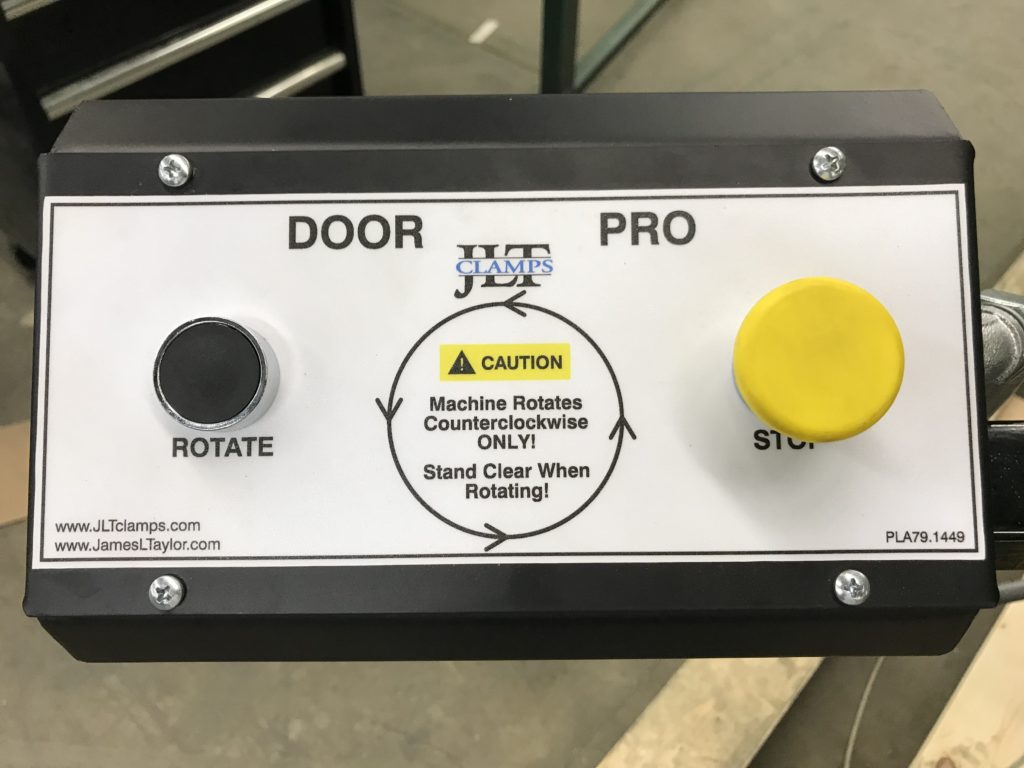

  • Single Button Control Box Activates Rotation and Includes Auto Index Feature
  • Includes a (1) Year Manufacturers Warranty

The Taylor Door Pro was a natural progression from the JLT Single Door Clamp. We have installed hundreds of machines in shops across North America. Machines come in (5) and (8) station models and some customers order an (8) station frame with (4) stations installed. This provides for easy expansion in the future.



(Additional Info & Details Below)

Guaranteed Safe Checkout

Credit

Taylor #713A- Stile & Rail Door Pros
Request a call back
(*Optional)

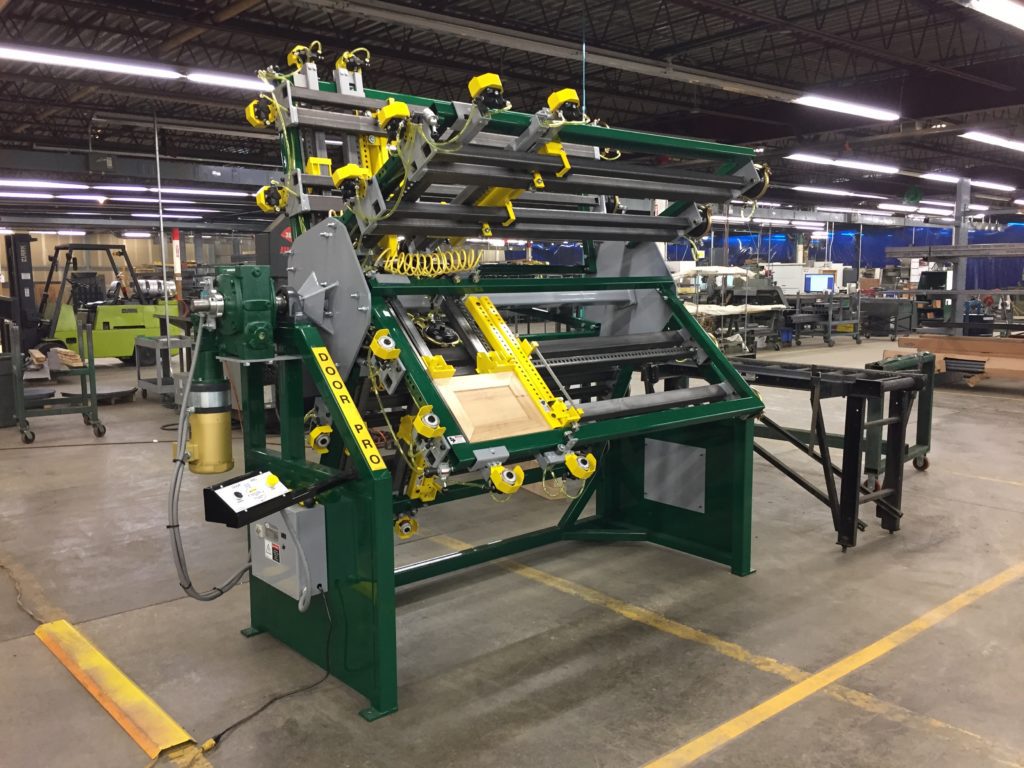

(5) Section Stile & Rail Door Pro

The (5) Section Door Pro is designed for the small or medium shop that like to produce their own doors. Capable of clamping and curing doors quickly, this machine can be used for a few hours a day, or all day long, depending on the number of doors that need to be produced. With the quick change over design of each section, clamping doors (1) Kitchen at a time can be done effectively and efficiently.

How it Works:

In a typical door shop glue is applied and components assembled on an assembly table. The door is placed in a section and clamps adjusted. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints.

A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our 5 section Door Pro can produce up to 250 doors in an 8 hour shift. This equates to approximately 2.5 minutes per door and a clamping time of 12 minutes.

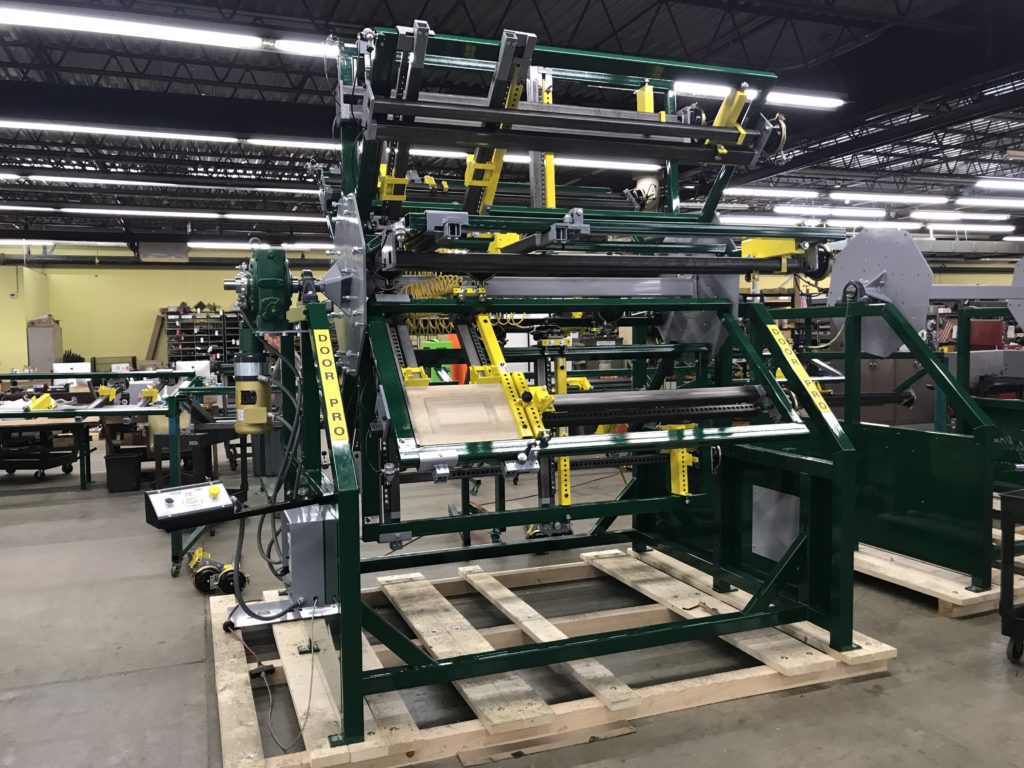

(8) Section Stile & Rail Door Pro

The (8) Section Taylor Door Pro clamping system is designed for the medium to large door shop that clamps either large door production runs or a kitchen at a time. Our design lends itself to fast changeovers, so switching from Door to Door easy and efficient. This will keep a high production rate in a one piece workflow style of manufacturing.

How it Works:

In a typical large door shop glue is applied and components assembled on an assembly table by an Operator. The door is placed in a section and clamps adjusted by a 2nd operator. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints. The first operator works on the next batch of parts by applying glue and loosely assembling the door while the second operator quality checks the door under pressure and wipes away any excess glue.

A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our (8) section Door Pro can produce up to 400+ doors in an 8 hour shift. This equates to approximately 1 minutes per door and a clamping time of 8 minutes.

Stile and Rail Door Pro Sections

  • 26″ x 62″ Maximum capacity.
  • Minimum 9″ Clamping Capacity
  • (2) Second Squaring of Stile and Rail Cabinet Doors.
  • Precise and Accurate Squaring Guaranteed
  • MDF and HDF Door Models Available!!

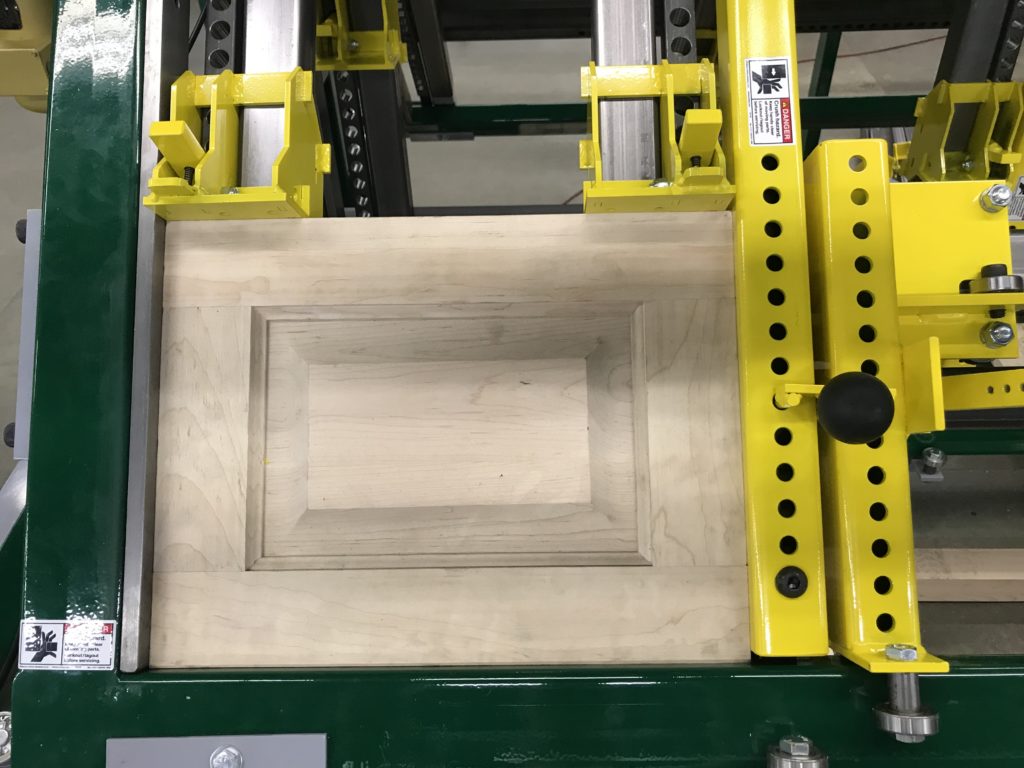

  • Includes (2) Vertical Clamps & (1) Horizontal Clamp.
  • Easy to use, Single Lever Operation.
  • Fast Changeovers
  • 15 Degree Working Angle

Enhanced Features from the Tried & True #79K Design:

  • Clamping force centered on your stiles and rails — where you need it most.

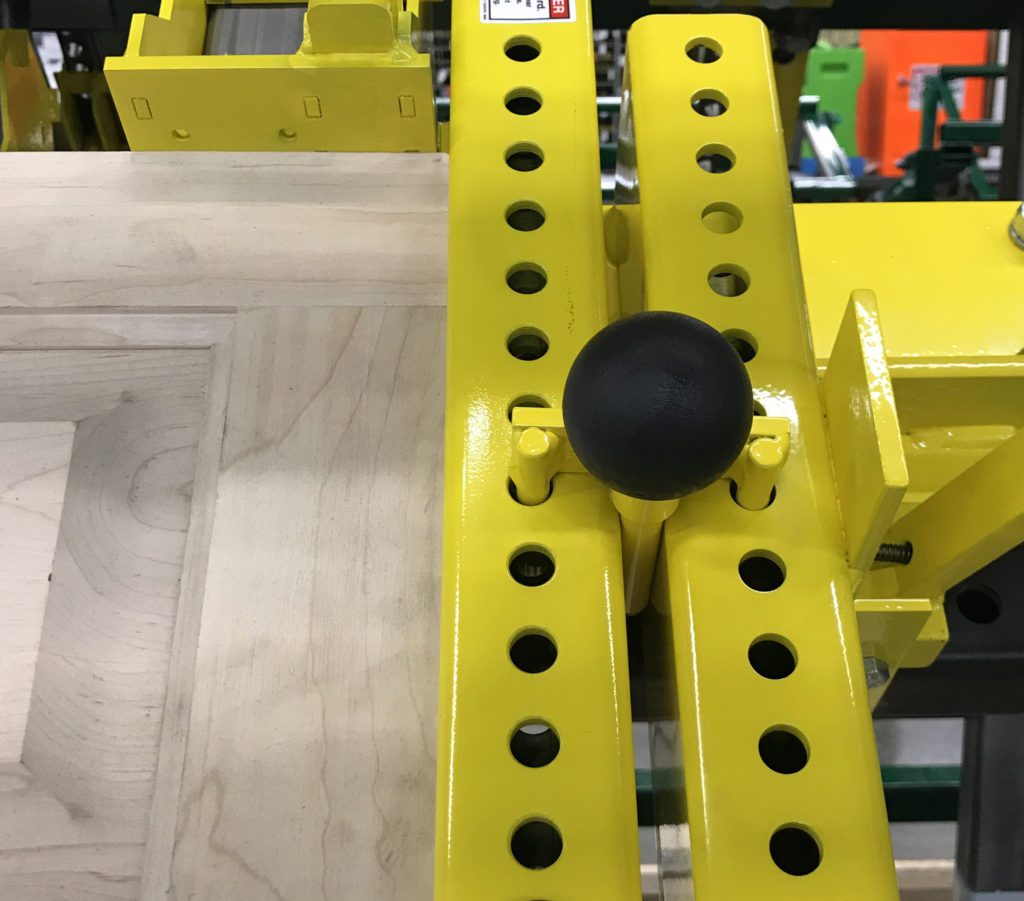

  • Intuitive Pin System allows even Quicker and Easier setup than ever before.
  • Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.
  • Redesigned Jaws with Thumb Plate for Increased Efficiency.
  • Thicker Push Bars Decrease Daily Wear and Tear.
