(5) Section LCS Door Pro

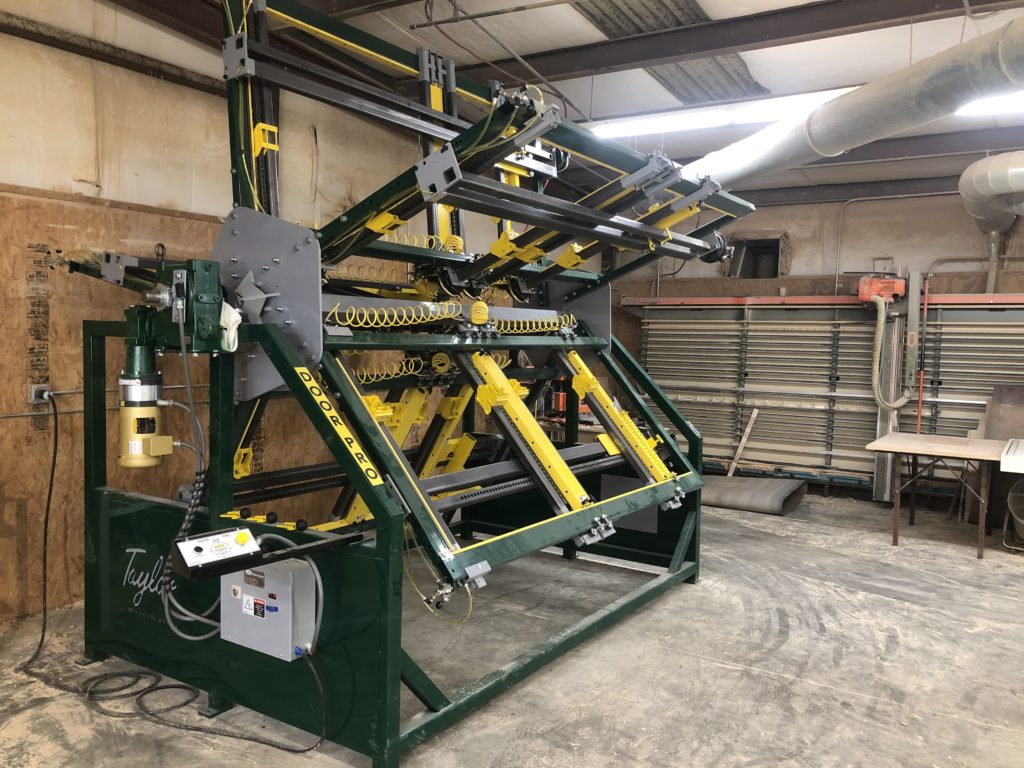

The (5) Section Door Pro is designed for the small or medium shop that like to produce their own doors. Capable of clamping and curing doors quickly, this machine can be used for a few hours a day, or all day long, depending on the number of doors that need to be produced. Each Section has a center squaring bar, which adds an additional clamping area to the section, for another door of similar size. By removing that center bar, the full 38″ x 96″ capacity can be used for those Pantry Doors, End Panels, or Interior Doors.
How it Works:
In a typical door shop glue is applied to multiple parts and components assembled on an assembly table. The doors are placed in a section and clamps adjusted. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints.
A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our (5) section Door Pro can produce up to 300+ doors in an (8) hour shift. This equates to approximately 2.5 minutes per section and a clamping time of (12) minutes.
(8) Section LCS Door Pro

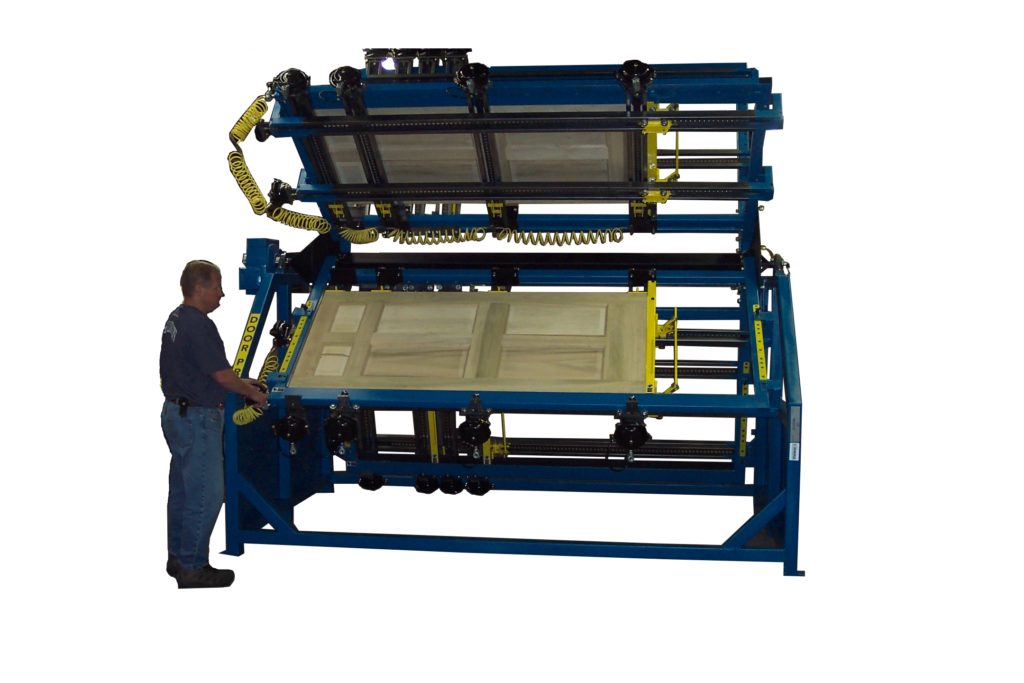

The (8) Section Taylor Door Pro clamping system is designed for the medium to large door shop that clamps either large door production runs or a kitchen at a time. Our design lends itself to fast changeovers, so switching from Door to Door easy and efficient. Each Section has a center squaring bar, which adds an additional clamping area to the section, for another door of similar size. By removing that center bar, the full 38″ x 96″ capacity can be used for those Pantry Doors, End Panels, or Interior Doors This will keep a high production rate in a one piece workflow style of manufacturing.
How it Works:
In a typical large door shop glue is applied to multiple parts and components assembled on an assembly table by an Operator. The door is placed in a section and clamps adjusted by a 2nd operator. The cylinders are activated by one valve which first creates side pressure pushing the door to the left side square, a second later the vertical clamps are activated to create pressure on the glue joints. The first operator works on the next batch of parts by applying glue and loosely assembling the door while the second operator quality checks the door under pressure and wipes away any excess glue.
A motor drive is used to rotate the next section. The cured door is removed and new components are placed in that section for clamping. Our (8) section Door Pro can produce up to 500+ doors in an 8 hour shift. This equates to approximately 1.5 minutes per (2) doors and a clamping time of (12) minutes.
LCS Door Pro Sections:
- Large Capacity and Versatile for a Wide Variety of Stile and Rail Cabinet Door Sizes.
- 38″ x 97″ Overall Capacity
- Includes (4) Vertical Clamps and (1) Horizontal Clamp (30 Sq. In Cylinder on the Horizontal Clamp)
- (2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors
- Single Lever Valve Air Activation
- Faster Changeover with the Cross Clamps Adjusting in a Single Motion
- Clamp & Square Multiple Cabinet Doors with Vertical Center Rail – (2) 38″ x 46″ Doors Side by Side Double Door Clamping.
- 100% Heavy Duty Steel Construction.
- Convenient 60 Degree Vertical Working Angle.
Enhanced Features from the Tried & True #79K Design:
- The draw bar is no longer in the center of the clamps but moved to the outside of the clamps. This design shifts the clamping pressure to the center of the glue joint this eliminating bowed stiles and increasing door quality
- The Trident Pin is repositioned for different door sizes. This pin locates the side pressure to the center of the door every time, thus increasing door quality. It also increases machine productivity because it is no longer necessary to move the cross clamps to different locations. This is a Taylor 1st and not available on other brands

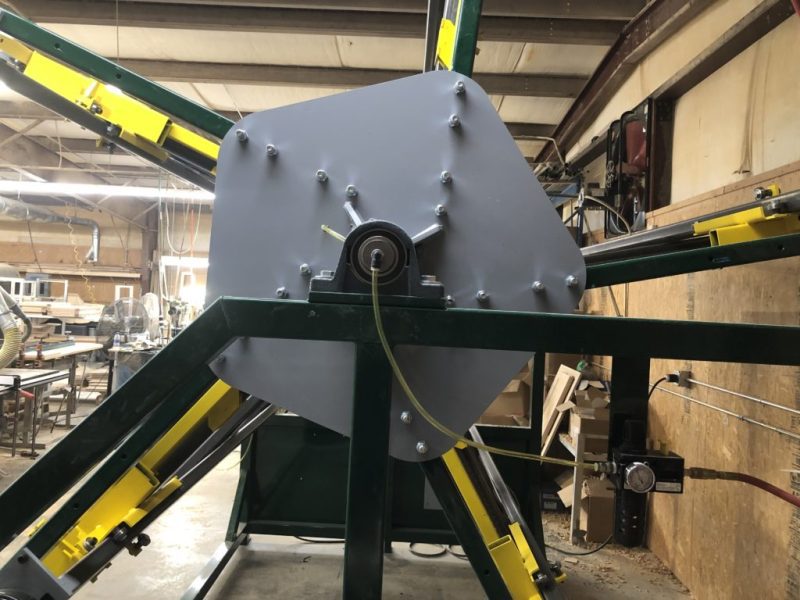

- Cylinders Located in the back of the machine to Provide Operator with Additional Working Space
- The moveable clamping bar is now supported with wheels in 3 locations rather than 2. Changing sizes is faster and easier than earlier models

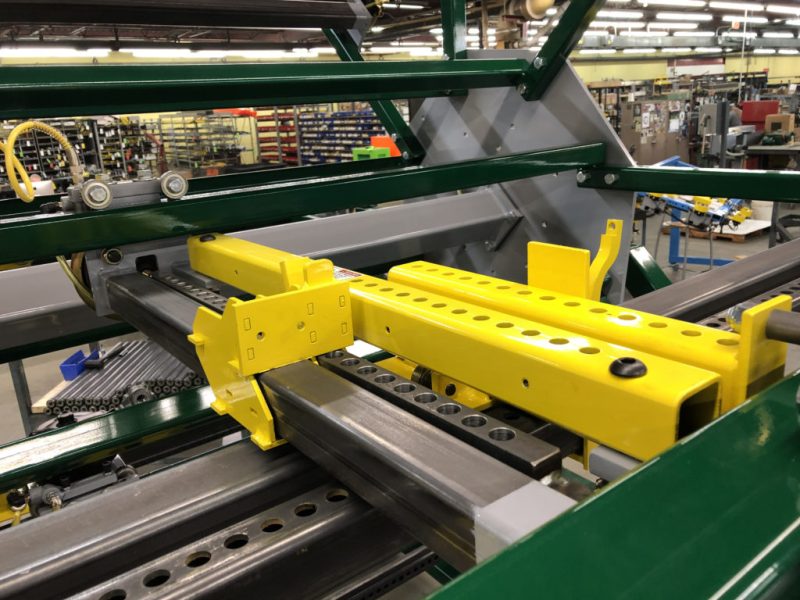

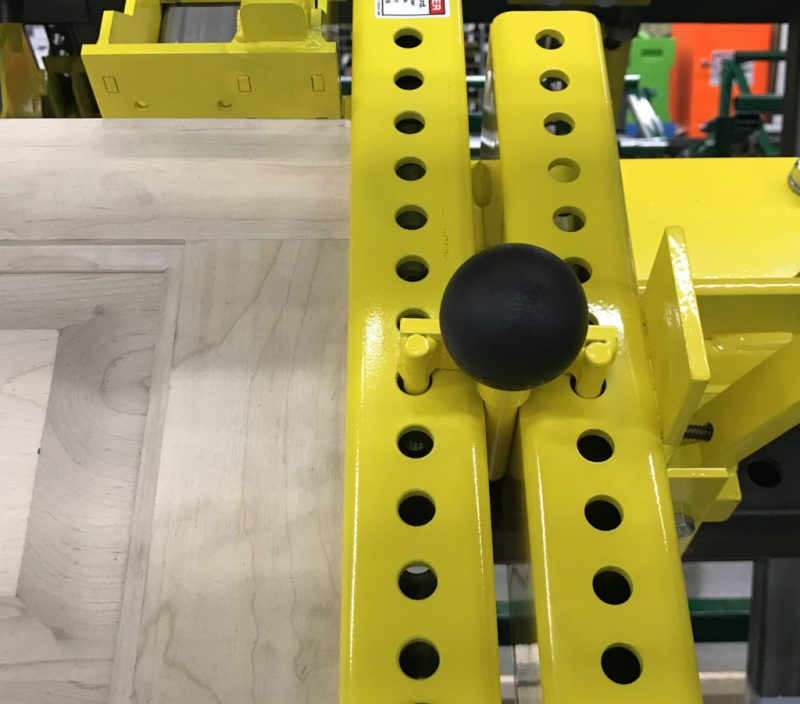

- Redesigned Jaws with Thumb Plate for Increased Efficiency.
- Thicker Push Bars Decrease Daily Wear and Tear
