ADVANTAGE

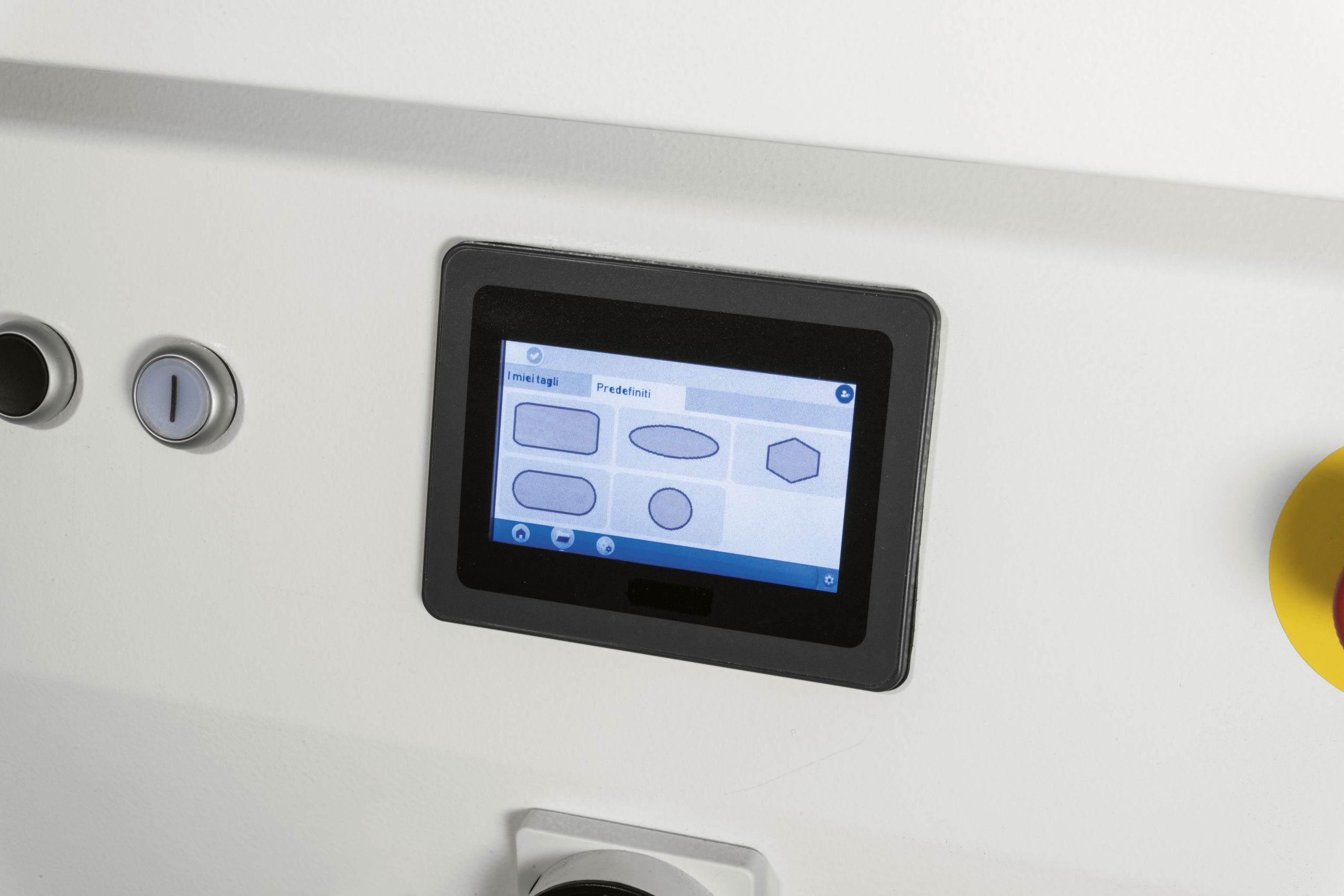

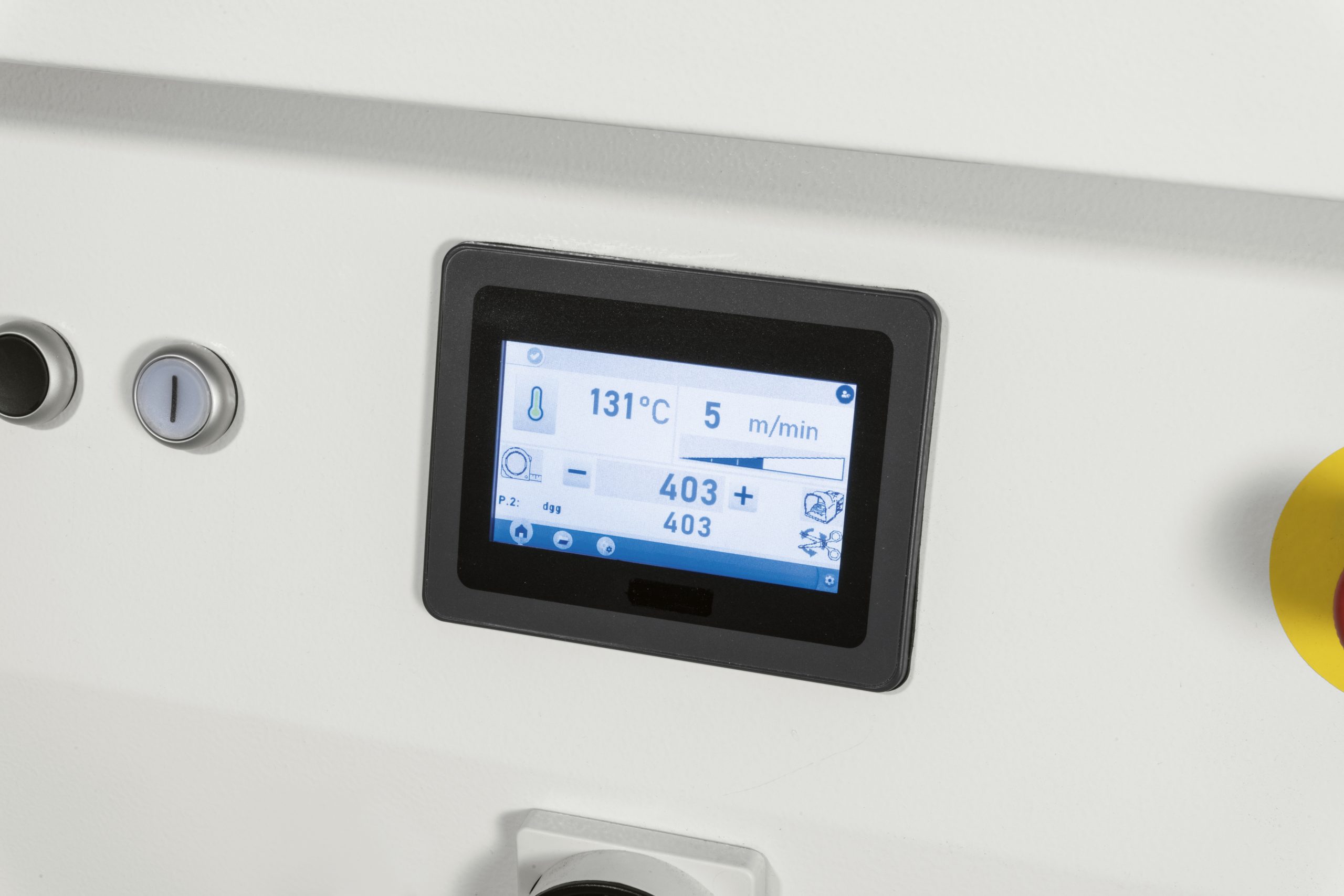

4,3″ touch-screen electronic control.
Simple and intuitive, it enables an easy selection of all the main functions.

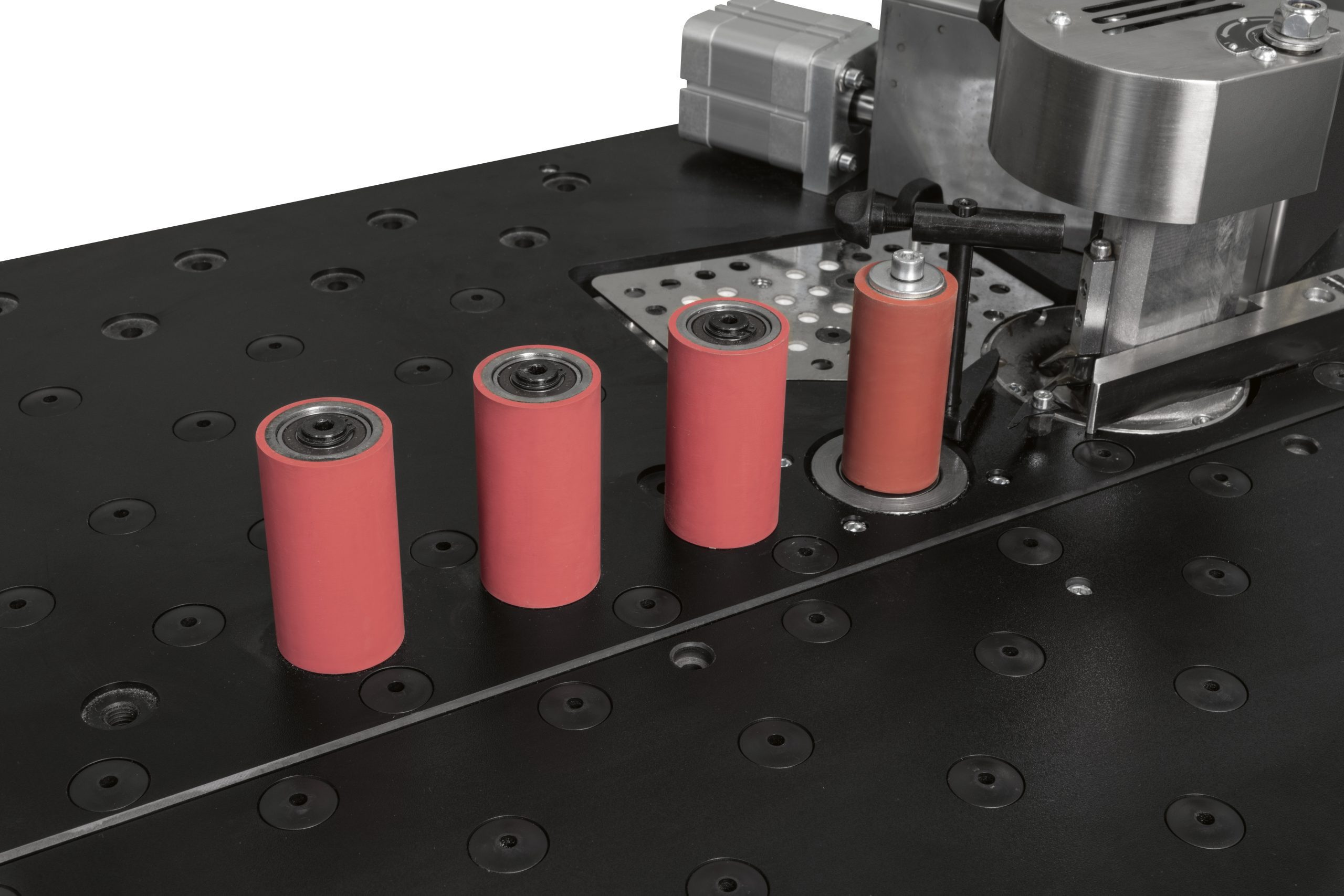

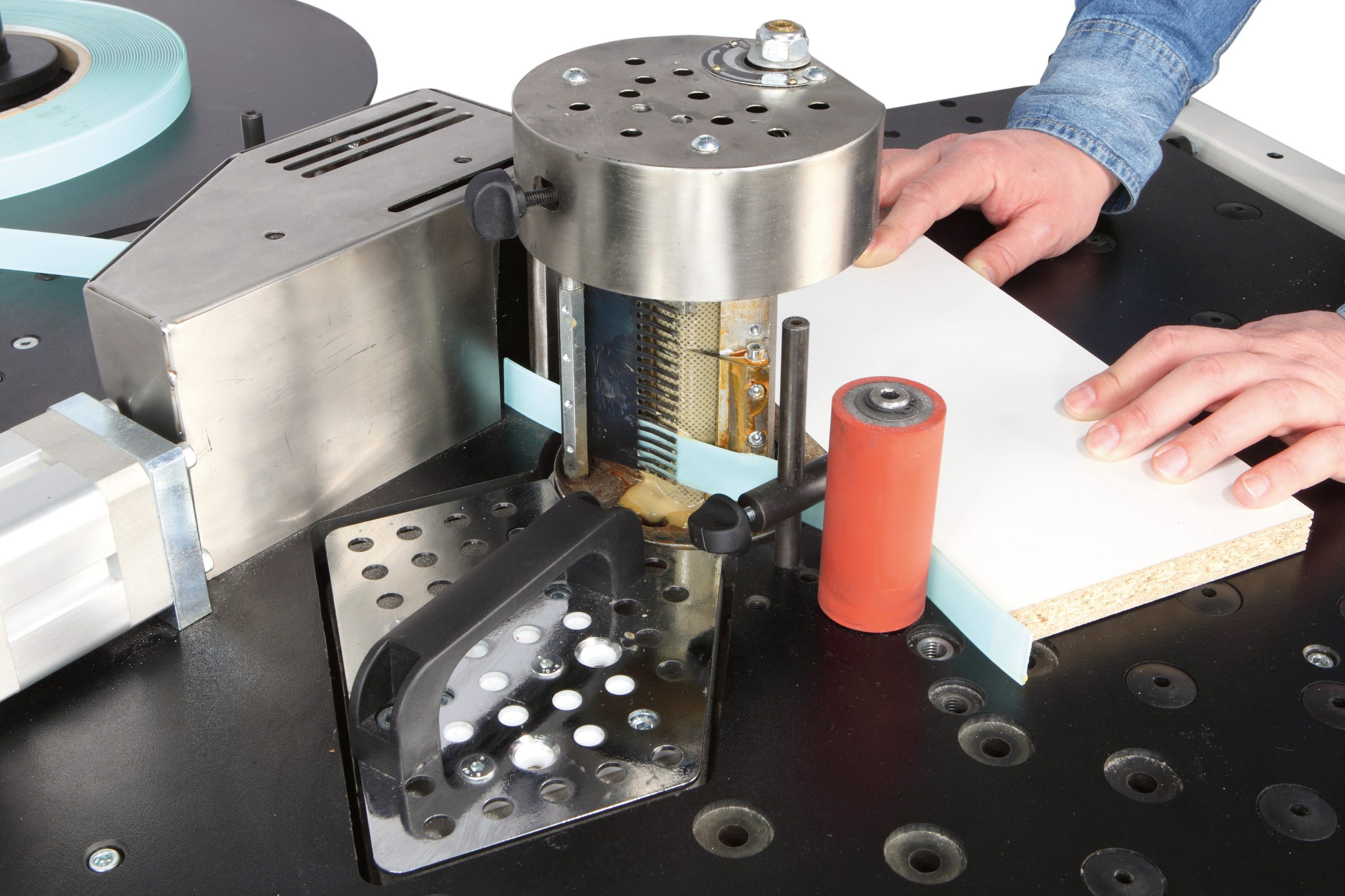

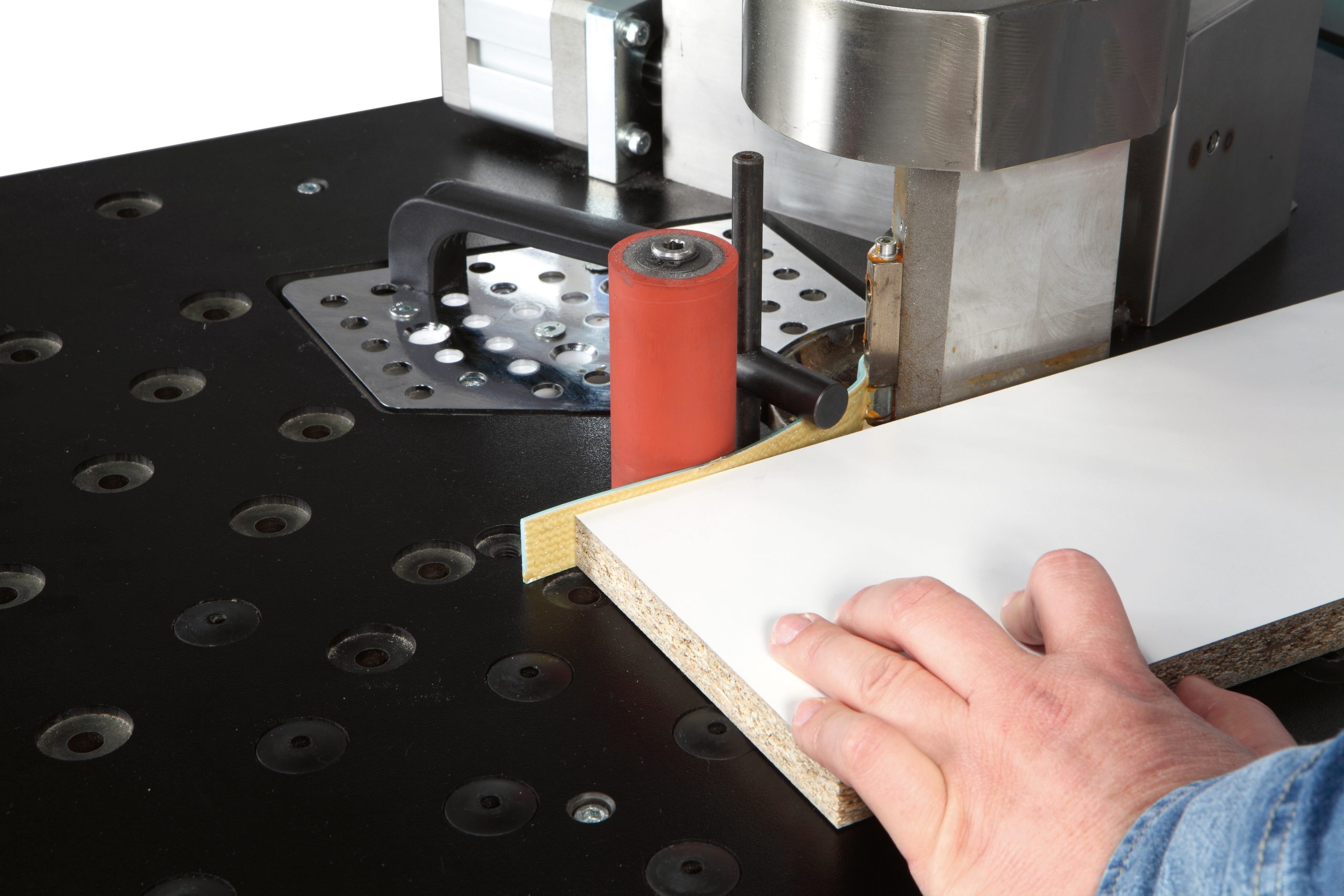

Powered pressure roller.
It facilitates the panel feeding during the machining.

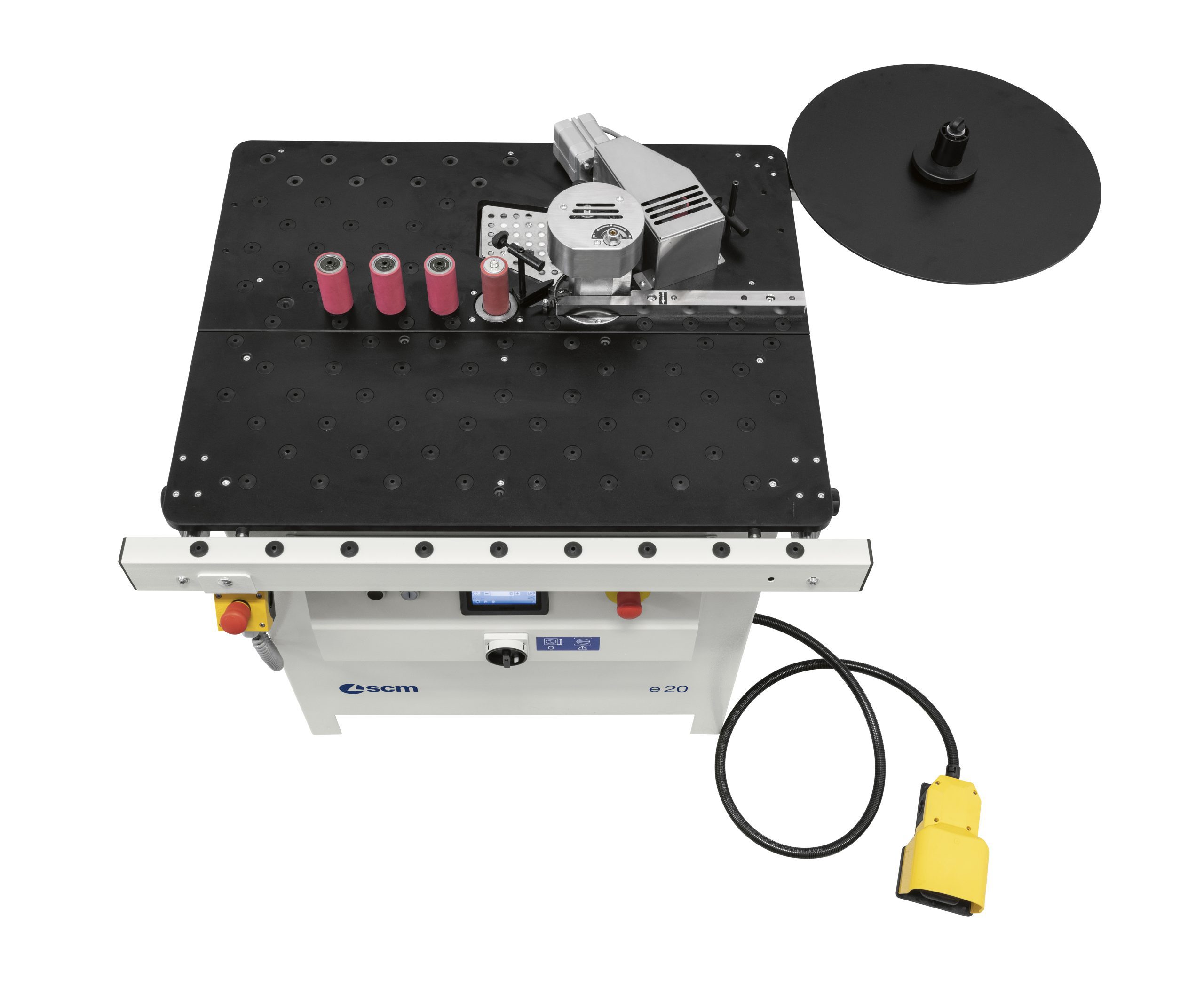

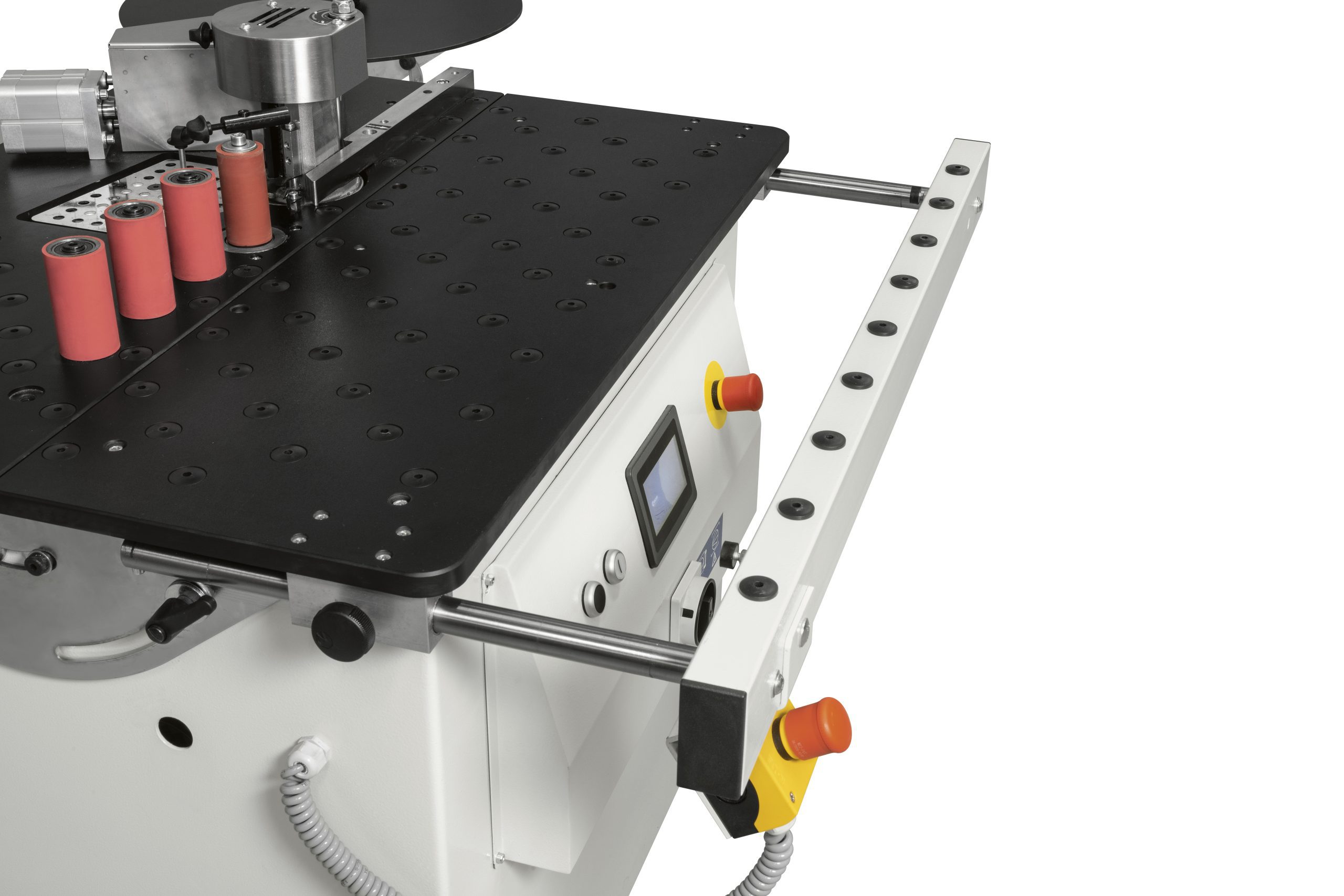

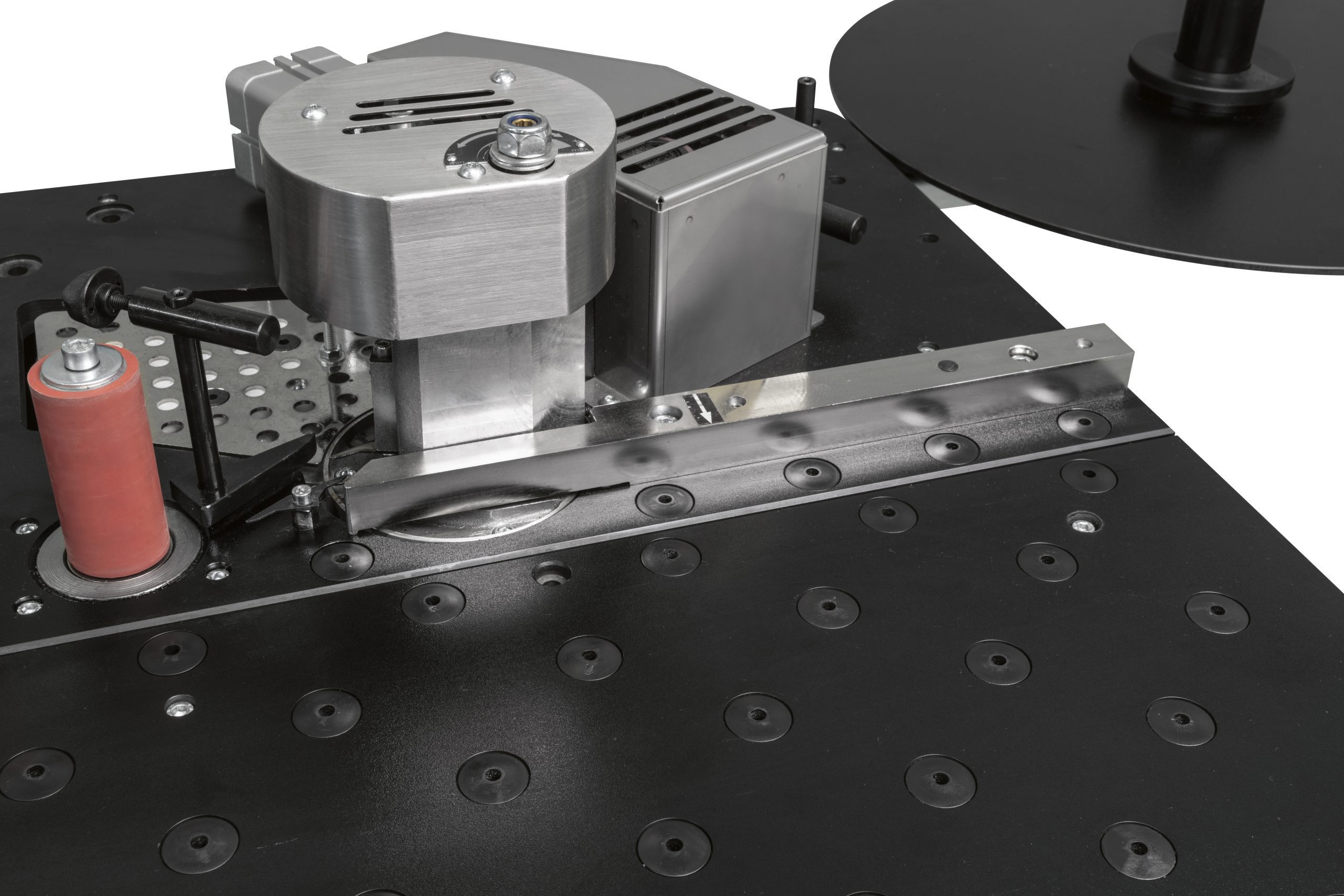

Anti-scratch phenolic multilayer worktable.
No surface damage to the work piece during machining thanks to the special worktable with modular holes complete with panel supports.
Technical data
| e 20 | ||
| Min. ÷ max. edge thickness | mm | 0,4 ÷ 3 |
| Min. ÷ max. edge height | mm | 10 ÷ 84 |
| Min. ÷ max. panel height | mm | 8 ÷ 80 |
| Min. panels length/width | mm | 290/50 |
| Min. internal radius (concave), 0,4 mm thickness | mm | 25 |
| Min. external radius (convex), 0,4 mm thickness | mm | 5 |
| Feed speeds | m/min | 3 – 4 – 5 – 6 – 7 – 8 |
