- Edge Glue and Face Glue a variety of solid wood components
-
- Produce 50+ edge glued panels per day with a Standard Setup
- Face Glue, Utilizing our Rocker Plates, a Wide Variety of Railing Stock, Posts, Beams, Flooring Blanks, and more
- Includes (18) 3 1/2″ High jaw 40″ Clamps
- Optional 52″ Clamps Available on Request
- Free Standing Unit with 3000 lbs. Weight Capacity
- 100% Complete Tubular Steel Construction
- Put (2) 8′ Panel Clamps side by side for edge gluing up to 16′ long rail
- Complete 3 Year Warranty
- Accessories: #302-40-H-R Clamps, 138B 8″ x 48″ Taylor Plate Spreader, 150B Glue Spreader, 180A Pneumatic Panel Flattener, 79-16 Holddowns, 80-1706 Rocker Plates
- Standard Stock Size of 40″ Maximum Opening
- Additional Stock Size is 52″ Maximum Opening
- Additional non-stock and Custom Sizes from 32″ – 120″ Opening
- Minimum Clamp Opening of 9″
- Robotically Welded / 100% Steel Construction
- Lifetime Warranty on all Welded Components
- Guaranteed never to Twist, Bow or Bend under normal working conditions
- Each Clamp can Produce up to 3000 lbs of Clamping Force
- Patented Equalizer Design Provides Equal Clamping Force from the Front and Rear Jaws
- Higher Quality Panels result from this Design with more even Glue Line Pressure
Free Shipping!
![](https://b2060846.smushcdn.com/2060846/wp-content/uploads/2020/06/79F-12-PC-Hanging-Clamps-1024x768-1-300x200.jpg?lossy=1&strip=1&webp=1)
![](https://b2060846.smushcdn.com/2060846/wp-content/uploads/2020/06/1a-27-300x200.jpg?lossy=1&strip=1&webp=1)

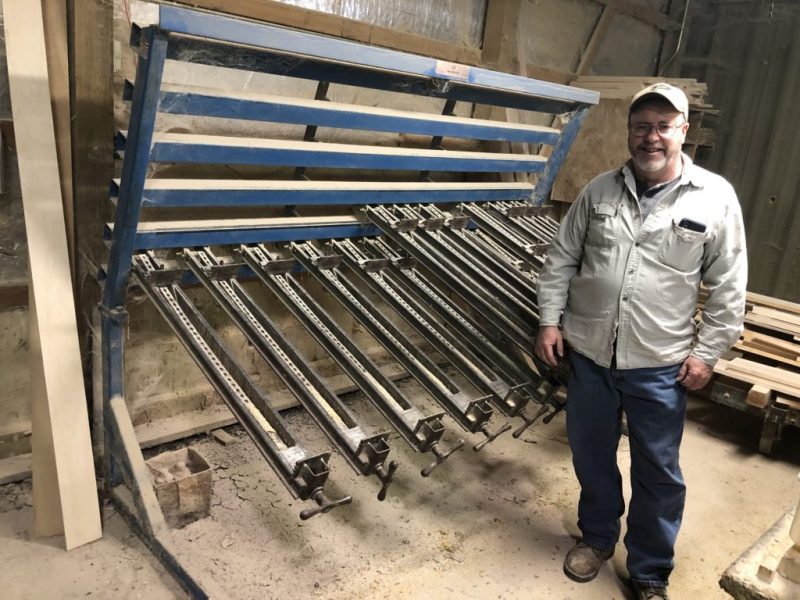

JLT #79F-8-PC – 8′ Panel Clamp W/18 Clamps
$5,475.00
Features:
- (5) total gluing levels
- Includes (18) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available upon Request)
- Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use
- Taylor’s Patented and Successful Clamp Arm Design
- Edge Glue and Face Glue a variety of solid wood components
- 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels
- Accessories: #302-40-H-R Clamps, 138B, 150B Glue Spreaders, 180A, 79-16 Hold Downs, 80-1706 Rocker Plates
Machine Footprint: 100″L x 70″H x 48″W
(Additional Features and Details Below)
