Laguna JX|8 ShearTec: II Jointer

Name: Laguna JX|8 ShearTec: II Jointer
Brand: Laguna Tools
SKU: MJ8X72P-0130

$3,299.00

SKU MJ8X72P-0130 Categories Jointers, Laguna Jointers, Laguna Tools Tag Jointers Brand: Laguna Tools

The Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 220 volt 3 HP version.

Features:

Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel.
Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine.

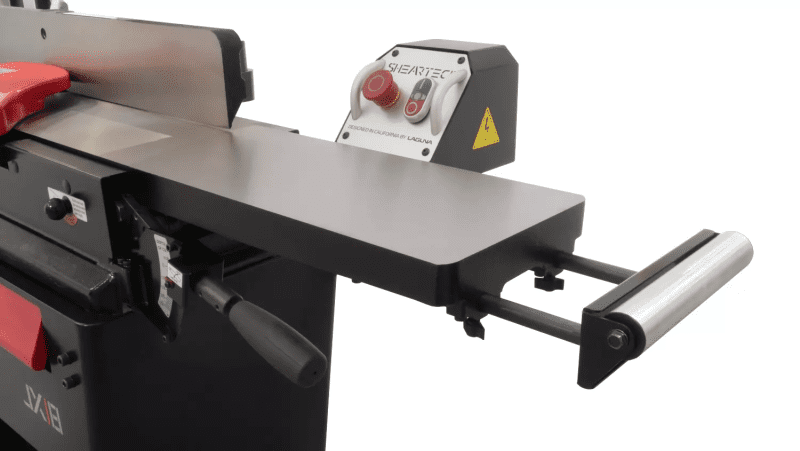

In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials.

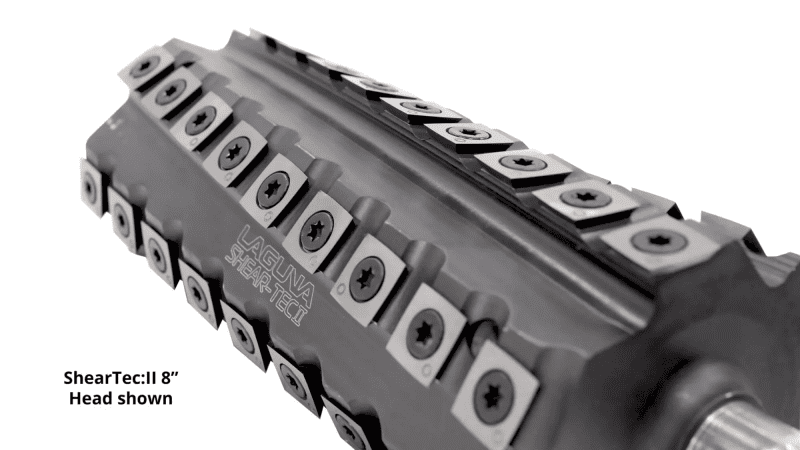

ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|8 ShearTec II Jointer.
Built-In Wheels – No need to purchase a separate mobility kit.
Cast-Iron Tables and Fence

Specs & Features

Motor: 220V 3HP 1 Phase 60hz/12 Amp

CSA: Yes

Bed Size: 8″ x 72″

Infeed Table Pull-Out Extension: 8″

Rabbetting Capacity: 1/2″

Fence Size: 38″ x 4-¾″ Cast Iron

Fence Tilt: ±45/90°

Max. Depth Of Cut: 1/8″

Table Height From Floor: 31″

Safety Bar Shut-Off: Yes

Bracket To Mount Light: No

110V Outlet For Light: No

Bracket To Mount Feeder: No

Dust Port Diameter: 4″

Plug (NEMA 6-20P): Yes

Cutterhead Insert #: 54 x 4-Sided Carbide, 6 Row

Cutterhead RPM: 5500

Cutterhead Diameter: 3-1/8″

Bed Adjustment: Parallelogram

Dimensions Set Up (Approx): 75-1/2″ x 26-1/2″

Base Footprint Dimensions: 32-1/2″ x 15-1/2″

Shipping Dimensions:

40″ x 18″ x 26″ – 139 Lbs.
82″ x 25″ x 17″ – 319 Lbs.
(Two Boxes)
