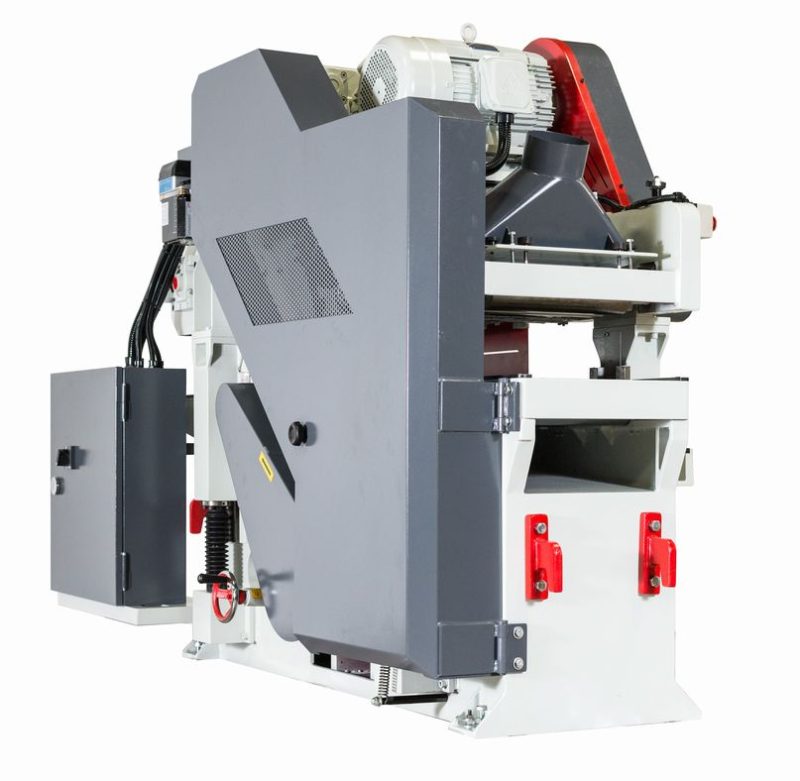

Northtech NT 400XL Heavy Duty Chain Drive 20HP+15HP Double Surface Planer (w/ Helical Cutter Heads)
This double-surface planer from Northtech utilizes a 20 HP motor up top and a 15 HP motor below, each driving a 5″ diameter helical insert cutter heads that have been dynamically balanced to reduce noise and vibration to provide longer life and a smoother finish. Material up to 16” (W) by 6-1/2” (H) is efficiently pulled through the machine by a 2 HP motor-driven carpet spike feed system with CVT adjustable drive speed. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness settings.
For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.
Cutter Heads:
- 20HP Top, 15HP Bottom
- Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm
- inserts
- 5100RPM solid steel cutterheads with Class 7 NSK bearings
Product Dimensions:
- Working thickness 10 – 155mm (3/8” – 6-1/2”)
- 13” min working length
- 400mm (16”) maximum width
Feed System:
- 2HP feed motor
- Carpet feeding spike system with 644 spikes
- Feed speed 25-85 FPM
Features:
- 1HP elevation motor
- Mechanical variable speed
- Digital control panel with 3 amp meters
- Chrome bedplate .004’’ thick
- Amperage requirement: 230V/110 AMPS, 460V/55 AMPS
- (2) 6” dust ports requiring 981 CFM @ each point of extraction
- Lubricating system included
- UL/CE Certified electrical components
- Includes operator’s manual and parts book
- Net weight: 5,820 lbs.
- Gross weight: 6,000 lbs.
- Machine dimensions: L99” x W36” x H70”
- Packaging dimensions: L99” x W46” x H77”
- One-year parts warranty
- All machines are tested at our corporate headquarters in Indiana before shipment providing trouble-free start-up.
Specifications:
- Top Head Hp. = 20 Hp.
- Bottom Head Hp. = 15 Hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 110/55 Amps
- Feed Hp. = 2 Hp.
- Feed System = Carpet Feed / Powered Rollers
- Drive System = Chain Drive
- Feed Speed = 25 – 85 FPM
- Variable Speed = CVT Adjustable Drive
- Elevation Hp. = 1 Hp.
- Elevation Style = DP-626S Elevation Control
- Elevation Sys. = Jack Screw / Gib System
- Total Hp. = 38 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Operator Panel = Fixed
- Pass-Line = 32”
- Min. Length = 13”
- Min. Width = 1-1/2”
- Max. Width = 16”
- Min. Thickness = 3/8”
- Max. Thickness = 6-1/2”
- Cutter Head RPM = 5200 RPM
- Head Type = Dynamically Balanced Helical Head
- Cutter Head Dim = 5” x 16”
- Cut Head Matl. = Alloy Steel
- Rows of Cutters = 6 Rows
- No. of Inserts = 66 Inserts Per Head
- Insert Size = 30 x 12 x 2.5 mm
- Dust Collection = (2) 6” @ 1962 CFM
- Digital Display = Elevation
- Powered Rollers = (2) Top (2) Bottom
- Idle Rollers = (1) Top (1) Bottom
- Hold Down Style = Chip Breakers/ Pressure Plate
- No. of Spikes = 644 Spikes
- Oiler = Auto Oiler
- Low Oil Warning = Low Oil Shut Off / Warning
- Frame Const. = Cast/Steel Construction
- Chrome Bed = .004” Chrome Plated Bed
- Slip Clutch = Clutch on Chain Drive
- Decible Rating = 79 dB
- Net Weight = 5820 Lbs.
- Gross Weight = 6000 Lbs.
- Machine Dims. = 99” x 39” x 70”
- Packaging Dims = 99” x 46” x 77”
