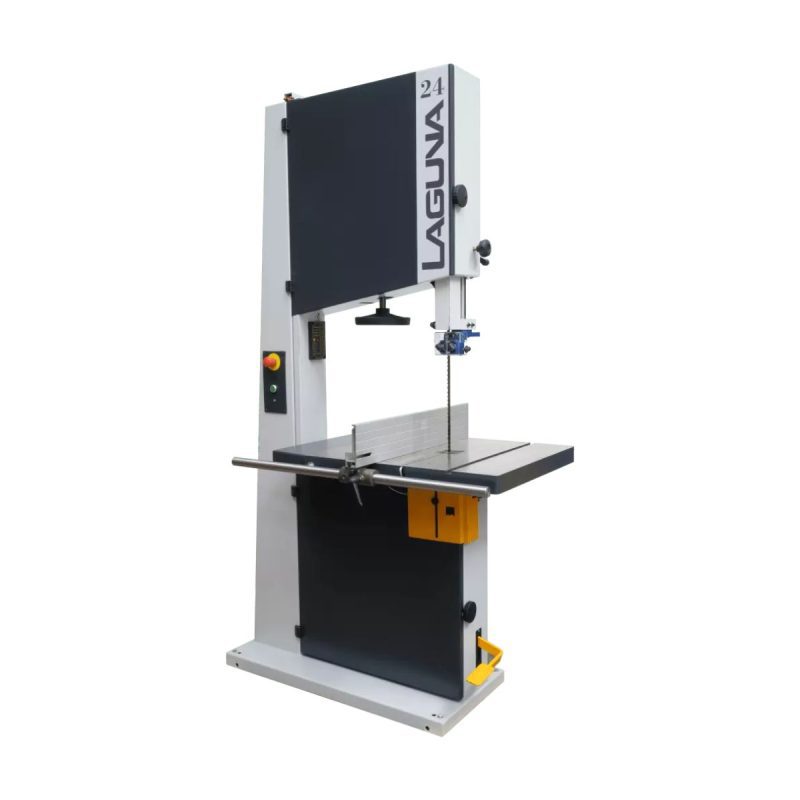

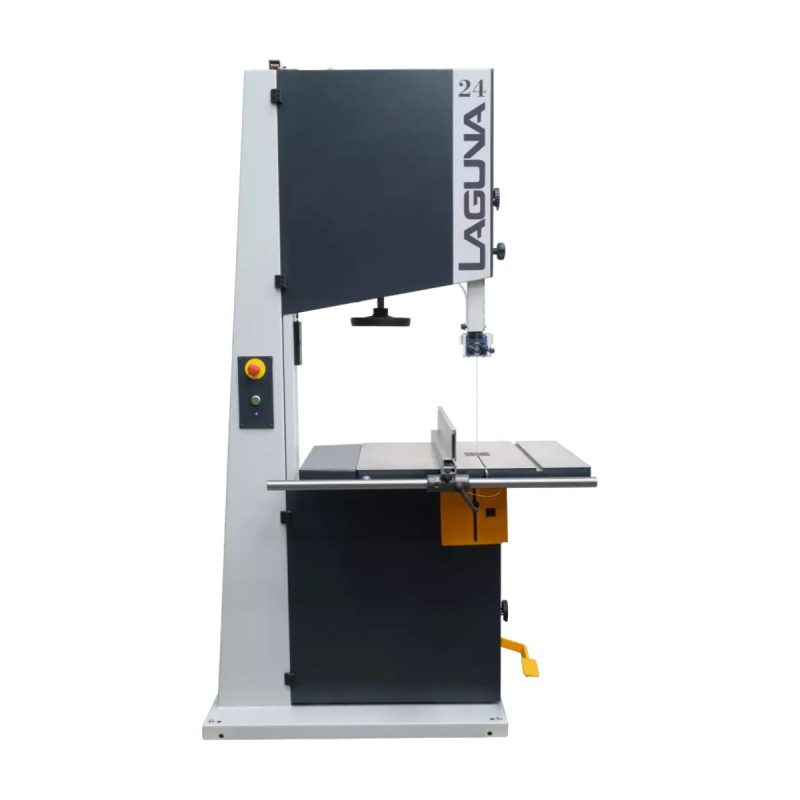

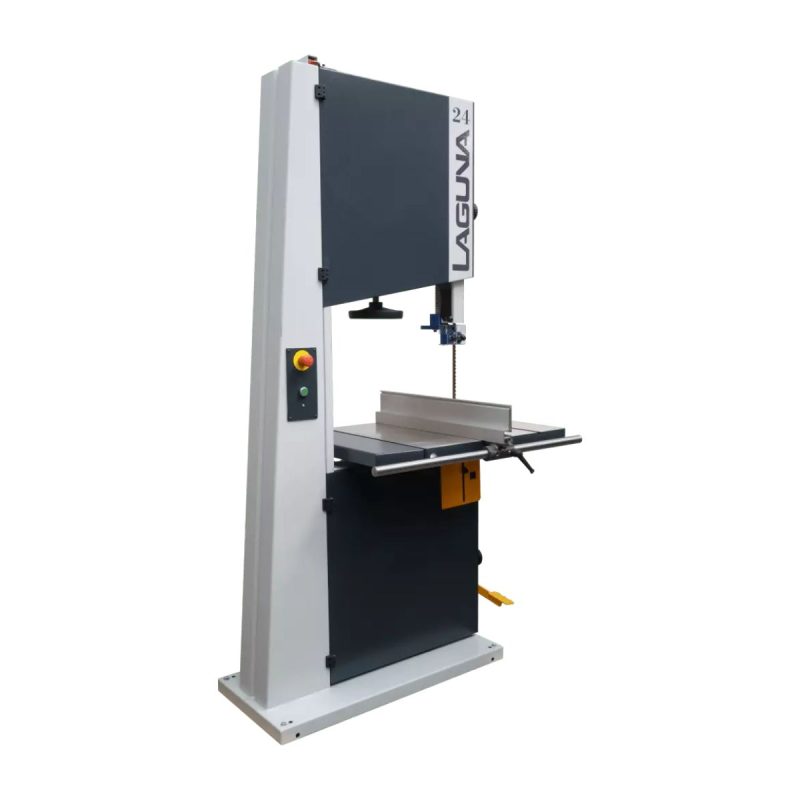

Laguna LT24x17

Laguna LT24x17

$7,899.00

Category Brand:

If you are working on jobs that require a large table and extra throat capacity, then this is the machine for you. Boasting a 17-5/8″ resaw capacity that is driven by an American made 5 HP, single phase motor and all the trappings known in the Laguna Tools line of bandsaws. The LT24x17 HD Bandsaw features that include geared trunions, EZ Tension indicator, foot brake, high/low fence system and our award-winning Laguna Guide System with Space Age technology. Expect our renowned Laguna quality and built Laguna Tough with all the innovations!

* Blade Not Included

Features:
  • 5 HP 1 Phase Standard
  • Optional: 5HP 3 Phase or 7.5 HP 3 Phase Available at Additional Cost
  • 220 Volt
  • 30-40 Amp Recommended Breaker
  • Min-Max blade width: 1/8″ – 1-1/4″
  • Resaw Capacity: 17-5/8″
Add to Quote Request

Resaw Capacity: 17-⅝″

Throat Capacity: 23-¼″

Blade Length: 183″

Minimum Blade Width: *⅛″ (*with optional Cool Blocks) or ¼″ standard

Maximum Blade Width: 1-½″

Blade Guides: Laguna Guides

Upper Guide: Rack and Pinion

Table Size: 24″ x 34-½″

Table Height: 35″

Fence: Hign/Low Aluminum Standard

Overall Height: 84-½″

Base Size: 15″ x 41-⅜″

Dust Port: One 4″ Port

Motor: 5 HP Standard or 7.5 HP Triple Phase (Additional Cost)

Volt: 220V. Can be ordered 1ph or 3ph

Recommended Breaker: 30/40 Amp

Weight (Net/Ship): 725 lbs / 825 lbs

Shipping Dimensions (L x W x H): 36″ x 40″ x 96″

*Optional cool blocks required for blades less than ¼″

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage, Oliver, nor JLT Machinery or other machines listed as not free shipping.

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Resaw Capacity: 17-⅝″

Throat Capacity: 23-¼″

Blade Length: 183″

Minimum Blade Width: *⅛″ (*with optional Cool Blocks) or ¼″ standard

Maximum Blade Width: 1-½″

Blade Guides: Laguna Guides

Upper Guide: Rack and Pinion

Table Size: 24″ x 34-½″

Table Height: 35″

Fence: Hign/Low Aluminum Standard

Overall Height: 84-½″

Base Size: 15″ x 41-⅜″

Dust Port: One 4″ Port

Motor: 5 HP Standard or 7.5 HP Triple Phase (Additional Cost)

Volt: 220V. Can be ordered 1ph or 3ph

Recommended Breaker: 30/40 Amp

Weight (Net/Ship): 725 lbs / 825 lbs

Shipping Dimensions (L x W x H): 36″ x 40″ x 96″

*Optional cool blocks required for blades less than ¼″
