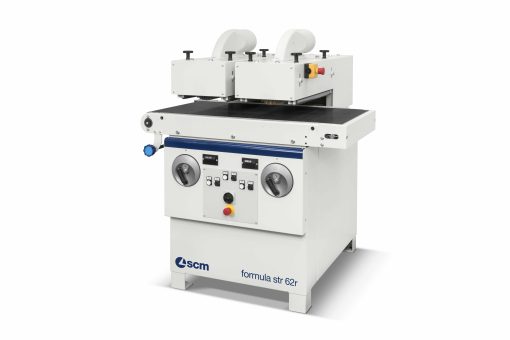

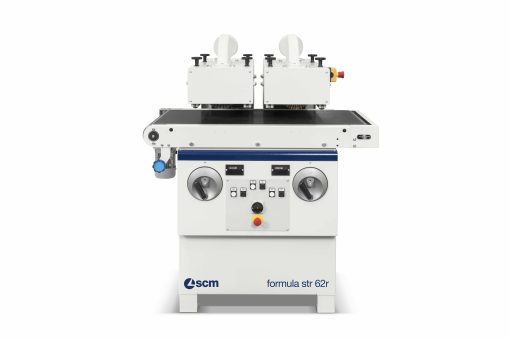

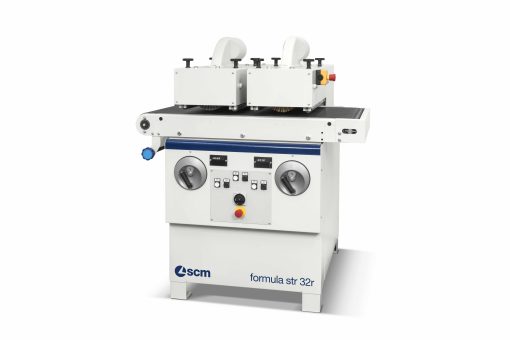

SCM formula str 32 – str 62 Two‑Head Sanding / Brushing Machines

$14,985.00 – $22,985.00

We have looked and looked for an affordable, robust, precise brush sander at this price point and here it is!

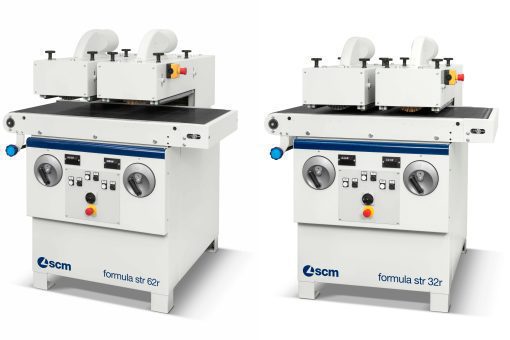

There are two versions of this machine in two different widths. The 32 has a 300 mm width while the 62 has a 600 mm width capacity. They are available in “r” versions with steel and Tynex® brushes, dedicated to the rustication(wire brushing) of solid wood or in “I” versions standard fitted with abrasive insert brushes and inverter controlled motors for surface sanding.

(We can also get any type of brush you need readily in the US)

Advertised Price Configurations:

STR 32R – 3ph, 4HP, 11.8″ width, fixed speed, 2 structuring units

STR 62R – 3ph, 6HP, 23.6″ width, fixed speed, 2 structuring units

STR 32L – 3ph, 4HP, 11.8″ width, variable speed, 2 brushing units

STR 62L – 3ph, 6HP, 23.6″ width, variable speed, 2 brushing units

Model: No selection

More options

Clear

Add to quote

Description
Additional information

Click here to download the SCM formula line brochure PDF

Technical data

Technical details		STR 32R	STR 32L	STR 62R	STR 62L
Working units		2	2	2	2
Working width	mm	300	300	600	600
Maximum working height	mm	300	300	300	300
Units motor power @ 50 Hz	kW	3	3	4	4
Feed belt motor power @ 50 Hz	kW	0,22	0,22	0,37	0,37
Dust extraction hoods	mm	2 x 150	2 x 150	2 x 150	2 x 150
Brush speed	g / min	1500	100 ÷ 1500	1500	100 ÷ 1500

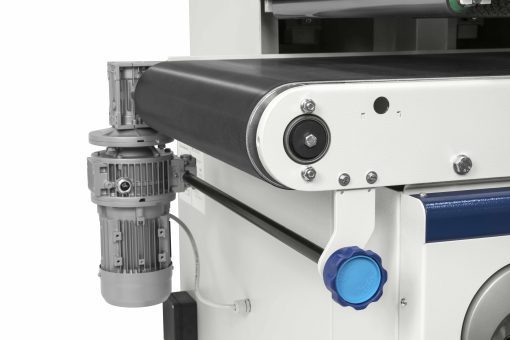

Feed speed	m / min	3 ÷ 20	3 ÷ 20	3 ÷ 20	3 ÷ 20
Brush diameter	mm	190 / 190	230 / 230	190 / 190	230 / 230
Net weight	kg	440	440	750	750
Dimensions (LxDxH)	mm	L 1300 P 900 H 1300	L 1300 P 900 H 1300	L 1300 P 1200 H 1550	L 1300 P 1200 H 1550

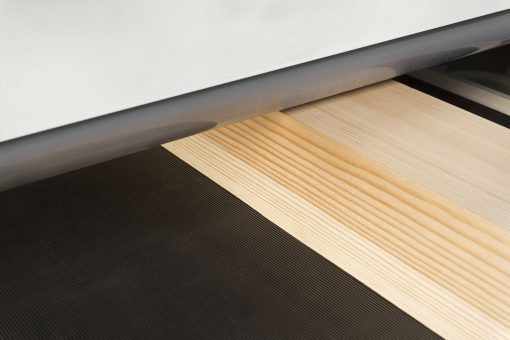

For a wide range of products such as floor, decking, doors, or furniture elements, manufacturers are seeking to emphasize the natural grain of the wood in order to obtain an antique or textured finish. The STR brush filaments abrade the softer wood fiber more than the harder ones, revealing the grain of the wood and leaving a surface in relief that can then be stained or filled for ceruse or a vast array of unique finishes.

[section bg=”http://imageurl” title=”” padding=”30px” parallax_text=”0″ parallax=”0″ margin=”0px”]

Structuring

Structuring refers to surface modification where the harder wood grain is raised while softer grains recede. This creates the impression that the wood is weathered, antique, vintage, or repurposed with a look that emphasizes the natural beauty of the wood.

[/section]

[section bg=”http://imageurl” title=”” padding=”30px” parallax_text=”0″ parallax=”0″ margin=”0px”]

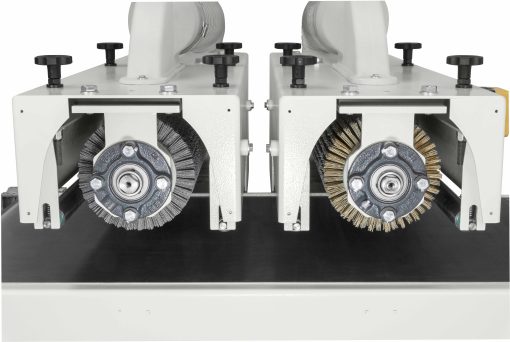

Brushing Units

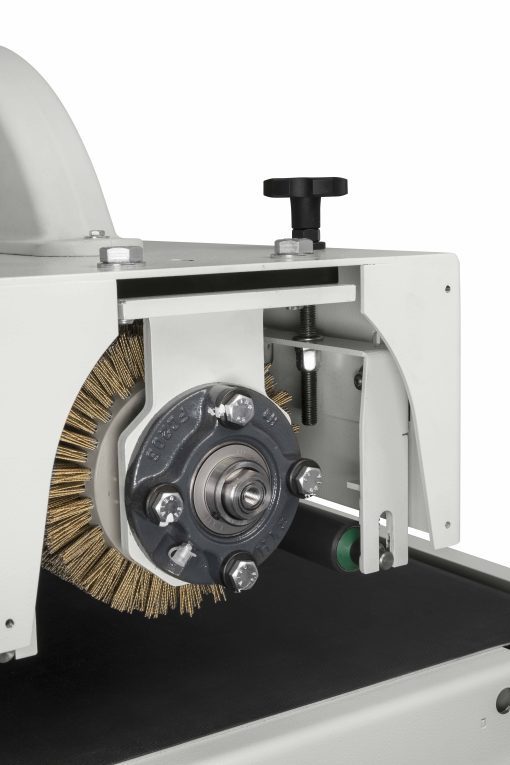

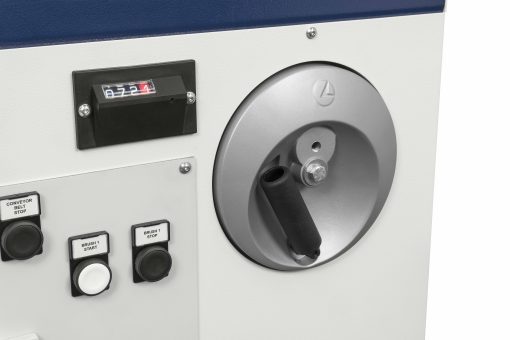

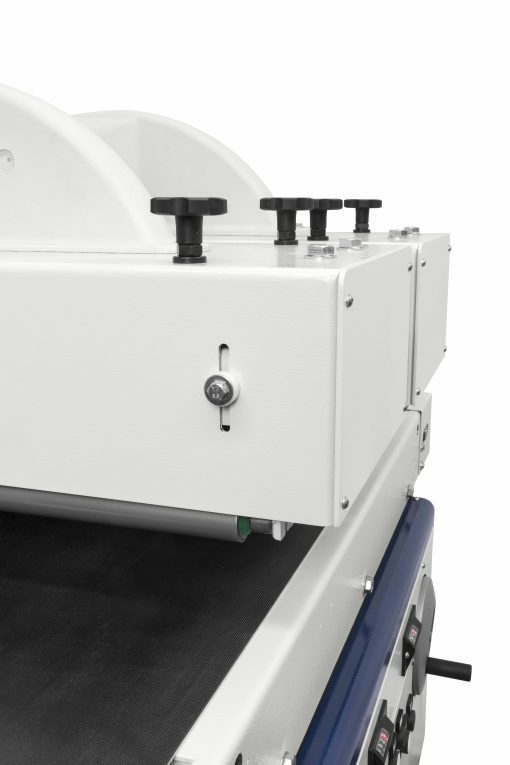

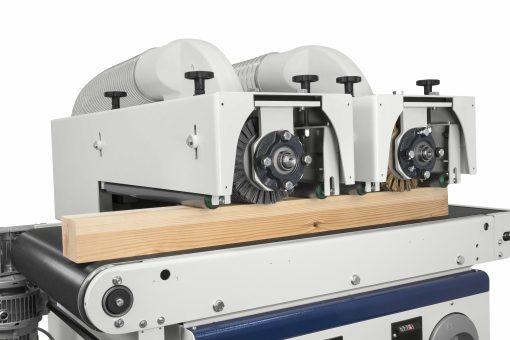

SCM’s Formula STR sanding machine consists of two independent brushing units; together they sand and smooth the wood grain and thereby giving the structure a softer, vintage appearance. The degree of structuring can be changed by setting the working depth. Different degrees of finishing may also be obtained by changing out the type of brush. Easily achieve an even structuring and pressure with the adjustable contact rollers at both ends of each brush.
