Designed for a perfect finish

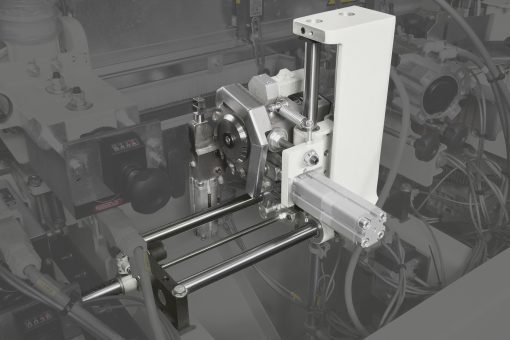

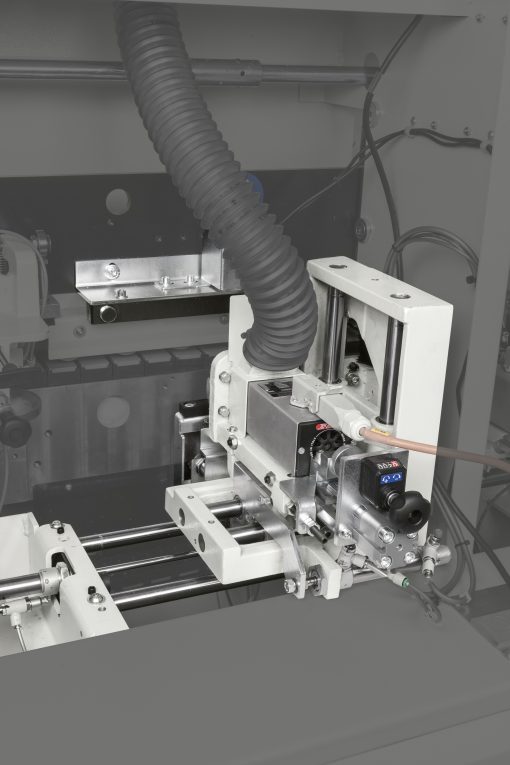

A new combined end cutting-rounding unit with rigid structure for unique quality processing in its market segment. Now the rounding process is available for all workshops.

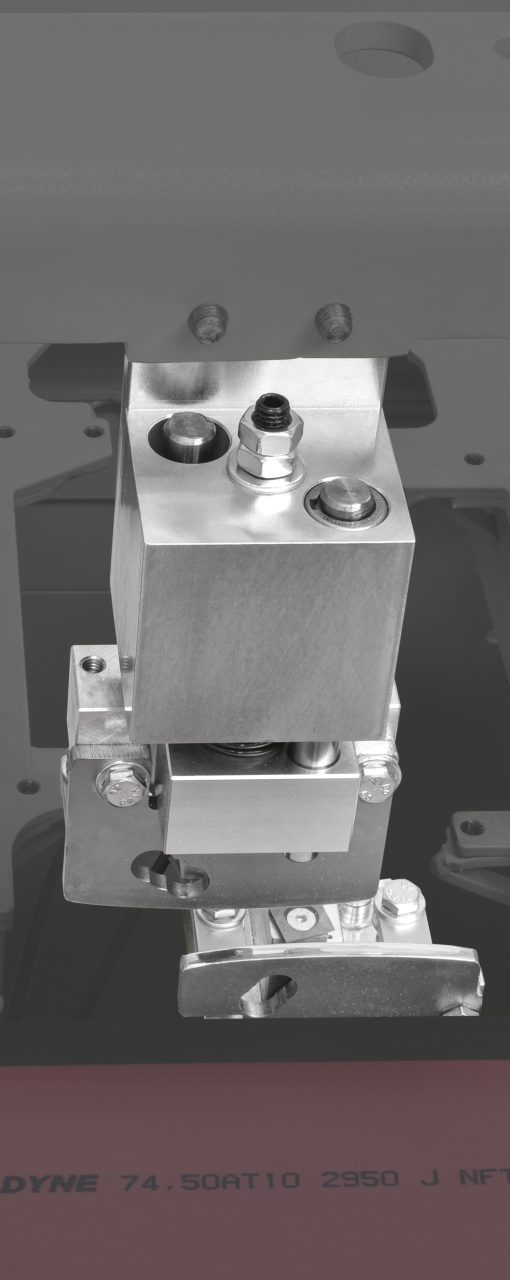

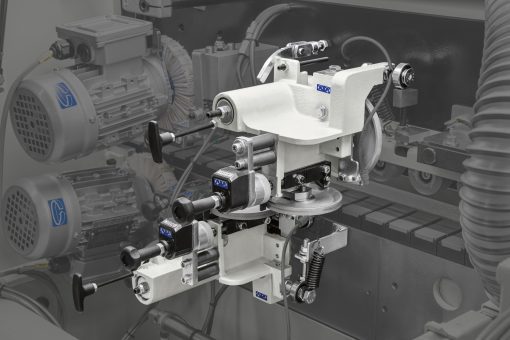

Perfect edge cleaning

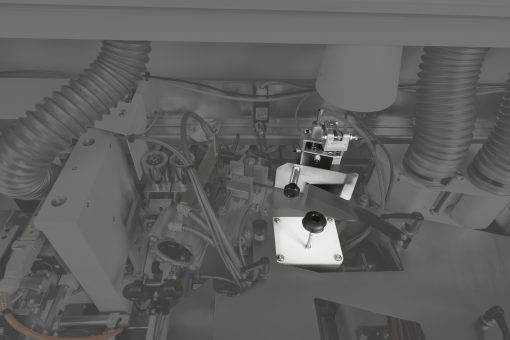

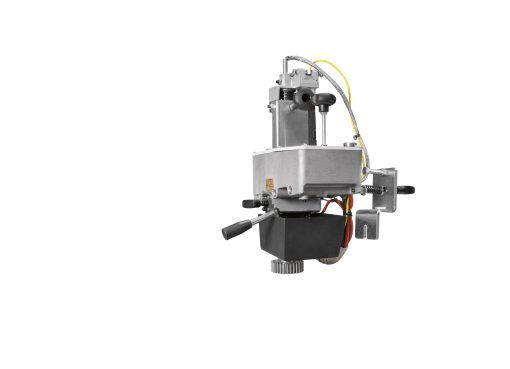

The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot, allows a more extensive use of the edge banding machine without the necessity of lubrication. Two rollers press the edge banding evenly and efficiently on to the panel edge. The glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height.
The optional unit allows you to make a radius on the corners of the edged panel without the need for the operator to have to finish by hand at a later stage: brilliant idea to a finished product of high quality.
These are all the types of profiles that is possible to process with this machine.

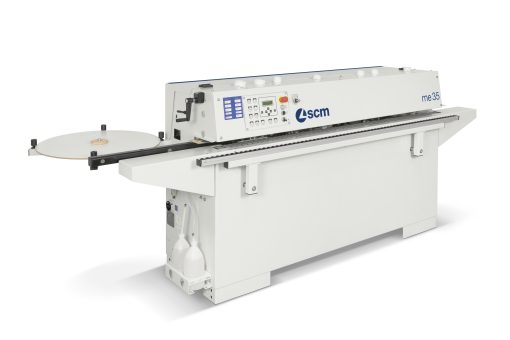

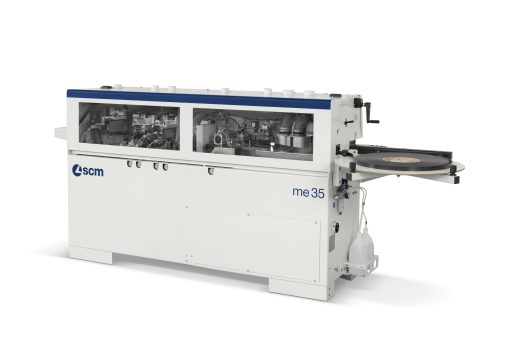

|minimax me 35|
|Work table dimensions||mm||3000 x 525|
|Min. ÷ max. thickness of rolled edges||mm||0,4 ÷ 3|

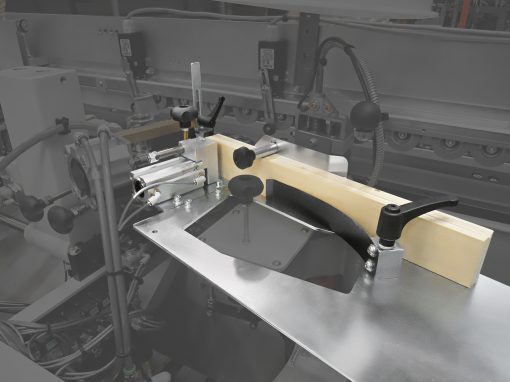

|Max. thickness of edges in strips||mm||5|
|Min. ÷ max. panel height||mm||8 ÷ 50|
|Min. panel length/width||mm||190/110|
|Min. panel length/width with end cutting/rounding unit||mm||120/110|
