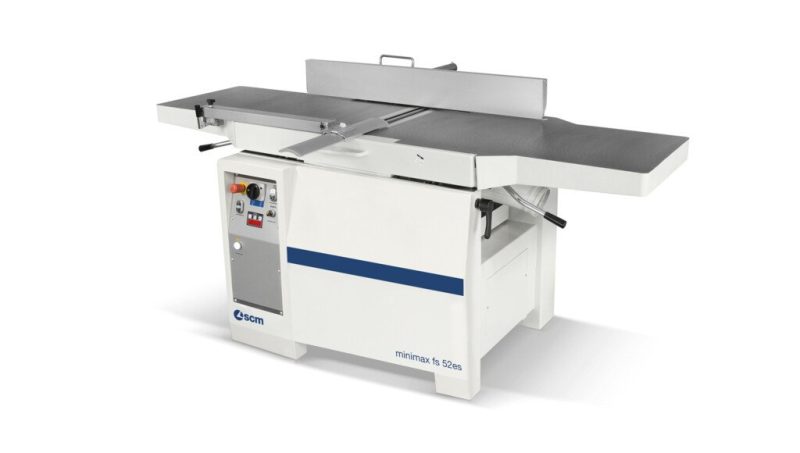

SCM minimax fs 52es 20″ Jointer Planer (3-Phase)

$19,595.00$20,195.00

It’s getting harder and harder to find quality combination machines. The SCM minimax line does not disappoint! All of their combination machines share the same technology of their stand alone machines. All of these are built in house by SCM. They own both their own state of the art foundry and machine shop. This allows them to control quality from start to finish.

Did we mention the fast change over times?

Surfacing-thicknessing machine, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.

*Photos may include optional equipment.

Advertised Price Configuration:

FS 52ES – X – 1ph – 1ph, 4.8HP, 20.5″ XYLENT cutterblock, 88.6″ jointer bed, powered movement, rubber outfeed roller, additional overturning fence, mobility kit
FS 52ES – X – 3ph – 3ph, 11HP, 20.5″ XYLENT cutterblock, 88.6″ jointer bed, powered movement, rubber outfeed roller, additional overturning fence, mobility kit

Guaranteed Safe Checkout

Credit

SCM minimax fs 52es 20″ Jointer Planer (3-Phase)
$19,595.00$20,195.00
Request a call back
(*Optional)

Click here to Download Minimax SI X and Elite S range PDF Brochure

ADVANTAGE

Perfect finish

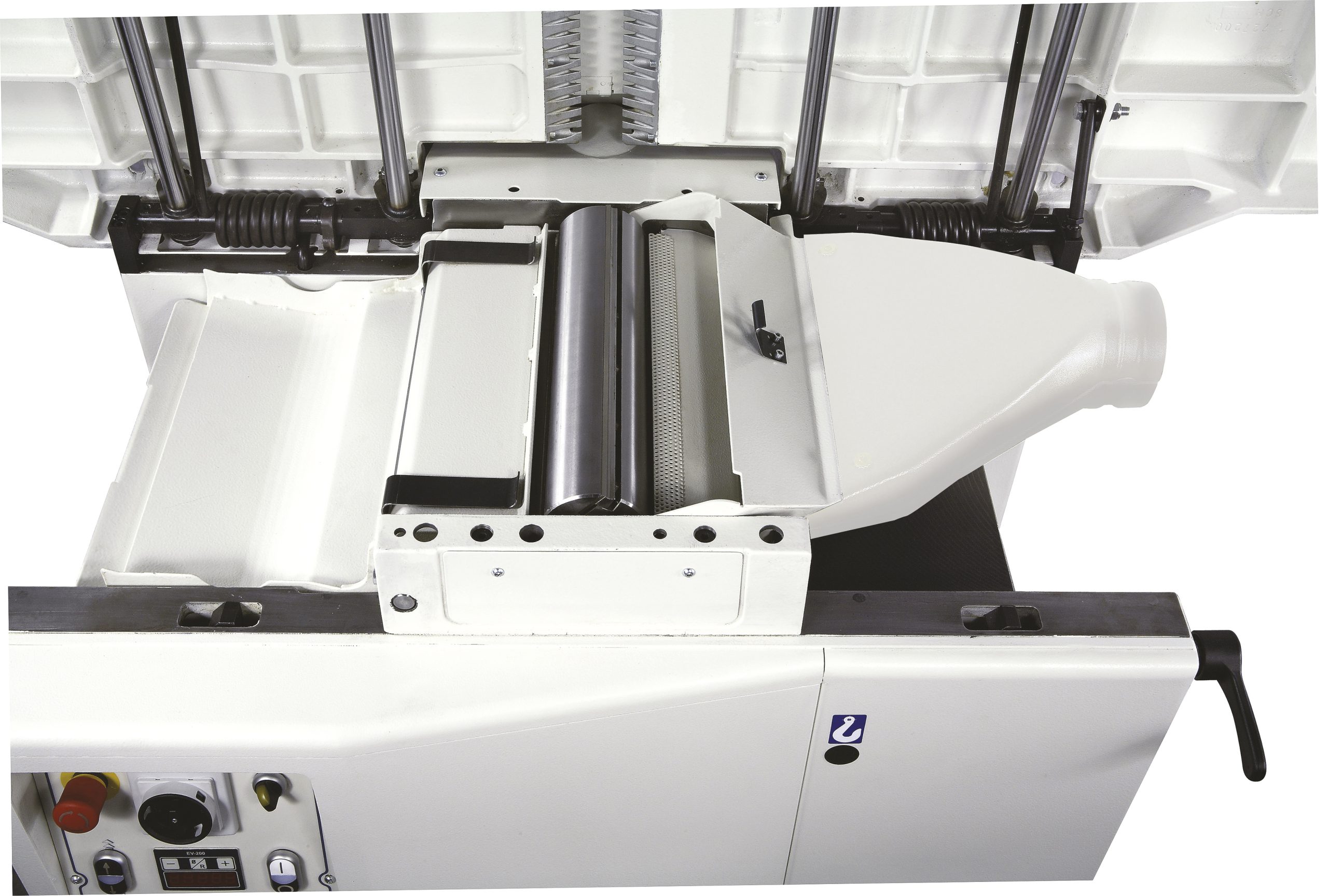

An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block  and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.

Stability over time

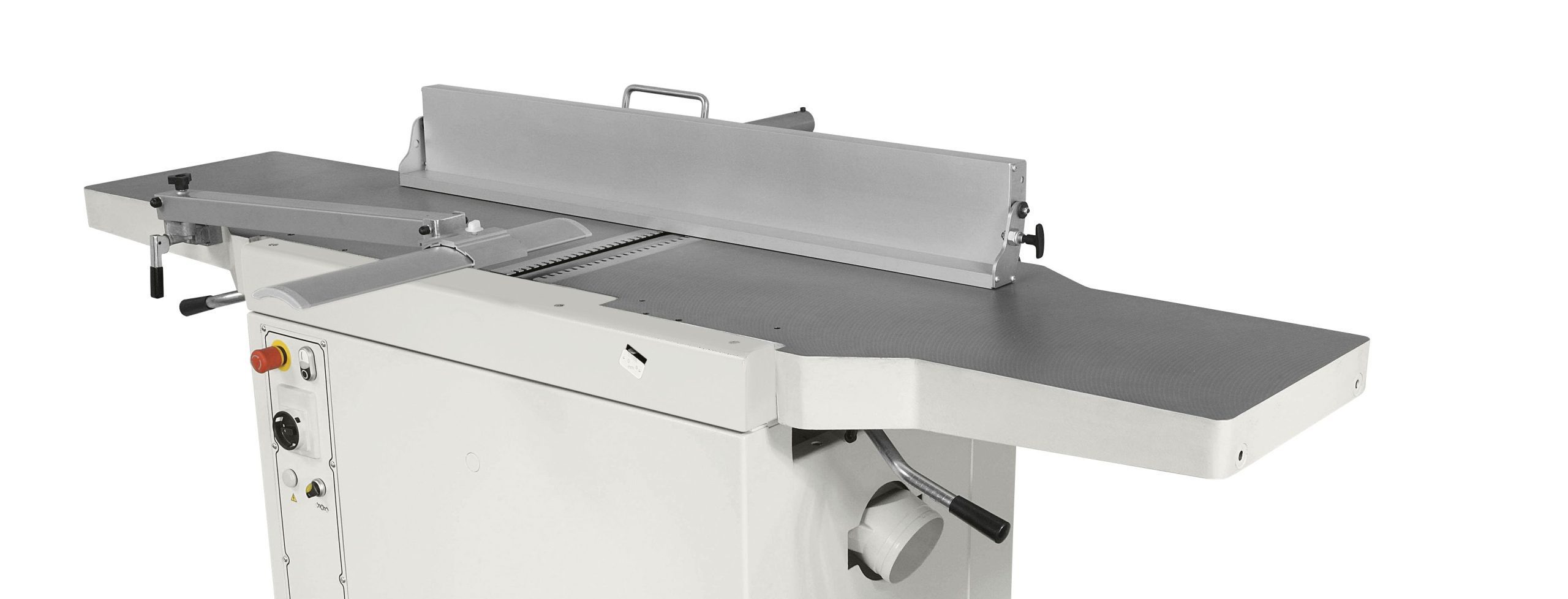

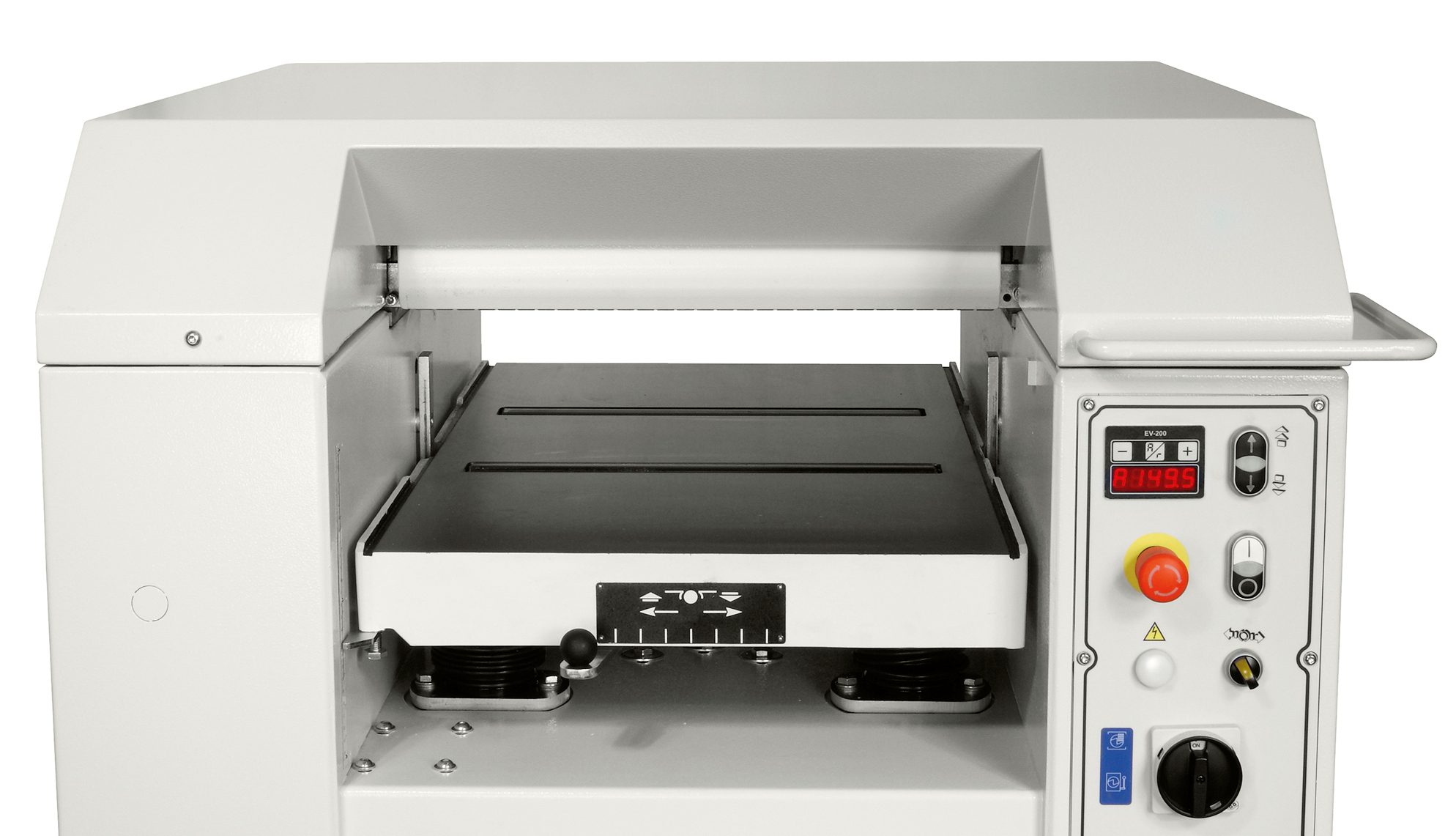

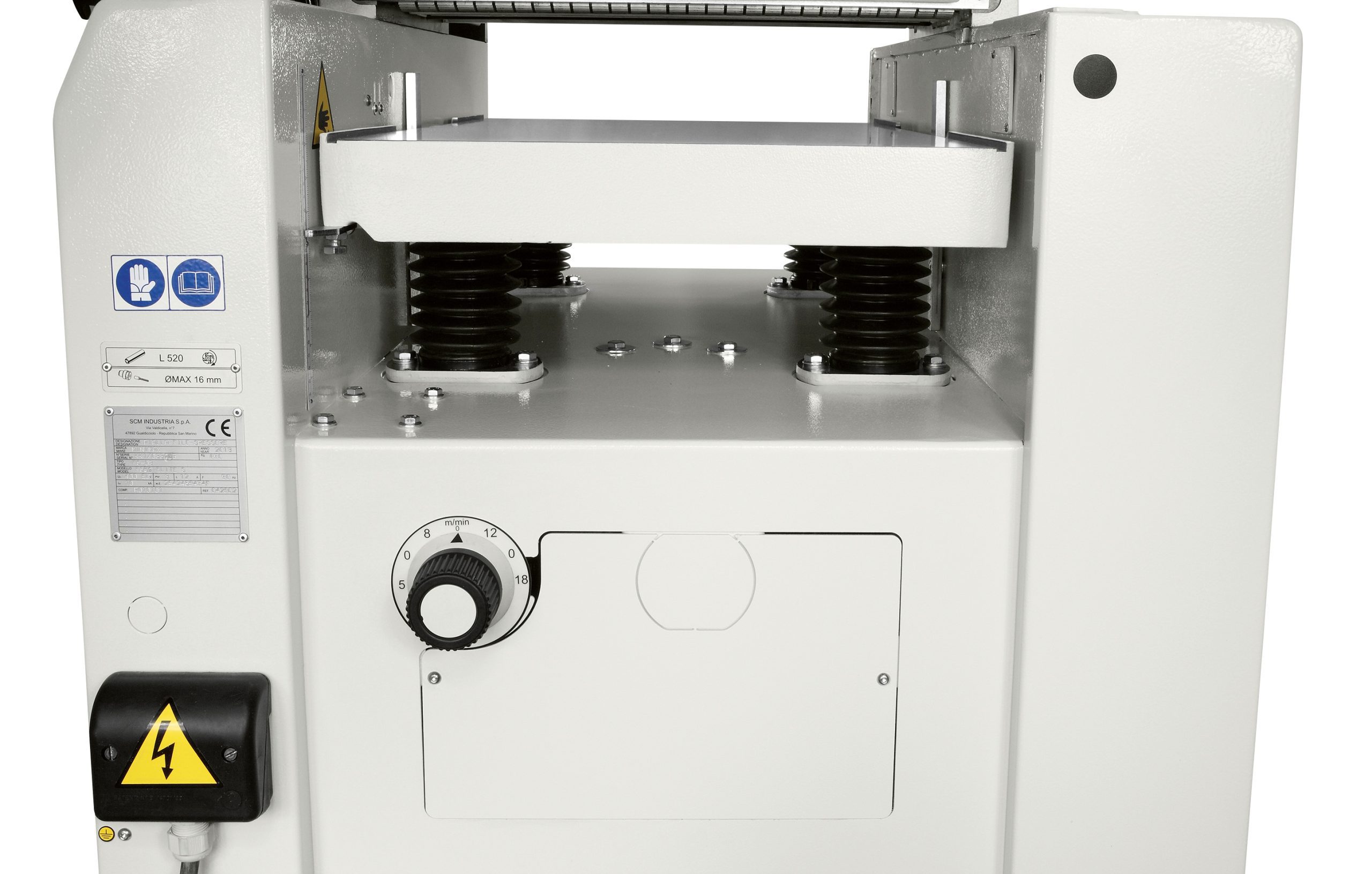

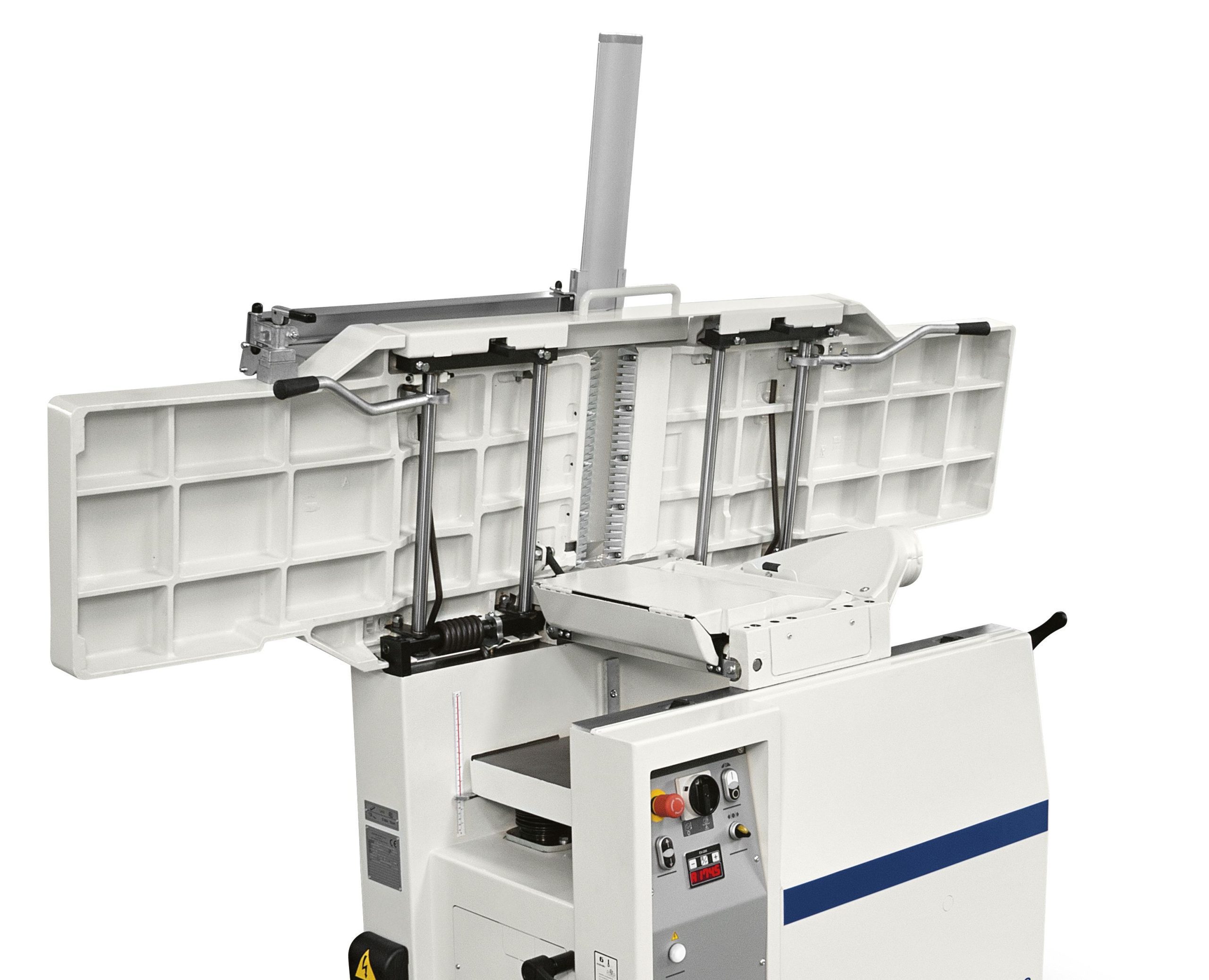

Comfortable and precise planing. The Elite S series adopt ergonomic solutions like the 2200 mm surfacing tables, in ribbed cast iron, with simultaneous opening towards the inside of the machine with a 90° angle. For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected.

High rigidity

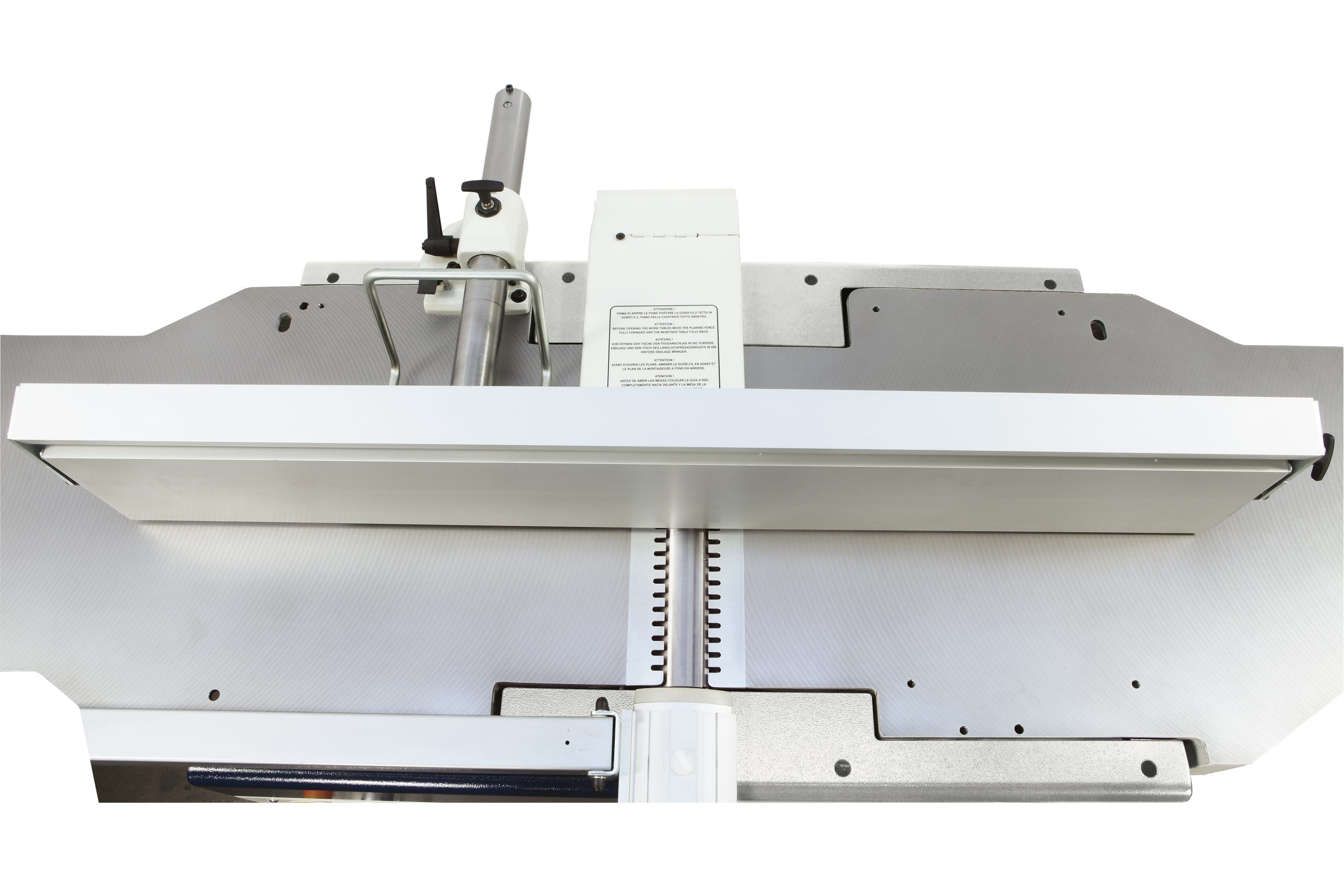

High rigid fence with a smooth movement thanks to the central locking on round bar.

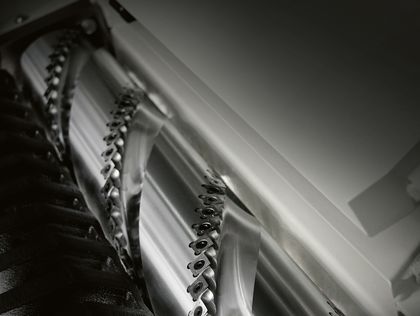

“Xylent” spiral knife cutter block with 3 series of knives
The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Additional information

Choose Voltage/Phase: No selection

1-Phase Xlyent, 3-Phase Xylent
