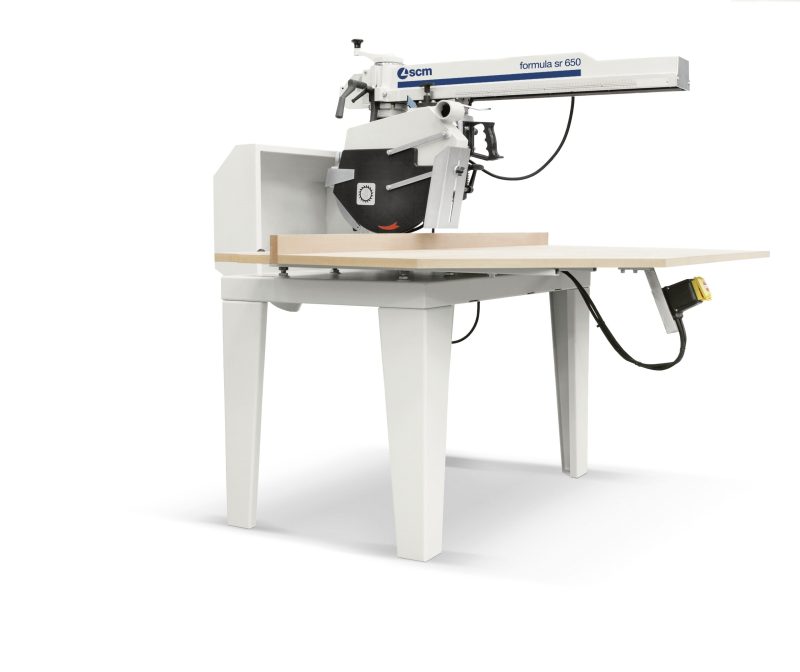

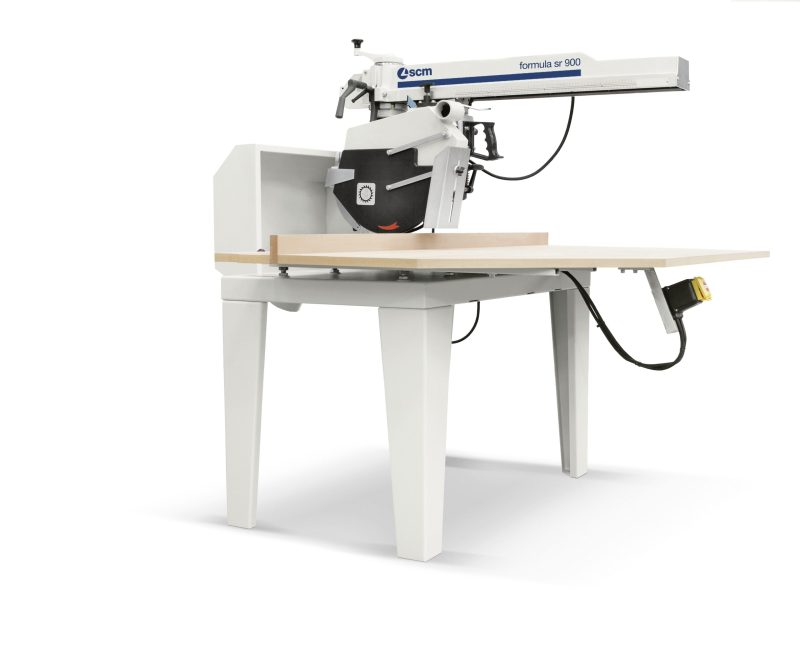

SCM formula sr 650 – sr 750 – sr 900 Radial Arm Saws

SCM formula sr 650 – sr 750 – sr 900 Radial Arm Saws

SKU N/A Categories New Machines, Saws (Radial Arm), SCM Tags Free Shipping*, Minimax SCM, Radial Arm Saws Brand: SCM, SCM formula

The radial saws of SCM’s “formula” line with an heavy cast-iron structure are available with 650, 750, and 900 mm cross-cut capacity.
Adaptability, versatility, cutting precision, easy maintenance make this product line a necessary machine for the daily use of each workshop

Add to Quote Request

Specs & Features

Click Here to Download Formula_Product Brochure PDF

ADVANTAGES

Maximum cutting precision
The cast-iron structure provides the arm with the maximum solidity and rigidity for the maximum cutting precision. The interchangeable sliding ways allow the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm.

Precision and smoothness
The 8 sliding bearings on the guides grant the best carriage smoothness and optimal support for a perfect cutting result.

Longlasting functionality
The mechanisms of which the machine is equipped, such as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time.

Technical data

		sr 900	sr 750	sr 650
Blade diameter	mm	400	350 (400 opz.)	350 (400 opz.)
Blade tilting		-45° ÷ +45°	-45° ÷ +45°	-45° ÷ +45°
Max. cutting depth with 90°/45° blade	mm	120/83	120/83*	120/83*
Max. cross-cut capacity	mm	900 x 20	750 x 20	640 x 20
Three-phase motor starting from		4 (4) kW-50 (60) Hz	3 (3) kW-50 (60) Hz	3 (3) kW-50 (60) Hz

Shipping

Please Contact us for a shipping quote for Pre-Owned Machinery and or New machinery below $6,000.

***Some restrictions apply for free freight on NEW machinery over $5,999. FREE freight is to a commercial address with a dock and or forklift. EXTRA FEES may apply to accessorials like restricted access, residential drops, liftgates, and excessive lengths.

Applies to lower 40 of the contiguous states only. AZ, CA, ID, MT, NV, OR, UT, & WA do not qualify for free shipping. We can split ship to these states from $5,999 and up. Free shipping does not apply to RazorGage Machines nor JLT Machinery or other machines listed as not free shipping.

Literature, Manuals, and or Drawings

Financing & Leasing Options for Your Convenience!

360 Degree Machinery offers financing solutions with competitive rates, flexible terms, and a simple application. Take the hassle out of machinery purchases. Click Here to learn more now!

Description
Additional information

Click Here to Download Formula_Product Brochure PDF

ADVANTAGES

Maximum cutting precision
The cast-iron structure provides the arm with the maximum solidity and rigidity for the maximum cutting precision. The interchangeable sliding ways allow the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm.

Precision and smoothness
The 8 sliding bearings on the guides grant the best carriage smoothness and optimal support for a perfect cutting result.

Longlasting functionality
The mechanisms of which the machine is equipped, such as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time.

Technical data

		sr 900	sr 750	sr 650
Blade diameter	mm	400	350 (400 opz.)	350 (400 opz.)
Blade tilting		-45° ÷ +45°	-45° ÷ +45°	-45° ÷ +45°
Max. cutting depth with 90°/45° blade	mm	120/83	120/83*	120/83*
Max. cross-cut capacity	mm	900 x 20	750 x 20	640 x 20
Three-phase motor starting from		4 (4) kW-50 (60) Hz	3 (3) kW-50 (60) Hz	3 (3) kW-50 (60) Hz

Additional information

Size/Model: No selection	650, 750, 900
