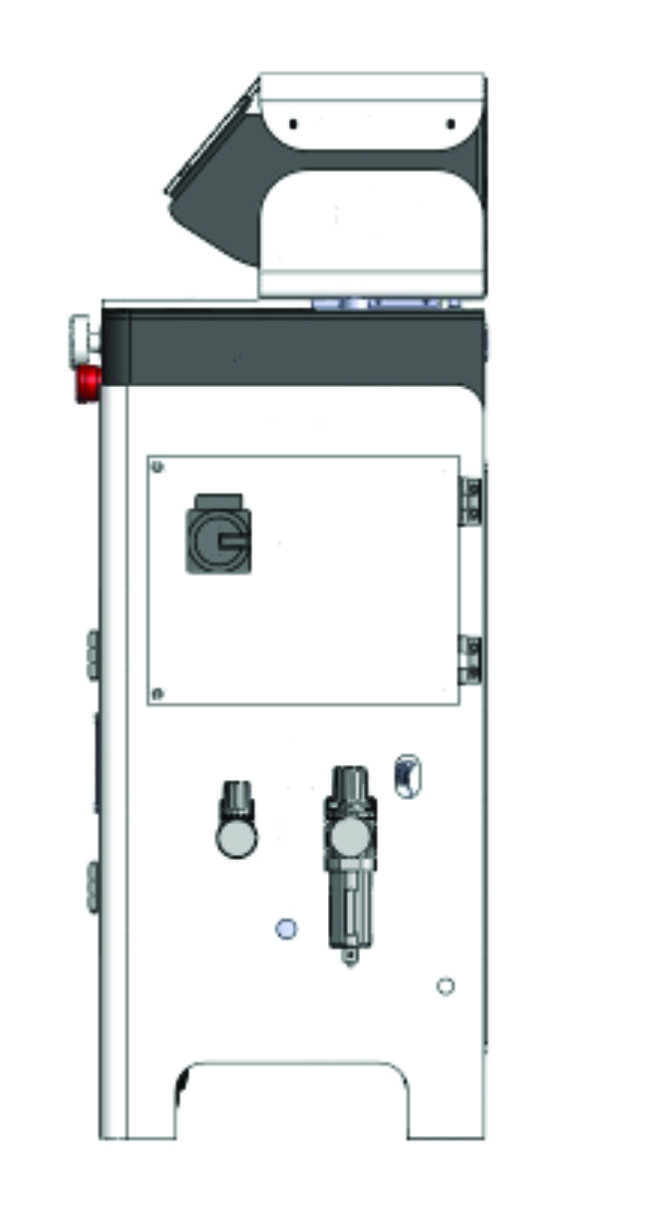

Northtech NT-iGlue450DTG Automatic Dovetail Gluer

Northtech NT-iGlue450DTG Automatic Dovetail Gluer

Categories Dovetailers, Northtech Machine Brand: Northtech Machine

Northtech did it again! Following up to their Idovetail machine comes their automatic gluer. No Programming Required “Just Stick It In”………..no really it is that simple!

Add to Quote Request

Specs & Features

• Simply place the parts against the fence, the iGlue will scan and apply glue to either male or female side of the joint automatically, with no programming required
• Working width: 450mm (18″)
• Working thickness: 5-50mm (3/16″ – 2″)
• Working length minimum: 100mm (4″)
• (3) Programmable working speeds
• Maximum operating speed: 1.4in/s
• Multiple glue nozzle applicators for varying customer needs
• Siko counter fence depth setting
• Removable glue catch basin
• Replaceable no drip nozzle
• Glue and water pot on an internal cart system that pulls outside the
machine for easy access
• LED Illuminated working area
• Automatic sleep mode will place the nozzle into a water bath after
5 minutes without use to keep glue tip fresh
• Auto cleaning mode flushes glue out of the system easily
• Single pneumatic connection with FLR included
• Easy smartphone integration for parameter adjustments and maintenance alerts
• Glue reservoir: 10L Adjustable pressure glue pot included
• Water reservoir: 4L Adjustable pressure water pot included
• Recommended glue type: Water soluble PVA glue 8,000mpa s
• Machine / Shipping weight: 436lbs / 528lbs
• Machine / Shipping dimensions (LxWxH): 38″ x 44″ x 18″ / 44″ x 54″ x 26″
• 230V/460V 60HZ 3PH; 200W; 1Amp
