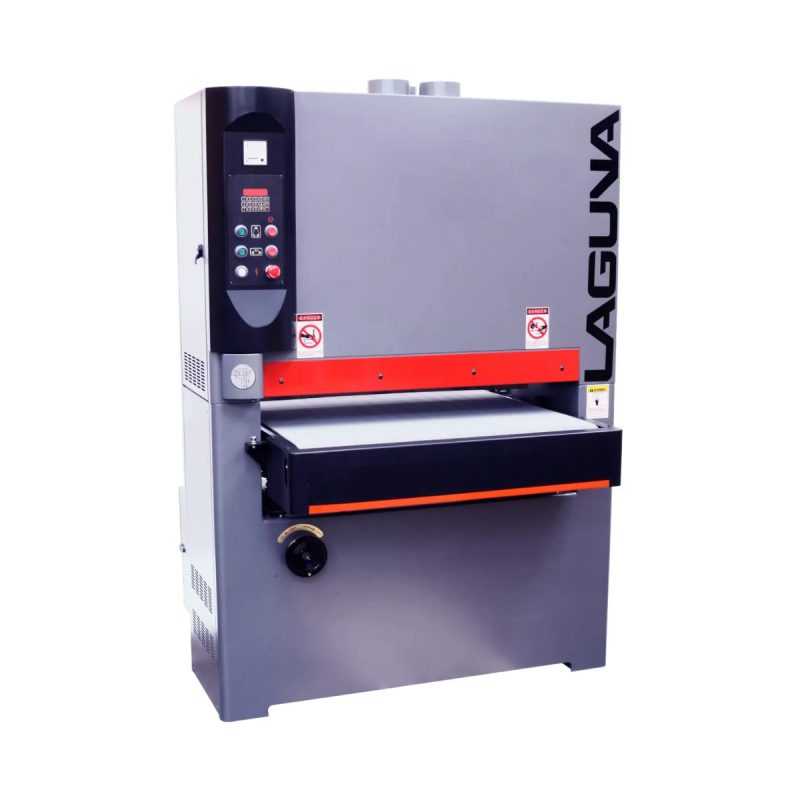

Laguna Tools Wood Pro 51″ Wide Belt Sander

This machine is equipped with 1 ( 8”) roller and a second (4”) roller followed by a wide platen for fine finish. This allows you to use a rougher grit on first roller (8”) that will absorb most of the impact and do the dimensioning while the second roller (4”) with the Platen can have a finer grit. This will save time over having to run your production through the machine 2 times & change belt grit. Due to the large HP motor (30 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used.The heavy carpet feed belt is powered by a separate 2HP motor and the feed speed is adjustable from 12 to 60 fpm.

You can adjust the thickness in 4 ways:

1. Manual hand-wheel on the bottom of the machine
2. By pressing the up or down arrow the table will move in desired direction
3. Input a set dimension on the key pad and machine will go to that dimension
4. The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted
