Features:

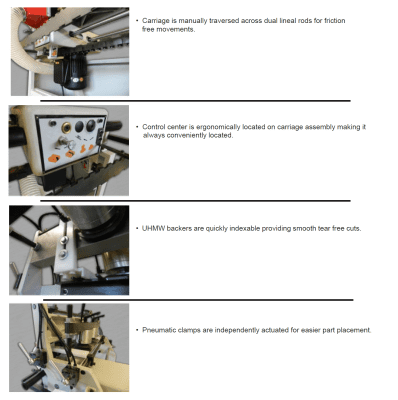

| Carriage is manually traversed across dual linear rods for friction-free movements. |
| Control center is ergonomically located on carriage assembly making it always conveniently located. |
| Tenon and mortise adjustment depth based on material thickness. |
| UHMW backers are quickly indexable providing smooth tear-free cuts. |
| Pneumatic clamps are independently actuated for easier part placement. |

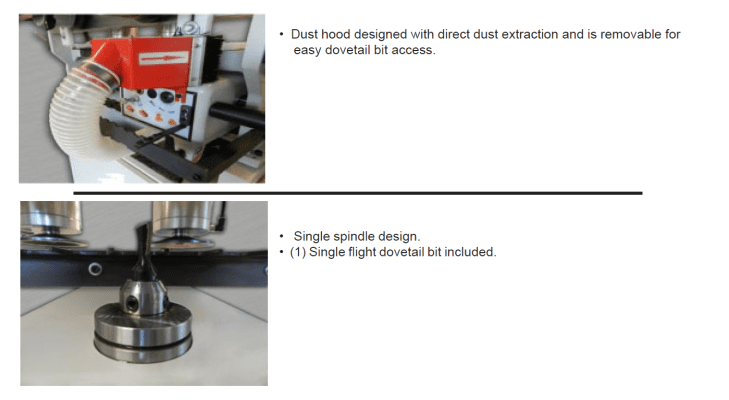

| Dust hood designed with direct dust extraction and is removable for easy dovetail bit access. |
| Single spindle design. |
| (1) Single flight dovetail bit included. |
| UL/CE certified electrical components. |
| Warranty is one-year parts. |
| All machines are tested stateside prior to shipment providing trouble-free start-up. |
Specifications:
| Spindle Motor: | 1HP 1PH 120V/240V 60HZ |
| Min. Workpiece Size: | 2.4″ x 7.9″ |
| Max. Workpiece Size: | 16.5″ x 59″ |
| Min/Max Dovetail Height: | 0.2″ ~ 7.1″ |
| Min/Max Front Thickness: | 0.28″ ~ 2.36″ |
| Min/Max Side Thickness: | 0.28″ ~ 3.6″ |
| Number Of Spindles: | 1 |
| Spindle Speed: | 18,500RPM |
| Dovetail Spacing: | 1″, 1.5″, 2″, 2.5″ |
| Table Height From Floor: | 46.5″ |
| Machine Base: | Heavy Steel With Cabinet Door |
| Included Four-Sided Templates For Different Pitched Dovetails: | 1″, 1.5″, 2″, 2.5″ |
| Air Pressure Required: | 6 bar |
| Dust Ports:Â | (1) 4″ Requiring 436CFM @ Point Of Extraction |
| (1) 2-1/2″ Requiring 245CFM @ Point Of Extraction | |
| Machine/Packing Weight: | 441lbs / 550lbs |
| Machine Dimensions (LxWxH): | 43″ x 30″ x 66″ |
