- Edge Glue and Face Glue a variety of solid wood components
- Produce 10+ edge glued panels per day with a Standard Setup
- Face Glue, Utilizing our Rocker Plates, a Wide Variety of Railing Stock, Posts, Beams, Flooring Blanks, and more
- Uses (5) 3 1/2″ High jaw 40″ Clamps
- Optional 52″ Clamps Available on Request
- Free Standing Unit with 500 lbs. Weight Capacity
- 100% Complete Tubular Steel Construction
- Complete 3 Year Warranty
- Accessories: #302-40-H-R Clamps, 138B 8″ x 48″ Taylor Plate Spreader, 150B Glue Spreader, 180A Pneumatic Panel Flattener, 79-16 Holddowns, 80-1706 Rocker Plates
- Standard Stock Size of 40″ Maximum Opening
- Additional Stock Size is 52″ Maximum Opening
- Additional non-stock and Custom Sizes from 32″ – 120″ Opening
- Minimum Clamp Opening of 9″
- Robotically Welded / 100% Steel Construction
- Lifetime Warranty on all Welded Components
- Guaranteed never to Twist, Bow or Bend under normal working conditions
- Each Clamp can Produce up to 3000 lbs of Clamping Force
- Patented Equalizer Design Provides Equal Clamping Force from the Front and Rear Jaws
- Higher Quality Panels result from this Design with more even Glue Line Pressure

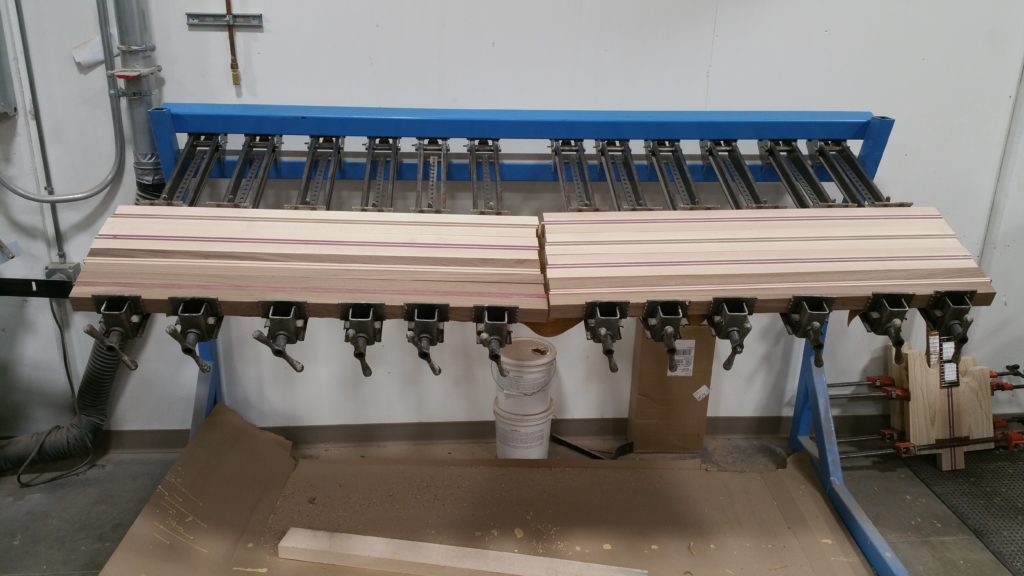

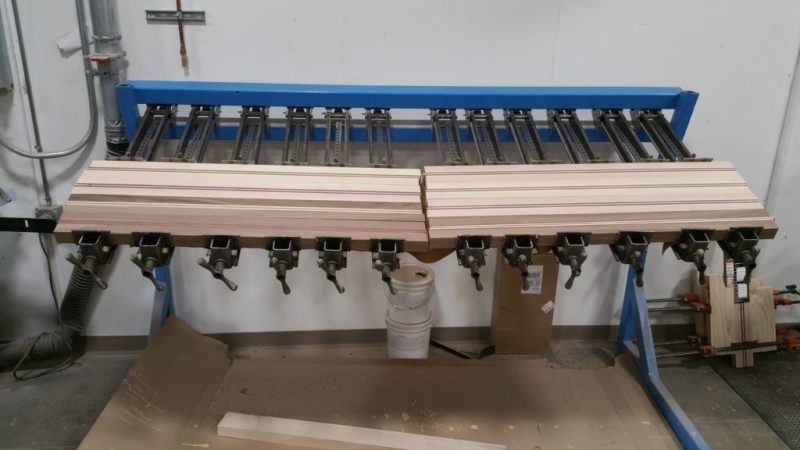

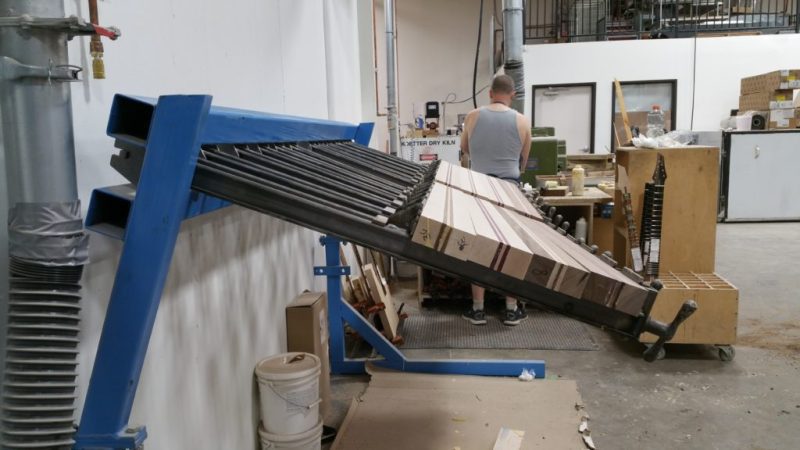

JLT Single Level Panel Clamp 6′, 8′, or 12′
$1,850.00 – $3,450.00
Features:
3 Sizes:
JLT Model #79F-6-1R 6′ Single Row Clamp w/ (5) 3-1/2″ High Jaw 40″ Clamps
JLT Model #79F-8-1R 8′ Single Row Clamp w/ (6) 3-1/2″ High Jaw 40″ Clamps
JLT Model #79F-12-1R 12′ Single Row Clamp w/ (10) 3-1/2″ High Jaw 40″ Clamps
- (1) gluing level
- Includes (5) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available upon Request)
- Taylor’s Patented and Successful Clamp Arm Design
- Edge Glue and Face Glue a variety of solid wood components
- 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels
- Accessories: #302-40-H-R Clamps, 138B, 150B Glue Spreaders, 180A, 79-16 Hold Downs, 80-1706 Rocker Plates
Additional information
| Size/Capacity: No selection | #79F-6-1R 6' Single Row Clamp w/(5) Clamps, #79F-8-1R 8' Single Row Clamp w/(6) clamps, #79F-12-1R 12' Single Row Clamp w/10) clamps |
|---|
