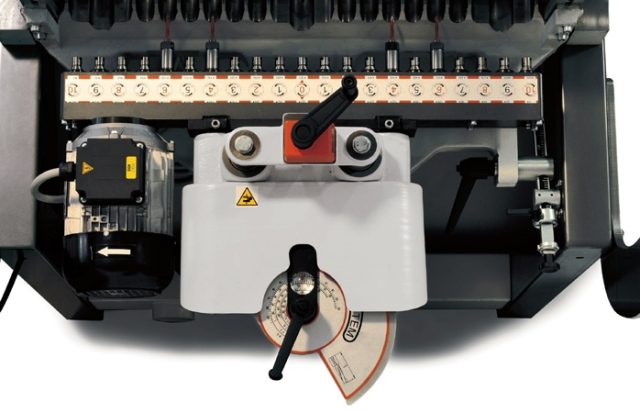

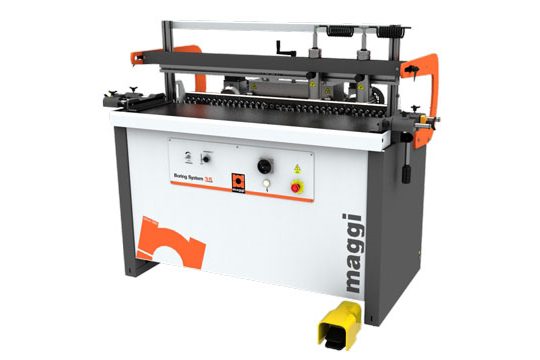

The Maggi System 35 Boring Machine provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle
Features:
- Accurate Positioning of The Boring Unit To The Table With Digital Readout
- 0 To 3.25″ Adjustable Drilling Depth With Patented Spiral Setting Device
- (4) Patented Quick Release Material Clamps With Auto-Setting To Firmly Hold Material To Table
- (2) Powerful 2 HP Motors

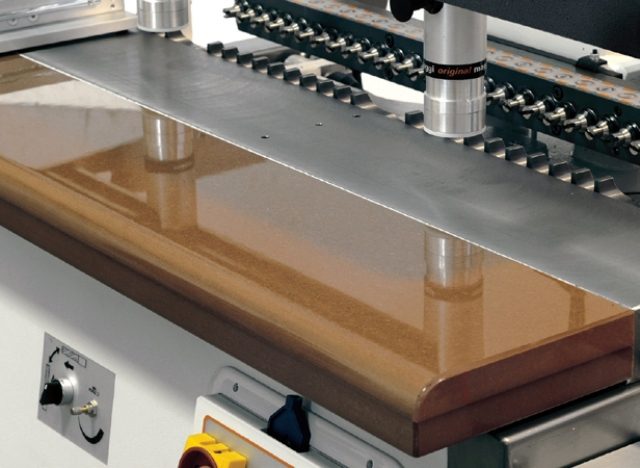

- 52.4″ X 16.2″ Cast Iron and MDF Table
- The MDF Portion Of The Table Is Treated With Non-Scratch Paint For Highest Operator Comfort And To Help Prevent Scratching Of The Panel
- Side Fences With Mechanical Digital Readout For Quick And Accurate Setting
- 120″ Line Boring Fence With (4) Stops
- Foot Actuated Pneumatic Clamps And Drill Cycle
- Includes Magnetic Starter With Overload Protection And (35) Quick Change Chucks
Specifications:
Spindle Spacing: |
1-1/4″ (32mm) |
Dust Outlet: |
3″ |
Net Weight: |
705 Lbs |
Dimensions: |
65.75″ x 38.9″ x 50″ Tall |
Crated Dimensions: |
59.8″ x 37.4″ x 40.5″ Tall |
Crated Weight: |
995 Lbs |

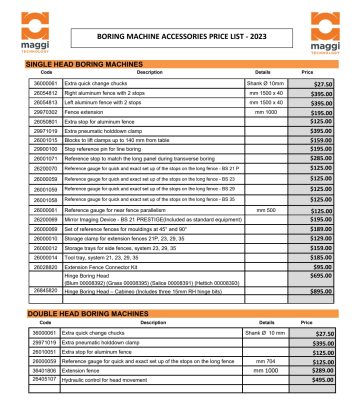

Options (single head boring machines):
