Name: Ritter R2061 6° Low-Angle Pocket Screw Machine (Single Phase)
Brand: Ritter Machinery
Availability: InStock

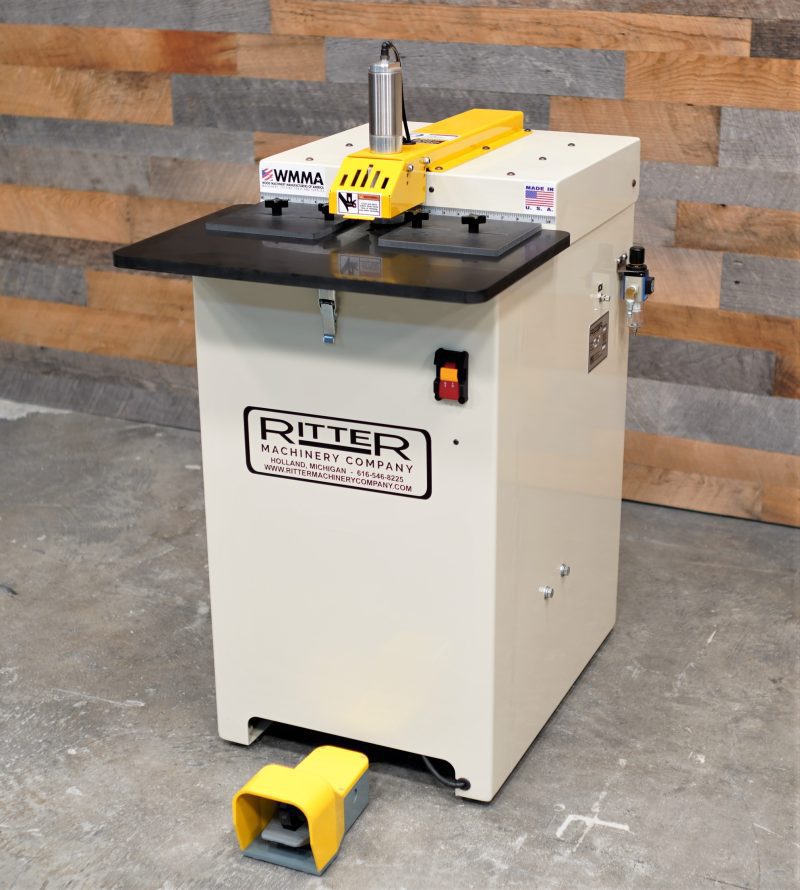

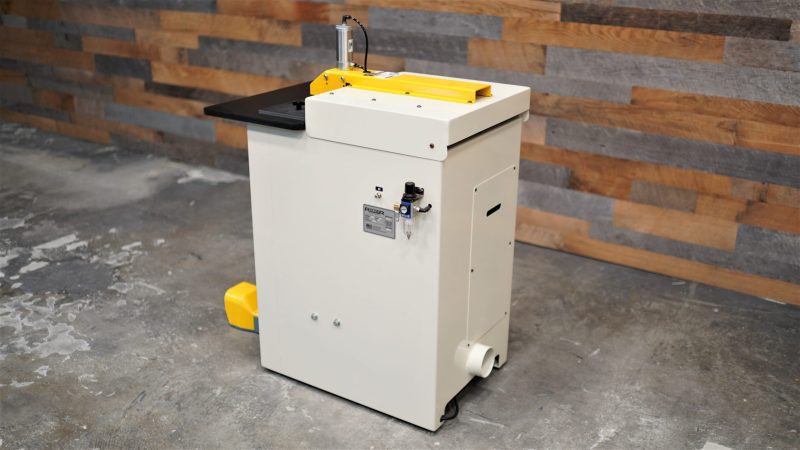

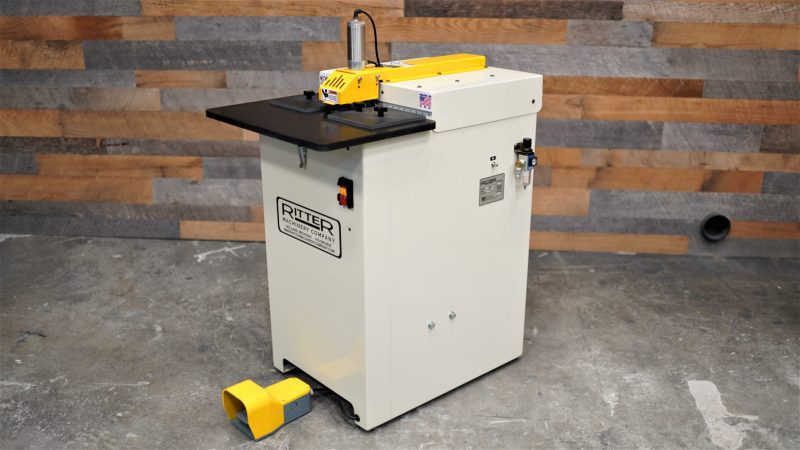

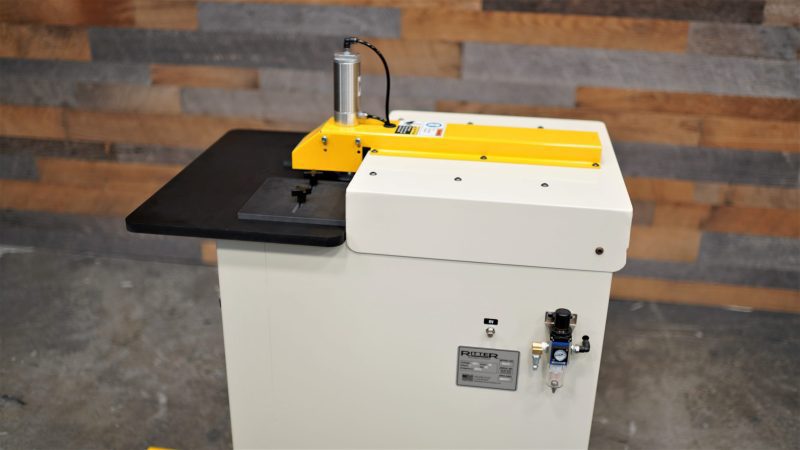

Ritter R2061 6° Low-Angle Pocket Screw Machine (Single Phase)

$5,290.00

The R2061 is the NEWEST Low-Angle Pocket Screw machine from Ritter, released in 2021. In our opinion, it is the best machine out there.

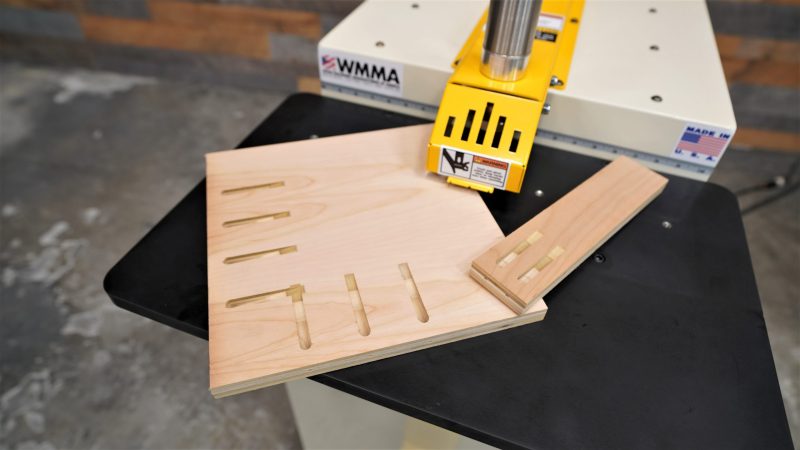

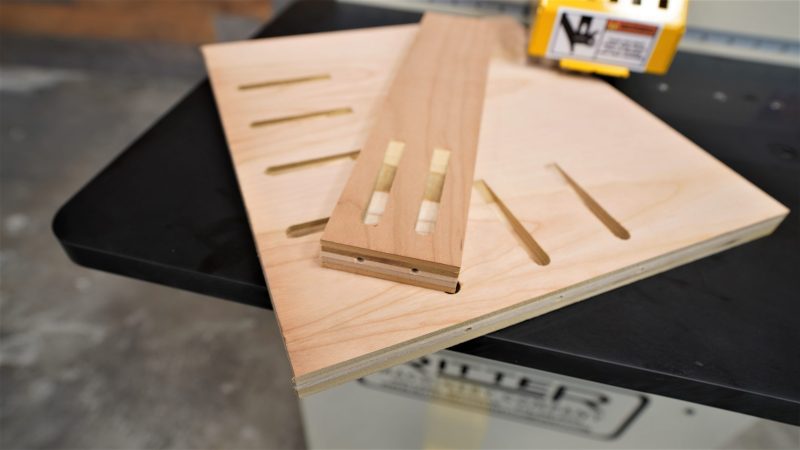

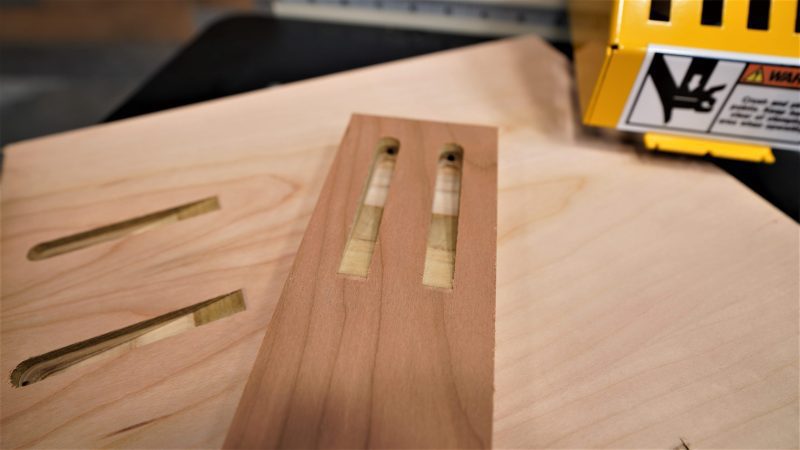

Remember, unlike drill tubs, these machines route the low-angle pocket. The low-angle pocket allows for a stronger joint, while routing the pocket means fewer split parts, especially in knotty wood species. These are also the heaviest-built pocket screw machines on the market and are made right here in the USA.

Add to quote

Standard Features:

6° Low angle
PLC controlled cycle

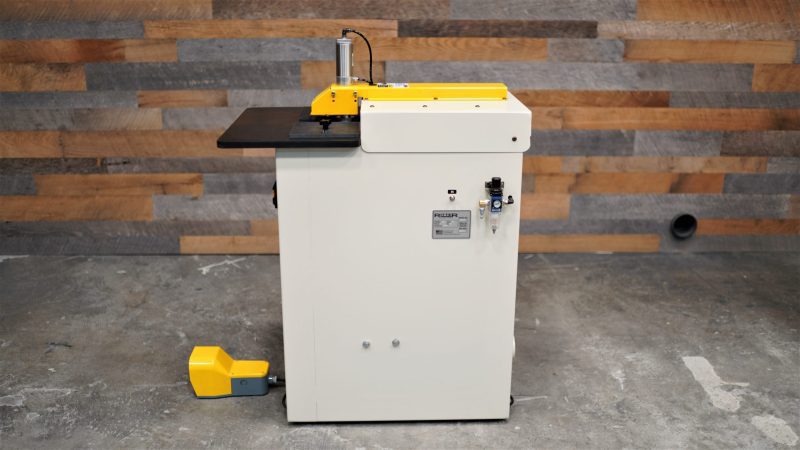

Foot pedal operated

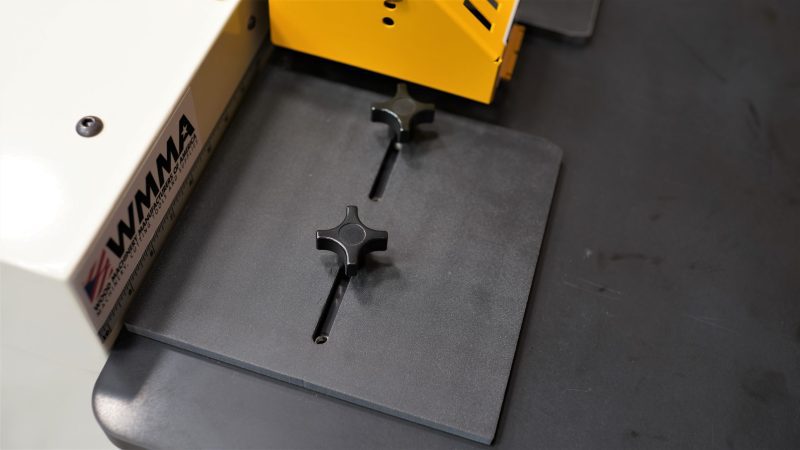

Adjustable Material Stops
Up to 2″ thick material
Cycle Time: 1.75 – 2 Sec
Tooling Included

Technical Data and Specifications:

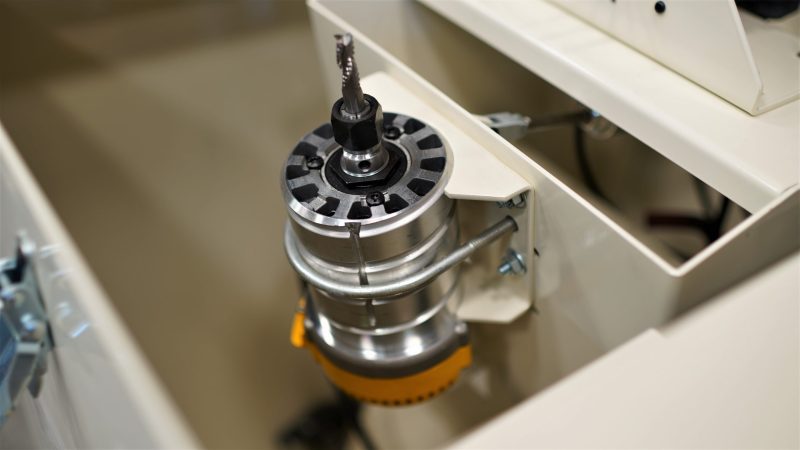

Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,500 RPM, 11 A, 1.75 HP

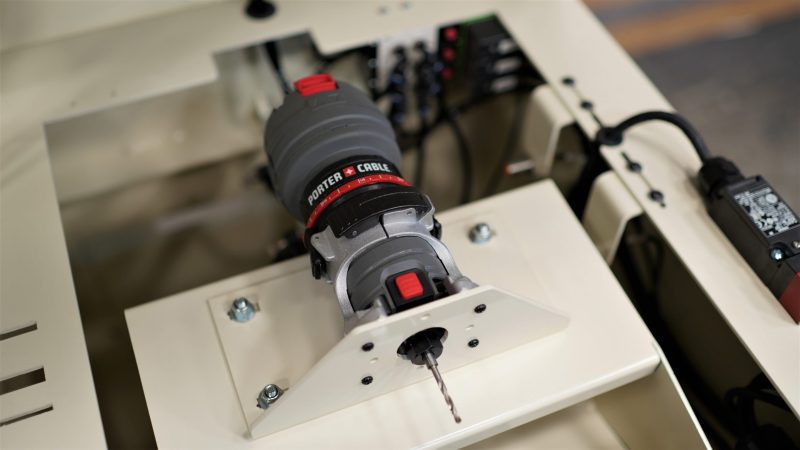

Drill: 31,000 RPM, 4.5 A, 7/8 HP
Electrical: 110V 15A

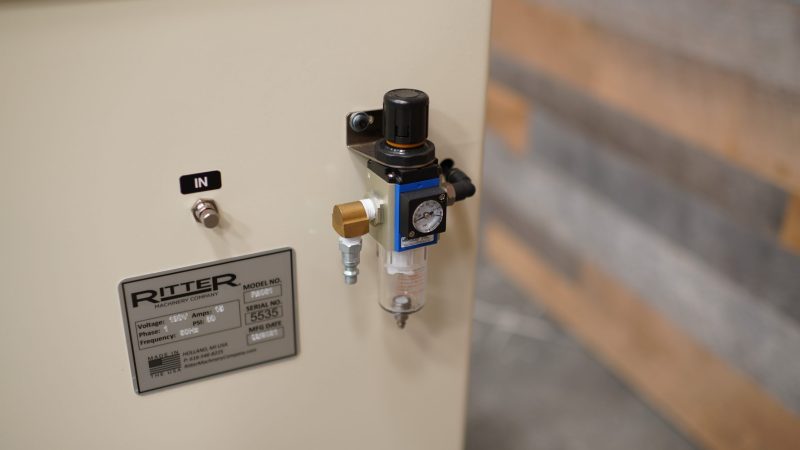

Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″

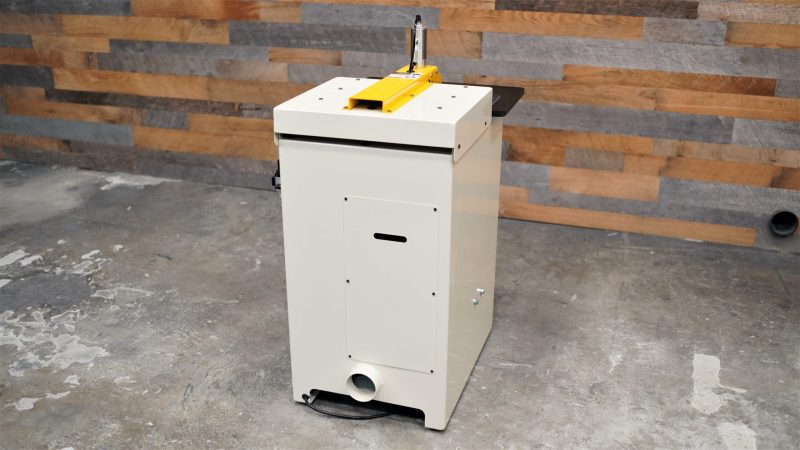

Dust Port: 4″

Shipping Weight: 300 LBS
Shipping Dimensions: 38″ x 25″

Additional options for this machine include:

48″ Wide Table (add $375)
R2063 – 3-Phase 230/460 Volt

The Ritter R2061 is used for routing a single pocket hole for cabinet face frame assembly. It is part of the R200 assembly system that includes the R200E/A and is sold separately.

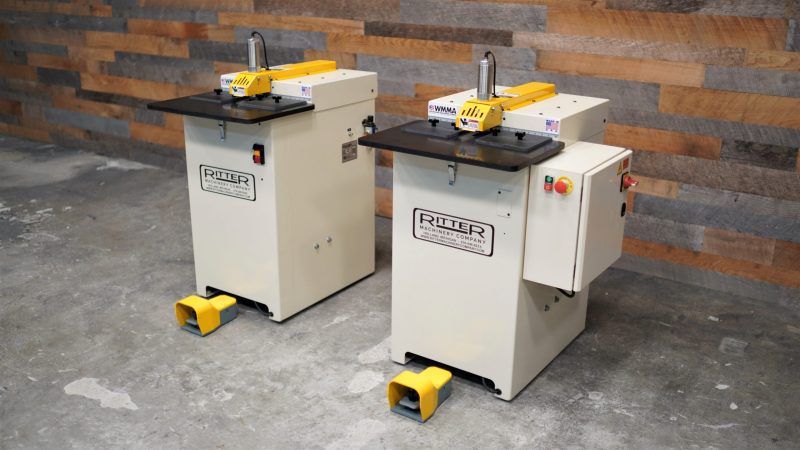

Need 3 Phase? Check out the R2063
