| Model Number | 4430 |
|---|---|
| Overall Dimension | 51”(L) x 40”(W) x 46-1/2”(H) |
| Ph | 1Ph |
| Stock No. (5HP, 1Ph) | 4430.201 |
| Stock Number | M-4430 |
| Maximum Stock Width | 20″ |
| Maximum Depth of Cut | 1/4″ (Stock less than 8” wide) 1/8”(Full Width) |
| Maximum Stock Thickness | 8″ |
| Minimum Stock Thickness | 1/4″ |
| Minimum Stock Length | 7″ |
| Dust Port Diameter | 5″ |
| Minimum CFM Required | 650 CFM |
| Feed Speeds | 16/20 |
| Bed Rollers | 1, Adjustable |
| Table Size | 21” x 20” |
| Table Size w/Extension Wings | 51” x 20” |
| Table Height | 29-3/4” |
| Cutterhead Diameter | 3-1/4″ |
| Cutterhead Speed | 3450 RPM |
| Number of Knives | 68 |
| Number of Knives (helical) | 68 |
| Footprint | 22-1/2” (L) x 28-3/4”(W) |
| Footprint – with Table | 51”(L) x 40”(W) x 46-1/2”(H) |

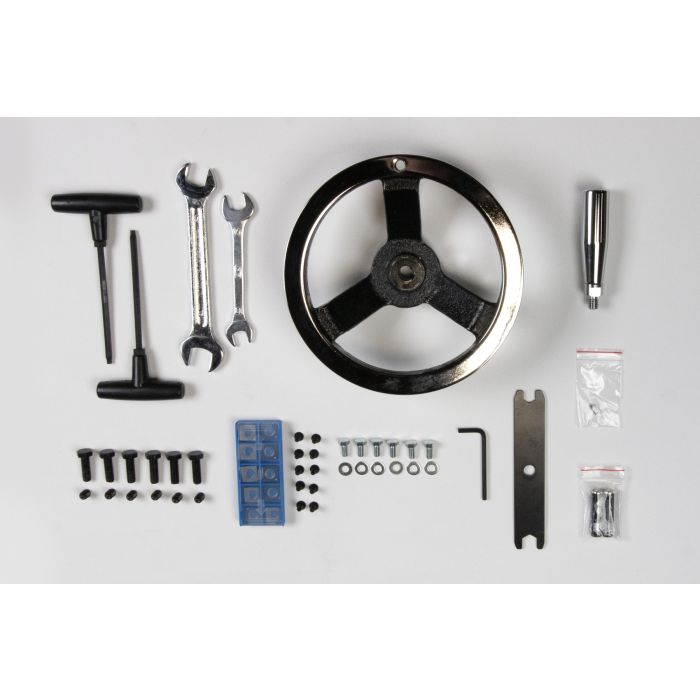

| Motor | Included 10 Cutter inserts and compatible Torx screws. |
| Motor 1Ph | 5HP 1Ph 230V (1Ph, 18 Amp) |
| Overall Dimensions | 38-1/4” (L) x 32”(W) x 51-3/4”(H) |
| Net Weight | 546 lbs. |
| Gross Weight | 625 lbs. |
Oliver 22” Planer W/Oliver HCX Helical Cutterhead - 4455.103T - 10HP, 3PH
$9,999.99 – $10,199.99
Oliver 16" Parallelogram Jointer w/Oliver HCX Helical Cutterhead - 4275C.753T - 7.5HP, 3PH
$8,999.99 – $9,299.99
Oliver 20 Planer W/Oliver HCX Helical Cutterhead – 5HP, 1PH – M-4430
$4,299.99

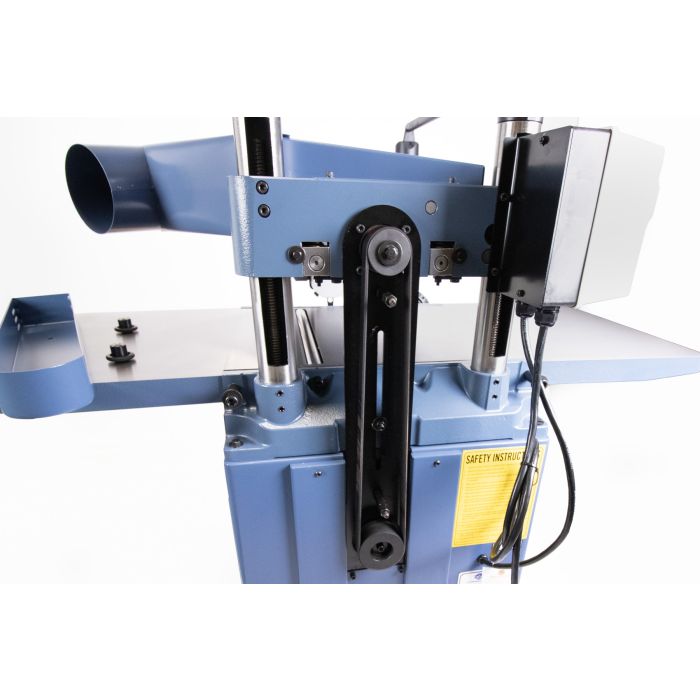

- Unique design allows motor and cutter head to move in unison.
- Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping.
- Oliver HCX Helical cutterhead with premium carbide inserts.
- 4-sided cutting inserts are indexed and easy to replace.
- Heavy cast iron construction including extension wings.
- Table is precision ground for smooth stock feeding
- Table is fixed allowing easy use of auxiliary stock support
- Wixey digital read out allows precise thickness settings
- Large hand wheel and support struts allow easy height adjustment.
- Four-post design ensures head alignment regardless of stock thickness.
- Top mounted roller for easy multiple passes.
- Two-speed feed gearbox for better cuts.
- Oil bath gear lubrication for years of performance.
- 5” port allows excellent dust management.
- Built-in heavy-duty casters for mobility.

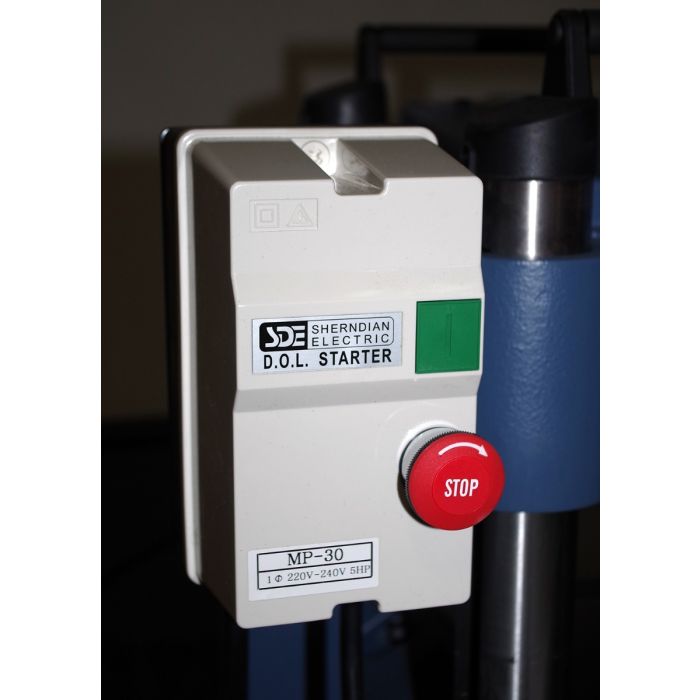

- Magnetic switch for added protection and safety.
- CSA listed.
