Northtech NT 760XL 40HP+30HP Double Surface Planer (w/ Helical Cutter Heads)
This double-surface planer from Northtech uses a 40 HP motor up top and a 30 HP motor underneath. Each one drives a helical insert cutter head that has been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. A VFD-controlled 5 HP motor governs the carpet spike feed system (with 1,350 hardened spikes!) to steadily feed material up to 29-15/16” (W) and 8″ (H) through the machine. Two (2) 8″ dust ports ensure efficient removal of shavings. The automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.
ⓘ Unlock Your Best Price!
By clicking the button below, you'll receive personalized pricing tailored to your needs, including available discounts and accurate shipping costs. We're committed to offering you the best value, but some of our special rates can't be displayed online.Don't miss out – request your quote now!
Cutter Heads:
- 40 HP Top, 30 HP Bottom
- Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
Product Dimensions:
- Max working width 29-15/16”
- 12-1/2” min working length
- Thickness range (3/8” – 8”)
Feed System:
- 5HP + 7.5HP inverter feed motor
- Elevation motor: 1HP
- Carpet feeding spike system with 1350 spikes
- Feed speed 25 – 70 FPM
Features:
- Digital control panel with 3 oversized inverter feed control amp meters
- Carpet feeding spike system
- 70 FPM maximum feed speed
- Amperage requirement at 95 Amps @ 460V; 190 Amps @ 230V
- (2) 8” dust ports requiring 3488 Total CFM
- UL/CE Certified electrical components
- Lubricating system
- Includes operator’s manual and parts book
- Machine dimensions: 105”L x 59”W x 75”H
- Packing dimensions: 110”L x 58”W x 71”H
- Machine gross / net weight: 8,352 lbs. / 7,822 lbs
- One-year parts warranty
- All machines are tested stateside before shipment providing trouble-free start-up.
Specifications:
- Top Head Hp. = 40 Hp.
- Bottom Head Hp. = 30 Hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 190/95 Amps
- Feed Hp. = 5 Hp.
- Feed System = Carpet Feed / Powered Rollers

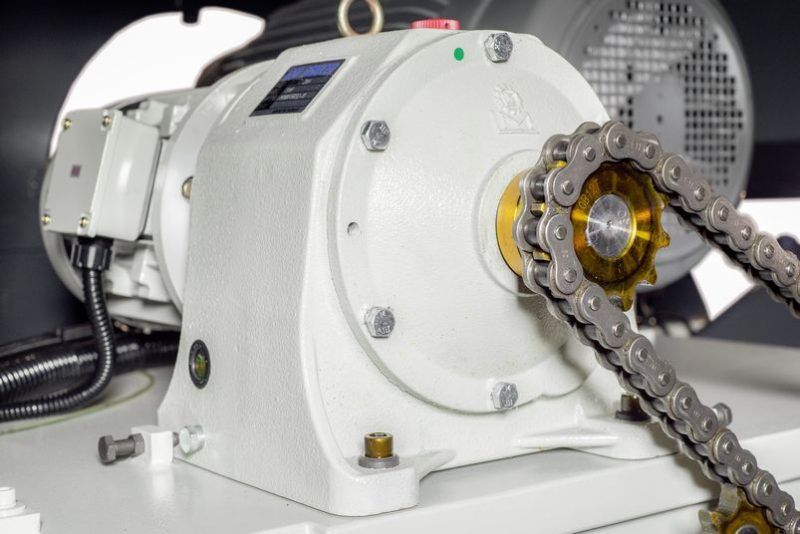

- Drive System = Gearbox Chain Drive
- Feed Speed = 25 – 70 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1 Hp.
- Elevation Style = GTM-525-A Controller
- Elevation Sys. = (4) Post Jack Screw
- Total Hp. = 76 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Programmable = Elevation
- Operator Panel = Fixed
- Pass-Line = 32”
- Min. Length = 12-1/2”
- Min. Width = 2″
- Max. Width = 29-15/16”
- Min. Thickness = .396”
- Max. Thickness = 8”
- Cutter Head RPM = 5750 Rpm
- Head Type = Dynamically Balanced Helical Head
- Cutter Head Dim = 5” x 30”
- Cut Head Matl. = Alloy Steel
- Rows of Cutters = 6 Rows
- No. of Inserts = 114 Top 114 Bottom
- Insert Size = 30 x 12 x 2.5 mm
- No. of Heads = 2
- Dust Collection = (2) 8” 3488 Total CFM
- Digital Display = Elevation and Feed Speed
- Powered Rollers = (2) Top (2) Bottom
- Idle Rollers = (1) Top (1) Bottom
- Pressure Shoes = (15) 2” Chip Breakers
- Hold Down Style = Chip Breakers/ Pressure Plate
- No. of Spikes = 1350 Spikes
- Rear E Stop = Push Button
- Guarding = Full Enclosure
- Oiler = (1) Auto (1) Manual Oiler
- Low Oil Warning = Low Oil Shut Off / Warning
- Frame Const. = Cast Construction
- Slip Clutch = Clutch on Chain Drive
- Decible Rating = 77 dB
- Net Weight = 7822 Lbs.
- Gross Weight = 8352 Lbs.
- Machine Dims. = 105” x 59” x 75”
- Packaging Dims = 110” x 58” x 71”
