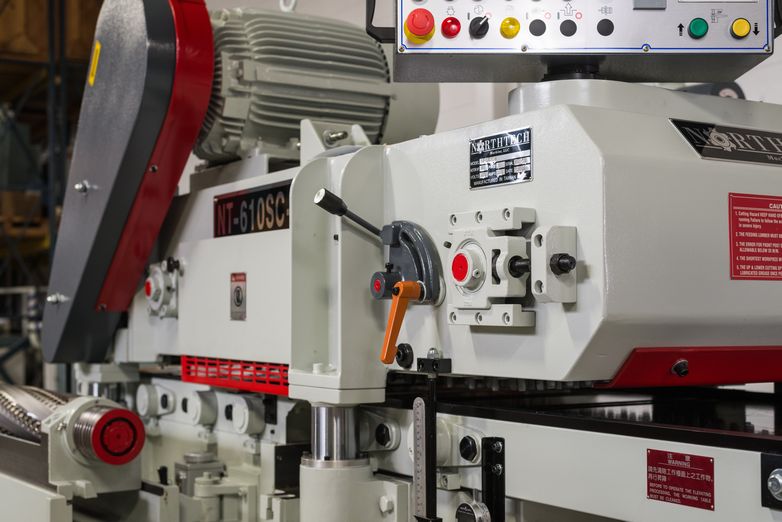

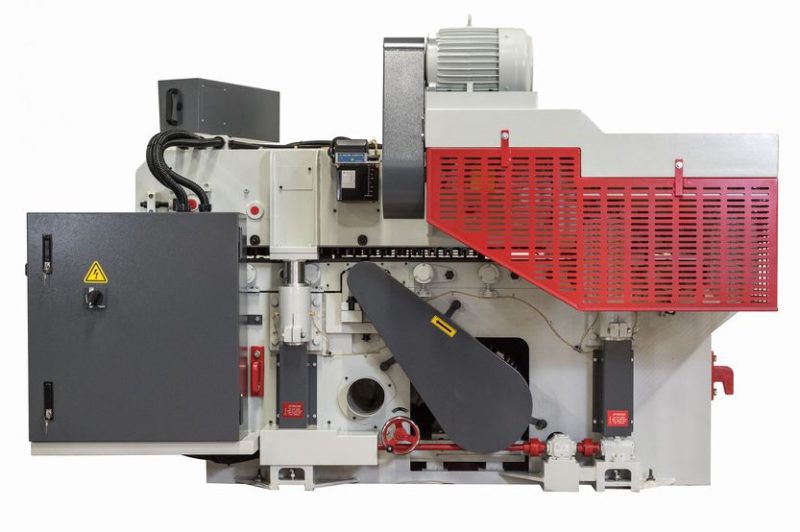

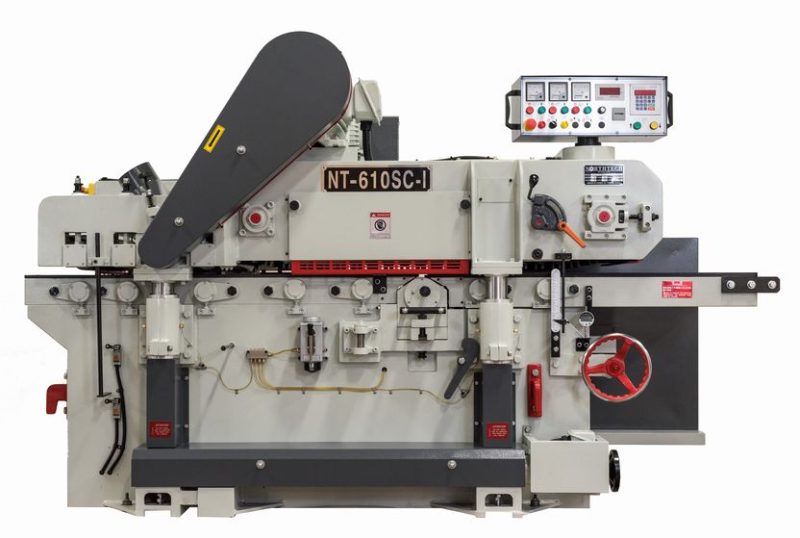

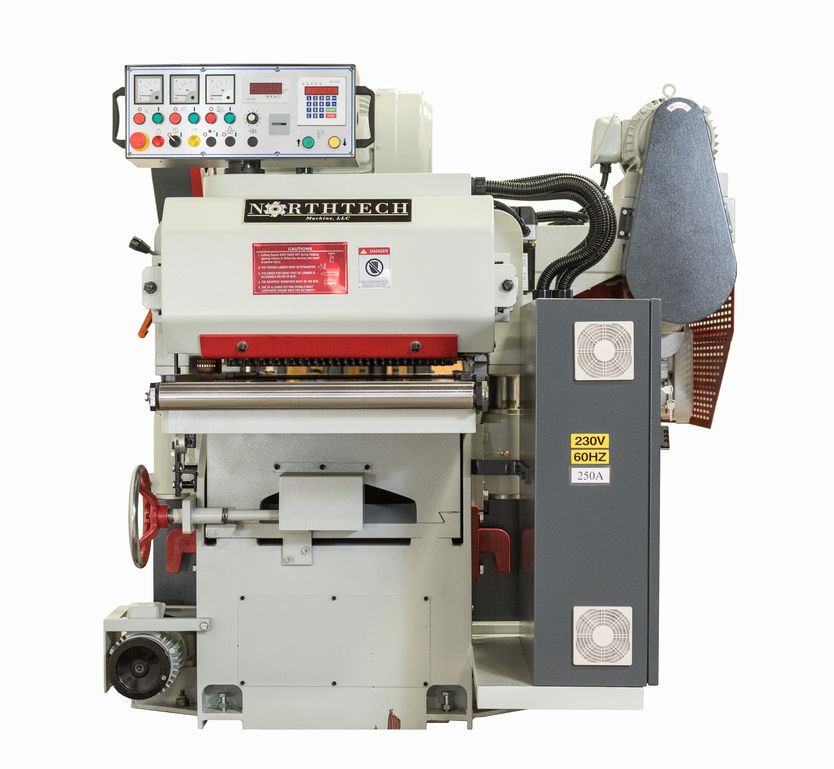

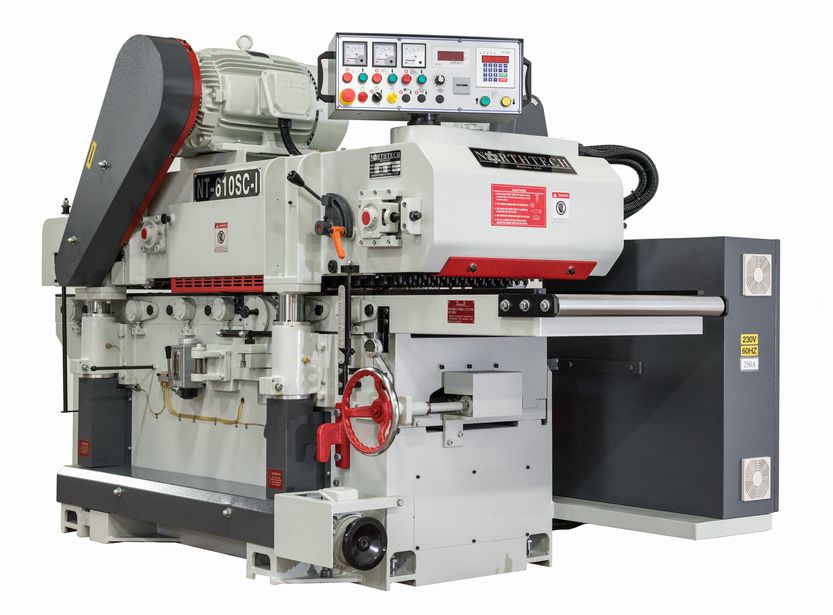

Northtech NT 610SC-I 40HP+30HP Double Surface Planer (w/ Helical Cutter Heads)
This double-surface planer from Northtech uses a 40 HP motor on the top cutter and a 30 HP motor on the bottom cutter. Both 5-1/2″ diameter helical insert cutter heads have been dynamically balanced to reduce noise and vibration, resulting in longer life and smoother finish. Material up to 24” (W) by 7-3/4” (H) is precisely pulled through the machine by a VFD-controlled 5 HP motor driving a carpet spike feed system with 1,500 hardened spikes. Two (2) 6″ dust ports efficiently extract shavings while the automatic lubricator keeps everything running smoothly with less required maintenance. Digital controls ensure simple, accurate, and precise control of thickness and speed settings.
For current product availability and our most competitive price delivered, please contact us using the “Request A Quote” button below. Due to vendor restrictions, we cannot always advertise our highly competitive pricing online.
Cutter Heads:
- 40 HP Top, 30 HP Bottom
- Dual (6) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
Product Dimensions:
- Max working width 24”
- 14” min working length
- Thickness range (5/16″ – 7-3/4”)
Feed System:
- 5HP + 7.5HP inverter feed motor
- Elevation motor: 1HP
- Carpet feeding spike system with 1500 spikes
- Feed speed 30 – 90 FPM
Features:
- Dual (6) Row Helical Cutterhead with 30 x 12 x 2.5mm inserts
- Patented 4-column lifting system • Carpet feeding spike system
- Cardan shaft drive system
- 100 FPM maximum feed speed • Chrome bedplate
- Amperage requirement at 230 / 460: 247 / 124

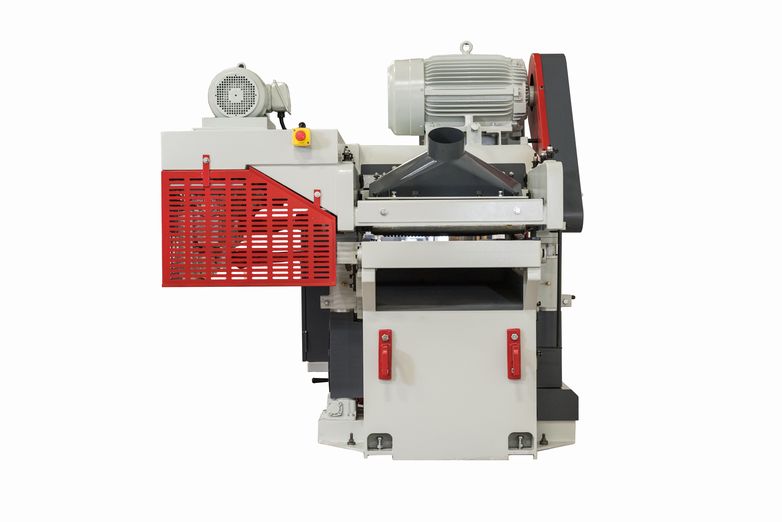

- (2) 6” dust ports
- Dust collection requirements: 1,000 CFM @ points of extraction
- Includes operator’s manual and parts book
- Machine dimensions: 108” L x 67” W x 73” H
- Machine gross / net weight: 9,700 / 9,259 lbs
- One-year parts warranty
- All machines are tested stateside before shipment providing trouble-free start-up.
Specifications:
- Top Head Hp. = 40 Hp.
- Bottom Head Hp. = 30 Hp.
- Voltage/ Freq. = 230/460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 218/109 Amps
- Feed Hp. = 5 Hp.
- Feed System = Carpet Feed / Powered Rollers

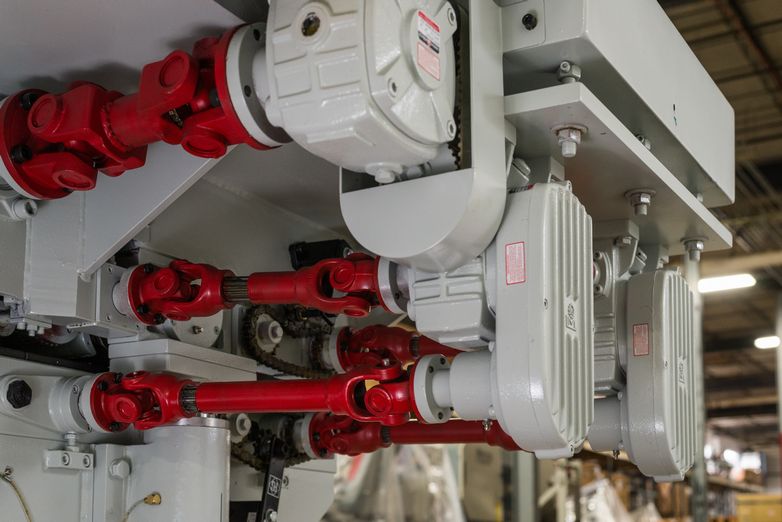

- Drive System = Cardan Shaft Drive System
- Feed Speed = 30 – 90 FPM

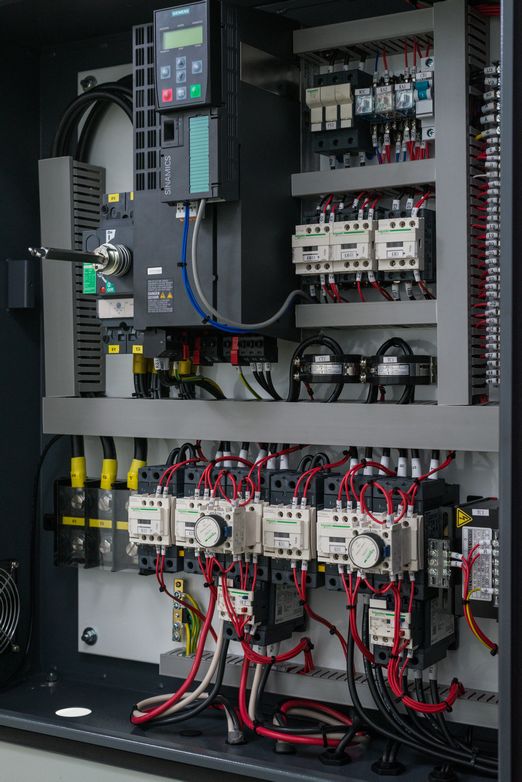

- Variable Speed = 7.5 Hp. VFD
- Elevation Hp. = 1 Hp.
- Elevation Style = DP-626S Elevation Control
- Elevation Sys. = (4) 3-1/4” Geared Lifting Columns
- Total HP. = 76 HP.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt

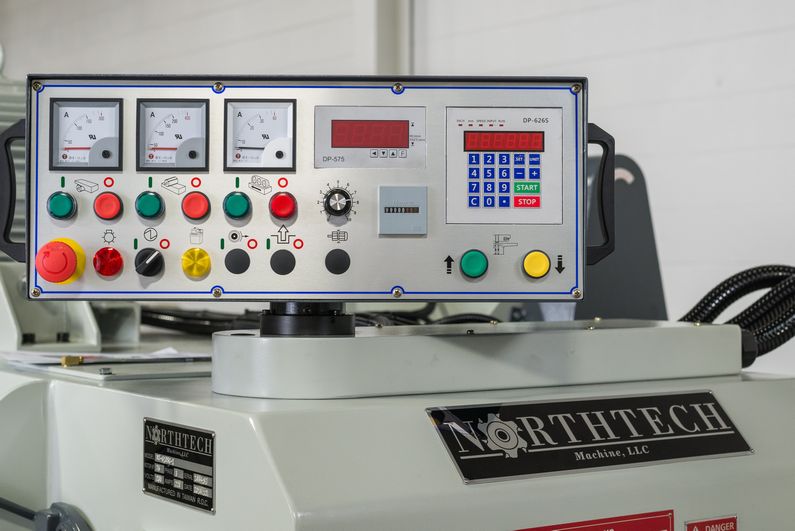

- Operator Panel = Adjustable Operator Panel
- Min. Length = 14”
- Min. Width = 2″
- Max. Width = 24”
- Min. Thickness = .315”
- Max. Thickness = 7-3/4”
- Cutter Head RPM = 5100 Rpm

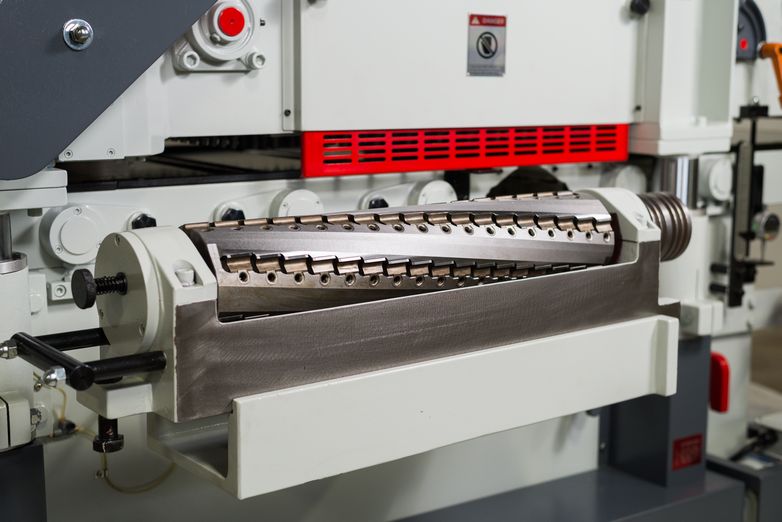

- Head Type = Dynamically Balanced Helical Head
- Cutter Head Dim = 5-1/2” x 24”
- Cut Head Matl. = Alloy Steel
- Rows of Cutters = 6 Rows
- No. of Inserts = 105 Inserts
- Insert Size = 30 x 12 x 2.5 mm
- Dust Collection = (2) 6” @ 1962 CFM
- Dust Port Out = 6” Top 6” Bottom
- Powered Rollers = 3 Top 3 Bottom Powered Roller
- Idle Rollers = (4) Idle Bed Rollers

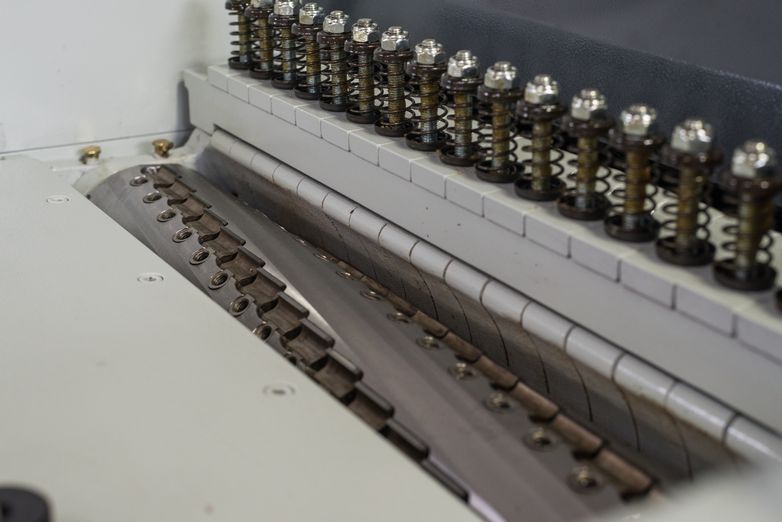

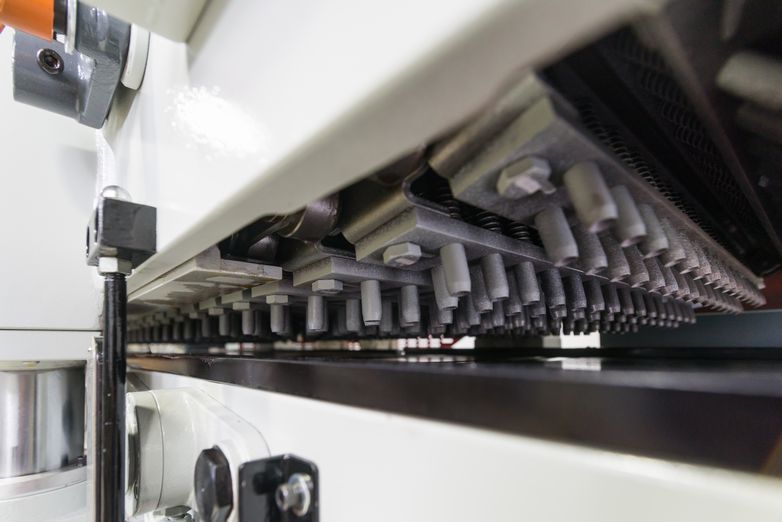

- Hold Down Style = Chip Breakers/ Pressure Plate
- No. of Spikes = 1500 Spikes
- Rear E Stop = Push Button
- Guarding = High Visibility Guarding

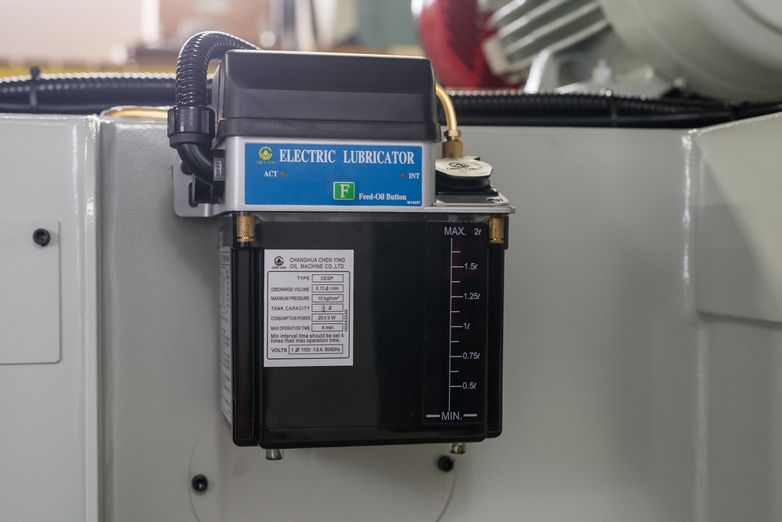

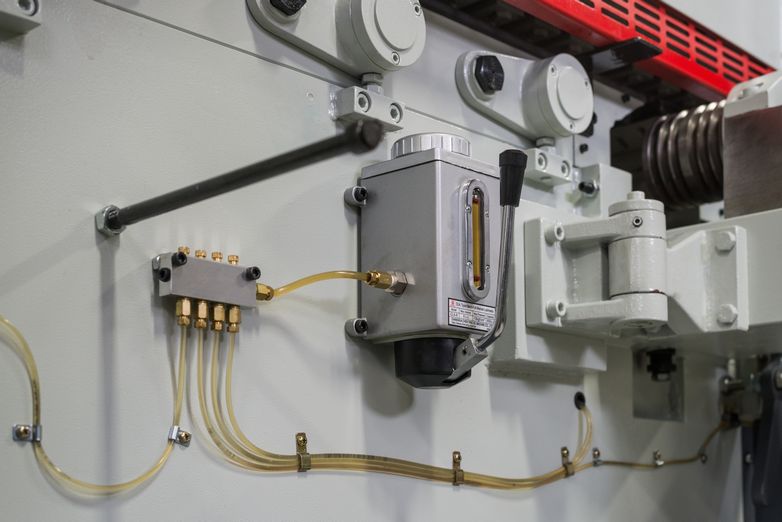

- Oiler = Auto Digitally Controlled / Ma
- Low Oil Warning = Low Oil Shut Off / Warning
- Frame Const. = 1/2” Steel/Cast Iron Construc

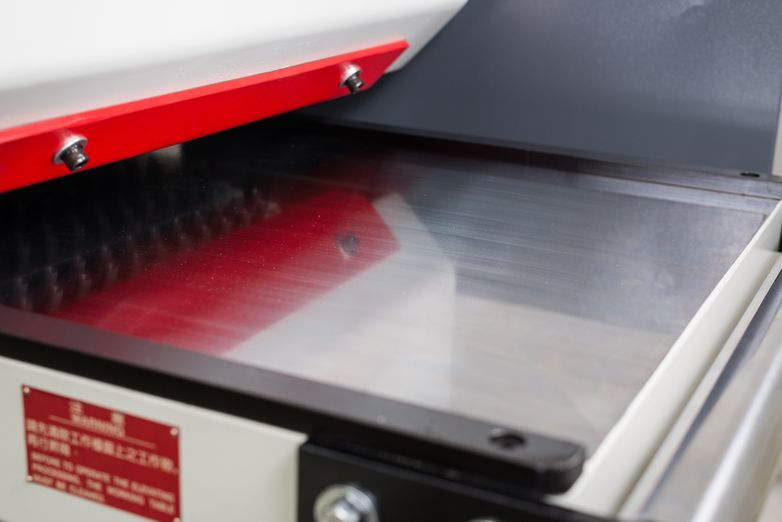

- Chrome Bed = .004” Chrome Plated Bed
- Decible Rating = 80 dB
- Net Weight = 9259 Lbs.
- Gross Weight = 9700 Lbs.
- Machine Dims. = 110” x 67” x 73”
- Packaging Dims = 116” x 76” x 78”
