Features:
| The helical cutterhead on Oliver’s 4420 Planer includes German-made carbide inserts. |
| Carbide inserts are indexed for quick changing. |
| Heavy cast iron construction, including extension wings, supports even the heaviest stock. |
| Table and extension wings are precision ground allowing smooth operation. |
| Top rollers allow for easy return of the stock. |
| The four-post design ensures table alignment regardless of stock height. |

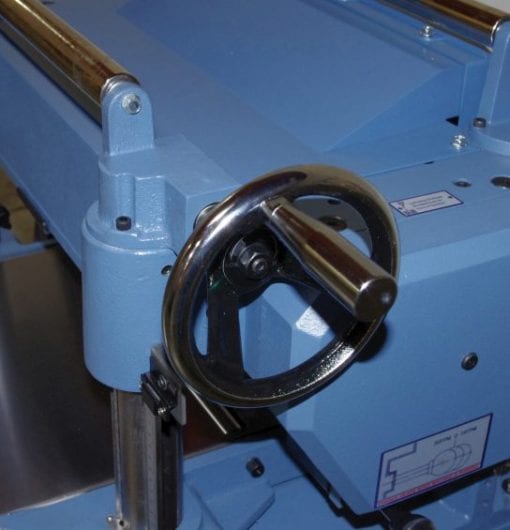

| A large hand wheel allows easy height adjustment. |
| Serrated steel infeed roller provides smooth feeding. |
| A 2-speed gearbox provides the perfect feed rate. |
| Polished built-in table roller assists movement of rough stock—magnetic controls for safer operation. |

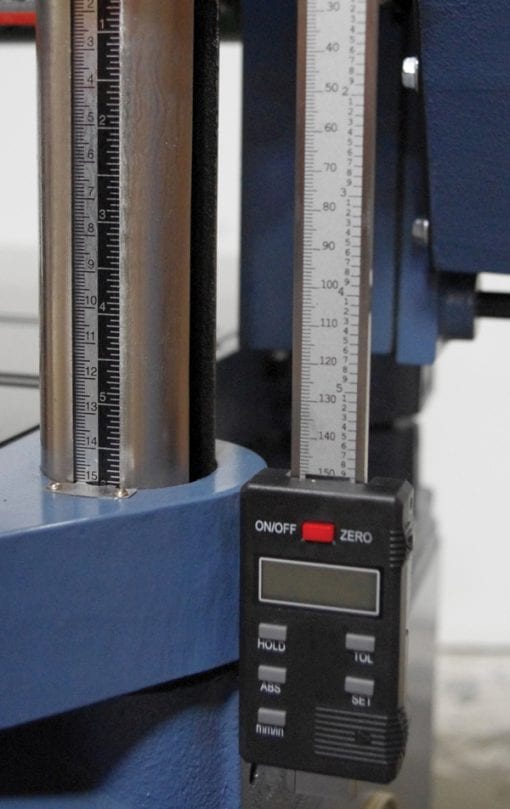

| Digital readout allows precise thickness settings. |
| Built-in casters with locks for easy mobility. |
| 4” dust chute easily handles chip removal. |
| Matched 3 V-belt drive smoothly transfers power to drive train and cutter head. |
| A powerful TEFC motor is available in single- or three-phase. |
Specifications:
Model Number: |
4420 |
Stock No. (5HP, 1Ph) |
4420.201 |
Stock Number: |
0 |
Maximum Stock Width: |
16” |
Maximum Depth of Cut: |
1/8” |
Maximum Stock Thickness: |
6″ |
Minimum Stock Thickness: |
3/8” |
Minimum Stock Length: |
6” |
Dust Port Diameter: |
4” |
Infeed Roller Diameter: |
3” |
Feed Speeds: |
16/20 FPM |
Bed Rollers: |
2, Adjustable |
Table Size: |
16” L x 20” W |
Table Size w/Extension Wings: |
16” L x 44” W |
Cutterhead Diameter: |
2-7/8” |
Cutterhead Speed: |
4,800 RPM |
Number of Knives: |
90 |
Number of Knives (helical): |
90 |
Footprint – Base: |
24” x 21” |
Footprint – with Table: |
30” x 44” |
Table Support: |
4-Column |
Motor |
5HP, 220V Only (1Ph, 23 Amp) |
Motor 1Ph |
5HP, 220V Only |
Net Weight |
571 lbs. |
Gross Weight |
675 lbs. |
